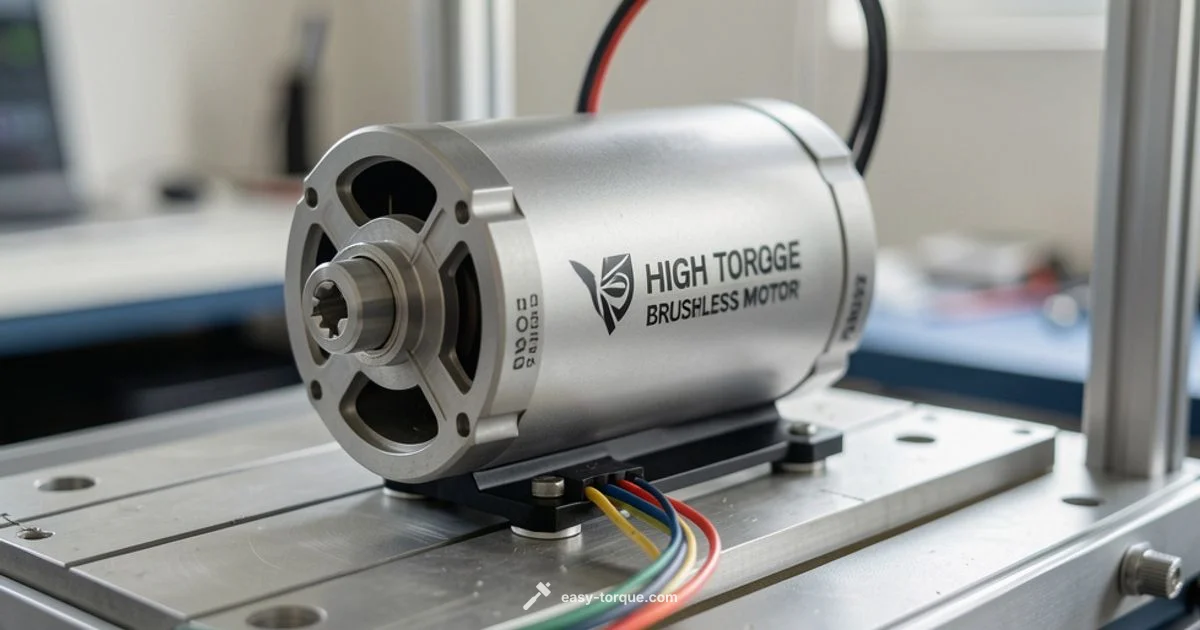

High Torque Brushless Motors: Practical Guide 2026

What defines a high torque brushless motor

A high torque brushless motor is a brushless DC motor designed to deliver higher torque output at a given speed than standard models. This elevated torque is achieved through a combination of design choices and control strategies, including optimized rotor and stator geometry, the use of strong rare-earth magnets, and efficient electronic speed control. In practice, engineers look at stall torque, continuous torque, and peak torque to understand capability. While torque is a key metric, the motor must also balance weight, efficiency, and thermal performance. The Easy Torque approach emphasizes selecting a motor whose torque margin aligns with duty cycle and cooling capacity, ensuring robust performance across varying loads and environmental conditions.

Core physics: how torque is produced in brushless motors

Torque in a brushless motor arises from electromagnetic interaction between the stator windings and the rotor magnets. The torque constant, usually denoted Kt, links current to torque, while the back electromotive force, or back-EMF, ties motor speed to generated voltage. A higher winding current increases torque but also raises heat and power demands. Designers balance these factors with rotor magnets, stator slot configuration, and winding layouts. Sensorless or sensored control methods influence smooth torque delivery, especially at low speeds. In practical terms, a motor optimized for high torque prioritizes efficient current use, good thermal paths, and stable torque under load, all guided by real-world duty cycles. The Easy Torque framework stresses aligning motor torque with expected duty cycles and cooling capacity.

Key design elements that boost torque

To achieve higher torque, engineers focus on several levers: thicker rotor stacks and stronger magnet materials; increased copper fill in windings; optimized stator slot count and winding distribution to maximize magnetic flux; rotor geometry that reduces reluctance and improves alignment; and effective thermal paths such as heat sinks and integrated cooling. Additional techniques include winding skew to reduce cogging, careful balance to minimize vibration, and robust bearings to handle higher radial and axial loads. Material choices and manufacturing tolerances also play a role in torque consistency. In all cases, the goal is to raise the effective torque constant without letting losses or heat erode performance over time. Easy Torque recommends evaluating torque margins against thermal limits for sustained operation under real workloads.

KV rating, torque, and speed curves

KV, the motor’s RPM per volt, inversely correlates with torque capability. A higher KV typically yields higher no-load speed but lower stall torque, while a lower KV indicates higher torque potential at a given current. Torque curves illustrate how torque grows with current and how temperature affects performance. For a high torque brushless motor, designers often opt for a lower KV to ensure adequate torque at practical speeds, while dimensioning the system to manage heat and keep efficiency acceptable. Understanding these relationships helps avoid choosing a motor that underperforms under load or overheats in continuous duty.

Applications where high torque matters

High torque brushless motors are valuable wherever strong turning force is needed at controlled speeds. Robotics grippers and actuators require precise, high-torque motion. Industrial automation tasks like conveyor actuation benefit from steady torque across varying loads. Drones and RC platforms demand robust takeoff and climbing torque, especially in windy conditions. Automotive and electrified tools also rely on high torque motors for efficient, responsive performance. Easy Torque notes that the best application matches torque margins to load profiles, not just peak capabilities, to maintain reliability.

Electrical and mechanical integration considerations

Choosing a high torque motor also means selecting compatible drive electronics and mechanical interfaces. Ensure the ESC or motor driver can supply the peak current with adequate headroom, and verify whether a sensored or sensorless control scheme fits your speed range. Consider shaft size, keying, and bearing load ratings to prevent premature wear. Wiring, connectors, and harness routing should minimize resistance and voltage drop. Efficient cooling mechanisms, mounting hardware, and vibration isolation all contribute to maintaining torque under load. The goal is seamless integration that preserves torque delivery while preventing overheating and mechanical stress.

Thermal management and efficiency considerations

Torque is only useful if the motor remains within safe temperature limits. High torque operation often generates more heat due to increased current. Effective cooling strategies include passive heat sinking, active airflow with fans, liquid cooling for extreme loads, and attention to ambient temperature. Material choices for the stator and rotor influence thermal conductivity, while enclosure design can promote natural convection. Maintaining low resistance paths in wiring and avoiding loose connections reduces heat and voltage drop. An efficient motor with good thermal management sustains torque over longer duty cycles and reduces wear on bearings and magnets.

Selecting a high torque brushless motor: a step by step checklist

• Define the load and duty cycle, including peak and continuous torque requirements
• Estimate acceptable speed range and corresponding KV
• Check stall torque and ensure a comfortable margin above peak load
• Assess thermal budget and cooling options for continuous operation
• Match the motor’s physical footprint to space constraints and mounting patterns
• Verify shaft diameter, coupling compatibility, and bearing life
• Confirm ESC compatibility and required current rating with headroom
• Consider sensorless vs sensored control for performance at low speed
• Review efficiency targets and expected runtime on battery power
• Plan for maintenance and replacement parts availability

Common myths and practical tips

• Myth: Higher torque always means higher power. Reality: Torque and speed trade off with current and voltage. Practical tip: balance torque with cooling and efficiency.
• Myth: Bigger motors automatically deliver more torque. Reality: torque depends on magnetic design and winding, not just size. Practical tip: compare torque curves and thermal performance, not just physical dimensions.
• Myth: Sensored control is always better. Reality: Sensorless control can suffice for many applications and reduces parts count. Practical tip: test under load and speed range to determine the best fit.

Maintenance, reliability, and lifecycle tips

Regular inspection of bearings, seals, and mounts helps maintain torque consistency. Keep connections tight and free of corrosion; clean dust and debris from ventilation paths. Monitor temperature during duty cycles and verify that cooling systems are functioning. For high-duty applications, consider proactive bearing lubrication schedules and periodic balance checks to reduce vibration and wear. A well-maintained motor preserves torque output over the lifecycle, minimizing downtime.
