Mastering the Inch-Pounds Torque Wrench: Use, Calibrate, and Maintain
A practical, step-by-step guide to using an inch-pounds torque wrench. Learn how to read the scale, convert units, calibrate, maintain accuracy, and apply best practices for automotive and mechanical fasteners.
This guide helps you master an inch-pounds torque wrench, enabling precise tightening of small fasteners. You’ll learn to read the scale, perform unit conversions, choose the right wrench, calibrate for accuracy, and apply safe tightening techniques. With these steps, DIY mechanics and professionals can consistently achieve correct torque values and protect critical engine and suspension components.
Why inch pounds torque wrench matters\n\nTorque accuracy matters in nearly every automotive repair or assembly task. The inch pounds torque wrench is purpose-built to deliver small, precise rotations that protect threads, gaskets, and joints. When a fastener is tightened too little, components can loosen; too tight and you risk snapping studs, stripping threads, or damaging bearing surfaces. This is especially true for critical joints near cylinder heads, oil pan bolts, and suspension components where even a small deviation can cascade into leaks or performance problems. In this section we’ll explore why this specific measurement—inch-pounds—matters for common DIY projects as well as professional service. The goal is to help you understand how the torque value translates into real-world results, and why following the spec sheet with an inch pounds torque wrench is a reliable way to achieve repeatable, safe outcomes across repairs.
Torque basics and why inch-pounds range matters\n\nTorque is the rotational force applied to a fastener, and the unit used to express it depends on the context and the hardware. Inch-pounds are commonly used for small fasteners in engines and electronic components, while larger fasteners use foot-pounds or newton-meters. Understanding where inch-pounds fit helps you avoid misinterpretation when reading manuals or service data. A wrench calibrated in inch-pounds makes it easier to stay within specs for small fasteners such as sensor bolts, valve covers, or timing belt pulleys. In contrast, heavy-duty applications may require higher ranges. The key takeaway: know the exact unit shown in your service data and select a wrench whose scale covers that range without needing frequent conversions during tight work.
How to read the scale on an inch-pounds torque wrench\n\nMost inch-pounds torque wrenches provide a dial, digital readout, or scale on the handle that you set before tightening. Start by choosing the target value from your service manual, expressed in in-lb. Rotate the adjustment mechanism until the indicator aligns with the marking. If you have a beam-style wrench, align the indicator with the mark at the end of the scale after applying force. When you tighten toward the target, apply smooth, even pressure and avoid jerky motions that can create peak spikes. Once the fastener reaches the audible or tactile signal, stop immediately. Confirm the value by rechecking once the bolt settles, as thread compression, gasket sealing, and component seating can shift the effective torque slightly. Calibration drift over time can affect accuracy, so periodic checks are recommended.
Converting between in-lb, ft-lb, and newton-meters\n\nTorque values circulate between inch-pounds (in-lb), foot-pounds (ft-lb), and metric newton-meters (N·m). A common need is converting in-lb to ft-lb, or to N·m for page references or cross-compatibility with other tools. The basic conversions are: 1 ft-lb = 12 in-lb, and 1 in-lb ≈ 0.112985 N·m. For quick work, memorize 1 ft-lb ≈ 1.356 N·m. Use the wrench’s built-in conversion if available, and always round to the manufacturer’s specified tolerance rather than rounding aggressively. When in doubt, consult a torque conversion chart or a reputable service manual. Practically, this knowledge helps you compare data across vehicles and avoid misinterpretation when using parts lists written in different units.
Choosing the right wrench for your inch-pound range\n\nStart by identifying the smallest and largest fastener you expect to torque, and choose a wrench whose range comfortably covers that window without crowding the scale. For inch-pounds, common family ranges include compact units around 10–150 in-lb and mid-range models around 20–250 in-lb. Consider the scale resolution: finer graduations give more precise control, especially for delicate fasteners. Decide between click, beam, or digital styles based on your preference for feedback, durability, and cost. If you frequently encounter both small and mid-range fasteners, a dual-range wrench or two instruments with overlapping ranges can reduce switching and recalibration time.
Calibration: keeping your torque wrench accurate\n\nCalibration is the process of confirming that the wrench reads true torque against a standard. Ideally, calibrate according to the manufacturer’s recommendations, typically once per year or after a certain number of uses. In the interim, perform routine checks with a known reference weight or a calibration service if your shop demands higher accuracy. Keep records of calibration dates, torque settings tested, and any drift observed. Minor drift is common with age or heavy use, but consistent drift should trigger recalibration or replacement. A well-calibrated wrench maintains reliable, repeatable results across jobs and prevents under- or over-torquing.
Proper technique to tighten fasteners with an inch-pound torque wrench\n\nTechnique matters as much as the tool. Position yourself so you can apply steady pressure without twisting your wrist. If your tool features a click, stop at the moment you hear or feel the
Tools & Materials
- Torque wrench with inch-pound scale(Choose a model with clear, readable markings and a comfortable handle; common ranges include 10–150 in-lb or 20–250 in-lb.)
- Torque extension bar or adapter (optional)(Used to reach hard-to-access fasteners while maintaining perpendicular alignment.)
- Calibration certificate or reference torque chart(Keeps you aligned with manufacturer specifications for each fastener type.)
- Safety gear (eye protection, gloves)(Protects eyes from metal shards and protects hands during tightening.)
- Notepad or digital log for torque records(Record target values and actual readings for maintenance history.)
Steps
Estimated time: 25-45 minutes

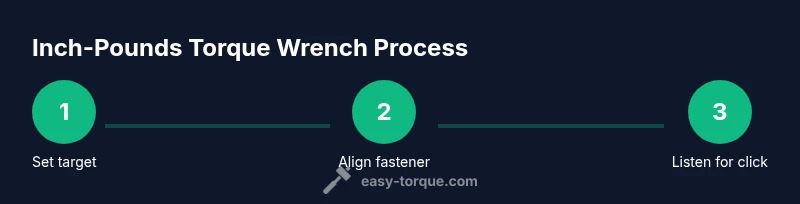

- 1
Prepare the workspace
Clear the area, verify the fastener size and thread direction, and inspect the wrench for signs of wear or damage. Ensure the scale is legible and the tool is rated for the target in-lb range.
Tip: Wipe the scale with a clean cloth to prevent misreadings from smudges. - 2
Find the target torque from the service data
Consult the vehicle’s service manual or fastener specification sheet to locate the exact torque in in-lb. If multiple sources exist, prioritize the manufacturer’s spec.
Tip: If data is missing, consult a torque conversion chart rather than guessing. - 3
Set the wrench to the target value
Rotate the dial or input the value on the digital display until the indicator aligns with the target mark. Verify the setting by checking two independent markings.
Tip: Double-check for parallax error by looking straight at the scale. - 4
Position the fastener and apply torque
Place the fastener on the joint, align perpendicular to the surface, and apply smooth, even pressure. Stop as soon as you reach the target signal (click or beam alignment).
Tip: Avoid sudden jerks; abrupt loads can cause peak torque spikes. - 5
Verify the torque after seating
Once the fastener seats, recheck the torque value because bedding surfaces can shift the reading slightly.
Tip: If drift is observed, re-tighten only to the target value, not beyond. - 6
Return the wrench to a safe setting
After use, reset the wrench to its lowest setting to prevent corrosion and accidental over-torquing in storage.
Tip: Store in a protected case to avoid impact damage.
Your Questions Answered
What does inch-pounds torque wrench measure?
An inch-pounds torque wrench measures rotational force in inch-pounds. It’s typically used for small fasteners found in engines and electronics. The value helps ensure joints are secure without risking thread damage.
An inch-pounds torque wrench measures the tightness of small fasteners. It’s the standard for many engine and electronics bolts and helps prevent over- or under-tightening.
How do I convert in-lb to ft-lb?
To convert, divide the inch-pounds by 12 to get foot-pounds. For quick estimates, remember 12 in-lb equals 1 ft-lb. Always verify using a chart or calculator when precision matters.
Divide by 12 to convert in-lb to ft-lb. Use a chart for exact values if you’re unsure.
Why is calibration important?
Calibration confirms the wrench reads true torque against a standard. Regular checks prevent drift due to wear, impact, or aging components, ensuring consistent results across jobs.
Calibration keeps your wrench honest about the torque you’re applying, so fasteners stay within spec.
Should I use lubricant on threads with a torque wrench?
Only use lubricants if the service data specifies it. Some threads require anti-seize or dry tightening, which changes the effective torque. Always follow manufacturer directions.
Check the manual before lubing; lubrication changes the torque you apply.
What’s the difference between a click and a beam wrench?
A click wrench gives a tactile or audible signal at target torque, while a beam wrench shows deflection on a scale. Both require correct reading and technique to avoid overshoot.
A click tells you when you’ve reached the value; a beam shows the target reading as you tighten.
How often should I calibrate?
Calibration frequency depends on usage, environment, and manufacturer guidance. Typical practice is annually for professional shops, with checks every few months for heavy use.
Most pros calibrate yearly, but frequent use or harsh conditions call for more frequent checks.
Watch Video
Top Takeaways
- Learn to match torque values to units precisely
- Read values straight from service data and avoid guesses
- Use steady, controlled tightening to reach target torque
- Calibrate regularly to maintain accuracy
- Record torque values for traceability and future maintenance
