SBC Head Torque Pattern: Correct Sequence Guide for DIY
Learn the SBC head torque pattern with a practical, step-by-step sequencing guide and safety tips to ensure a reliable head gasket seal on Small-Block Chevy engines.
You’ll master the SBC head torque pattern, including the proper cross-pattern tightening sequence, the rationale behind it, and how to verify correct seating. This guide emphasizes following manufacturer specs for final torque and the importance of a methodical approach to avoid head gasket leaks or warping during reassembly.
Understanding the sbc head torque pattern
The sbc head torque pattern is the deliberate sequence used to tighten the cylinder head bolts on Small-Block Chevy engines. The goal is to apply load evenly across the head to avoid uneven gasket seating, warping, or bolt binding. In practice, follow the pattern step by step to ensure proper clamping force across the entire head. By understanding the pattern, you reduce the risk of leaks and head gasket failures, and you make future maintenance easier. The sbc head torque pattern reflects the engine’s bolt arrangement, the head gasket design, and the block deck surface. Always consult the engine’s service manual for the exact pattern and final torque specification.
Why the torque sequence matters for head gasket integrity
A correct torque pattern distributes load evenly across the head and gasket, preventing localized over-tightening that can crack the head or warp the mating surface. Uneven seating may cause early gasket leaks, bore distortion, or coolant passages opening up. By sticking to the prescribed pattern, you also reduce consequences of thermal cycling and engine heat soak, keeping compression stable and combustion chambers sealed. In short, the torque pattern is a guardrail against costly repairs and repeated disassembly.
Common bolt sequences and how they distribute load
Most SBC engines use a criss-cross, star, or spiral-like layout to minimize bolt load concentration. A well-documented pattern starts at a central bolt or follows a symmetry-based sequence designed to pull the head evenly toward the block. The aim is to engage the gasket uniformly, preventing gaps and ensuring consistent clamping. While patterns may vary by year and gasket type, the core principle remains: tighten in a balanced, alternating fashion from center out or in a cross pattern, then finish with a final torque check.
Practical considerations when working on an SBC engine
Before torquing, ensure the deck is clean and dry, bolts are free of oil, and threads are free of burrs. Use the right lubricant policy as per the manufacturer: some bolts require dry threads, while others benefit from a small amount of assembly lubricant to achieve consistent tension. Always inspect bolts for stretch or damage, replace those that show signs of fatigue, and confirm that you’re using the correct bolt length and grade for your SBC. If you’re using MLS gaskets or a premium gasket set, the sequence and final torque may differ slightly; verify with the exact service bulletin.
Final checks after torquing and heat cycling
After the initial torque sequence is complete, allow the engine to come up to temperature and then recheck the pattern once cooled, if the manual calls for it. Re-torquing may be required to account for gasket seating and bolt relaxation, particularly with older engines. Finally, perform a careful leak check around the head area and ensure there's no coolant or oil transfer between the head and block. If leaks appear, consult the service bulletin and re-verify the torque pattern with a fresh bolt set if needed.
Authority references
For authoritative guidance, consult professional standards and engine builders’ manuals. Helpful sources include technical papers and industry guidelines from major publications and standards bodies that discuss torque tightening principles and bolt load distribution. Always cross-reference with the engine service manual specific to your SBC build.
Tools & Materials
- Head bolt set (new or reconditioned)(Ensure bolts are the correct length and grade for your SBC engine.)
- Torque wrench with adjustable range(Calibrate before use; use a digital or click-type with an accurate scale.)
- Socket set and ratchet(Sizes compatible with SBC head bolts.)
- Breaker bar or leverage tool(Assist initial snug and turning force.)
- Lubricant or anti-seize as directed by OEM(Only apply where specified; some bolts require dry threads.)
- Torque-angle gauge (optional)(Needed if your engine spec uses an angle-tightening step.)
- Gasket prep materials and cleaner(Clean gasket surfaces and ensure proper gasket seating.)
- Rags, degreaser, and inspection mirror(Keep surfaces clean and inspect for thread damage.)

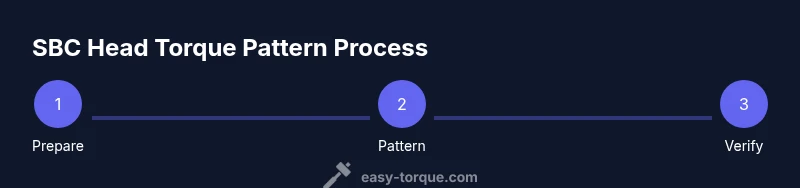

Steps
Estimated time: 1-2 hours
- 1
Inspect and prep the deck and bolts
Inspect the deck surface for nicks or damage and verify the head bolt holes are clean. Wipe threads on the bolts and holes to remove oil or coolant. This prepares a predictable base for the torque sequence and avoids false readings during tightening.
Tip: Start with a clean baseline; debris can skew torque readings. - 2
Gather and inspect hardware
Lay out all bolts in the correct type and length, inspecting for cracks or bending. If any bolt shows fatigue, replace it with a confirmed equivalent part. This ensures uniform clamp across all fasteners.
Tip: Use a magnet to quickly check for hidden cracks on bolt surfaces. - 3
Install bolts in the correct order
Place bolts in the designed sequence so the head seats evenly. If the engine uses a central or symmetrical pattern, begin with center bolts or follow the documented cross-pattern. Do not tighten bolts in a random order; uneven loads compromise gasket seal.
Tip: Mark or memorize the center-out layout before starting. - 4
First pass – snug all bolts
Tighten each bolt just enough to seat them and remove play in the bolt-hoop. Use a light pass to avoid embedding a single bolt, which could cause misalignment when final torque is applied.
Tip: Keep the wrench steady and maintain a smooth, even stroke. - 5
Second pass – tighten in cross pattern
Proceed in a cross or symmetrical sequence, incrementally increasing torque toward final value per the manual. Avoid skipping bolts; progressive tightening prevents torque shadows and distribution errors.
Tip: Pause briefly between bolts if your tool allows a values readout to settle. - 6
Final pass – achieve final torque
Complete the final tightening sequence to the manufacturer’s torque specification. Use a torque-angle method if the spec calls for it, ensuring you reach the exact clamp force required by the gasket design.
Tip: If torque-angle is used, record the angle for future maintenance. - 7
Cool-down check and retorque
Allow the engine to cool or return to ambient temperature as per the manual, then re-check torque. Some engines require a repeat check after cooling to ensure the gasket seating remains correct.
Tip: A quick recheck helps catch bolt relaxation early. - 8
Leak check and final inspection
Run the engine briefly and inspect for signs of leaks around the head gasket, coolant passages, and oil channels. If leaks are detected, re-evaluate bolt seating and gasket seating, and consult the service bulletin for rework.
Tip: Check both coolant and oil sides for leaks to avoid misdiagnosis.
Your Questions Answered
What is the standard SBC head torque pattern?
The standard SBC head torque pattern varies by gasket and year, but the core principle is a balanced sequence (often cross-pattern) to evenly clamp the head to the block. Always follow the engine’s service manual for the exact order and final torque values.
The SBC torque pattern is a balanced sequence used to evenly clamp the head; check your engine’s service manual for the exact order and torque values.
Can I reuse SBC head bolts after disassembly?
Head bolts are typically designed for single use due to stretch and clamping behavior. Reusing bolts can risk gasket failure or head warp unless the manual explicitly allows it and you replace the bolts.
Usually, head bolts should not be reused; check the manual if it allows reuse under strict conditions.
Why retorque after a heat cycle?
Heat cycling changes bolt stretch and gasket seating. Retorquing helps confirm the final clamp is still correct after the head has cooled and tightened under thermal load.
Heat cycles can change bolt tension; retorque to ensure the seal holds after cooling.
What safety precautions should I take?
Disconnect the battery, wear eye protection, and work on a clean, level surface. Keep hands clear of rotating tools and hot engine parts.
Take basic safety steps: disconnect power, wear protection, and keep the workspace clean.
What if bolts feel stiff or cross-threaded?
If tightening feels unusually stiff or there is resistance before full torque, stop and inspect the bolt threads and holes. Do not force; realign threads or replace damaged bolts.
If a bolt binds, stop and inspect threads and holes; don’t force it.
Do I need torque-angle measurement?
Torque-angle measurement is only required if the engine maker specifies it. Many SBC patterns rely on a final torque specification; angle-tightening is used in some designs for precise clamping.
Angle tightening is only required if the manual calls for it.
Watch Video
Top Takeaways
- Follow a balanced cross-pattern to seat the head evenly
- Always use manufacturer torque specs and patterns
- Inspect and replace any fatigued bolts before reassembly
- Re-torque after heat cycles if required by the manual
