Torque Extension Set Guide: How to Choose and Use
Learn how to select, assemble, and safely use a torque extension set for precise fastener torque. This step-by-step guide covers sizing, compatibility, maintenance, and practical tips from Easy Torque.
By the end of this guide you will confidently choose, assemble, and use a torque extension set to reach precise fastener torque. You’ll learn how to read drive sizes, match extensions to your torque wrench, and perform safe, accurate installations. Expect practical tips, common pitfalls, and maintenance steps from Easy Torque.
Why a torque extension set matters
According to Easy Torque, upgrading your toolkit with a torque extension set provides the reach to access hidden fasteners and helps preserve accuracy when overtightening is risky. A well-chosen extension set reduces the need for cheater bars or improvised adapters, which can slip or break and skew torque values. In automotive, machinery, and home projects, every fastener has a torque specification, and extensions help you meet those specs without changing your wrench or leverage. The key benefit is maintaining a consistent torque path: extension bars align with the drive and maintain proper angle, minimizing slippage. When you add a high-quality extension set to your torque wrench, you improve repeatability, reduce rework, and gain confidence in challenging jobs, from spark plug wells to brake caliper bolts. In this section, we’ll explore what a torque extension set is, what it includes, and how it improves accuracy across common torque tasks.
Key components of a torque extension set
A torque extension set typically includes drive-size adapters, a selection of extension bars, and sometimes a universal joint. Drive size compatibility (quarter, 3/8 inch, or 1/2 inch, etc.) determines which wrenches can connect directly. Extensions maintain the existing torque path rather than creating a new lever arm, which helps minimize measurement errors. Many sets also include a quick-release collar or retention clip to prevent accidental disengagement during use. Pay attention to finish quality; a polished drive surface reduces lash and slippage. Finally, check whether the set includes a storage case—organization saves time on repetitive jobs and extends tool life by preventing misplacement.
How to choose the right torque extension set for your toolkit
Choosing a torque extension set starts with your most common fasteners and the torque wrench you own. Start with the drive sizes that match your primary wrench and add extensions that cover typical angles and depths. Look for high-quality chrome-vanadium steel or equivalent alloys for durability, and ensure each piece has a secure, backlash-free fit. Consider sets with a mix of short and long extensions for reach in cramped spaces. If you work on both vehicles and machinery, a flexible joint component can be invaluable for aligning drive angles without stressing the wrench. Finally, verify compatibility with your torque wrench’s range and ensure the set is backed by a manufacturer warranty and good customer support.
Compatibility: matching extensions with your torque wrench
Compatibility is about drive size, thread pitch, and the mechanical tolerance of both the extension and the wrench. Always verify that the extension’s drive size exactly matches your torque wrench’s drive. Mismatched drives can slip or cause wear over time. If a universal joint is included, test it in a non-load position before any torque application to confirm smooth articulation. Check that the extension does not extend beyond the wrench’s torque rating when fully engaged, as misuse can invalidate calibration. For recessed fasteners, ensure the combination of extension length and joint angle allows you to apply torque squarely on the fastener, avoiding an off-axis load that skews readings.
Using a torque extension set safely: best practices
Use a clean, dry surface to organize the extensions before use. Inspect each piece for burrs, nicks, or corrosion that could damage the drive or alter torque readings. When assembling, connect extensions in-line with the wrench and tighten by hand first to ensure a snug fit before applying torque. Avoid forcing extensions into awkward angles; if fit is tight, re-evaluate the approach or use a different extension length. Always test torque values on a known-good fastener or a calibration block before critical work, and record the measured values for future reference. Wear safety glasses if working near moving parts or in tight spaces where components might slip.
Maintenance, calibration, and when to replace parts
Maintenance is essential to keep a torque extension set accurate over time. After use, wipe extensions to remove oil and debris, apply a light coat of lubricant to moving joints, and store them in a case to prevent corrosion. Periodically verify calibration of your torque wrench and check extensions for elongation or wear on the drive surfaces. If you notice consistent deviations in torque readings when using extensions, consider replacing worn parts or the entire set, as degraded fit can compromise safety and accuracy. Keeping a log of usage helps identify when a replacement is due, particularly in professional environments where precision matters repeatedly.
Real-world scenarios and practical tips
In automotive work, a torque extension set helps reach stubborn bolts in cramped engine bays without bending the wrench or using leverage. For electronics or home projects, shorter extensions keep torque within the expected range and reduce the chance of over-torquing small fasteners. When choosing a set, consider size variety and ensure extensions are properly labeled with their drive size for quick reach decisions. For frequent recalibration tasks, maintain an organized counterbalance of extensions so you can swap quickly between jobs while maintaining consistent torque values across fasteners. Practically, keep your most-used extension pieces reusable in every job tray and reserve specialty pieces for edge cases.
Common mistakes to avoid and troubleshooting tips
Common mistakes include using extensions as handles to gain leverage, which can skew torque and cause fastener damage. Avoid mixing metric and imperial drive systems in a single job, and never rely on a damaged extension to reach a stubborn fastener. If torque readings seem inconsistent, recheck the wrenches’ calibration, inspect the drive surfaces for wear, and test with a known reference fastener. Troubleshooting often reveals that a simple cleaning or re-seating of components resolves most issues. Remember: the goal is a straight, perpendicular torque path to the fastener, not an angled force that creates friction or slip.
Tools & Materials
- Torque extension set (multiple drive sizes)(Include common drives (e.g., 1/4, 3/8, 1/2 inch) in the kit)
- Torque wrench compatible with the extension set(Ensure same drive size as extensions)
- Adapters/universal joints(For angles and tight spaces)
- Storage case or tray(Keeps pieces organized and protected)
- Calibration tool or reference fastener (optional)(Helpful for verification after setup)

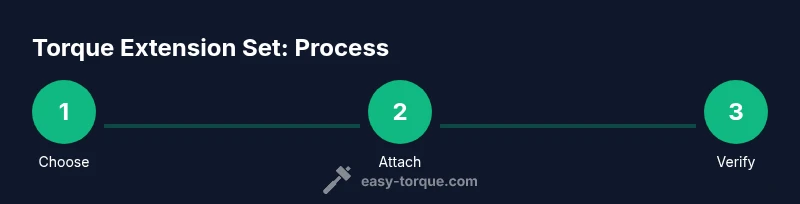

Steps
Estimated time: 60-90 minutes
- 1
Inventory and verify drive sizes
Inspect your torque extension set and the wrench to confirm compatible drive sizes. Map which extensions cover typical depths and angles. Ensure the kit includes adapters for the most common fastener locations.
Tip: Check for burrs or corrosion on drive surfaces; these can cause lash and reduce accuracy. - 2
Select the right extensions for the job
Choose extensions that provide a straight path to the fastener with minimal angle. Avoid overly long pieces if the space allows direct access with shorter extensions.
Tip: Prefer a mix of short and medium extensions for flexibility in cramped spaces. - 3
Attach extensions securely
Connect the extension stack in-line with the torque wrench, then gently snug by hand before applying torque. Double-check that all connections are fully engaged.
Tip: Use the retention clip if provided to prevent unintended disengagement during operation. - 4
Test a known reference
Before working on critical fasteners, test the setup on a reference workpiece to confirm the torque path is true and readings are stable.
Tip: Record the initial readings to compare against after maintenance. - 5
Apply torque and verify
Set the target torque on your wrench, apply in a steady, smooth motion, then re-check with the reference piece to confirm accuracy.
Tip: Pause briefly after reaching target torque to allow components to settle. - 6
Disassemble and inspect
After use, remove extensions, inspect drive surfaces for wear, and clean any debris. Store immediately to prevent corrosion.
Tip: Document any wear and plan replacements if necessary. - 7
Maintain and organize
Return all parts to the storage case, label extensions for quick recall, and schedule regular calibration checks for the wrench and extensions.
Tip: Create a simple maintenance log for quick audits. - 8
Review torque specs and reuse strategy
Revisit torque specifications for frequently serviced fasteners and confirm your extension set covers those scenarios for future jobs.
Tip: Keep a quick reference sheet in the toolkit.
Your Questions Answered
What is a torque extension set and when should I use one?
A torque extension set adds length and reach to a torque wrench, allowing access to recessed fasteners while preserving torque accuracy. Use it whenever space is tight or the fastener sits deep in a component.
A torque extension set adds length to your torque wrench so you can reach hard-to-access bolts while keeping accurate torque readings.
Is a torque extension set compatible with all torque wrenches?
Compatibility depends on matching drive sizes. Ensure the extension drive matches your wrench, and verify any joints or adapters are rated for your torque range.
Compatibility relies on drive size matches and rated torque ranges; check your wrench and extensions before use.
What sizes are typically included in a torque extension set?
A comprehensive set usually includes multiple drive sizes and a mix of short and medium extensions, plus at least one universal joint for awkward angles. Exact sizes vary by brand.
Most sets include several drive sizes with short and medium extensions and a joint for angles.
How should I maintain my torque extension set?
Clean after use, apply a light lubricant to joints, store in a case, and perform periodic calibration checks on your wrench and extensions.
Keep it clean, lubricate joints, store properly, and check calibration periodically.
Can improper extension use cause over-torquing?
Yes. Using extensions improperly can change the torque path and readings. Always verify setup on a reference fastener before critical work.
Yes, improper use can skew torque readings; test on a reference fastener first.
Where can I learn more about torque specs?
Consult manufacturer manuals and recognized standards bodies for torque specs. This guide provides practical steps, but refer to official sources for precise values.
Check the manufacturer manuals and standards bodies for torque specs; use this guide for practical steps.
Watch Video
Top Takeaways
- Choose a torque extension set that matches your most-used drive sizes.
- Ensure secure, inline connections to preserve torque accuracy.
- Regularly inspect, clean, and calibrate to maintain reliability.
- Maintain an organized toolkit with a maintenance log for quick audits.
