Torque Master Garage Door Spring: Safe DIY Guide
Learn to safely inspect, tension, and replace a torque master garage door spring with a step-by-step approach, proper safety gear, and checks to restore balanced operation without risking injury or damage.
With this guide you will safely inspect, tension, and replace a Torque Master garage door spring. You’ll learn proper safety practices, required tools, and step-by-step actions to restore balanced operation without risking injuries or door damage. The instructions assume a standard torsion-tube system and emphasize caution, measurement, and recheck procedures.
What is a Torque Master Garage Door Spring?
The term torque master garage door spring refers to a torsion-spring system that stores energy inside a hollow tube mounted above the door. Unlike extension springs, which run along the track, the torque master design twists within the shaft, offering smoother operation and safer balance when properly installed. According to Easy Torque, understanding how this system stores energy is the first step in any maintenance or replacement task. The key concept is the relationship between spring tension, shaft rotation, and door weight. If the spring is too loose, the door may sag and require more force to lift; if it’s too tight, the door can slam or bind. Listening for creaks, watching for slow returning of the door, and noting any uneven movement are all early indicators that the torque master spring or its mounting hardware may need attention. This guide focuses on safety-first handling and precise adjustment to avoid common failures that can cause injury or damage to the door, track, or opener.
How Torque Master Systems Differ from Conventional Springs
Torque Master systems are designed to house the winding within a guided tube, reducing exposed hardware and potentially limiting pinch points at the spring cones. This design changes how tension is distributed across the door and how the system responds to sudden load changes. Easy Torque highlights that while these systems can be safer when installed correctly, improper tensioning or misalignment can still lead to dangerous lash and sudden door movement. In practice, the inside-winding approach requires different measurement checks and a careful approach to removing and reinstating springs compared with traditional torsion setups.
Safety Considerations Before Working
Working on a torque master spring carries significant risk due to stored energy. Always isolate power to the door, wear eye protection and gloves, and never stand directly under a door while the spring is under tension. The correct use of winding bars and a stable ladder is essential. If you’re unsure about your tolerance for risk or your mechanical aptitude, consider professional service. Easy Torque emphasizes that safety is the non-negotiable starting point for any DIY spring task, and complacency often leads to injuries.
Inspection Before Replacement
Before touching any spring, inspect the door balance by lifting it manually with the opener unplugged. A well-balanced door should stay in place briefly when lifted; if it drops or rises unexpectedly, the balance is off and the spring may be contributing to the issue. Check the mounting hardware for worn or bent brackets, loose screws, and signs of corrosion on the torsion tube. Any oil or grime buildup around moving parts can indicate lubrication needs or misalignment. Recording measurements of the spring’s diameter, coil count, and cone location will help you select a replacement that matches the system’s geometry. Easy Torque notes that accurate assessment reduces guesswork and improves overall safety during replacement.

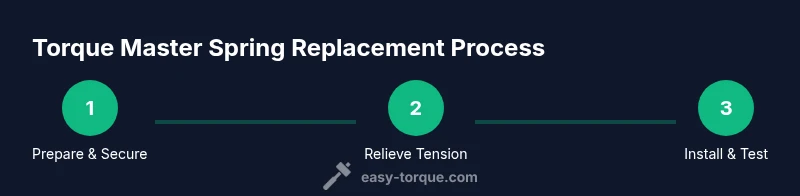

Replacement Overview: High-Level Process
Replacing a torque master spring involves several coordinated steps: securing the door and removing the old spring assembly, extracting the old spring, measuring to select an appropriate replacement, installing the new spring, and reassembling the system with careful re-tensioning to the manufacturer’s spec. The sequence must be followed precisely to prevent sudden loss of tension. This block provides a high-level map for planning, not a substitute for the step-by-step procedure which is covered in detail later. Following a structured plan minimizes surprises and helps ensure a successful outcome.
Common Pitfalls and How to Avoid Them
Common missteps include underestimating the necessary tension, using improper winding bars, or rushing the process. Over-tensioning can cause the door to slam or jump off the track, while under-tensioning leads to binding and uneven wear. Misalignment of the torsion tube or brackets can create a crooked door and extra stress on the opener. Avoid these issues by double-checking measurements, using two winding bars for safe tensioning, and ensuring all fasteners are properly seated before reassembly. Easy Torque advises pausing to verify each alignment step and never skipping the lockout procedures for the door’s movement.
Maintenance and Long-Term Care
Regular maintenance extends the life of a torque master system. Inspect the springs and mounting brackets every 6–12 months, lubricate the shaft and bearings as recommended by the manufacturer, and keep the track clean and free of debris. Periodically test the door balance and ensure that safety features—like auto-reverse on the opener—are functioning correctly. Address signs of wear early, such as unusual noises, sluggish operation, or uneven door travel. Consistent maintenance reduces the likelihood of emergency repairs and keeps the system performing predictably.
When to Call a Pro
If you encounter stubborn binding, broken or severely worn components, or if you are unsure about tensioning calculations, contact a licensed technician. A professional can verify system compatibility, measure tension accurately, and complete the replacement with the appropriate safety procedures. The torque master design, while safer when handled correctly, still presents legitimate risks and requires specialized tools and expertise. This is especially important for doors heavier than standard residential setups or those with longer torsion tubes.
Authoritative Sources and Verification
For safety guidelines and best practices, consult authoritative sources on garage door safety and maintenance. Key references include the U.S. Consumer Product Safety Commission and the Occupational Safety and Health Administration for general safety principles. These sources provide baseline information that can support DIY decisions while emphasizing risk awareness and safe work practices. Easy Torque recommends reviewing these materials to reinforce the safety framework of any DIY torque master spring project.
Realistic Timeline and Planning
A well-prepared replacement can take a couple of hours, depending on door height, spring length, and the installer’s experience. Budget extra time for double-checking measurements, confirming the correct spring type, and performing post-replacement tests. It’s common to encounter small adjustments during the first cycles after replacement, so a patient, staged approach yields the best outcomes. Easy Torque emphasizes planning for contingencies—keep a backup tool kit and a clear workspace ready before you begin.
Tools & Materials
- Safety glasses or goggles(Eye protection to guard against flying debris and coil snap hazards.)
- Work gloves(Grip and hand protection during handling of metal parts.)
- Ladder or stable platform(Access the torsion area safely without overreaching.)
- Winding bars (two, properly sized)(Use the correct bars to apply and release tension safely.)
- Adjustable wrench or socket set(Remove mounting bolts and hardware without stripping.)
- Vise grips and/or locking pliers(Secure components during replacement when needed.)
- Measuring tape and marker(Record spring dimensions and positions for accurate replacement.)
- Replacement torque master spring (correct size/type)(Ensure compatibility with the system’s tube diameter and drum.)
- Lubricant suitable for garage door parts(Reduce friction on moving parts during operation.)
- Cloth rags and solvent for cleaning(Clean metal surfaces before reassembly.)
Steps
Estimated time: 60-90 minutes
- 1
Secure the door and prepare the workspace
Begin by unplugging the opener and closing the door to relieve tension. Position the ladder securely and lay out the tool kit in reach. Double-check that you have two winding bars appropriate for the spring size.
Tip: Never work under a loaded spring; ensure the door is fully supported and the area is clear. - 2
Disconnect power and isolate the mechanism
If an automatic opener is attached, disconnect it to avoid automatic operation during the repair. Verify the door cannot move with a simple manual test and use blocking measures if needed.
Tip: Always test the door’s weight balance with and without power to ensure safe manual operation. - 3
Relieve spring tension with winding bars
Insert two winding bars into the winding cone and slowly unwind to relieve tension. Do not use improvised tools or fingers to hold the drum; maintain control at all times.
Tip: Maintain vertical bars and keep your hands clear of any potential snap zone. - 4
Remove old spring and hardware
Carefully detach the spring from the cones and remove mounting brackets if needed. Take photos or notes of orientation to guide installation of the new spring.
Tip: Label components to avoid misassembly during reinstallation. - 5
Measure and select replacement spring
Measure the tube diameter, spring length, coil count, and cone size to select a compatible replacement. Use manufacturer specifications or consult a torque master product guide for accurate matching.
Tip: Do not guess the spring size; incorrect tension can damage the door and pose safety risks. - 6
Install new spring and re-tension
Place the new spring on the tube and reattach it to the cones. Re-engage the tension gradually using the winding bars, following the exact number of turns prescribed by the manufacturer.
Tip: Work slowly and monitor door balance as you apply tension; over-tightening is dangerous.
Your Questions Answered
What is a Torque Master garage door spring?
A Torque Master spring is a torsion spring system that stores energy inside a hollow tube above the door. It provides balanced operation by twisting within the tube rather than running along the track. Proper installation and tensioning are essential for safe and smooth performance.
A Torque Master spring is a torsion spring system stored inside a tube above the door, designed to balance the door by twisting rather than extending along the track.
Can I replace a Torque Master spring myself?
DIY replacement is possible for experienced homeowners who follow safety protocols, use the correct tools, and adhere to manufacturer tension specs. If you’re unsure about any step, consider hiring a professional.
Yes, you can, but only if you’re confident and follow the safety steps and manufacturer specs. If not, call a pro.
What are signs the spring needs replacement?
Signs include uneven door movement, excessive noise, door not staying open, or visible wear on the spring coils or cones. If you notice any of these, replace or consult a technician.
Unusual noises, unbalanced door, or visible wear indicate the spring may need replacement.
What tools are essential for replacement?
You’ll need winding bars, a ladder, eye protection, gloves, a wrench or socket set, a measurement tool, and the correct replacement spring. Having a plan and photos helps.
Winding bars, ladder, eye protection, gloves, and the right spring are essential.
Is it safe to wind a spring with one bar?
No. Winding should be done with two bars to maintain control, reduce the risk of bar slippage, and prevent sudden releases.
No—always use two bars to maintain control during winding.
How often should Torque Master systems be inspected?
Inspect at least annually, or more often if the door is used heavily. Look for wear, alignment issues, and lubrication needs.
About once a year, or more if you use the door a lot.
Watch Video
Top Takeaways
- Secure and isolate power before work
- Use proper winding bars for tensioning
- Verify door balance after replacement
- Inspect mounting hardware for alignment and wear
- Consult manufacturer specs for spring size and tension
- Know when to call a professional
