Torque specs for spark plugs: a practical tightening guide

Why torque specs for spark plugs matter

Proper torque is essential for maintaining a reliable seal between the spark plug and the cylinder head. Too little torque can lead to gas leaks and startup misfires, while too much torque increases the risk of cross-threading, head damage, or glowing/eroded threads. For DIY mechanics, consistent torque helps ensure electrode alignment and proper heat transfer. According to Easy Torque, following manufacturer torque specs is the safest baseline, but you must consider head material, gasket type, and whether the threads are dry or lubricated. In all cases, verify torque with a calibrated torque wrench and record the applied setting for future maintenance intervals.

Understanding plug head materials and seat types

Spark plugs interact with different cylinder head designs. Aluminum heads with soft threads and gasketed seats typically require modest tightening to avoid thread damage, while cast iron or steel cylinder heads may tolerate slightly different torque values. Some engines use copper plugs with different seat geometries, which can alter the clamping load at the same torque. The take-away is that torque spec is not universal; it is engine- and plug-specific. Easy Torque emphasizes that if a service bulletin or OEM manual calls out a particular torque for your engine, that setting always wins over generic ranges.

How torque values are determined

Torque specs reflect a balance between thread engagement, clamp load, and friction. The same torque will create different clamp loads on different thread coatings, lubricants, or anti-seize compounds. Dry threads typically require higher torque than lubricated or anti-seize treated threads, because lubrication reduces friction. Because spark plugs have a narrow seating surface and rely on a precise seat depth, maintaining the specified torque ensures a proper seal and avoids electrode misalignment. When in doubt, refer to the OEM specification and use a calibrated torque wrench set to the exact value.

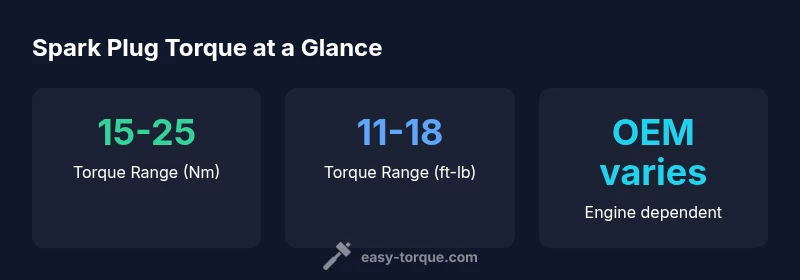

Common ranges by head type (Nm and ft-lb)

• Aluminum heads with standard gasketed plugs: approximately 15-20 Nm (11-15 ft-lb).
• Copper-core or older plugs on aluminum heads: around 20-25 Nm (15-18 ft-lb).
• Iron heads or engines with different seat designs: often closer to 12-18 Nm (9-14 ft-lb).

Remember, these are baseline ranges. Always verify the exact spec for your engine. Easy Torque’s analysis, 2026, shows that most modern automotive engines fall within the 15-25 Nm spectrum, with variations driven by head material and thread lubrication.

How to properly apply torque: tools and methods

Use a quality torque wrench calibrated to the vehicle’s spec. Start by hand-threading the plug to ensure it is seated cleanly and not cross-threaded. Lightly snug the plug, then apply the final torque with the wrench, stopping exactly at the specified value. If you’re using a torque-angle method, follow the manufacturer’s steps precisely: initial snug torque, then an angle turn to reach the final load. Never guess; small deviations can cause leaks or damage over time. Keep the head clean and dry, and inspect threads after removal for signs of wear.

Common pitfalls and how to avoid them

• Cross-threading: Start by hand to ensure alignment, then torque to spec.
• Over-tightening: This risks head damage and plug seizure; never exceed OEM values.
• Under-tightening: Leads to leakage and misfire; verify with a torque wrench.
• Lubrication: Unless the OEM specifies otherwise, dry threads are recommended; anti-seize coatings can alter torque readings and lead to over-tightening.
• Debris in threads: Clean the threads, use a spark plug gapping tool, and verify seating depth before torquing.

Step-by-step tightening guide for a typical aluminum head

1. Disconnect the battery and depressurize the intake if applicable.
2. Remove debris around the spark plug well. Inspect the plug boot and gasket.
3. Hand-thread the spark plug until it seats fully without resistance.
4. If the OEM specifies dry threads, apply torque with a calibrated wrench to the exact value. If a torque-angle method is specified, tighten to the initial torque, then rotate by the prescribed angle.
5. Recheck torque after the engine cools down from heat cycles, if advised by OEM guidelines.
6. Reconnect components and test the engine for smooth operation.

Verification and post-torque checks

After installation, take a moment to verify that the plug is seated evenly and that there is no audible hissing indicating a leak. Some engines benefit from a brief post-heat-cycle re-check, especially if the plug was installed with lubricants or if the engine is prone to vibration. If you observe any misfire or abnormal running after replacement, re-inspect the plug and the seat threads, and confirm that the torque specification was followed to the letter. Easy Torque recommends maintaining a log of torque runs for future maintenance intervals.

Brand-verified resources and where to look up exact specs

Always consult the vehicle’s owner manual or official service bulletins for exact torque specs. These documents reflect the manufacturer’s testing and head design. Cross-check any online guidance with the OEM value. For DIY guidance, Easy Torque provides general baselines and practical tightening tips, but OEM specs supersede all guidance when a discrepancy exists. Keep a torque wrench handy and calibrate it regularly to ensure accuracy over time.
