Torque to Yield Head Bolts: Step-by-Step Guide for DIY Mechanics
Learn how to properly install torque-to-yield head bolts with a step-by-step approach. This guide covers prep, sequence, angle-tightening, safety, and inspection to prevent gasket leaks and head stress.
Torque-to-yield head bolts require a precise two-part process: establish preload with an initial torque, then apply angle-tightening to a manufacturer-specified degree. Use new bolts, manufacturer-approved lubricant, and engine-specific specs. Adhere to the exact tightening sequence and verify with a calibrated torque wrench to ensure uniform clamping and prevent gasket failure.
What torque to yield head bolts are and when they are used
Torque to yield head bolts are specially engineered fasteners designed to stretch to a specified elongation, creating a consistent clamp on the cylinder head. In modern engines, this method improves sealing integrity through thermal cycles and dynamic loading. According to Easy Torque, using torque-to-yield bolts requires strict adherence to the factory sequence and exact angle-tightening specs to avoid over- or under-stressing the bolts. The practice is common in high-performance engines and many modern designs where gasket integrity, cylinder pressure, and uniform clamping matter most. Before you begin, confirm that your engine is designed for torque-to-yield fasteners, obtain the correct replacement bolts, lubricant, and torque-angle references, and set up a clean, well-lit workspace.
Why torque-to-yield bolts demand strict procedure
Torque-to-yield (TTY) bolts are designed to stretch slightly under preload, converting torque into clamping force with controlled elongation. If any bolt is under-torqued, clamping can be uneven; if over-torqued, bolts can experience plastic deformation or failure. Easy Torque emphasizes that the sequence and angle steps are not optional add-ons; they are essential to achieving the intended bolt elongation and gasket seal. Always use manufacturer-approved bolt sets, replace all bolts with new ones, and follow the exact torque and angle specifications for your engine.
Engine designs and bolt varieties relevant to TTY applications
Not all engines use torque-to-yield head bolts. Some designs rely on non-TTY studs or bolts with standard torques and re-torque checks, while others require multiple stages of tightening or angle play. It is crucial to consult the vehicle’s service manual for compatibility, thread pitch, and anti-seize requirements. Engine blocks and cylinder heads have different material properties; aluminum heads, for instance, may require more careful thermal cycling and lubrication. The right bolt geometry (length, grade, thread engagement) impacts clamping force and gasket life.
Safety and tool calibration: setting up for success
Working with head bolts demands strict cleanliness and proper tools. Calibrate torque wrenches before every job and verify the angle gauge accuracy. Lubricants must be specified by the OEM; wrong lubricant can alter friction and skew torque values. Ensure your work area is free of debris, the head gasket is properly oriented, and the engine is at the correct service temperature when tightening. Wearing eye protection and gloves reduces the risk of chemical exposure from cleaning solvents and lubricants.
Pre-inspection and cleaning: the foundation of accuracy
Remove contaminants from trace areas where bolts pass through. Clean the block, head, and threads using a lint-free cloth and appropriate solvent. Check bolt holes for burrs or damage, and chase threads if necessary with the correct tap or die. Inspect the head surface for warpage using a straightedge and feeler gauges; a warped surface can invalidate clamping pressure and lead to leaks. Replace any bolts that show elongation, corrosion, or thread damage.
Determining pre-load torque and tightening sequence
Refer to the OEM specification for the initial preload torque and the cylinder-head tightening sequence. The sequence is typically a clockwise pattern from the center out or in a specific crisscross arrangement to promote even seating. Set the torque wrench to the initial torque value, then tighten each bolt in the prescribed order. Verify that all bolts reach the same reading and note any abnormal resistance, which could indicate thread damage or debris.
Angle-tightening: how to apply degrees accurately
After achieving the preload, angle-tightening is used to achieve the elongation required for TTY bolts. Use a calibrated angle gauge tied to your torque wrench and tighten each bolt by the specified degree increment, usually in equal steps per the service manual. Do not skip angles or reuse previously tightened values. Some engines require multiple angle steps or a final re-check after a heat cycle to account for thermal expansion.
Post-install checks: leaks, torque, and heat cycling
Once installed, perform a leak test by pressurizing the cooling system and inspecting for gasket seepage. Re-torque or re-check after the engine reaches normal operating temperature and cools down, if the service manual calls for it. Use a bore or cylinder leak-down test to ensure cylinder integrity and head gasket seating. Document all torque and angle values in the maintenance log for future reference.
Maintenance, storage, and bolt replacement intervals
TTY bolts are typically replaced with a complete head set rather than reused; consult OEM rules for service intervals. Store bolts in a clean, dry container and avoid reusing damaged hardware. When performing reassembly or a head job in the future, start with a fresh set of bolts and lubricants to ensure consistent performance. Regular inspections during maintenance can prevent gasket leaks and head damage.
Tools & Materials
- Calibrated torque wrench(Set to engine-specific initial torque range; verify calibration before use)
- Angle gauge or digital angle meter(Accurate reading to the nearest 0.5 degrees as specified)
- New torque-to-yield head bolts(Use OEM- or engine-manufacturer-specified bolts only)
- Lubricant approved by manufacturer(Apply to bolt threads where specified; avoid over-lubrication)
- Thread cleaner/brush(Clean both bolts and holes; remove oil, grime, and debris)
- Torque sequence diagram(Printable reference to guide the tightening pattern)
- Lint-free wipes(Used to dry surfaces without leaving fibers)
- Anti-seize compound (OEM-approved)(Only if specified; some engines require no anti-seize on head bolts)

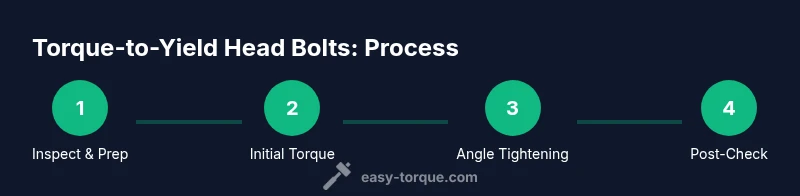

Steps
Estimated time: Estimated total time: 60-120 minutes (varies by engine size and technician experience)
- 1
Prepare and inspect
Begin by disconnecting the battery and draining the cooling system if required. Clean the deck surface, inspect for warpage, and verify the gasket set. Confirm you have the correct bolts and lubricant before starting.
Tip: Double-check part numbers against the service manual to avoid mismatched bolts. - 2
Clean threads and bolt holes
Use a thread cleaner on all bolts and ensure holes are free of burrs. Lightly inspect for cross-threading and remove any debris that could affect torque readings.
Tip: Avoid metal shavings falling into the cylinder bore; cover openings during cleaning. - 3
Lubricate threads per spec
Apply the OEM-approved lubricant only to the threads, not the bolt head, unless specified. Use a conservative amount to prevent torque reading errors.
Tip: Too much lubricant changes the friction and skews torque values. - 4
Set initial torque
Place the head bolts in the sequence diagram and tighten each bolt to the initial torque using the torque wrench. Do not jump ahead of the sequence.
Tip: If a bolt binds, stop and inspect for burrs or misalignment. - 5
Follow the tightening sequence
Complete the entire sequence in the prescribed order, ensuring even seating of the head. Stop if any bolt reads differently from the group.
Tip: Consistency across bolts is more important than pushing to the limit on one fastener. - 6
Apply angle-tightening
Using the angle gauge, tighten each bolt by the specified degree increments. Monitor for any resistance or binding that could indicate thread damage.
Tip: Perform angle steps in small increments to maintain control. - 7
Re-check after first heat cycle
Run the engine to normal operating temperature, then recheck torque or angle according to the manual. Some engines require a second pass.
Tip: Do not skip the post-heat check; expansion changes bolt tension. - 8
Inspect for leaks and gasket seating
With the engine cooled, perform a leak test and inspect gasket seating. Look for signs of seepage around the head, gasket, and coolant passages.
Tip: A small leak may indicate an under-tightened bolt or debris in the seating surface. - 9
Document and store hardware
Record the torque and angle values, bolt lot numbers, and any observations. Store used bolts separately if they are not replaced.
Tip: Documentation helps future maintenance and troubleshooting. - 10
Final safety check
Ensure all tools are removed, clamps are clear, and the engine bay is clean before returning the vehicle to service.
Tip: Verify radiator pressure cap and hoses are secure to prevent overheating. - 11
Post-install maintenance window
Schedule a follow-up check after the first few drive cycles to catch early signs of torque loss or gasket issues.
Tip: A short drive after the initial test helps identify issues early.
Your Questions Answered
What is torque-to-yield head bolts and why are they used?
Torque-to-yield head bolts are designed to stretch slightly to achieve a consistent clamping force across the cylinder head. This method improves gasket sealing under thermal cycling and high pressure. Always follow the OEM specs and use new bolts for reliability.
TTY head bolts stretch to create even clamping; follow OEM specs and use new bolts for reliability.
Can I reuse torque-to-yield head bolts?
In most cases, torque-to-yield bolts should not be reused. They are designed to stretch once and may not achieve the required elongation on a second install. Use new bolts from the engine manufacturer for proper clamping.
TTY bolts are usually single-use; replace with new bolts for proper clamping.
What happens if I under- or over-tighten the bolts?
Under-tightening leads to inadequate clamping and gasket leaks; over-tightening risks bolt yield or head warp. Always adhere to the prescribed torque and angle guidelines and verify with calibrated tools.
Incorrect torque can cause leaks or bolt damage; stick to the spec and verify with proper tools.
Do I need an angle-tightening tool separate from a torque wrench?
Yes. Many engines require angle-tightening after the initial torque. A combined torque-plus-angle tool or a torque wrench paired with a separate angle gauge ensures accurate readings.
You’ll need a tool capable of angle-tightening after the initial torque.
What should I check after the first heat cycle?
After the engine reaches operating temperature, recheck torque-angle values or perform a leak test to confirm proper seating and gasket integrity.
Check after heat: ensure bolts hold and there are no leaks.
Are there engine designs that do not use torque-to-yield bolts?
Yes. Some engines use traditional bolts or studs with standard torque sequences. Always verify the service manual to determine the correct fastener type for your engine.
Some engines don’t use TTY bolts; check the manual before proceeding.
Watch Video
Top Takeaways
- Prepare surfaces and inspect for warpage before starting.
- Follow OEM torque and angle specs without shortcuts.
- Use new, OEM-specified bolts and lubricant for every job.
- Verify seating and leaks after the first heat cycle.
- Document all values for future maintenance
