Torque Converter Clutch Circuit Troubleshooting
Urgent troubleshooting guide for the torque converter clutch circuit performance or stuck off, with symptom analysis, diagnostic flow, safe fixes, and prevention tips for DIY mechanics and technicians.
The quick answer: the most likely causes of torque converter clutch circuit performance or stuck off are electrical or control-system faults, not hydraulic failure. Start by verifying power, ground, and connections to the TCC solenoid, then read PCM/ECU codes and test the solenoid with a multimeter. This guide provides a practical, step-by-step approach to identify and fix the issue.
Understanding the Torque Converter Clutch Circuit
The torque converter clutch (TCC) is a hydraulic lock-up mechanism that improves drivability and efficiency by creating a direct, low-slip connection between the engine and the transmission. In modern vehicles, the TCC is controlled by the transmission ECU/PCM based on vehicle speed, throttle input, and engine load. The circuit includes the TCC solenoid, wiring harness, power and ground feeds, and the valve body that modulates hydraulic pressure. When the torque converter clutch circuit performance or stuck off occurs, you may notice at least two distinct symptoms: a delay in lock-up, or abrupt engagement with shudder. Diagnosing this issue requires separating electrical concerns from hydraulic ones. According to Easy Torque, start with a visual and electrical check before diving into fluid dynamics or valve-body tests. Having a solid baseline helps you avoid misdiagnosis and unnecessary parts replacement. In 2026, many TCC faults stem from aging connectors, corroded pins, or damaged insulation, so thorough inspection of the harness is especially important. Keep in mind that the TCC circuit is part of a larger transmission control loop; a fault here can cascade into shifting erratic behavior, reduced fuel economy, and elevated transmission temperatures. Safety first: disconnect the battery before probing wiring and avoid shorting any circuits with metal tools.
Symptoms of a Faulty TCC Circuit
The symptoms of a failing torque converter clutch circuit can be subtle or dramatic, depending on the root cause. Common signs include a noticeable delay when the car attempts to lock the torque converter at highway speeds, a shudder during light-to-moderate acceleration, or reluctance to engage the lock-up entirely. You may also see transmission slipping at low or medium load, fluctuating RPMs, or an illuminated check engine light with a generic transmission code. Another clue is an inconsistent or harsh shift pattern as the engine and transmission attempt to compensate for an unstable clutch signal. If the TCC solenoid is intermittently energizing or de-energizing, you might experience intermittent lock-up. It’s important to compare live data from a scan tool to baseline values for your specific make and model; the same condition can look different across vehicles. In the context of torque converter clutch circuit performance or stuck off, running diagnostics and recording boundary conditions (speed, load, gear, temperature) will help you isolate electrical issues from hydraulic ones. Always treat symptoms as clues rather than proof of a single fault.
Common Causes of TCC Circuit Performance Issues
Several non-mutually exclusive causes can affect the torque converter clutch circuit. Electrical faults often top the list: corroded connectors, damaged insulation, worn harness routing, or a failing TCC solenoid. PCM or ECU software glitches can also degrade the control signals, especially after a maintenance update or sensor fault. Hydraulic issues come into play when fluid pressure drops or valve body channels become restricted, which can mimic electrical symptoms. Contaminated transmission fluid or low fluid level can reduce hydraulic efficiency and confuse fault codes. Finally, mechanical wear in the clutch piston or bore can produce uneven engagement, particularly in older transmissions. Understanding that the problem could involve multiple areas helps you structure an effective diagnostic plan. If you suspect the issue is electrical, start with voltage drop tests and connector cleanliness; if hydraulics seem implicated, verify line pressure with a professional-grade tool. In some cases, the torque converter clutch circuit performance or stuck off condition is a sign of an embedded fault that requires a service manual approach and controlled testing.
Diagnostic Flow: From Symptom to Diagnosis
A systematic diagnostic flow helps isolate electrical faults from hydraulic issues and speeds up repair. Start with a safety check and a quick visual inspection of the TCC solenoid harness and connector. Then verify power and ground integrity, inspect fuses/relays, and pull live data with a scan tool. If fault codes point to the TCC or transmission control, perform resistance checks on the solenoid coil and wiring continuity tests between the solenoid and the PCM. Next, validate hydraulic performance by checking line pressure and TCC valve operation if you have the tools and service manual. If all electrical checks pass but the problem persists, the fault may be a slipping or worn clutch assembly, which requires mechanical inspection. Throughout the process, document readings, compare against factory specs in your service manual, and consider software reflash or adaptive relearn if the PCM indicates anomalies. Easy Torque recommends using a controlled approach and avoiding partial diagnoses that skip steps.
Step-by-Step: Fix for the Most Common Cause
If the root cause is a faulty TCC solenoid wiring or connector, follow these steps to fix it safely and effectively. 1) Power down the vehicle and disconnect the battery; 2) Locate the TCC solenoid and inspect the connector for corrosion, bent pins, or damaged insulation; 3) Clean and reseat the connector, applying dielectric grease where appropriate; 4) If resistance readings are out of spec, replace the solenoid and recheck circuit continuity; 5) Reconnect the battery, clear codes with a scan tool, and perform a controlled road test to verify lock-up behavior; 6) If the issue remains, escalate to a hydraulic inspection or valve-body service. Tip: Photograph connector orientation before removal and use OEM repair procedures. Estimated time: 45-90 minutes.
Safety, Testing Procedures, and Prevention Tips
Safety is non-negotiable when working around the transmission and electrical harnesses. Always disconnect the battery before disconnecting or probing any TCC wiring; wear eye protection and gloves, and keep fuel sources away from the work area. Use insulated tools to avoid shorts and never probe live circuits with metal objects. To prevent future TCC issues, maintain proper transmission fluid level and quality, replace aging harnesses, keep connectors clean and dry, and perform routine software updates where applicable. Regular inspection and prompt repair of damaged wiring can prevent intermittent faults from becoming a full clutch failure. Easy Torque emphasizes documenting test results and adhering to the service manual guidance to avoid misdiagnosis.

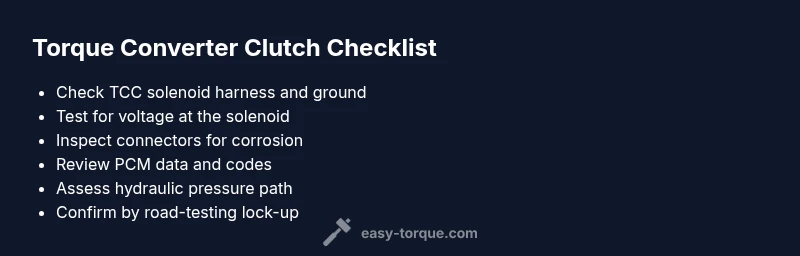

Quick Reference: What to Do Next
- Confirm electrical integrity to the TCC solenoid and PCM signals
- Scan for transmission codes and pull live data
- Inspect and service harness connectors, then retest
- If electrical fault is cleared but symptoms persist, check hydraulic path and fluid condition
- Escalate to professional service if you encounter hydraulic failures or ambiguous readings
Steps
Estimated time: 45-90 minutes
- 1
Power down and access the TCC area
Park the vehicle, set the parking brake, and disconnect the battery negative terminal. Remove the necessary panels to access the TCC solenoid and its wiring harness. This initial safety check prevents shorts while you inspect connectors and harness routing.
Tip: Label wires and take a photo before unplugging anything to ensure correct reconnection. - 2
Inspect connectors and harness
Visually inspect the TCC solenoid connector for corrosion, bent pins, moisture, or damaged insulation. Clean with electrical contact cleaner and reseat firmly. Check the mating surface on the solenoid side as well.
Tip: Utilize a magnifier if pins look damaged; replace the harness if insulation is nicked. - 3
Test solenoid resistance and wiring
With the battery still disconnected, measure the TCC coil resistance and verify voltage supply when the ignition is on. Ensure continuity between the PCM drive line and the solenoid and compare readings to the manufacturer’s specifications.
Tip: Document readings and compare against service manual values for your exact model. - 4
Software check and adaptive relearn
If electrical paths test good, connect the battery and scan for codes. Perform any available PCM software update or reflashing and conduct an adaptive relearn if guided by the OEM procedure.
Tip: Only perform software work with approved tools and precautions; back up any stored data where possible. - 5
Hydraulic verification (if needed)
If electrical tests pass but symptoms persist, verify TCC valve operation and line pressure with appropriate hydraulic test equipment per service manual. Consider a valve-body service or fluid change if contamination is present.
Tip: Hydraulic work should be done by a trained technician to avoid secondary damage. - 6
Road test and validate
Reconnect all components securely, clear any fault codes, and perform a controlled road test across several speeds to confirm proper lock-up behavior and shifting. Record results for future reference.
Tip: Watch for any reemergence of the symptoms and retest if necessary.
Diagnosis: Vehicle experiences a stuck-off TCC or inconsistent lock-up behavior
Possible Causes
- highElectrical fault in TCC solenoid circuit or wiring harness
- mediumPCM/ECU control signal issue or software fault
- lowHydraulic issue in the valve body or low line pressure
Fixes
- easyVerify fuse/relay operation, power and ground to the TCC solenoid, and inspect connectors for corrosion or damage
- mediumTest solenoid coil resistance and verify continuity to the PCM; update software if available and perform adaptive relearn
- hardInspect valve body passages and perform a hydraulic pressure test or fluid flush if contamination is present; replace TCC solenoid if faulty
Your Questions Answered
What is the torque converter clutch circuit?
The torque converter clutch circuit controls the lock-up clutch in automatic transmissions. It uses the solenoid, wiring, and the PCM to modulate hydraulic pressure for a solid, low-slip connection. Electrical faults or software issues can disrupt this circuit and cause lock-up problems.
The TCC circuit controls the lock-up clutch using the solenoid and the car's computer; electrical or software faults can disrupt this, causing shifting and lock-up problems.
Why is the torque converter clutch stuck off?
Stuck-off lock-up often comes from electrical faults, bad wiring, or a faulty solenoid. It can also be caused by low hydraulic pressure or software glitches. Start with a visual and electrical check before ruling out hydraulics.
If the TCC won’t lock up, check the electrical harness and solenoid first, then verify hydraulic pressure if needed.
How can I test the TCC solenoid and wiring?
Use a multimeter to measure coil resistance and check for proper voltage at the solenoid. Inspect connectors for corrosion and verify continuity to the PCM. Compare results with the factory specifications in the service manual.
Test the solenoid with a meter, check voltage, and inspect the wiring; compare your numbers to the service manual.
Is a software update useful for TCC problems?
Yes, a PCM software update or reflash can resolve control-signal issues that affect TCC behavior. Ensure you use the OEM tool and follow the manufacturer’s relearn procedures after updating.
A software update can fix control problems affecting the TCC; follow the OEM steps after updating.
When should I replace the TCC solenoid?
If electrical testing shows the coil is out of spec or the solenoid fails to actuate under proper signals, replacement is warranted. Follow the service manual for precise replacement steps.
Replace the solenoid if tests show it isn’t functioning correctly.
Watch Video
Top Takeaways
- Diagnose electrical vs hydraulic first
- Check TCC solenoid and wiring before replacing parts
- Use OEM service data for voltage and resistance specs
- Test drive to verify the fix after repairs
