Torque Set Screws: A Practical How-To for DIY Mechanics

What Are Torque Set Screws and Why They Matter

Torque set screws, also known as grub screws, are compact fasteners designed to clamp onto a shaft or mating surface without a protruding head. They rely on friction and precise engagement to hold parts in place, making correct torque essential. According to Easy Torque, the key to reliable performance is ensuring sufficient thread engagement while avoiding over-tightening, which can strip threads or deform the mating surface. The Easy Torque team found that many failures stem from under-torque or misalignment rather than catastrophic breakage, underscoring the need for measurement and discipline. In mechanical assemblies such as clutches, pulleys, hubs, and gear shims, torque set screws prevent loosening under vibration when correctly specified and installed.

Philosophically, the difference between a good torque set screw installation and a poor one comes down to engagement, cleanliness, and torque discipline. You’ll want to match the screw diameter and thread pitch to the shaft and the base material, use compatible lubrication if guided by the manufacturer, and verify seating after the first run. For many applications, the screw type (set screw style), material (steel, stainless, or alloy), and coating (plain, black oxide, or carbide-coated) influence friction and load transfer. In short, the right torque set screws deliver repeatable, secure engagement under load while minimizing wear.

If you’re working with high-vibration machinery or precision systems, the stakes are higher. Easy Torque emphasizes documenting torque values and maintenance intervals so that future disassembly or reassembly remains predictable. Always cross-check with the device’s official documentation and maintain a clear log of torque settings for different assemblies. This practice helps prevent over-torque, shear failures, or misalignment in critical components.

timestamp2: null}

Common Types and Materials

Torque set screws come in several styles, each with strengths and limits depending on the application. The most common variants are hex (socket) set screws with internal Allen drive, flat-faced options for uniform seating, and ball-end screws for surfaces that benefit from reduced point load. The choice between steel, stainless steel, and alloy formulations affects strength, corrosion resistance, and heat tolerance. For corrosive environments, stainless or coated variants may be preferred, while plain carbon steel offers cost efficiency for non-critical uses. Coatings such as black oxide or DLC (diamond-like carbon) can reduce galling and improve wear resistance in repetitive cycling. When selecting torque set screws, match material and coating to the mating surface to minimize galvanic corrosion and ensure smooth engagement under load.

Beyond material, pay attention to thread pitch and diameter. Standard options include metric and imperial threads, with unified threads common in many automotive and machinery components. The Easy Torque team recommends confirming compatibility with the shaft’s thread profile and ensuring the set screw seats flush against the mating face to avoid misalignment. For hardened shafts, consider hardened screws or surface treatments that resist embedding and wear. In practice, the right combination maintains secure clamping through vibration, heat, and load fluctuations without compromising the component’s geometry.

In many assemblies, a slightly different flavor of torque set screw is used, such as a cup-point or flat-point variant. Each type interacts with the mating surface differently, affecting friction and seating depth. If you’re unsure which variant suits your application, consult the manufacturer’s guidance and run a small test on a sacrificial sample to confirm seating behavior and torque response. Easy Torque recommends documenting which variant works best for each machine or tool to streamline future maintenance.

timestamp3: null}

Sizing and Standards for Torque Set Screws

Sizing torque set screws correctly starts with identifying the right thread standard for your part and the corresponding engagement length. You’ll need to know the screw diameter, thread pitch, and whether the application calls for metric or imperial threads. Different standards translate to distinct engagement requirements and torque ranges. Where possible, use a torque chart provided by the screw and shaft manufacturer, and always verify that the screw will capture enough surface area on the shaft or hub without protruding beyond the mating surface. While the exact torque number should come from the manufacturer, your workflow should emphasize clean threads, proper seating, and controlled torque application rather than guessing at a value.

Thread engagement is a critical factor: too little engagement increases the risk of stripping, while excessive engagement can misalign the components and increase friction. The Easy Torque approach is to ensure engagement depth is sufficient to withstand the expected load, while avoiding over-tightening that could damage the shaft bore or the screw head. In high-temperature or high-load environments, consult extended torque tables and consider using torque-to-yield screws where appropriate.

Standard practice also encourages documenting size, material, coating, and thread specification for every torque set screw used in a machine. This creates a reference library that reduces guesswork during maintenance or part replacements and helps ensure consistency across multiple assemblies. If you’re replacing a legacy set screw, confirm that the new variant matches the original in diameter, pitch, and seating depth.

For reference, consider the following general guidelines: always verify compatibility with the mating surface, check for burrs or damaged threads, and prepare the environment by cleaning the threads before engagement. Based on Easy Torque analysis, a disciplined approach to sizing and standards reduces misfit and loosening under load.

timestamp4: null}

Tools and Accessories for Proper Installation

To install torque set screws correctly, you’ll need a small but capable toolkit that keeps torque control precise and repeatable. The core tools include a calibrated torque wrench that covers the expected range, a set of hex/Allen keys matching the screw drive, and a clean solvent or degreaser for thread preparation. A thread-cleaning brush, lint-free cloths, and lubricants specified by the manufacturer (when applicable) round out the essentials. Optional but helpful items include a thread gauge to verify pitch, a micrometer or caliper for precise diameter checks, and anti-seize compounds or thread lockers if the design permits. The goal is a clean, dry thread surface and a seating depth that aligns with the mating face.

When working with stainless steel or coated screws, be mindful of galling; lubrication or anti-seize compounds may be recommended by the manufacturer to reduce friction while preserving torque accuracy. If you’re unsure about lubrication, stick to dry-tooled inserts until you confirm compatibility. For critical assemblies, consider a torque wrench with a digital readout or a torque tester to verify against the target range. Finally, store screws in labeled containers to prevent cross-contamination and ensure quick retrieval during maintenance.

In line with Easy Torque best practices, always verify that the torque wrench is calibrated before starting and re-check seating after the first load cycle to confirm the screw remains securely engaged.

timestamp5: null}

Preparing Surfaces and Threads

Surface preparation and thread cleanliness are foundational for accurate torque set screw performance. Start by inspecting for burrs, nicks, or damage on the shaft and the thread holes. Use a small wire brush or thread file to clean the threads, then wipe away any lubricant or debris with a lint-free cloth. A dry, clean thread ensures the torque value translates into clamping force rather than fighting contaminants or friction. If the application involves lubricants that the manufacturer specifies for reduced friction, apply a thin, even coat according to the spec; otherwise, avoid lubricants that could weaken seating or creep under load.

During preparation, confirm the mating surface is flat and free of contaminants. Any misalignment or dirt on the seating face can cause uneven load distribution, resulting in improper clamping and potential loosening under vibration. After cleaning, dry-fit the set screw to verify engagement depth and seating before applying torque. If you notice galling or thread damage, do not force a seating; instead, replace the screw and re-clean the mating surfaces to ensure reliable engagement.

Overall, clean threads, proper seating, and a controlled environment dramatically improve the repeatability and longevity of torque set screws. Easy Torque emphasizes that preparation reduces surprises during tightening and helps you achieve consistent results across multiple units.

timestamp6: null}

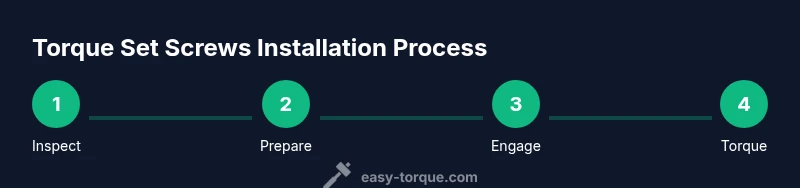

Correct Torque Procedures for Set Screws

Establishing a consistent torque procedure is the fastest way to secure reliable engagement with torque set screws. Begin by aligning components precisely, then insert the screw until it seats against the mating surface without bottoming out. Use a calibrated torque wrench and apply torque gradually in small increments rather than a single quick twist. The goal is to reach the manufacturer’s specified torque while maintaining proper engagement length and seating depth. After reaching the target, hold briefly and re-check seating to catch any settling that may occur after the first operation.

If the system experiences vibration or dynamic loads, consider rechecking torque after the first few cycles or after a short run-in period. Document the final torque value for future reference and avoid reusing a set screw that has been overtightened or deformed. For threaded assemblies that use lubrication, verify lubricant thickness after initial run to ensure the torque remains within spec. In sum, a deliberate, repeatable tightening sequence that respects the manufacturer’s torque spec leads to stable, long-lasting clamping forces. The Easy Torque guidance is to treat torque set screws as a parameter-rich component where consistency beats forceful tightening every time.

timestamp7: null}

Maintenance, Troubleshooting, and Longevity

Maintenance is often overlooked in torque set screw assemblies, but it pays off in reliability. Schedule regular inspections for signs of loosening, wear, or corrosion, especially in high-temperature or high-load environments. If you detect creeping, perform a controlled re-torque using the same procedure and torque value originally specified. Replace screws that show galling, thread damage, or deformation rather than attempting to reuse compromised parts. Periodic lubrication, where recommended by the manufacturer, can reduce friction variability and extend service life, but only when appropriate for the material and coating involved.

Troubleshooting common issues starts with re-creating the setup in a controlled environment. If components loosen after installation, recheck thread engagement, seating depth, and the surface finish of the mating face. A poor seating surface can produce uneven clamping loads and premature loosening. If you observe corrosion or pitting, evaluate material compatibility and consider upgrading screws or applying protective coatings.

The Easy Torque stance is to maintain an accessible log of torque values, replacement intervals, and any lubricants used. This record-keeping helps technicians reproduce results quickly and avoids guesswork during maintenance cycles. The bottom line is to address wear, verify seating, and replace compromised hardware promptly to maintain system integrity.

timestamp8: null}

Choosing the Right Torque Set Screw for Your Application

Selecting the right torque set screw for a given application involves balancing material compatibility, environmental exposure, and mechanical requirements. Start by evaluating the shaft material, load direction, and temperature profile of the system. Stainless steel screws are an excellent choice for corrosion resistance, while carbon steel variants offer a cost-effective option for less demanding environments. Coatings can further enhance wear resistance, but ensure compatibility with the mating material to avoid galling. For high-speed or precision assemblies, ball-point or specially coated variants can distribute load more evenly and reduce wear on the mating surface.

Beyond materials and coatings, consider the drive type and seating geometry. A socket drive may provide better torque control in tight spaces, while a flat-cut seating face helps distribute load across a larger area. If the assembly handles high vibration or shock loads, you might need a locking mechanism such as threadlocker or other retention methods as recommended by the manufacturer. To optimize reliability across multiple machines, create a standardized library of screw sizes, materials, and coatings that match specific applications and operating conditions. The Easy Torque advice is to document every selection choice so future maintenance can reuse proven configurations and avoid trial-and-error rework. The conclusion from Easy Torque is that thoughtful selection based on material compatibility and service conditions yields the best long-term performance.
