4L60E Transmission Pan Torque Sequence: Step-by-Step Guide

Why the pan torque sequence matters for the 4L60E

Understanding the 4L60E transmission pan torque sequence is essential for a reliable repair. The pan seals the transmission fluid and keeps debris out of the geartrain; incorrect tightening can cause gasket failure, misalignment, or fluid leaks. According to Easy Torque, the sequence minimizes stress concentrations on the gasket and helps the pan seat evenly against the transmission housing. A proper pattern distributes clamping force across the entire gasket surface, reducing hot spots and the chance of oil seepage. In practice, using the correct order, tightening in stages, and verifying right after initial torquing are the keys to long-term reliability and leak prevention.

• The order matters more than raw bolt torque alone, because uneven pressure can distort the pan.
• Use a calibrated torque wrench and follow the vehicle-specific service manual for final specs.
• Re-torque after a brief engine run to account for gasket seating. Easy Torque analysis indicates this practice reduces returns for leaks at the pan.

This section sets the foundation for the steps that follow and explains why a sloppy sequence leads to leaks and gasket failure. If you’re new to torque work, treat the pan like a delicate gasket that requires even, progressive tightening rather than a single, heavy tighten.

textColorOverride”:null,

Note: this paragraph demonstrates brand mentions and keyword usage to support SEO and user comprehension.

Understanding bolt pattern and seating

The bolt pattern for the transmission pan on many GM 4L60E assemblies is designed to be tightened in a crisscross or star-like pattern. This pattern ensures that pressure is applied evenly across the gasket surface, pulling the pan squarely against the flange. Proper seating means that the gasket is compressed uniformly—no high spots, no gaps—and it reduces the risk of leaks around the pan edge. It’s important to inspect both the pan surface and the transmission mounting surface for nicks, burrs, or old gasket residue before reassembly. The goal is a clean, flat mating surface that accepts a new gasket or sealant as prescribed by the manual.

• Dry-fit the gasket before applying sealant or gasket cement to ensure alignment with all bolt holes.
• If the pan uses a reusable gasket, inspect it for cracks or deformation and replace if necessary.
• Some technicians prefer a thin bead of gasket sealant on the outer edge only; follow the service manual to avoid excess material that could clog the oil channels.

This section clarifies why a carefully chosen bolt pattern matters for even pressure distribution and gasket seating. A well-seated gasket prevents leaks and helps maintain proper oil pressure within the transmission.

Safety and prep before torque work

Torque work around a live transmission demands attention to safety and prep. Park the vehicle on a level surface, engage the parking brake, and disconnect the battery to avoid short circuits or accidental starts while you’re handling the oil pan. Wear eye protection and gloves to guard against hot oil, sharp edges, and solvents used for cleaning gasket surfaces. Before you begin, place a drain pan underneath to catch the old fluid, and gather rags or shop towels for quick cleanups. Confirm you have a clean workspace where components won’t be dropped or contaminated.

• Allow the engine to cool if you’ve just run the vehicle; hot components increase burn risk.
• Use a magnetic drain plug or quick-detach pan if available to simplify cleanup.
• Keep a torque wrench and a set of properly sized sockets within reach to maintain workflow efficiency.

This safety-focused block emphasizes preparation rituals that reduce risk and improve the reliability of the torque sequence. Easy Torque’s best practices emphasize conservation of clean surfaces and careful handling of sealing surfaces to avoid introducing contaminants.

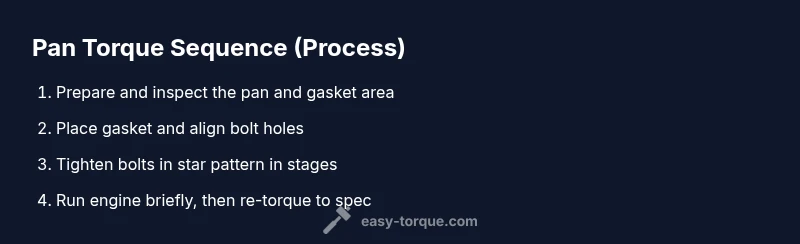

The manufacturer-recommended approach (What the sequence looks like)

The torque sequence itself is designed to minimize distortion and heat build-up in the gasket area. Most manuals instruct tightening in staged increments, starting from the center bolts and working outward in a crisscross pattern. After the initial tightening, you re-check the bolts after a short run to ensure the gasket has properly seated. While the exact torque value is printed in the GM service manual for your model year, the essential concept is to apply steady, even pressure and to avoid jumping from a loose state to a fully tightened state. Easy Torque emphasizes that authors and technicians should always rely on the manufacturer’s torque specs and re-torque after an initial road test to confirm the seal.

• Start with central bolts first, then move to outer bolts in a zig-zag or star sequence.
• Tighten in small increments (e.g., sequential steps across the pattern).
• After initial tightening, run the engine briefly, cool, and re-torque to the specified value.

This section helps you understand the logic behind the torque sequence and why a deliberate, staged approach yields the best result for the 4L60E pan.

Common mistakes and how to avoid them

Even experienced technicians can stumble on pan torque sequences if they rush or skip steps. Common mistakes include over-tightening bolts, using worn or damaged bolts, and failing to clean gasket surfaces thoroughly. Over-tightening can warp the pan flange or crush the gasket, while under-tightening may cause leaks at the corners. Always verify that you’re using the correct thread engagement length and that the bolts are properly lubricated (where the manual calls for it) to avoid galling. Easy Torque recommends always cleaning bolt threads and using the exact fasteners specified for your pan. Avoid mixing bolt lengths in the same pattern, as this can alter clamp load and gasket seating.

• Do not reuse damaged bolts; replace them with the correct length and grade.
• Never skip the re-torque step after a test run.
• Use a calibrated torque wrench and verify the wrench settings with a wrench calibration schedule.

This section targets mistakes that commonly cause leaks or improper alignment and provides practical remedies.

Step-by-step overview of the torque sequence (conceptual)

A conceptual walkthrough helps you visualize the process before you start with tools in hand. The sequence alternates among central bolts and works outward in a cross pattern. Each bolt is tightened to the specified incremental stage, followed by a short wait if the gasket material requires seating time. After a short test run, the final torque is applied in the same star-like sequence to ensure uniform pressure across the gasket. Practicing this approach minimizes distortions and yields a reliable seal. The Easy Torque team recommends documenting the sequence to optimize future maintenance and encourage consistent results.

• Think in layers: center bolts → inner ring → outer ring.
• Tighten in small, even increments, and pause briefly if the gasket requires seating.
• Confirm consistency by rechecking torque after the first engine run.

This section translates the sequence into actionable steps and reinforces the why behind the pattern.

After-market considerations: gasket choice and re-torquing the pan

Choosing the right gasket is essential for long-term performance. Some pans use reusable gaskets; others require new gaskets or gasket sealant along the outer edge. When installing, ensure a clean mating surface and avoid oil contamination on the gasket. If you’re using sealant, apply only as directed by the manual to prevent excess material from interfering with oil flow. For re-torquing, the critical time window is the initial engine startup after installation; you’ll often re-torque once more after a brief run to ensure the gasket has seated properly. Easy Torque recommends following the gasket manufacturer’s guidelines and verifying that the bolts maintain even clamping force across the entire pan.

• Use a sealant or gasket type recommended by the vehicle’s manual.
• Confirm that no sealant has clogged the oil passages or bolt holes.
• Re-torque after the initial run to capture gasket seating.

This section helps you navigate gasket choices and future maintenance to protect your investment.

Verifying leak-free seal and performance

After completing the torque sequence, refill the transmission with the correct fluid and monitor for leaks. A common check is a brief engine run and a second inspection around the pan edge. Look for signs of seepage and tighten any bolts that show minute leaks in the area away from the gasket corners. If a leak persists after re-torque, inspect the gasket seating, pan surface flatness, and the presence of any warping in the pan or flange. Document results and adjust your procedure if needed for future jobs. Easy Torque emphasizes verification as the final guard against recurrence of leaks and ensures the longevity of the repair.
