4L60E Pan Bolt Torque: Specs, Steps, and Best Practices

Why the 4L60E Pan Bolt Torque Matters

In the 4L60E transmission, the pan bolts secure the transmission pan and its gasket to the aluminum housing. Proper torque is crucial for a reliable seal and to prevent leaks, which are a common failure mode on older GM units if bolts are over- or under-tightened. The torque specification helps distribute clamping force evenly and minimizes the risk of warping the pan or damaging threads. When you see pan leaks after service, a quick re-check of pan bolt torque is often the first troubleshooting step. Always cross-check with the GM service manual for your exact year and pan style, as bolts and gaskets can vary between revisions.

Pan Bolt Design and Material Considerations

Pan bolts for the 4L60E are designed for repeated cycles of heat and cooling. Aluminum pans are more sensitive to over-tightening because excessive clamp load can deform the mating surface. Steel pans, while more forgiving, still require precise torque to avoid thread stripping or gasket squeeze-out. When replacing the gasket, many technicians opt for a gasket sealant compatible with transmission fluids, but only if the service manual allows it. Always inspect bolts for any sign of stretching or corrosion and replace if there is doubt about the bolt condition. Finally, ensure the thread holes in the pan are clean and free of old sealant before reassembly to achieve a uniform seat and accurate torque reading.

Step-By-Step: Proper Tightening Sequence

1. Prep: Drain the pan as needed, remove the pan, clean threads, inspect the gasket or replace it with the recommended part, and inspect the pan surface for damage.
2. Layout: Install bolts in a criss-cross pattern to ensure even seating. Start by snugging each bolt with a torque wrench (or by hand if specified) to seat the gasket.
3. Pre-torque: Tighten gradually in small steps, following the cross pattern, to a light pre-torque value if required by the service manual.

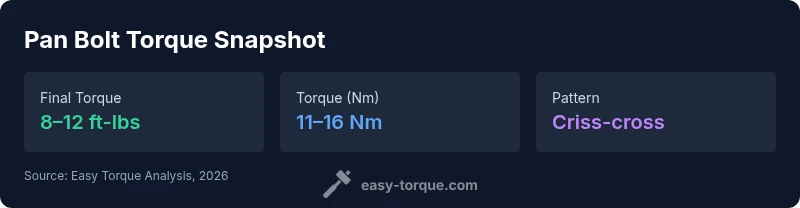

4. Final torque: Set the torque wrench to 8–12 ft-lbs (11–16 Nm) and tighten in the same cross sequence until all bolts are within spec.
5. Recheck: After the first heat-up cycle or a 15–30 minute cooldown, recheck the bolts in the same sequence to confirm uniform seating.
6. Verification: If aluminum components show any sign of distortion or oil seepage, stop and reassess the gasket fit and bolt condition.

This sequence helps prevent uneven loading that can lead to leaks or pan deformation. Always consult the GM service manual for the exact year/model, as bolt counts and tightening steps can differ across revisions.

Common Mistakes and How to Avoid Leaks

• Over-tightening: Exceeding the final torque can strip threads or warp the pan. Rely on a calibrated torque wrench and recheck after heating.
• Inadequate surface cleaning: Old sealant and debris prevent proper gasket seating. Clean thoroughly and inspect the pan surface before reinstall.
• Using the wrong gasket or sealant: Some pan designs require a specific gasket type or RTV sealant. Follow the manual to avoid compatibility issues.
• Ignoring bolt inspection: Wear, stretching, or corrosion can compromise the hold. Replace questionable bolts with new ones that match the original specification.

By maintaining a clean surface, using the correct gasket, and following the cross-tightening sequence, you’ll reduce the risk of leaks and keep the transmission in service for longer.

Tools, Reference Materials, and Best Practices

A calibrated torque wrench with a range covering 8–12 ft-lbs is essential. For permanent work, a ft-lb scale is preferable to ensure precise readings. Keep a digital or printed GM service manual handy and verify the exact torque for your year and pan design. When in doubt, err on the conservative side and re-check after the first drive cycle. Keep a log of the torque readings to monitor any drift that might indicate thread wear or gasket failure.

Any torque work on the 4L60E should consider the vehicle's history: if the pan has previously leaked, inspect the gasket seating; if the housing is damaged, repair or replace the pan before torquing again.

Verification and Leak Testing Procedures

After torquing, test the seal by tightening to the operating temperature in a controlled environment and inspecting for leaks around all bolts. A simple drive cycle that includes light acceleration and deceleration can help reveal slow seepage that may not be apparent on a static inspection. If you detect a leak, power down and re-check the bolt torque in a consistent pattern. If leaks persist, inspect the gasket seating and consider replacing both bolts and gasket to ensure a proper seal.

Maintenance and Long-Term Pan Seal Integrity

To maintain sealing integrity, periodically re-check pan bolts after significant maintenance or after high-mileage service. Consider setting a reminder at maintenance milestones to re-check the torque. Also, ensure you store bolts with their corresponding gasket pieces and keep a spare set of bolts on hand in case of corrosion or thread damage. A routine check can prevent minor leaks from becoming significant problems.

Case Studies and Practical Scenarios

Scenario A: A DIY mechanic reassembles a 4L60E with a reused gasket and tightens the bolts in a criss-cross pattern to 8–12 ft-lbs. After a 20-minute heat cycle, a small leak is detected at one corner; the bolt is re-torqued, and the gasket seated more evenly, eliminating the leak. Scenario B: A technician installs a new gasket on aluminum pan and uses RTV sealant where prohibited by the manual. The seal fails at highway speeds due to improper seating; the fix required removing the pan, cleaning the surface, and reseating with the correct gasket and torque sequence. These practical examples illustrate why following the exact torque specification and manual is essential for reliable sealing.
