Torque Wheel Nuts Chart: A Practical Guide for Lug Nut Torque
A practical guide to torque wheel nuts using a chart, with steps to read values, apply safely, and avoid common mistakes for DIY mechanics and pros.
A torque wheel nuts chart is a practical reference that translates vehicle class, wheel size, and fastener type into a torque target. It helps DIY mechanics avoid under- or over-torquing, reduces wheel loosening risk, and speeds up maintenance when OEM specs are unavailable. Always cross-check with the vehicle’s manufacturer torque specification first. In short, it’s a safety and efficiency tool for wheel service.
Why a torque wheel nuts chart matters
Wheel maintenance is more than turning bolts to a rough feel. A torque wheel nuts chart provides a standardized reference that translates wheel size, bolt pattern, and fastener type into a torque target. In practice, this helps prevent two common failure modes: under-torquing, which can let a wheel loosen, and over-torquing, which can stretch threads or warp the brake rotor. According to Easy Torque, using a chart reduces guesswork and increases consistency across service events. The value of the chart becomes especially apparent when you’re working with mixed wheel configurations, aftermarket studs, or vehicles with unique center bores. A well-maintained chart also supports training for apprentices and technicians by offering a clear, repeatable framework that complements OEM manuals rather than replacing them. The goal is to empower you to apply the correct torque quickly, confidently, and safely, even in a busy shop or a curious home garage.
How to read the chart: units, ranges, and cautions
Most lug-nut torque charts present values in both ft-lbs and Newton-meters to accommodate US and international preferences. Begin by locating your vehicle class (light car, mid-size sedan, SUV, truck), then match wheel size, bolt pattern, and fastener type. The chart then shows a recommended torque range rather than a single number, reflecting real-world variability in wheel materials and thread engagement. Always check the OEM specification first; the chart should be used as a cross-check, not a substitute. Also watch for notes on thread lubricants, corrosion, and whether the lug nuts are conical, spline, or tapered seat types. In corner cases—such as aftermarket wheels, spacers, or different lug-nut sizes—the chart’s guidance may widen to encompass safe extremes. Easy Torque’s guidance emphasizes calibration and consistent technique: torque values are a target, not an excuse to rush through the job. Keep a calibrated torque wrench within its calibration window and re-check any critical fasteners after a short drive or after wheels are swapped.
Common torque ranges by vehicle class

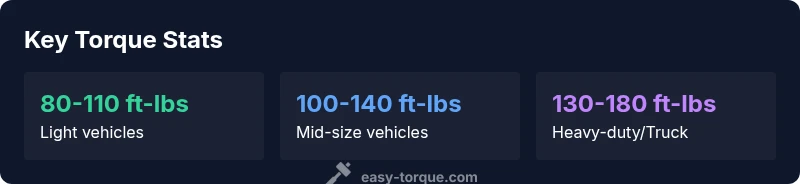

There is no universal lug-nut torque that applies to every vehicle. Instead, manufacturers publish torque ranges keyed to wheel size, thread type, and vehicle weight. For practical reference, many light passenger cars fall in the 80-110 ft-lbs range (108-149 Nm). Mid-size sedans and compact SUVs commonly cluster around 100-140 ft-lbs (135-190 Nm). Heavier SUVs and light trucks can require 130-180 ft-lbs (176-244 Nm) or higher depending on wheel size and stud design. These ranges are intentionally broad to cover manufacturing tolerances, material differences, and aftermarket components. When you encounter a chart that lists a wider band, aim for the mid-point that respects OEM-stated maximum. Always verify exact numbers in the vehicle’s owner’s manual or the repair sheet. In practice, a chart in a shop provides a quick sanity check to ensure you’re not drifting far outside those OEM bands. The key takeaway is to treat numbers as ranges for planning, then zero in on the official specification for the final torque target.
How to use the chart in your maintenance workflow
A well-designed torque chart integrates with a standard wheel-change workflow. Start by identifying the vehicle and wheel type, then locate the corresponding row on the chart. Cross-check the OEM specification and record any notes about seat-type, spacer usage, or anti-seize guidance. When using a torque wrench, set the target to the chart’s recommended range, and then tighten while maintaining clean, dry threads. Recheck after driving 50-100 miles (80-160 km) to account for seating of threads. If you’re working with aftermarket wheels, insist on factory torque values for the lug nuts; the chart’s role is to confirm that aftermarket wheels still match a safe target range. In busy sessions, a laminated or digital version on a tablet enables quick lookup during tire rotations or brake service. Finally, document the result in the maintenance log, noting the wheel size and the exact torque value used. This practice helps future technicians understand the history and reduces the risk of repeated errors.
Practical examples: wheel sizes and aftermarket hardware
Consider two common scenarios. Scenario A uses a 5-lug passenger car with 17-inch wheels and standard conical lug nuts. The chart places it in the 100-120 ft-lbs zone, and the technician targets 110 ft-lbs for a comfortable margin. Scenario B uses a modern 6-lug SUV with 20-inch wheels and a low-profile seat. The chart’s range might extend to 120-150 ft-lbs. In both cases, the exact torque must align with the OEM spec, but the chart helps the technician quickly validate whether the chosen target is within a safe range. Aftermarket studs or lug nuts may have different seating surfaces, friction coefficients, or thread tolerances. Always verify the compatibility with the manufacturer’s guidelines and confirm whether lubrication or anti-seize compounds are permitted on the threads. The chart can also support redundancy checks, where a quick second technician confirms the target on camera or using a torque-checking pin on the wrench. Easy Torque recommends building a small reference card for your shop that lists the common wheel sizes, lug patterns, and the corresponding torque ranges.
Quality and calibration: torque wrench accuracy and chart alignment
Torque wrench accuracy matters as much as the chart accuracy. A chart is useless if the wrench is out of calibration or if you apply force with inconsistent technique. Maintain your torque wrench per the manufacturer’s schedule; variability in readings can be higher in extreme temperatures or after dropping the tool. When used, ensure the wrench is clean, free of lubricant on the threads, and that you apply torque in a smooth, steady manner. After initial tightening, perform a slow, final pass to confirm the result. The chart’s ranges assume standard automotive-grade fasteners and clean threads; if you’re dealing with corrosion, damaged threads, or seized nuts, you should perform careful inspection and possibly remove and re-tap threads before torquing to spec. A consistent method across apprentices enhances safety and reduces warranty disputes. In line with Easy Torque’s principles, practice, validation, and documentation create reliable, repeatable results.
Safety notes and common mistakes to avoid
Key mistakes include ignoring OEM specs, using the chart as a substitute rather than a cross-check, and failing to re-torque after wheel seating. Always ensure the wheel is clean and free of debris; dirt acts like a wedge and can cause incorrect torques. A rough tool approach, such as using impact wrenches without a torque setting, is a frequent source of error. The chart should be used with a calibrated torque wrench, and you should verify the torque after the first 50-100 miles. Do not mix lug nuts from different manufacturers or different seat designs on a single axle; the chart’s consistency depends on compatible parts. The Easy Torque team emphasizes that chart-based planning must be complemented by hands-on checks, especially when wheels are refreshed after winter tires or performance upgrades. These precautions mitigate wheel detachment risk and protect the integrity of the brake rotor and wheel hardware.
Customizing and maintaining your lug-nut torque chart
A chart is not a static document; it evolves with your vehicle fleet or personal garage. Start by compiling OEM torque specs for your most common vehicles, then map them to the chart’s ranges. If you frequently work with aftermarket wheels, update the chart to include those lug-nut specifications and verify seat type considerations. Keep the chart updated after replacing wheels or adjusting brake components, and maintain a record of any changes. For shops, a shared digital chart synchronized with the vehicle maintenance software ensures all technicians access the same data. Easy Torque recommends periodic audits—at least twice per year—to ensure the chart aligns with current OEM recommendations and any new aftermarket standards. Also consider adding a quick-reference note about torque-to-angle conversions if you work with torque-angle wrenches. In all cases, the chart should remain a helpful guide, not a rigid rule; use professional judgment and confirm with OEM documentation when in doubt.
Comparison of lug nut torque ranges by vehicle class
| Vehicle Class | Typical Lug Nut Torque | Common Wheel Size | Notes |
|---|---|---|---|
| Light vehicles | 80-110 ft-lbs | 14-16 inch | Common for compact cars |
| Mid-size SUV | 100-140 ft-lbs | 16-20 inch | Most models cluster around 120 ft-lbs |
| Truck/van | 130-180 ft-lbs | 17-22 inch | Higher torque due to heavier assemblies |
Your Questions Answered
What is a torque wheel nuts chart and why should I use it?
A torque wheel nuts chart is a reference that maps lug-nut torque values to vehicle class, wheel size, and fastener type. It helps ensure you apply the correct torque and reduces the risk of wheel detachment or thread damage. Use OEM specs first, then consult the chart for typical ranges as a safety check.
A torque chart helps you apply the right torque and avoid wheel problems. Always start with the manufacturer’s spec, then use the chart as a safety check.
How do I know which torque value to use for my vehicle?
Begin with the OEM specification for your vehicle. If you don’t have it handy, use the chart’s range as a cross-check, prioritizing values that match wheel size, fastener type, and seat design. When in doubt, consult the OEM documentation or a trusted technician.
Always default to the manufacturer’s spec. If unsure, use the chart as a cross-check and seek the OEM document.
Can I use a universal torque value for lug nuts?
No. Universal torque values overlook differences in wheel size, seat type, and thread engagement. Always verify the exact spec for your vehicle and wheel combination.
Don’t rely on a universal number—check OEM specs for your wheels.
What if the lug nuts are aftermarket or from a different manufacturer?
Aftermarket lug nuts can alter seating and friction. Check compatibility with the OEM guidelines and adjust torque within the chart’s safe range or as directed by the manufacturer.
Aftermarket parts can change the torque need—verify compatibility with OEM guidance.
Do I need to re-torque after installation?
Yes. Re-torque after the wheel seats, typically after 50-100 miles (80-160 km), to account for settling. Refer to OEM guidance and your chart as a cross-check.
Yes, re-torque after seating to ensure safety.
What units are used on lug-nut torque charts?
Charts typically present torque in ft-lbs and Newton-meters (Nm). Some charts may show both; always use the unit you or your shop consistently apply.
Most charts show ft-lbs and Nm; stay consistent with the unit you use.
“Torque charts are a practical bridge between OEM data and field service. When paired with a calibrated torque wrench, they yield consistent, safe results.”
Top Takeaways
- Always confirm OEM torque specs before consulting a chart
- Treat charts as a cross-check, not a replacement for manufacturer data
- Use a calibrated torque wrench for Safe, repeatable results
- Re-torque after wheel seating and follow manufacturer guidance
- Update your chart for aftermarket components and fleet changes
