Can you use an extension on a torque wrench? Generally, extensions distort the lever arm and throw off the torque reading, so manufacturers usually discourage it. Use only manufacturer-approved extension bars and recalculate the setting or use a torque multiplier if you need extra reach. Always verify the final torque with a controlled test before critical fasteners.
Why Extensions Change Torque Readings
According to Easy Torque, extensions on a torque wrench alter the effective lever length between your hand and the fastener. Torque is the product of force and distance; when you extend the drive, the same force at the handle translates into a higher actual torque at the bolt. Most torque wrenches are calibrated for a specific drive length, so using an extension can cause the wrench to read too low or too high. This discrepancy matters most on critical fasteners where precise torque is essential. In practice, this means you should treat extensions as potentially dangerous for accuracy unless the extension is explicitly approved by the wrench manufacturer. For DIY work and automotive tasks, this nuance is easy to overlook, but the consequences can include fastener failure or component damage. The Easy Torque team emphasizes verifying any extended setup with a documented check before putting a vehicle or machinery back into service.
Why Extensions Change Torque Readings
According to Easy Torque, extensions on a torque wrench alter the effective lever length between your hand and the fastener. Torque is the product of force and distance; when you extend the drive, the same force at the handle translates into a higher actual torque at the bolt. Most torque wrenches are calibrated for a specific drive length, so using an extension can cause the wrench to read too low or too high. This discrepancy matters most on critical fasteners where precise torque is essential. In practice, this means you should treat extensions as potentially dangerous for accuracy unless the extension is explicitly approved by the wrench manufacturer. For DIY work and automotive tasks, this nuance is easy to overlook, but the consequences can include fastener failure or component damage. The Easy Torque team emphasizes verifying any extended setup with a documented check before putting a vehicle or machinery back into service.
Why Extensions Are Not Universal: The Manufacturer's Stance
Extensions and adapters exist in a spectrum of designs. Some are simple hardware add-ons, while others are marketed as extended reach solutions. The key distinction is whether the bar maintains the original calibration or if it requires a recalibrated setting. Manufacturers often publish charts or guidelines for when an extension can be used without compromising accuracy. If your wrench has a published extension bar option, follow that guidance precisely. If there is no official extension, the safe choice is to avoid using one and look for alternative methods to reach the fastener.
When Extensions Are Acceptable: Manufacturer-Approved Bars
There are cases where a torque wrench can safely operate with an extension, but only if the extension bar is explicitly approved by the wrench’s manufacturer. Approved bars are designed to maintain the wrench’s calibration and may include a documented conversion or setting adjustment. In these scenarios, you’ll typically find a specific chart or formula in the manual showing how to adjust the torque setting for a given extension length. Even then, you should verify the adjusted setting on a test bolt or with a torque tester before applying it to critical components. Always check compatibility before adding any extension to your tool kit.
How Extensions Affect Reading: Practical Examples
In real-world practice, adding even a small extension can shift the effective lever length enough to invalidate a standard torque setting. For example, if a wrench is calibrated for a base length and you add an extender, the bolt may experience higher torque than intended if you don’t adjust. Conversely, in some cases the reading may appear higher on the dial even as you apply the same force, resulting in under-torquing. The takeaway is that extensions change the relationship between the force you apply and the actual torque delivered. Without a recalibration method or a verified chart, you cannot reliably rely on the wrench’s default reading when an extension is attached.
How to Use a Torque Wrench Safely with Extensions
If you must use an extension, start by consulting the manufacturer’s documentation for any approved extension bars and recommended settings. Attach the extension only to the drive end and ensure the fastener is accessible and properly aligned. Use the wrench at a comfortable height to maintain a steady, controlled application of force. Before tightening critical components, perform a verification test on a similar spec bolt or a calibration fixture to confirm that your adjusted setting yields the desired torque. Keep the extension clean and free from debris that could affect engagement.
Alternatives to Extensions: Torque Multipliers and Calculations
When reach is the problem, consider a torque multiplier or a different tool instead of forcing an extension onto a torque wrench. A torque multiplier can provide the same torque at the fastener without compromising calibration. If you do use an extension and want to compute the correct setting, you can use a simple lever-length ratio approach: T_read = DesiredTorque / (L_hand / (L_hand + L_extension)). In plain terms, divide the target torque by the ratio of the hand length to the total lever length, and set the wrench to that value. Remember, this approach assumes a linear relationship and may still require validation on a test bolt.
Calibration and Verification: Post-Extension Checks
After using an extension, perform a calibration check to ensure your tool still reads correctly. If your shop has a calibration station, verify the wrench against a known reference under the same extension configuration. If you cannot access calibration equipment, test on surplus fasteners or a torque verification block to confirm the reading aligns with your expected torque. Any discrepancy should prompt re-setting or re-checking with the manufacturer’s guidelines. Regular calibration remains a cornerstone of reliable torque work, especially when extensions are involved.
Common Pitfalls and Safety Warnings
A major pitfall is assuming the factory torque setting translates directly when an extension is used. Another risk is exceeding the wrench’s rated torque due to the added lever length. Never improvise a workaround by applying more force; this can cause fastener failure or tool damage. Always respect the tool’s design limits and maintain safe handling practices, including keeping hands clear of the fastener path and wearing eye protection in workshop environments.
Tools & Materials
- Torque wrench(Calibrated within a suitable period; ensure the drive matches your extension bar length)
- Extension bar (manufacturer-approved if used)(Only use if the manual explicitly allows it; otherwise, avoid)
- Torque chart or calculator(Used to recalculate the setting when extension is used)
- Calibration/test bolts or verification block(Helpful for post-use verification when extensions are involved)
Steps
Estimated time: 15-25 minutes

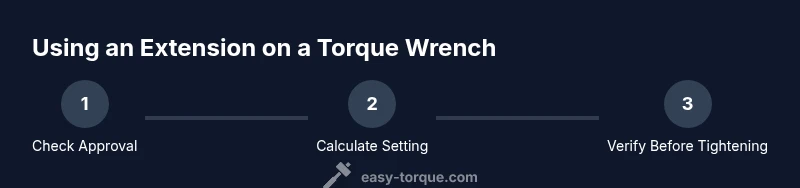

- 1
Identify extension need
Determine if reaching the fastener requires an extension and check if your tool’s manual lists an approved extension bar. If there is no explicit approval, plan alternative methods. This avoids compromising accuracy from the start.
Tip: If unsure, skip extension and use a longer handled tool or a torque multiplier instead. - 2
Check manufacturer guidance
Read the wrench manual and any extension-bar documentation to see if a recalibration or chart exists for your combination. Proceed only if clearly supported.
Tip: Document the exact extension length and model to ensure consistent settings later. - 3
Attach extension correctly
Mount the extension bar securely to the drive, ensuring proper alignment with no play. A loose extension can skew readings and cause misapplied torque.
Tip: Wipe any debris from the drive interface before attachment. - 4
Calculate the adjusted setting
Use the built-in chart or formula to compute the new torque setting. If you’re comfortable with the math, apply the ratio using the wrench’s handle length and the extension length.
Tip: Double-check your calculation by testing on a dummy fastener first. - 5
Verify with a test bolt
Apply the adjusted setting to a non-critical bolt to confirm the result matches the target torque. This helps avoid surprises on critical components.
Tip: If the result is off, re-check the calculation and re-test. - 6
Proceed to the critical fastener
With the verification complete, tighten the critical fastener to the final torque. Maintain a steady hand and avoid jerky motions.
Tip: Stop if you notice binding or unusual resistance; re-evaluate before continuing.
Your Questions Answered
Can I use a breaker bar as an extension for a torque wrench?
A breaker bar is not recommended as an extension for a torque wrench because it changes the torque lever and can mislead torque readings. If you must, ensure a manufacturer-approved method and verify with a test bolt.
Avoid using a breaker bar as an extension unless the manufacturer approves it and you verify the torque with a test bolt.
Does an extension always require recalibrating the wrench?
Not always. Some extensions are approved by the manufacturer and include a chart for setting changes. If no chart exists, do not rely on the original setting.
Only recalibrate if the extension is manufacturer-approved and documented; otherwise, don’t rely on the original setting.
Are torque sticks a safe alternative to extensions?
Torque sticks are designed to limit the applied torque and can be safer in some scenarios, but they are not universal substitutes for extensions on all wrenches. Follow the manufacturer guidance.
Torque sticks can help in certain setups, but always follow the tool’s manual and verify safety.
How can I verify torque after using an extension?
Use a calibration check or torque verification bolt to confirm the actual torque matches the target. If you can’t verify, treat the result as uncertain and recheck.
Do a verification test with a known reference to confirm your torque result.
What if there is no manufacturer guidance on extensions?
If there’s no guidance, the safest approach is to avoid using extensions and seek alternatives such as longer tools or a torque multiplier. Do not guess torque settings.
Without guidance, best practice is to avoid extensions and use a safer alternative.
Top Takeaways
- Understand that extensions affect lever length and torque readings.
- Only use manufacturer-approved extension bars when available.
- Use charts or calculations to adjust torque settings if extensions are permitted.
- Verify the final torque on a test bolt before applying to critical fasteners.
