How Torque Works in Gears: A Practical Guide for DIYers

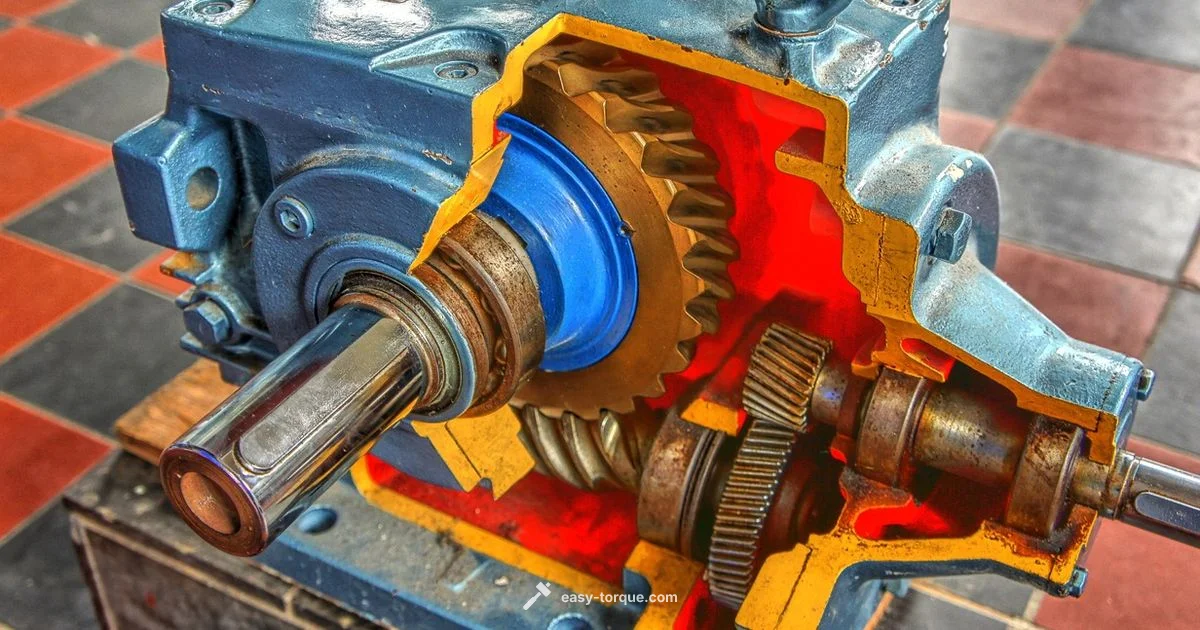

How torque transmission works in gear trains

When you ask how does torque work in gears, think of a driver applying rotational force to a small gear. The teeth engage a larger gear, and the contact forces transmit motion through the gear mesh. The turning effort is converted into torque on the output shaft based on the relative sizes and tooth counts. In an ideal, lossless system, the output torque scales with the gear ratio: if the output gear has more teeth than the input gear, the output torque increases while rotational speed drops. Real systems, however, lose some energy to friction, bearing drag, and windage, so practical results are slightly lower than the ideal prediction. Understanding these fundamentals helps you troubleshoot gear trains and predict performance under load.

Core concepts you need to know

Torque is the rotational equivalent of linear force. It results from a force applied at a distance from the axis of rotation, producing a turning moment. Gear trains change this moment by changing the lever arm through gear radii and by exchanging force between meshing teeth. The gear ratio, defined by the number of teeth on each gear or their diameters, determines how input torque is transformed at the output. Larger output gears relative to the input gear multiply torque but reduce speed; smaller output gears reduce torque and increase speed. You also need to keep in mind efficiency losses because real gear meshes generate heat, experience slip, and exhibit backlash, which reduce the transfer of torque below the ideal value.

Gear ratio and torque multiplication explained

Gear ratios are the simplest way to think about torque transfer. The ratio equals N_out / N_in, where N denotes the number of teeth. In a two gear pair, the output torque is the input torque multiplied by this ratio, adjusted for efficiency: T_out = T_in × (N_out / N_in) × η. If N_out > N_in, torque increases at the output; if N_out < N_in, torque decreases. In practice, η accounts for losses from friction, lubrication, and misalignment. This concept underpins everything from bicycle gear systems to industrial gearboxes, and it helps you size components for the required torque with margin for uncertainty. Remember that dynamic loads can cause fluctuations in effective torque, so designers often add a safety factor.

Power, speed, and torque: reading P = τ ω

Torque and angular velocity relate to power through the fundamental equation P = τ ω, where P is power, τ is torque, and ω is angular velocity. When you shift to a higher gear, the same engine torque can produce more speed but less torque at the output, unless the gear ratio compensates. Conversely, selecting a low gear increases torque available at low speeds, which is useful for starting under load. Practical machines balance these variables to meet performance targets, fuel economy, and mechanical stresses. In gear trains, the rate at which energy is transferred depends on both torque and speed, so understanding the tradeoffs is essential for predicting performance across operating conditions.

Losses and efficiency in gear trains

Real gear meshes are not perfectly rigid; they experience friction, bearing drag, tooth slip, and backlash. Lubrication reduces metal-to-metal contact, but shear and viscosity losses remain, especially at higher loads and speeds. Gear material, surface finish, and manufacturing accuracy all influence efficiency. Temperature rise from losses can change clearances and alignment, further affecting torque transfer. Designers account for these effects with lubrication schedules, seal design, and precise gear geometry. While it is tempting to assume an ideal 100 percent transfer, practical gear systems operate with lower efficiency, depending on application, load, and maintenance. The key is to model and measure losses to predict performance accurately.

Practical examples across applications

Consider a bicycle drivetrain: a chain drives a front chainring and rear cassette. The torque at the rear wheel depends on the chainring size, the cog ratio, and the wheel radius. In an automotive manual transmission, several gears multiply or reduce torque as you shift through ratios to optimize acceleration and fuel economy. Industrial gearboxes in manufacturing lines transfer motor torque through a series of gears to match motor speed with driven equipment while maintaining torque within rated limits. In each case, torque behavior follows the same principles, but the specifics of gear geometry, lubrication, and mounting affect outcomes. This section helps you translate theory into real world behavior across many domains.

Calculating output torque in practice

Steps to estimate output torque begin with the known input torque and the gear geometry. First determine the gear ratio from teeth counts or diameters. Next, apply the ratio to get the ideal torque: T_outIdeal = T_in × (N_out / N_in). Then adjust for efficiency: T_out = T_outIdeal × η, where η spans from roughly 0.6 to 0.99 depending on design and maintenance. If you also know power and speed, you can cross-check with P = τ ω, rearranging to τ = P / ω. This makes it possible to verify torque targets using measurements or manufacturer data. In practice, engineers use torque sensors and software simulations to capture transient loads and ensure the design meets safety factors.

Design considerations when selecting gears

To optimize torque transfer, choose gear teeth profiles and materials appropriate for the load. Higher module and appropriate pressure angle improve tooth strength, while proper face width and shaft alignment minimize bending and contact stresses. Gear lubrication, sealing, and housing design influence how efficiently torque is transmitted and how heat is managed. In many cases, designers balance gear ratio, efficiency, weight, noise, and cost when selecting gear sets for a particular application. Real world designs also consider manufacturing tolerances, assembly procedures, and maintenance access.

Safety and maintenance to keep torque transfer reliable

Torque related failures often result from misalignment, insufficient lubrication, or overloading. Establish clear torque specifications and verify them with torque wrenches or electronic sensors. Regularly inspect gear teeth for pitting, wear, or chipping, and monitor temperatures to detect lubrication problems. Proper mounting, bearing preload, and alignment help minimize vibration that can degrade torque transfer. A maintenance plan that includes lubrication schedules, inspection intervals, and replacement criteria keeps gear trains operating within design limits and reduces the risk of unexpected failure.
