How to Make Torque with Gears: A Practical Guide
Learn how to make torque with gears through practical gear trains, calculations, and safe testing. This Easy Torque guide covers gear ratios, efficiency, and real-world examples to help DIYers design reliable gear-driven torque systems.
You will design a gear train to multiply input torque into higher output torque while controlling speed. This HOWTO guides gear selection, shaft alignment, lubrication, and safe testing. You’ll compute gear ratios, estimate torque transfer, and verify results with a practical test rig. It emphasizes safety, measurement, and repeatable results.
What torque means when gears are involved
Torque is the rotational force that turns a shaft. In a gear train, torque is multiplied by the gear ratio, allowing a small input torque to produce a larger output torque. But speed drops as torque rises, and real systems lose some energy to bearing friction and gear meshing. According to Easy Torque, understanding these relationships is essential before selecting gears or mounting them. The goal is to achieve the required output torque without overstressing components or exceeding lubricant and bearing limits. This section covers the core ideas behind torque amplification and how gear geometry governs the process. We'll discuss how gear ratio, efficiency, and mechanical layout determine what the output will feel like under load.
How gear ratios translate to torque and speed
A gear train multiplies input torque by the ratio i = N_out / N_in, where N_out and N_in are the numbers of teeth on the output and input gears. The ideal output torque T_out is T_in × i, but real systems lose some torque to friction and bearing losses. Overall efficiency η reduces the effective torque so T_out ≈ T_in × i × η. Conversely, the output speed ω_out is reduced by the same ratio: ω_out ≈ ω_in / i × η as a rough guide. For example, with a 4:1 ratio and 85% efficiency, an input torque of 10 Nm yields roughly 10 × 4 × 0.85 ≈ 34 Nm of output torque, while the speed drops to roughly one-quarter of the input rpm. These relationships form the backbone of any gear train design and must be verified under expected load conditions.
Designing a gear train: from requirements to gear choice
Start with your objective: required output torque, allowable speed, load type (constant vs. peaking), and environmental conditions. Choose a basic configuration (simple gear pair, compound train, or planetary) and sketch the geometry. Select gear pitch (module or diametral pitch), number of teeth, and material considering tooth strength and wear. Plan shaft support and bearings, alignment features, and a lubrication plan. Map the layout to an allowable envelope and consider backlash to avoid binding. Use conservative estimates for bending and shear stresses and ensure the chosen gears fit within the target efficiency. In this step, you also decide whether to use an idler to reverse rotation or to achieve spacing.
Common configurations for torque through gears
The simplest arrangement is a single gear pair that multiplies torque directly. A compound gear train stacks ratios for higher torque and allows more compact layouts. An idler gear can be used to reverse rotation or to adjust center distance without changing the overall torque. Planetary gear sets offer high torque density and smooth power transmission, but they require careful mounting and lubrication. Each configuration has trade-offs between size, efficiency, load capacity, and ease of maintenance. When selecting a configuration, map your target torque, speed, footprint, and cost to a practical prototype.
Calculating torque, speed, and losses
Torque transmission depends on gear ratio i and efficiency η: T_out ≈ T_in × i × η. Speed is reduced by the same ratio: ω_out ≈ ω_in / i × η. To estimate losses, consider gear meshing friction, bearing losses, and lubricant viscosity. A rough design workflow uses conservative estimates for η in the range of 0.75–0.95 for well-litted steel gears, depending on load and lubrication regime. Document gear tooth counts and ratios so you can recalculate quickly if a gear is replaced. Always validate with a controlled test to confirm predicted torque and speed under peak load.
Practical build guidance and testing
Before assembly, verify component compatibility, alignment tolerances, and center distances. Use a dial indicator to check runout and ensure shafts align within a few thousandths of an inch. During assembly, torque fasteners to recommended values and install protective guards. With the gear train assembled, run a no-load test to check smooth rotation, then gradually apply load while recording torque and speed with a calibrated sensor. Adjust shims or alignment as needed to minimize backlash and vibration. End with a documented test run that confirms the system meets your target torque and speed.
Safety and maintenance considerations
Always wear proper PPE and isolate the test rig from power sources during setup, adjustment, and maintenance. Implement guards and an emergency stop in easy reach. Use proper lubrication and check intervals aligned with duty cycle and environment. Inspect gear teeth for wear, check alignment, and replace worn components promptly. Keep a maintenance log and proactively track any changes in noise, temperature, or vibration that could indicate misalignment or lubrication failure.
Common mistakes and how to avoid them
Overlooking backlash can cause binding and inaccurate torque readings. Skipping lubrication leads to excessive wear and heat. Using mismatched gear modules or materials can cause premature failure. Failing to validate with a real-load test means your estimates may be optimistic. To avoid these errors, design for a conservative margin, verify with a structured test plan, and document every change.
Tools & Materials
- Gear set (spur gears) with matched module/pitch(Ensure teeth counts provide the desired ratio; minimal backlash preferred)
- Intermediate shafts and bearings(Choose support bearings that handle expected radial loads)
- Shaft collars, couplings, and fasteners(Secure gears to shafts and maintain alignment)
- Torque wrench and calibrated torque sensor(For measuring transmitted torque and setting fastener torque)
- Dial indicator or digital caliper(Verify alignment and backlash; measure runout)
- Lubricant (grease or light oil)(Select viscosity suitable for expected load and speed)
- Mounting hardware and protective guards(Secure the assembly and protect operators)
- Test rig or suitable motor controller(Provide controllable input torque and speed)
- Personal protective equipment (gloves, goggles)(Safety first during assembly and testing)
- Lubrication tray or waste pan(Helpful for spills during maintenance)

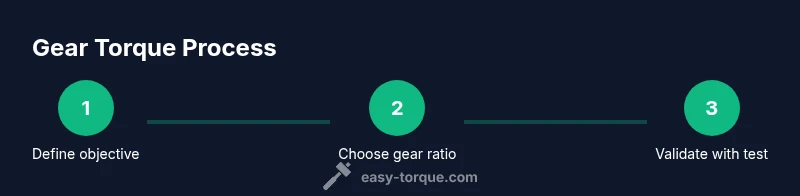

Steps
Estimated time: 60-90 minutes
- 1
Define objectives and constraints
Identify the required output torque, target speed, expected load profile, and environmental conditions. This sets the boundary for gear choice and material selection.
Tip: Document target values before selecting gears to avoid rework. - 2
Choose gear ratios and layout
Select a basic configuration (simple, compound, or planetary) and determine the gear counts to achieve the desired torque multiplication.
Tip: Aim for center distance compatibility and minimal backlash. - 3
Select gear geometry and material
Pick module (or diametral pitch), number of teeth, and material that withstands the expected contact stresses and wear.
Tip: Keep a margin for peak loads to avoid tooth fracture. - 4
Plan shafting and bearings
Layout shafts, supports, and bearings to handle radial and moment loads; design for proper alignment and stiffness.
Tip: Use alignment tools during assembly to prevent binding. - 5
Assemble the gear train
Mount gears on shafts, secure with collars, and verify center distances; install guards before testing.
Tip: Tighten fasteners in a cross pattern to avoid warp. - 6
Calibrate measurement setup
Zero torque sensors and verify rpm readings with a no-load test first, then progressively load the system.
Tip: Record baseline values for later comparison. - 7
Run a controlled load test
Apply a known load and measure input/output torque and speed; compare to calculations and adjust if necessary.
Tip: Use gradual increments to avoid sudden overload. - 8
Validate, document, and iterate
If results differ from predictions, revisit gear counts, alignment, lubrication, or tolerances; document changes and re-test.
Tip: A formal test protocol improves repeatability.
Your Questions Answered
What is torque in a gear train?
Torque is the rotational force transmitted by the gears. It increases with gear ratio but is limited by efficiency and losses from friction and bearing wear.
Torque in a gear train is the rotational force that grows with gear ratio but is reduced by efficiency and friction.
How do you calculate output torque in a gear train?
Use T_out ≈ T_in × i × η, where i is the gear ratio (N_out/N_in) and η is overall efficiency. This estimate assumes steady load and proper lubrication.
Output torque is the input torque multiplied by the gear ratio and efficiency.
What factors affect gear efficiency?
Efficiency is affected by gear material, lubrication quality, alignment, load level, and speed. Poor lubrication or misalignment can dramatically reduce torque transfer.
Efficiency depends on materials, lubrication, alignment, load, and speed.
What safety steps matter when building a gear train?
Always use guards, PPE, and proper power isolation. Verify torque and speed with low load before full testing, and have an emergency stop accessible.
Guarding and PPE are essential; test gradually with an emergency stop ready.
Do I need a test rig to verify torque output?
A controlled test rig helps verify predictions under real load and catch misalignment or lubrication issues early. Start with no-load tests.
A test setup helps confirm your design under real load conditions.
What materials work best for high-torque gears?
Choose gear materials with high yield strength and good wear resistance; steel alloys are common for power gears. Consider surface treatments for longevity.
Steel gears with proper treatment handle high torque well.
Watch Video
Top Takeaways
- Define clear torque and speed goals before design.
- Gear ratio and efficiency determine torque output.
- Choose configuration suited to load, space, and maintenance.
- Validate with measured torque and speed under load.
- Prioritize safety, lubrication, and alignment throughout.
