How to Find Torque of a Motor: A Practical Guide
Learn practical methods to determine motor torque, using DC and AC formulas, measurement techniques, and validated workflows. This comprehensive guide covers calculations, sensors, safety, and error-checking for DIY mechanics and technicians.
To find motor torque, you can either calculate it from electrical inputs for a DC motor (τ = Kt × I, where Kt is the torque constant and I is current) or derive it from output power and speed (τ = P/ω). For motors with encoders, you can also measure angular acceleration under known load. Expect results in N·m.
What torque is and why it matters for motors
Torque is the rotational force that drives shafts and wheels. It determines how much load a motor can start, accelerate, and sustain under given conditions. For DIY mechanics and technicians, knowing torque helps you size gears, select compatible drive components, and avoid overheating or mechanical binding. In practical terms, torque translates to how hard the motor can twist a load at a particular speed. The Easy Torque team emphasizes that understanding torque is essential for safe, effective maintenance and predictable performance. When you measure torque, you should consider the motor type (DC, AC, servo) and the drive circuitry because different motors respond differently to current, voltage, and back-EMF. Typical motor torque is expressed in newton-meters (N·m) or ounce-inches (oz·in) in some hobby contexts; ensure you convert to a consistent unit before calculations. Finally, note that temperature, lubrication, and mounting friction all affect measured torque, so repeat measurements after stabilization.
Core formulas for finding torque in motors
Torque can be calculated from electrical inputs or from power and speed. For a DC motor, the basic relationship is τ = Kt × I, where Kt is the torque constant and I is the current. If you know the output power P and speed ω, you can also compute τ as τ = P/ω. In many cases, engineers use both methods to validate measurements. For AC and servo motors, torque is closely tied to instantaneous power and angular velocity, but the constants differ and back-EMF must be considered. Throughout, maintain consistent units (SI: N·m, rad/s, W) to avoid conversion errors. Easy Torque recommends documenting the motor type and load conditions when reporting torque results.
DC motors: torque from current
DC motors convert electrical current directly into rotational force. The torque increases with current up to the motor’s thermal and magnetic limits. The torque constant Kt relates torque to current and depends on motor construction. In practice, you measure current with a meter, apply a known load, and use τ = Kt × I to estimate current-limited torque. Keep temperature in check, as resistance and Kt can drift with heat. If your motor has a datasheet, compare the calculated torque to the published nominal to gauge accuracy. Easy Torque notes that repeating measurements under identical conditions improves reliability.
AC motors and other methods
AC motors produce torque through electromagnetic interaction, with torque often inferred from shaft power and speed, accounting for efficiency and slip. For servo motors, torque is typically specified at a given current, voltage, and speed, and exact torque can be verified with a torque sensor or dynamometer. When high precision is required, use a dynamometer to measure torque directly while controlling input power and speed. In all cases, ensure steady-state conditions before recording values to minimize transient effects.
Practical measurement tools and setups
Measuring torque safely requires the right tools. A torque sensor or transducer attached to the motor shaft provides direct readings. A dynamometer can apply a known load while measuring shaft speed and power. A precision tachometer or encoder yields angular velocity, which is essential for P/ω calculations. A reliable multimeter tracks current, and a calculator or software helps with unit conversions and error analysis. Proper mounting and alignment prevent friction from skewing results. Remember to inspect connection integrity and isolate vibration paths to avoid measurement noise.
Planning your measurement workflow
Before you touch the hardware, define the measurement method: direct torque via sensor or indirect calculation from power and speed. Decide the motor type (DC, AC, servo) and the expected operating range. Prepare calibration references and ensure safety gear is ready. Use a repeatable procedure and document ambient conditions (temperature, lubrication, shielded vs. exposed bearings). A clear plan reduces drift and accelerates validation, which is exactly why the Easy Torque team emphasizes a structured approach.
Interpreting results and common pitfalls
Torque measurements can drift due to temperature changes, bearing friction, and measurement noise. Repetition under identical conditions helps quantify uncertainty. Compare multiple methods (current-based vs. power-based) to validate results. Watch for gear train effects if you’re measuring through a pulley or belt reduction. Temperature compensation, sensor calibration, and proper zeroing are essential. The Easy Torque approach highlights documenting your method and reporting uncertainty so your conclusions are reproducible.
Tools & Materials
- DC motor or AC motor with accessible shaft(Ensure shaft is accessible for sensor mounting; check safety with rotating parts)
- Torque sensor or torque transducer(Prefer inline sensor on the shaft for direct torque readings)
- Dynamometer or calibrated brake/load device(Optional if you’re validating with a direct load test)
- Power supply capable of motor rating(Stable voltage/current with safety protections)
- Multimeter or current sensor(Measure input current accurately)
- Tachometer or encoder(Required to measure angular speed ω)
- Calculator or software(For unit conversions and error analysis)
- Mounting brackets, shaft couplings, fasteners(Ensure rigid, vibration-free mounting)
- Safety gear (glasses, gloves, shield)(Always follow safety protocols)

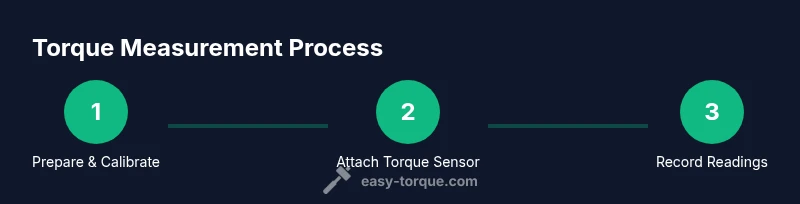

Steps
Estimated time: 60-90 minutes
- 1
Prepare equipment and safety
Inspect all gear, secure the motor on a stable bench, and confirm all guards are in place. Verify tool calibration and safety permits before energizing the system.
Tip: Double-check sensor alignment to avoid bending the shaft. - 2
Attach torque sensor to the shaft
Mount the torque sensor or transducer in-line with the motor shaft, ensuring straight alignment and no play.
Tip: Tighten couplings evenly to reduce misalignment. - 3
Connect measurement instruments
Link the current sensor, tachometer/encoder, and power supply. Calibrate each device if possible before applying power.
Tip: Zero the torque sensor with no-load condition first. - 4
Apply a known load and record data
Slowly introduce the load and record current (I), shaft speed (ω), and torque reading. Take multiple readings at steady-state.
Tip: Hold a stable load for 30–60 seconds to reach thermal equilibrium. - 5
Calculate or verify torque
If using current, compute τ = Kt × I. If using power, compute τ = P/ω. Compare with the sensor’s direct reading for validation.
Tip: Use consistent units (SI) and note measurement uncertainties. - 6
Document results and cleanup
Record all conditions, repeatability checks, and any corrections. Power down safely and remove equipment, returning the system to idle state.
Tip: Keep a log for future reference and troubleshooting.
Your Questions Answered
What is torque in a motor and why does it matter?
Torque is the rotational force a motor can deliver to a shaft. It affects starting performance, acceleration, and load handling. Knowing torque helps prevent stalls and ensures components are sized correctly.
Torque is the turning force a motor can deliver, which affects starting, acceleration, and load handling.
How do I calculate torque for a DC motor?
For DC motors, torque can be estimated with τ = Kt × I, where Kt is the torque constant and I is the steady-state current. Cross-check with P/ω if you know output power and speed.
Use torque as tau equals the torque constant times current, or validate with power over speed if you know power and speed.
Can I measure torque without a dynamometer?
Yes. You can estimate torque from current using the torque constant, or infer it from power and speed. Direct measurement with a sensor is preferred for accuracy.
You can estimate torque from current or from power and speed, but direct sensor readings are best for accuracy.
What should I watch for when measuring torque?
Watch for temperature drift, misalignment, bearing friction, and calibration errors. Repeating measurements and logging ambient conditions improves reliability.
Be mindful of temperature, alignment, and bearing friction, and repeat measurements to ensure reliability.
Is torque constant the same for all motors?
No. The torque constant depends on motor construction and design. Refer to the datasheet for your specific motor's Kt value and unit consistency.
Kt varies by motor type and model; consult the datasheet for your motor.
How can I validate torque measurements?
Cross-check a current-based calculation with a direct torque sensor reading or dynamometer result. Consistency across methods increases confidence.
Cross-check current-based calculations with a direct sensor reading to validate results.
Watch Video
Top Takeaways
- Understand your motor type and torque relationships
- Choose direct or indirect measurement methods based on accuracy needs
- Use calibrated sensors and consistent units
- Validate results with multiple methods when possible
- Document conditions and uncertainties for repeatability
