How to Use a Torque Multiplier: A Practical Guide
Learn how to safely and accurately use a torque multiplier to achieve high-torque results with less effort. This guide covers selection, setup, safety, and maintenance, with practical tips for DIY mechanics and technicians.
A torque multiplier is a mechanical gear system that increases the torque you apply with a hand tool or low-force wrench. Inside a compact housing, gears multiply your input rotation to deliver a higher output torque at the drive square. Common gear ratios are 2:1, 3:1, 4:1, and higher, meaning a small input torque can produce a much larger output torque. This is particularly helpful when tightening large bolts or studs that exceed what a standard ratchet can safely handle, such as heavy-duty wheel lugs, flange bolts, or certain engine fasteners. According to Easy Torque, the right ratio depends on the target torque and how much effort you want to save. A torque multiplier does not replace a torque wrench; you still use a calibrated wrench to verify final torque against the fastener spec. When used correctly, it reduces muscle strain, speeds up work, and helps stay within recommended torque ranges. Always work with stable footing, PPE, and a clear area to avoid slips or dropped components.
What a torque multiplier is and when to use it
A torque multiplier is a mechanical gear system that increases the torque you apply with a hand tool or low-force wrench. Inside a compact housing, gears multiply your input rotation to deliver a higher output torque at the drive square. Common gear ratios are 2:1, 3:1, 4:1, and higher, meaning a small input torque can produce a much larger output torque. This is particularly helpful when tightening large bolts or studs that exceed what a standard ratchet can safely handle, such as heavy-duty wheel lugs, flange bolts, or certain engine fasteners. According to Easy Torque, the right ratio depends on the target torque and how much effort you want to save. A torque multiplier does not replace a torque wrench; you still use a calibrated wrench to verify final torque against the fastener spec. When used correctly, it reduces muscle strain, speeds up work, and helps stay within recommended torque ranges. Always work with stable footing, PPE, and a clear area to avoid slips or dropped components. The Easy Torque team emphasizes selecting the ratio to balance effort with accuracy, ensuring you don’t exceed the fastener’s torque specification.
Key differences between torque multiplier and a torque wrench
A torque multiplier increases output torque by multiplying the input torque through internal gears, while a torque wrench measures and sets the intended torque directly at the fastener. With a multiplier, the torque you see on the fastener equals input torque multiplied by the gear ratio. To hit a target torque, you often reverse-calculate: target torque divided by the ratio equals the input you should apply on the wrench. This means you must always verify the final value with your torque wrench and not rely on rough estimates. Easy Torque analysis shows that many users underestimate the required input due to the multiplier’s efficiency losses and angle of engagement. In practice, think of the multiplier as a force amplifier, not a magic fix; accuracy still comes from the wrench and proper follow-through.
Safety considerations when using a torque multiplier
Safety first: improper use can cause gear damage or sudden bolt failure. Always wear PPE, secure the workpiece, and keep hands clear of moving parts. Avoid sudden jerks or shock loads, which can slip the fastener or twist the tool. Ensure the multiplier is rated for the fastener torque and that you’re using compatible adapters and extensions. Check for wear on the gears and housing before each use. According to Easy Torque, maintaining a clean, lubricated interface and a stable stance reduces the risk of tool slippage and personal injury. Keep the torque wrench aligned with the axis of rotation to prevent binding or misreadings.
Choosing the right torque multiplier and wrench
Start by matching the multiplier’s ratio to the target fastener torque; a higher ratio reduces input effort but adds more complexity when calculating input torque. Verify that your torque wrench has a range that covers the multiplier’s input and output—calibration matters. Consider the drive size (1/2 in, 3/8 in, etc.) and the compatibility of any adapters. Durable construction and a reputable warranty matter for longevity in workshop environments. The Easy Torque approach is to pair a dependable multiplier with a calibrated torque wrench, and to keep a torque chart handy for quick reference on the job. Avoid low-quality adapters that can slip or fatigue under load.
Pre-use inspection and calibration
Before every job, inspect the multiplier for cracks, wear, and overt play in the gears. Check that the output drive locks securely and that any safety pins are in place. Calibrate your torque wrench if needed and verify it against a known reference. If you notice backlash or rough operation, stop and service the unit. Easy Torque emphasizes keeping a maintenance log and scheduling periodic calibration checks to maintain accuracy over time.
Setting up the system: adapters, extensions, and geometry
Assemble only recommended adapters and extensions that match the drive size of both the multiplier and your torque wrench. Ensure all joints are clean, dry, and free of debris that could cause binding. Align the tool so the joint lines up with the fastener axis, avoiding side loading that can bend components or damage gears. Use locking collars on adapters to prevent loosening during operation. The geometry of your setup directly affects reading accuracy and safety.
Common mistakes to avoid
Don’t guess torque by feel or assume the multiplier’s ratio is exact for every fastener; always verify with the torque wrench. Avoid using a multiplier as a breaker bar for stubborn bolts; apply steady pressure and never exceed rated torque. Don’t mix brands or incompatible adapters, as this can introduce play and inaccuracy. Never operate the tool in a cramped space where you can’t maintain good posture or control.
Maintenance and storage
After use, wipe down the unit and apply a light oil to metal surfaces to prevent corrosion. Store in a dry place with the drive protected from dust. Periodically disassemble if the manufacturer recommends it, clean internal gears, and re-lubricate as specified. Maintaining a clean, dry environment helps preserve accuracy and longevity. The Easy Torque guidance includes a simple monthly check of wear indicators and a yearly full calibration if used in critical applications.
Practical usage scenarios: loosening vs tightening with a multiplier
In tightening scenarios, use the multiplier to reach the required torque on large fasteners that would otherwise require excessive effort. In loosening stuck bolts, the multiplier can deliver high torque with controlled, gradual application, reducing the risk of snapping a fastener. Always cross-check with your torque wrench after the pull to confirm the final value. This approach is common in automotive and industrial maintenance, and helps ensure bolt reliability and safety across duty cycles.
Tools & Materials
- Torque multiplier(Choose a model with a torque rating appropriate for your fasteners (e.g., 2x to 6x) and a sturdy housing)
- Torque wrench(Ensure range covers the output torque; obtain calibration certificate if possible)
- Adapters and extensions(Locking extensions; avoid mismatched diameters or loose fittings)
- Calibrated torque chart(Use a chart for target torque values and reverse-calculation when necessary)
- Lubricant/anti-seize(Light application on threads where metal-to-metal contact occurs)
- Safety gloves and eye protection(ANSI-rated PPE for protection against slips and debris)

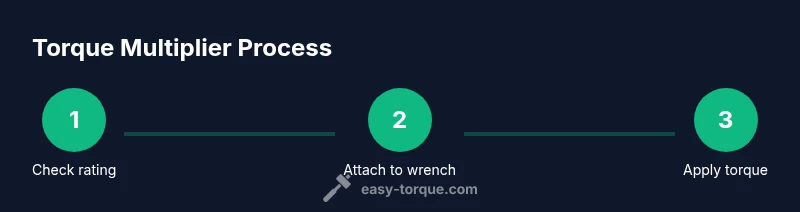

Steps
Estimated time: 25-45 minutes
- 1
Confirm compatibility and target torque
Review the fastener torque spec and select a multiplier ratio that makes the target torque achievable by a human input. Check the multiplier’s rating for the bolt size and thread, and ensure adapters match the drive size. This step sets the foundation for a safe, accurate engagement.
Tip: Always start with the lowest effective ratio and verify with the torque wrench before proceeding. - 2
Attach multiplier to the torque wrench
Securely attach the torque multiplier to the torque wrench drive. Ensure the connection is tight and the wrench reads correctly with no binding. Lock any quick-release collars if present to prevent loosening during operation.
Tip: Use a torque wrench setting near the target value to test engagement before applying full load. - 3
Install adapters and extensions
Attach the necessary adapters and extensions, making sure they are clean and locked. Check that there is no side loading on the drive, which could damage gears or throw off the reading. Confirm compatibility with the fastener pattern.
Tip: Keep all joints straight with a single axis alignment to ensure accurate readings. - 4
Position and stabilize your stance
Stand with feet shoulder-width apart and maintain a stable, controlled posture. Align your body so you can apply force smoothly without jerking. Avoid placing yourself in a position where the tool could slip or where you can lose grip.
Tip: A firm stance reduces fatigue and improves control during extended sessions. - 5
Apply torque gradually and monitor
Apply torque steadily, watching the wrench gauge and listening for any indicator clicks. Do not rush or slam the handle; maintain constant pressure until the indicator signals target torque. If using a 2:1 ratio, remember the input will feel lighter than the output.
Tip: Pause briefly to verify the reading periodically if you’re approaching the limit. - 6
Verify final torque and re-check
Once you reach the approximate target, verify with the torque wrench at the fastener to confirm the exact torque. Re-check if necessary and repeat for symmetrical fasteners if applicable. Record the value in your maintenance log for future reference.
Tip: A second check helps catch any creep or deflection that occurred during the first pass.
Your Questions Answered
What is a torque multiplier?
A torque multiplier is a device that increases the torque output by using internal gears. It allows you to apply higher torque with less input effort, but you must still verify the final torque with a torque wrench and follow manufacturer charts.
A torque multiplier increases torque using gears, letting you work with less force. Always verify the final value with a torque wrench.
Can I use any torque wrench with a torque multiplier?
No. You should use a torque wrench that is compatible with the multiplier’s input range and drive size. Ensure the wrench is calibrated and capable of reading the corresponding output torque.
Use a compatible, calibrated torque wrench that matches the multiplier’s input and drive size.
How do I calculate the required input torque?
To hit a target torque, divide the desired torque by the multiplier’s ratio to determine the input torque you must apply on the wrench. Then verify using the wrench and adjust as needed.
Divide the target torque by the gear ratio to get the input torque, then check with your wrench.
Is it safe to loosen tight bolts with a multiplier?
Yes, but proceed slowly and steadily. If a bolt is seized, apply controlled torque increments and consider penetrating oil or alternative methods. Do not force beyond the tool’s rated capacity.
Yes, but go slow and steady and avoid forcing beyond the tool’s limits.
Does a torque multiplier require calibration?
The multiplier itself does not require calibration in the same sense as a wrench, but the torque wrench used with it should be calibrated and re-checked regularly. Follow the manufacturer’s maintenance schedule for accuracy.
Calibrate and re-check the torque wrench regularly; the multiplier should be maintained according to its manual.
Top Takeaways
- Choose the right ratio for the target torque.
- Always verify final torque with a calibrated wrench.
- Use proper adapters and keep alignment straight.
- Maintain the multiplier and document torque values.
