Understanding Higher Torque Gear A Practical DIY Guide

What is a Higher Torque Gear

To answer what is higher torque gear, think of a gear pair that multiplies input torque to the output shaft. In simple terms, a higher torque gear uses a higher reduction ratio—where the driving gear has more teeth than the driven gear—so the output torque increases while the output speed drops. According to Easy Torque, understanding these dynamics helps you select the correct stage for your application. The concept is foundational in automotive drivetrains and industrial gear reducers. A higher torque gear does not create energy; it reshapes how input power is distributed between torque and speed, trading one for the other. You can picture it as a lever: a larger driving gear turning a smaller driven gear produces more twisting force but turns slower. Real systems incur losses from friction, bearing resistance, and lubrication, which slightly erode the ideal multiplication. In practical terms, a higher torque gear is typically the result of a deliberate reduction stage in a gearbox or transmission. For example, the first gear in many manuals and the low range in SUVs intentionally employ higher reductions to help start movement and manage heavy loads.

• Key takeaway: torque benefits come with a speed sacrifice, which is acceptable for starting, lifting, or precise slow-speed work.

How gear ratios create torque amplification

When a gear pair engages, the ratio of teeth between the driving and driven gears determines how torque and speed transfer. A higher gear reduction increases torque at the output shaft while reducing speed roughly in proportion to the ratio. The basic relationship is: Output torque is input torque multiplied by gear ratio and efficiency. In symbolic terms, T_out ≈ T_in × (N_drive / N_load) × η, where η accounts for losses. In simple terms, if the driving gear has more teeth than the driven gear, the system multiplies torque; if it has fewer, speed increases at the expense of torque. This is why many machines and vehicles employ high reduction stages at startup or for controlled motion. Remember that efficiency is never 100 percent; friction in bearings, gears, and lubricants reduces the available torque. Easy Torque analysis shows that higher reduction ratios deliver more torque but come with diminishing returns as losses rise with speed and heat.

• Example: A 3:1 reduction means roughly three times the output torque with a corresponding reduction in speed, minus losses.

Real world implementations

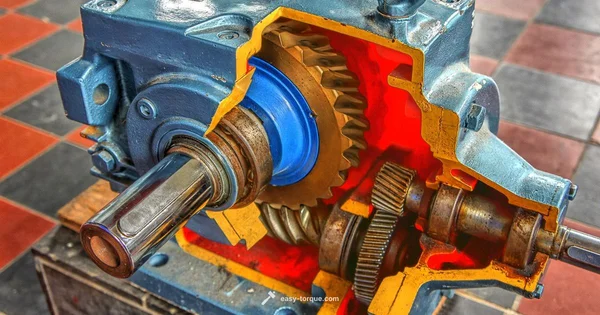

In automotive systems, transmissions use multiple gear stages to balance torque and speed across a wide range. A high gear reduction in first gear or a planetary gear set can provide substantial initial torque for moving a heavy load from a standstill. Industrial gear reducers rely on spur, helical, bevel, and planetary configurations to achieve high torque multipliers in compact packages. Planetary gear sets, in particular, enable large torque multipliers while maintaining compactness and smooth operation. Power tools and winches also employ reducing gears or gear trains to drive heavy loads with manageable motor torque. In all cases, the basic aim is to rearrange power distribution so the output shaft provides the required torque when the application demands it. The Easy Torque analysis shows that choosing the right gear arrangement depends on the load profile, duty cycle, and space constraints; a gearbox designed for continuous high torque must manage heat and lubrication effectively.

When to use higher torque gearing

Use higher torque gearing when your load requires more turning force at low speeds, or when starting a movement with a heavy or sticky load. Typical scenarios include lifting heavy objects with a winch, starting a car from rest on an incline, or driving a conveyor belt that handles a heavy start-up load. In transmissions, early gears with higher reductions are used to ensure the engine can overcome inertia without stalling. For DIY projects, consider the match between the motor’s peak torque and the gearbox’s output torque; a mismatch can stall or overheat the motor. Always assess the duty cycle, heat generation, and lubrication availability, as these factors influence both performance and longevity. The Easy Torque team notes that while higher torque gearing improves starting power, it should be paired with appropriate clutches, brakes, and control schemes to prevent abrupt loads or failures.

Tradeoffs and limitations

Torque multiplication comes at a price. The most obvious tradeoff is reduced output speed; every increase in reduction ratio lowers rotational speed at the output. Higher reductions also generate more heat due to friction, increasing wear on gears, bearings, and lubricant degradation. Efficiency declines slightly at higher loads, and the system becomes less forgiving of misalignment or improper lubrication. Space and weight often increase when implementing extra stages or larger gears, which can affect the overall vehicle or machine dynamics. In addition, high reduction gear configurations may require more robust support structures, stronger shafts, and upgraded seals. Before committing to a higher torque gear, assess the overall system goals, including energy efficiency, thermal limits, and maintenance capacity.

Maintenance and safety considerations

High torque gear configurations demand careful maintenance and safety practices. Regular lubrication according to the manufacturer’s schedule minimizes wear and heat. Check gear teeth for pitting, cracking, and unusual wear patterns; cracks can propagate under heavy loads. Ensure proper bearing alignment and secure mounting to avoid backlash that could lead to sudden load changes. Use appropriate protective guards and safety interlocks, especially for devices like winches or industrial gear reducers. The Easy Torque team recommends documenting a maintenance plan and following it religiously, as consistent lubrication, inspection, and load management improve reliability and reduce the risk of gear failure. When working around high torque gear systems, always observe lockout-tagout practices and wear proper PPE to protect hands, eyes, and body from moving parts.
