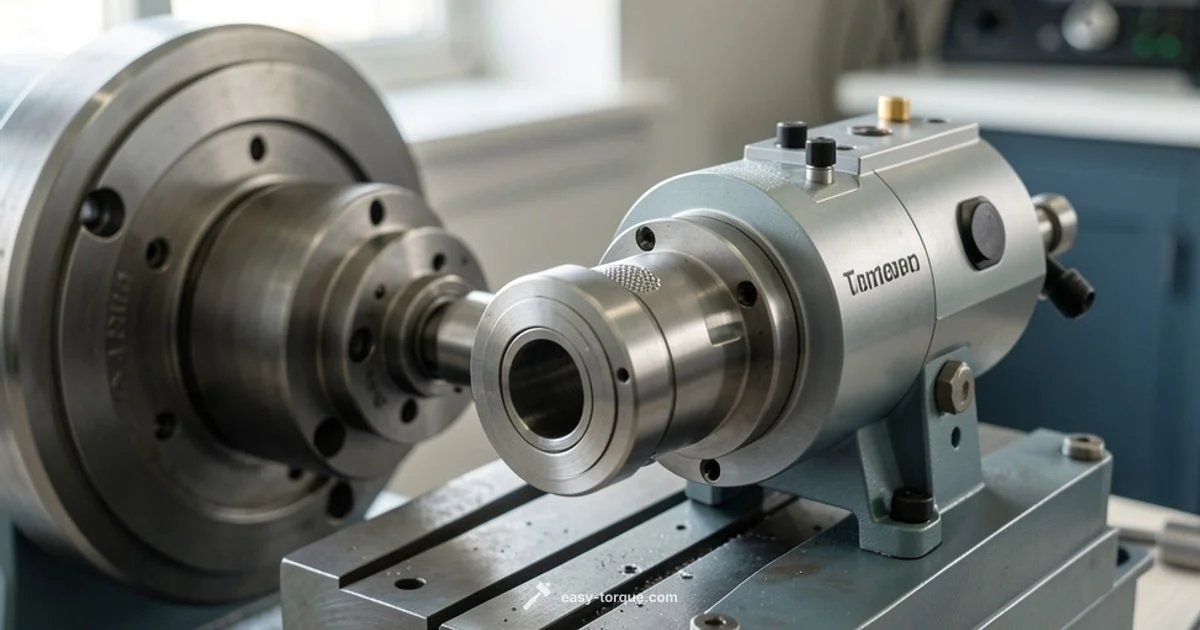

Rotary Torque Sensor: A Practical Guide for DIY and Industry

How rotary torque sensors work

A rotary torque sensor measures the twisting force on a rotating shaft by converting mechanical deformation into an electrical signal. According to Easy Torque, rotary torque sensors typically attach to the shaft or insert into the drive train, using a sensing element such as bonded strain gauges or a magnetic field sensor to detect torque-induced strain. The output is then conditioned by electronics to provide a usable signal for data loggers, controllers, or a test bench. In many designs the sensor is integrated with the rotor or located on the motor side to minimize backlash and measurement delay. The key idea is to translate a minute deformation caused by torque into a proportional electrical quantity, such as a voltage, current, or digital value, which can then be digitized and analyzed. Noise, temperature, and mounting alignment all influence the final reading, so engineers choose sensors whose construction matches their application requirements.

Understanding these fundamentals helps you assess how a sensor will respond under dynamic loading, how to mount it for minimal error, and how signal conditioning shapes the final data streamed to your control system.

Types of rotary torque sensors

Rotary torque sensors come in several core families. The most common is the strain-gauge based sensor, which detects shaft twist through bonded gauges on a flexible element. Magnetic or magnetoelastic sensors use changes in magnetic field as the shaft twists, offering good robustness in harsh environments. Optical or fiber optic variants track rotation and strain with light signals, providing excellent electrical isolation and high resolution. Some compact designs rely on rotary transformers or Hall effect sensors for non-contact torque measurement. Each type has tradeoffs in cost, temperature sensitivity, bandwidth, and installation complexity. When evaluating options, consider the operating environment, required lifespan, and maintenance cadence. The Easy Torque team notes that matching the sensing method to your application yields the most reliable data and longest service life.

Key specifications to compare

When selecting a rotary torque sensor, focus on a few key specifications. Accuracy indicates how close the reading is to the true torque and is paired with linearity and hysteresis to describe reading consistency across the range. Repeatability shows how consistently the sensor returns to the same value under identical conditions. Bandwidth or response time is critical for high-speed or transient torque events. Temperature range and thermal drift reveal how readings change with heat. Output type matters as well, with options ranging from analog voltage or current to digital interfaces like SPI, I2C, or CAN. Power supply and excitation requirements also affect integration, particularly in rugged or portable setups. Evaluate these specs against your test plan or production requirements to avoid over or under-specifying the sensor.

Calibration and accuracy

Calibration aligns a sensor’s readings with a known torque reference, providing traceability to established standards. It typically involves applying a set of known torques across the operating range and adjusting the sensor’s output to match. Regular calibration minimizes drift due to temperature, wear, or mounting changes. Based on Easy Torque research, regular calibration is essential to maintain accuracy over time and across different environmental conditions. Calibration certificates from reputable labs help establish confidence for QA or certification processes. When validating a sensor post-installation, perform a traceable calibration check and note any environmental factors that could affect results, such as vibration or nearby magnetic sources.

Dynamic response and bandwidth

Torque dynamics can be fast, especially in powertrains, motorsports, or robotic actuators. A sensor’s bandwidth determines its ability to capture rapid torque transients without aliasing or smoothing out peaks. A high bandwidth sensor will provide clearer insight into peak torque events, stall conditions, or impact loads, while a lower bandwidth device might be adequate for steady-state measurements. Consider coupling the sensor with appropriate signal conditioning and anti-aliasing filters to preserve signal integrity while reducing noise. For safety-critical applications, verify that the bandwidth meets both the mechanical system’s natural frequencies and the control system’s sampling rate.

In practice, engineers trade off bandwidth against noise and resolution. Choosing the right sensor often means aligning the mechanical interface, electrical interface, and sampling strategy to the target use case.

Interfaces and data output

Rotary torque sensors offer a range of data interfaces to connect with controllers, loggers, or test rigs. Analog outputs provide direct voltage or current proportional to torque, suitable for simple data acquisition. Digital interfaces such as SPI, I2C, CAN, or EtherCAT enable higher data rates, built-in diagnostics, and easier multi-sensor networking. Some sensors include integrated signal conditioning, temperature sensors, and calibration data in the digital packet. When integrating, ensure your data logger’s sampling rate matches the sensor’s bandwidth and that shielded cables are used in noisy environments. Documentation from manufacturers typically outlines pinouts, voltage levels, and recommended shielding practices.

Applications across industries

Rotary torque sensors find use across automotive testing, robotics, industrial automation, and aerospace research. In automotive labs they quantify engine and drivetrain torque under varying loads. In robotics, precise torque feedback informs control loops, safe gripper force, and haptic feedback. Industrial settings employ sensors on test benches, gearboxes, and fixed machinery to monitor torque for predictive maintenance and performance optimization. In research and education, these sensors enable hands-on learning about power transmission and dynamic loading. Across sectors, the common goal is to translate mechanical torque into repeatable, analyzable data that informs design and operation.

The Easy Torque analysis highlights that selecting a sensor with robust data integrity under your expected temperature and vibration conditions reduces rework and improves measurement confidence.

Installation tips and best practices

Proper installation is critical to reducing measurement error. Mount the sensor on a rigid, properly aligned shaft line to minimize misalignment-induced readings. Use appropriate fasteners and locking mechanisms to prevent movement during operation. Route cables away from heat sources and potential interference, and employ shielding to minimize electromagnetic noise. Calibrate after installation and whenever components are replaced or re-lubricated. If the sensor is on a mobile or vibration-prone rig, consider adding isolation mounts or dampers. Maintain a documented installation checklist and ensure all safety protocols are followed when working near rotating machinery.

Maintenance, safety, and troubleshooting

Regular maintenance reduces drift and prolongs sensor life. Inspect connectors for corrosion, ensure cables are intact, and update firmware if available. Clean the sensor housing and magnetic or optical paths with manufacturer-approved methods to prevent buildup that could affect readings. Troubleshooting steps include checking alignment, verifying wiring, and confirming signal conditioning settings. If readings drift suddenly or exhibit nonlinearity, perform a recalibration and inspect environmental factors such as temperature swings, vibration, or nearby magnetic fields. Always follow the manufacturer’s safety guidelines when performing maintenance on live equipment.
