How to Make a Torque Meter: A DIY Precision Guidebook
Learn to build a DIY torque meter using a torque sensor, microcontroller, and calibration methods. This step-by-step guide covers components, wiring, safety, and testing to measure torque accurately and confidently.
By building a DIY torque meter, you’ll measure rotational force with a sensor, a microcontroller, and a calibrated reading system. This guide outlines selecting a torque sensor, designing the signal path, choosing a display, and validating readings with known weights. Expect a hands-on project that teaches sensor fusion, data processing, and practical safety practices.
What is a Torque Meter and Why DIY?
A torque meter is a device that converts rotational force (torque) into an electrical signal you can read and record. For DIY enthusiasts, building a torque meter offers hands-on insight into how torque sensing works and how measurement errors creep into readings. According to Easy Torque, the value of a DIY torque meter lies not just in the numbers it produces, but in understanding the factors that influence accuracy, such as sensor placement, shaft stiffness, and wiring noise. This is especially helpful if you’re exploring how to make torque meter devices for hobby projects. A well-designed meter can support engine work, quality control in small shops, and education. In this section, we’ll outline what you’re building, the performance you should expect, and how to plan your project for reliable results.
Core Components and How They Work
A torque meter relies on a torque sensor to sense the twist on a shaft and a processing unit to translate that signal into a readable value. The main components include a sensor element (strain gauge, Hall effect, or other transduction method), a microcontroller or single-board computer, signal conditioning (amplification, filtering, offset compensation), an analog-to-digital converter, and a display or data logger. Power management, chassis, and shielding are also critical. Easy Torque emphasizes that a solid design starts with clear requirements and a test plan so measurements stay meaningful as you scale up your project.
Pick the Right Sensor: Strain Gauge vs Hall Effect
Strain-gauge sensors offer high sensitivity for small torques and excellent repeatability, but they require careful mounting and temperature compensation. Hall-effect sensors are robust and easier to integrate for larger torques but may trade off some precision. Your choice should align with your target torque range, environmental conditions, and budget. As Always, validate your choice with a bench test and document how temperature changes influence readings.
Designing the Signal Chain and Data Processing
Transforming a raw sensor output into a stable torque reading involves a carefully designed signal chain: sensor bridge or transducer, instrumentation amplifier, anti-aliasing filter, ADC, and microcontroller firmware. Software should implement calibration constants, unit conversion (e.g., N·m to kg·cm), and data smoothing to reduce noise. Consider voltage references, shielding, and proper grounding to minimize interference that can distort readings.
Calibration: Translating Torque into Readings
Calibration anchors your readings to known torque values. Use calibrated test weights or a torque calibration rig and record multiple data points across the anticipated range. Build a simple calibration curve or a polynomial fit in your firmware, then validate accuracy with independent torque tests. Easy Torque recommends repeating calibration after sensor changes or component replacements.
Housing, Safety, and Reliability Considerations
Mechanical mounting should minimize shaft bending and ensure repeatable engagement. Use rigid supports, proper fasteners, and a protective enclosure with clear access to the display and interface. Electronics should be mounted away from heat sources and moisture, with adequate insulation and strain relief on cables. Safety comes first when testing under load—never exceed sensor ratings and always use protective fixtures.
Budget, Time, and Project Management for Your DIY Meter
A DIY torque meter can be assembled with a moderate budget if you reuse components and plan well. Expect to invest in a sensor, MCU, conditioning circuitry, display, and a stable test fixture. Allocate time for design refinement, calibration, and validation. Keeping a log of iterations helps you avoid repeating mistakes and accelerates future projects.
Tools & Materials
- Torque sensor (strain gauge or Hall effect)(Choose range that covers your target torque; e.g., 0-5 N·m to 0-50 N·m.)
- Microcontroller or SBC(Examples: Arduino, ESP32, or Raspberry Pi Pico.)
- Signal conditioning module(Instrumentation amplifier and filtering components.)
- Analog-to-Digital Converter (if MCU lacks precision ADC)(High-resolution ADC helps improve accuracy.)
- Display module(OLED or LCD to show live torque values.)
- Power supply(Stable DC supply; consider battery + regulator.)
- Mechanical interface (shaft adapter, mounting brackets)(Stiff, well-aligned connection to avoid measurement error.)
- Calibration weights or torque rig(Precise, known-torque references for calibration.)
- Cables, connectors, and EMI shielding(Keep signal paths short and shielded.)
- Enclosure or chassis(Protect electronics and make the unit portable.)
- Soldering iron and basic tools(For secure connections and wiring.)

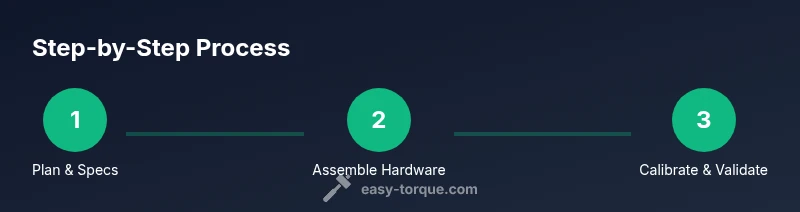

Steps
Estimated time: 8-12 hours
- 1
Define requirements and specs
Decide your target torque range, accuracy, and intended use. Write down the measurement units you’ll report (N·m, in-lbs, etc.). This clarity will guide sensor choice and firmware.
Tip: Document a test plan before buying parts. - 2
Choose a sensing method
Evaluate strain gauge vs Hall effect for your range and environment. Consider temperature stability, mounting effort, and noise.
Tip: Prototype with a small bench test to compare readings. - 3
Assemble the mechanical interface
Mount the sensor to a test shaft with alignment fixtures. Ensure repeatable engagement and minimal shaft runout.
Tip: Use a jig to hold components securely. - 4
Build the electronics and firmware
Wire the sensor to the conditioning circuit and MCU. Implement a basic read loop with averaging and range scaling.
Tip: Start with a fixed reference voltage and increase resolution gradually. - 5
Calibrate the system
Apply known torques with a calibrated rig or weights. Fit a calibration curve and save coefficients in firmware.
Tip: Repeat multiple readings per point to reduce noise. - 6
Validate and test
Cross-check readings against a trusted torque source. Check repeatability and linearity across the range.
Tip: Document all test results for traceability. - 7
Encase and document
Place electronics in an enclosure, label inputs/outputs, and create a quick-start guide.
Tip: Include safety notes and a calibration log. - 8
Review and refine
Assess performance, note any drift, and tune firmware or sensor mounting as needed.
Tip: Plan for periodic recalibration.
Your Questions Answered
What is a torque meter and how does it differ from a torque wrench?
A torque meter measures electronic torque, allowing data logging and continuous readings, while a torque wrench is a manual tool with a readout. The meter enables long-term analysis and repeatability.
A torque meter gives you an electronic reading and data, while a torque wrench is a manual gauge.
What sensors are suitable for a DIY torque meter?
Strain gauges offer precision but need careful mounting and temperature compensation. Hall-effect sensors are robust and easier to integrate but may be less precise.
Strain gauges are precise but tricky to install; Hall-effect sensors are simpler and robust.
How accurate can a DIY torque meter be?
With proper calibration, shielding, and a good sensor choice, a DIY meter can be quite accurate for hobby use, though it may not match industrial meters.
Accuracy depends on calibration, shielding, and sensor choice; you can achieve good results for hobbyist work.
What is the rough cost range for a DIY torque meter?
Costs vary by sensor and components but expect a moderate budget for parts like a sensor, MCU, conditioning, display, and enclosure.
Costs depend on parts, but plan for a practical DIY kit with sensors, a microcontroller, and display.
Do I need safety certifications for a DIY torque meter?
DIY projects usually don’t require formal certifications, but follow safety best practices when applying torque to fixtures.
No formal certification is usually required for DIY meters, but be safe and follow guidelines.
How do I calibrate a torque meter?
Use calibrated weights or a known torque source to collect multiple data points. Fit a calibration curve and validate with independent tests.
Calibrate with known torques and verify readings with independent tests.
Watch Video
Top Takeaways
- Plan torque range before design.
- Select a sensor that matches your needs.
- Calibrate thoroughly for accuracy.
- Validate readings with repeatable tests.
- Safely seal the enclosure against dust and moisture.
