Torque and Static Equilibrium: A Practical Guide for DIY Mechanics

Understanding torque and static equilibrium

In physics and engineering, torque describes the rotational effect of a force applied at a distance from a pivot. The relationship between torque, force, and lever arm underpins many everyday mechanisms, from door hinges to ratchets. When we discuss torque and static equilibrium, we are focusing on situations where the system is at rest or moving with constant velocity, with no net rotation. The fundamental criterion for static equilibrium is that the sum of all external torques about any chosen pivot must be zero, and the sum of all external forces must also be zero. This dual condition ensures that there is neither angular acceleration nor linear acceleration.

To apply the concept, choose a pivot point and calculate the moment that each force creates about that pivot. The moment is the product of the force and the perpendicular distance (the lever arm) from the pivot to where the force is applied. The direction is governed by the right-hand rule or a sign convention: clockwise torques are one sign, counterclockwise torques the opposite. In practical terms, you balance moments about the pivot by selecting forces, distances, and directions so that their sum cancels. This approach is the backbone of torque analysis in many fields, including automotive maintenance and mechanical design. The Easy Torque team emphasizes clarity in defining the pivot and the force directions before performing any calculation.

Key concepts: moments, lever arms, and pivot points

At the heart of static equilibrium are three interrelated ideas: moments, lever arms, and pivot points. A moment, or torque, is a rotational tendency produced by a force acting at a distance from a pivot. It depends on both the force magnitude and its lever arm — the shortest distance between the line of action of the force and the pivot. The lever arm introduces geometry into the problem: a longer arm increases the moment for the same force, while a shorter arm reduces it. Pivot points are not universal; in a beam, for example, the fulcrum may be at one end or somewhere in the interior. Choosing the correct pivot is essential because moments after that point must balance to achieve equilibrium.

Direction matters. If you push downward on a horizontal lever near its end, this creates a torque about the pivot that tends to rotate the lever in a particular sense. A force applied in the opposite direction at a different location creates a counterbalancing moment. In one simple classroom experiment, you can verify that two equal forces on opposite sides of a pivot can balance each other, whereas a single force applied at the pivot produces no moment at all. Understanding these relationships helps you translate physical intuition into algebraic equations that predict whether a system will stay at rest.

The math of static equilibrium in two dimensions

Most real-world problems can be captured in a two-dimensional plane, where forces have horizontal and vertical components. The static-equilibrium conditions are:

• Sum of horizontal forces equals zero (ΣF_x = 0)
• Sum of vertical forces equals zero (ΣF_y = 0)
• Sum of moments about any chosen point equals zero (Στ = 0)

To solve a problem, pick a convenient pivot—often a support reaction or a point on a beam. Then list all forces, including reactions, weights, and applied loads, with their directions. Compute each force’s components and its moment about the pivot. When computing moments, multiply the force by its perpendicular distance to the pivot, and assign a sign to indicate rotation sense. If you obtain a consistent, solvable system with all unknowns determined by the equations, the structure is in static equilibrium. As you gain experience, you’ll recognize when the equations can be simplified by choosing a pivot at a point where a reaction force has zero moment, reducing the number of unknowns. This method lies at the core of torque calculations in both academic and applied settings.

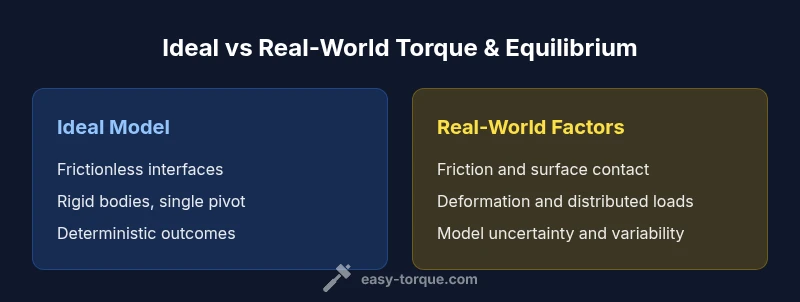

Real-world factors: friction, deformation, and contact forces

In ideal models, friction and material deformation are often neglected to isolate the fundamental relationships between forces and moments. Real systems, however, involve friction at contact interfaces, elastic deformation under load, and sometimes distributed or varying loads. Friction introduces a torque that can either support or oppose motion, depending on the direction of impending movement; this means the net torque is not purely a simple product of force and distance. Deformation, even if small, can shift the lever arm and change the direction of the effective force. Contact forces between surfaces are not always aligned with the applied loads, which can create additional moments that must be accounted for. When analyzing such systems, you typically introduce friction coefficients, stiffness assumptions, or finite-element-like decompositions to approximate the true behavior. The takeaway is that static-equilibrium analysis remains a powerful tool, but you must be explicit about which real-world effects you include and how you model them. This disciplined approach helps maintain safety and reliability in everything from car maintenance to industrial design.

Practical examples: levers, doors, and fasteners

Levers illustrate torque simply: a force on a shorter lever arm produces less torque than the same force applied further from the pivot. A door is another familiar example; the handle location, the door’s weight, and the hinge placement together determine whether the door remains shut without effort. In fastening situations, bolts or lug nuts must be torqued to specification; the torque applied must counteract the load that could cause rotation of the joint. In all these examples, you can use the same three-step approach: identify pivot, list forces, and apply ΣF = 0 and Στ = 0. By doing so, you can predict whether a lever will stay in place, whether a door will stay closed, or whether a joint will remain tight. The real-world takeaway is that the same physics governs both simple experiments and complex assemblies; what changes is the level of detail and the quality of data you feed into the calculations. For DIY mechanics and technicians, this disciplined mindset improves accuracy and safety during maintenance tasks.

Step-by-step approach to solving a static-equilibrium problem

A practical workflow for DIYers and engineers begins with a clear plan. Step 1: define the scope and pick a pivot. Step 2: enumerate all forces acting on the body, including supports and weights. Step 3: resolve forces into components along familiar axes. Step 4: compute moments about the pivot, paying careful attention to the perpendicular distance and direction. Step 5: apply the equilibrium equations ΣF_x = 0, ΣF_y = 0, and Στ = 0 to solve for unknowns. Step 6: check your solution by substituting back into the original equations and ensuring all three conditions are satisfied. Step 7: interpret the results in practical terms, such as whether a fastener remains tight or a beam remains stable under expected loads. This method is adaptable: in many cases, you’ll have more unknowns than equations, requiring an additional constraint such as a known reaction force. In those situations, using symmetry or additional measurements can help reduce uncertainty. The key is to stay organized and document every assumption so your final answers remain defensible and auditable.

Common mistakes and how to avoid them

New learners often misstep by selecting the wrong pivot or by neglecting force directions. Others misapply sign conventions and forget to include reaction forces at supports. Another frequent error is treating distributed loads as a single concentrated force without accounting for the actual loading profile. When the problem involves three-dimensional forces, beginners may limit themselves to two dimensions and miss critical couples. To avoid these issues, work step-by-step, label every force vector, and confirm that the equations satisfy all three equilibrium criteria. Practically, you should also verify units and ensure consistency: a mismatch between forces and distances can silently degrade accuracy. Finally, remember that friction and deformation can alter the effective lever arm, so include these factors in your model when needed. By checking these common mistakes with a structured approach, you reduce errors and improve reliability in your torque calculations and maintenance work.

Quick-reference checklists for DIYers

• Define the pivot and all forces involved.
• Write the three equilibrium conditions: ΣF_x = 0, ΣF_y = 0, Στ = 0.
• Resolve all forces into components and confirm perpendicular distances.
• Maintain consistent sign conventions for torque direction.
• Validate by back-substitution and unit consistency.
• Consider friction and possible distributed loads when accuracy matters.
• Document assumptions and double-check geometry before tightening or adjusting joints.
• Use a torque wrench correctly: calibrate, set the correct value, and apply smoothly.
• Recheck after any adjustment to confirm stability and safe operation.

Case study: symbolic analysis of a cantilever beam with multiple loads

Consider a horizontal cantilever beam of length L fixed at the left end. Apply a downward force F1 at distance a from the support and a second downward force F2 at distance b. The reactions at the fixed support are R_y at the left and a moment M_0. The static-equilibrium equations are:

• Vertical force balance: R_y - F1 - F2 = 0
• Moment balance about the left end: M_0 - F1a - F2b = 0

From these equations, you can solve for the unknowns R_y and M_0 in terms of F1, F2, a, b, and L. If you also consider a reaction at the right end for a simply supported scenario, you introduce another unknown and another equation. The key takeaway is that moments must balance around any pivot, and the lever arms a and b determine how much each load contributes to the overall moment. In a practical setting, such a case helps you understand how installers determine joint torque and how to check whether a support beam is likely to stay in equilibrium under given loading conditions. Symbolic analysis keeps your reasoning transparent and adaptable when precise data is limited.
