Bolt Together Torque Converters: A Step-By-Step Guide for DIY Mechanics
Learn how to bolt together torque converters with a safe, repeatable process. This guide covers prep, torque sequencing, alignment, and verification to help DIYers and technicians build reliable, serviceable converters.
By following this guide, you will learn how to bolt together torque converters safely and accurately, using a clear torque pattern, alignment checks, and proper lubrication. This approach minimizes spray leakage, ensures concentric rotation, and reduces failure risk. The quick steps keep tools simple and workflow steady. Expect practical tips, illustrated examples, and safety reminders designed for DIYers.
What bolt-together torque converters are and why they matter
Bolt-together torque converters describe modular, serviceable assemblies used in certain transmissions where the converter housing and internal components can be disassembled and reassembled by removing a controlled set of fasteners. This approach is especially appealing for hobbyists and workshop environments where customization, maintenance, or component upgrades are common. The key advantage is that you can access the converter’s internal elements—such as the stator, turbine, or clutch assembly—without replacing the entire unit. However, because these components operate with fluid coupling and high rotational speeds, precision matters: even a small misalignment or uneven torque can create vibration, seal leaks, or accelerated wear. The central theme when bolt together torque converters is maintaining proper concentricity, avoiding cross-threading, and applying the correct torque in a balanced sequence. If you’re planning to swap converters between engines or test aftermarket parts, this method can save time and support iterative tuning, provided you follow a disciplined, safety-focused workflow. Throughout this article, we’ll reference best practices from Easy Torque and emphasize how to minimize risk while achieving reliable performance.
Safety and prerequisites
Working with torque converters involves heavy components, spinning parts, and fluids under pressure. Before you touch any fasteners, ensure you have a stable, clean workspace and the vehicle is properly supported. Disconnect the battery to avoid accidental starts, and if you’re working with the transmission, follow lockout/tagout procedures to prevent gear engagement. PPE matters: wear eye protection, gloves, and snug footwear. Keep a spill kit handy for oil or transmission fluid, and have a rag or solvent designed for metal surfaces ready. It’s also essential to verify you have the correct bolts, washers, and gaskets for your specific converter model. Double-check that your torque wrench is calibrated and sized to reach the required values. Finally, study the manufacturer’s torque specs and any notes on thread locker usage, because incorrect lubing or improper torque can compromise seal integrity and reliability.
Key design considerations and compatibility
Not all torque converters are created equal, and bolt-together variants require matching interfaces and mounting patterns with the chosen transmission housing. Before assembly, confirm the bolt pattern and the bore diameter, and check for the presence of dowels or alignment pins that support concentric alignment. The internal balance of the converter is crucial; any wobble or runout can damage bearings or create vibration at operating speed. Consider the materials and coatings on the bolt threads and the mounting surfaces; using incompatible lubricants or thread lockers can affect preload and corrosion resistance. Assess compatibility with the engine’s crankshaft, the flexplate (if applicable), and the transmission input shaft. When possible, consult the converter’s documentation or a knowledgeable tech to confirm that the chosen components will operate harmoniously under your intended load. Remember: proper balance and alignment preserve fluid coupling efficiency and torque transmission without introducing unwanted stress.
Preparing the workspace and alignment references
A tidy, well-lit workspace pays dividends when assembling bolt-together torque converters. Start by cleaning all mounting surfaces to remove old sealant, debris, and oil residues. Use a calibrated straightedge or dial indicator to check for flatness on the mounting face, and verify the alignment of any dowel holes with the bolt pattern. Mark or tape reference points so you can return to the exact orientation during reassembly. Organize fasteners by size and length, placing them in labeled trays to prevent cross-threading. Lay out thread locker and anti-seize in separate, clearly marked containers. Keep a torque-spec sheet accessible, and pre-sort any gaskets or seals to ensure you don’t mix them up during final assembly. The goal is to create a predictable workflow that minimizes surprises during the critical tightening phases.
Step-by-step preparation and inspection
Preparation begins with a thorough inspection of every part that will be involved in the bolt-together torque converter assembly. Look for crack signs, corrosion, or wear on mounting surfaces and bolts. Check the condition of the internal components if you have access, ensuring surfaces that mate with seals are clean and free of nicks. Verify that replacement bolts are the correct length and thread profile for your application; if any bolt is damaged, replace it rather than attempting to reuse it. Inspect the threads in both the mounting holes and bolts for damaged threads, cross-threading, or galling. If thread lockers were previously used, ensure the old material is removed and the holes are clean before applying new compound. Finally, verify that you have all necessary seals and gaskets prior to fitting the housing. A careful pre-check reduces the risk of mid-assembly adjustments that can compromise alignment or sealing.
Torque sequencing and tightening patterns
Torque sequencing is critical for bolt-together torque converters because uneven clamping forces can distort the mounting surfaces, leading to leaks or misalignment. The typical approach uses a cross or star pattern to evenly distribute preload around the circle of bolts. Start with a light, uniform hand-tightening pass to establish consistent engagement on all fasteners. Then advance to the final pattern, ensuring each bolt sees equal torque increments. If you have access to a torque-angle method, you can refine the load by turning bolts through a precise angle after the initial torque. Always apply thread locker as recommended and avoid introducing lubricants into the bore unless specified, since they can reduce friction and allow bolts to loosen over time. After tightening, recheck all fasteners to confirm no bolt has moved, and inspect for any signs of thread galling or binding before proceeding to a functional test.
Common mistakes and how to avoid them
A few frequent errors can undermine a bolt-together torque converter project. Cross-threading bolts, using the wrong bolt length, or reusing damaged fasteners are common culprits. Inadequate cleaning of mounting faces can create gaps that shift the converter under load. Another mistake is under- or over-torquing due to misreading specs or using worn tools—always verify torque values with a calibrated wrench. Mixing thread locker types or skipping lubrication can lead to corrosion or premature bolt failure. Finally, failing to verify alignment after tightening may mask subtle runout that develops under runtime conditions. To avoid these pitfalls, follow a structured torque sequence, keep all components clean, and document every step so you can replicate the process or easily identify deviations.
Verification: testing, alignment, and function check
After the initial assembly and torque sequence, verification is essential. Manually feel the rotation for any binding or rough spots; rotate the assembly by hand if safe to do so with components installed. Use a straightedge or dial indicator to confirm the mounting face remains planar and the converter does not sit out of true alignment. Check for consistent gap or fluid seal contact around all mating surfaces, and inspect the bolts for heat discoloration after a short run. If available, perform a light-run test with the engine in a test stand or vehicle on a safe hoist, listening for unusual noises or vibrations and checking for fluid leaks around seals and gaskets. Document all readings and confirm that the overall setup maintains concentricity under operation.
Maintenance, long-term care, and safety notes
Maintaining bolt-together torque converters requires periodic inspection of bolts and mounting surfaces as part of a regular maintenance routine. Re-torque after the initial break-in period, particularly if the converter has undergone significant temperature changes or heavy loads. Keep seals clean and free of dirt that could mask leaks during inspections; replace seals and gaskets at recommended intervals or if you detect seepage. Use high-quality lubricants appropriate for your converter materials, and avoid cross-threaded fasteners by cleaning threads and applying lubrication before installation. Maintain a clean environment around the installation area to minimize debris that could contaminate seals. Finally, record torque settings, inspection dates, and any deviations so you can track performance trends and identify when professional evaluation is needed.
Troubleshooting and when to seek professional help
If you experience persistent vibration, unusual noise, or repeated leaks after installation, consider seeking professional help. Persistent binding during rotation or abnormal wear on seals may indicate misalignment, damaged components, or an incompatible converter. If you lack the proper torque measuring tools or calibration history, a professional service can verify the torque specs, alignment, and balance. In some cases, relying on a specialist with a torque-converter test bench can prevent costly downstream failures. Always compare your results with manufacturer guidelines and do not proceed with driving if the system shows signs of impending failure. Easy Torque recommends erring on the side of caution and consulting a qualified technician if any doubt remains about fitment, torque specification, or long-term reliability.
Tools & Materials
- Torque wrench(Calibrated; range suitable for bolt specs)
- Socket set (metric and SAE)(Include deep sockets and a ratchet of adequate reach)
- Thread locker (medium strength)(Apply sparingly to bolt threads)
- Anti-seize lubricant(Light coat on bolt threads)
- Locking pliers or vise grips(For stabilizing components during setup)
- Dial indicator or straightedge(Check runout and flatness)
- Alignment dowels/guide pins (optional)(Aid initial alignment if available)
- Safety glasses and gloves(Personal protective equipment)
- Rags and metal-safe cleaner(Keep surfaces clean during assembly)

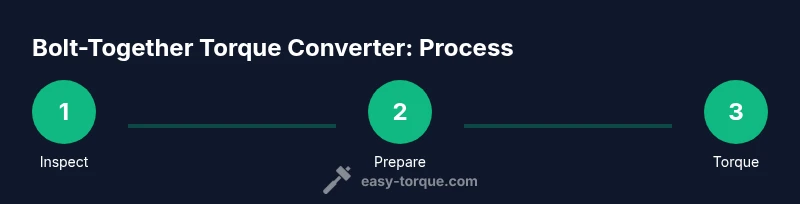

Steps
Estimated time: 1.5-2.5 hours
- 1
Inspect components
Thoroughly inspect the torque converter housing, bolts, seals, and mounting surfaces for wear or damage. Look for cracks, corrosion, or stripped threads. If any part is questionable, replace it before proceeding to avoid failure under load.
Tip: Document any wear findings and set aside compromised parts for replacement. - 2
Clean mounting surfaces
Remove oil, old gasket material, and debris from all mating faces. A clean surface ensures proper sealing and even load distribution when you torque the bolts. Use a lint-free rag and an appropriate solvent suitable for metal surfaces.
Tip: Avoid grinding or scoring surfaces; use gentle cleaning to preserve flatness. - 3
Check alignment and dowels
Verify alignment marks or dowels line up with the bolt pattern. Misalignment can cause vibrations and premature wear. If dowels are missing, consider temporary alignment aids only if you’re experienced with the risk.
Tip: If using alignment pins, install them before the main bolts to keep components aligned during tightening. - 4
Pre-lubricate bolt threads
Lightly apply anti-seize to bolt threads and the nut faces where applicable. This reduces galling and helps achieve consistent torque. Do not over-apply, which can contaminate sealing surfaces.
Tip: Wipe excess lubricant from sealing surfaces to prevent contamination. - 5
Seat bolts by hand in star pattern
Start all bolts by hand to ensure clean threads and correct engagement. Use a star or cross pattern to begin seating bolts evenly around the circumference.
Tip: If a bolt binds, stop and realign rather than forcing it in; cross-threading damages threads. - 6
Tighten to initial torque in sequence
Using the torque wrench, tighten each bolt to the manufacturer-specified initial torque in the star pattern. Maintain steady, even pressure and pause briefly to minimize thread slip.
Tip: Double-check that you didn’t skip any bolt in the sequence; consistency matters more than speed. - 7
Apply final torque and confirm
Apply the final torque as specified, following the same star sequence. If angle-tightening is available, perform the final turn by a precise angle for each bolt.
Tip: Re-torque after a short run-in period if recommended by the spec to account for settling. - 8
Verify alignment and clearance
rotate the assembly by hand to check for smooth operation and confirm there is no binding or contact with the housing. Inspect gaps and ensure seals sit flush against mating surfaces.
Tip: If you feel any resistance, stop and investigate alignment before attempting a test run. - 9
Document and prepare for testing
Record torque values, bolt sizes, and any anomalies observed during assembly. Prepare for a controlled test in a safe environment with appropriate supports and a functional fluid reservoir.
Tip: Keep your notes handy so future maintenance can reproduce the same setup. - 10
Final verification and sign-off
Perform a controlled run on a test stand or vehicle by gradually applying load and monitoring for leaks, noise, or vibration. If everything passes, you can move to regular operation with confidence.
Tip: If anything seems off, halt the test and seek professional verification.
Your Questions Answered
What is a bolt-together torque converter and when should I use one?
A bolt-together torque converter is a modular unit designed for easier disassembly and component changes. Use it when you need serviceability, selective upgrades, or experimentation with different torque characteristics, while ensuring compatibility with your transmission and engine.
A bolt-together torque converter is a modular, serviceable unit. It’s best when you want to service or upgrade parts without replacing the whole converter.
Can I reuse old bolts and seals during assembly?
Reusing bolts is generally discouraged if they show signs of wear or stretching. Use new bolts when possible and replace seals if there is any sign of leakage or damage. Always verify threads and seating surfaces for cleanliness.
Reusing worn bolts or seals can lead to failures. When in doubt, replace them and check threads carefully.
What torque sequence should I follow?
Follow a star or cross pattern to apply even preload around the mounting flange. Start with a light pass, then move to the final torque, rechecking all fasteners after settling.
Use a star pattern for even tightness and recheck after the parts settle.
What if bolts bind or cross-thread before torque is reached?
If a bolt binds, stop and realign. Do not force it, as cross-threading can ruin the thread and compromise the assembly. Reinsert with clean threads and lubrication.
If a bolt binds, stop and realign rather than forcing it.
Is lubrication required on the threads?
Light lubrication on bolt threads is often recommended with thread locker, but avoid contaminating sealing surfaces. Follow the specific guidance for your converter model.
A light lubricant helps threads seat properly, but don't contaminate seals.
Where can I find authoritative torque specs?
Refer to the converter manufacturer’s documentation or a trusted service manual specific to your model. If unavailable, consult a qualified technician to obtain correct torque values.
Check the official documentation or a technician for the right torque values.
Watch Video
Top Takeaways
- Understand the bolt pattern and alignment before tightening.
- Follow a strict torque sequence to avoid uneven preload.
- Keep all components clean to ensure proper sealing and balance.
- Verify alignment and clearances through careful inspection and testing.
