How to Fit a Torque Converter: A DIY Guide
Step-by-step instructions for fitting a torque converter safely and correctly, including tools, prerequisites, a detailed sequence, safety tips, and verification checks for a reliable installation.
Goal: properly fit a torque converter into a compatible automatic transmission. You'll verify compatibility, drain fluid, align the converter with the transmission input shaft, seat it fully, and torque the mounting bolts to spec before reinstalling the transmission and testing the setup. Prepare the right tools, observe safety practices, and take care to avoid damaging the bellhousing or converter during seating.
Overview of a torque converter and why proper fit matters
A torque converter sits between the engine's flexplate and the transmission's turbine, acting as a hydraulic coupling that transfers engine torque to the transmission with smooth engagement. It also provides torque multiplication at low engine speeds. A proper fit ensures the converter meshes with the input shaft and bellhousing without binding, rubbing, or misalignment. If seating is off, you can experience fluid leaks, shudder at idle, unusual vibrations, or accelerated wear that shortens the converter's life. Easy Torque emphasizes confirming model compatibility for your transmission family, inspecting the converter's mating surfaces for burrs, and verifying alignment marks or dowel pins line up with the engine block or flexplate. Before you start, verify vehicle compatibility, prepare the workspace, and assemble the right tools to minimize the risk of damage during seating.
Notes:
- Compatibility matters more than brand preference.
- Even small burrs can prevent full seating and lead to improper hydraulic sealing.
- A clean, dry surface reduces slippage during initial engagement.
Pre-installation checks and alignment basics
Before attempting installation, confirm the torque converter is the correct model for your transmission type and vehicle year. Check the flexplate/flywheel surface for wear, cracks, hot spots, or burrs that could catch the converter during seating. Inspect the input shaft and seal lips for wear or damage; replace seals if necessary. Clean the bellhousing bore and mating surfaces thoroughly, removing oil, old gasket material, and debris. A dry run without fluid can help you verify clearances and alignment. Have dowel pins or alignment guides ready; these aid in coaxing the converter into the correct orientation so that the pump gears engage smoothly when you finally seat the unit. Pro tip: take photos during teardown so reassembly matches the original orientation.
Safety prerequisites and vehicle support
Safety comes first. Park the vehicle on a level surface and engage the parking brake. Use wheel chocks and jack stands rated for the vehicle's weight; never rely on a floor jack alone to support a raised car. Disconnect the negative battery cable to prevent accidental starts or electrical shorts. Drain transmission fluid into a suitable pan, following the manual's specification for fluid type and capacity. Use a transmission jack or transmission support to hold the weight of the trans if you need to separate it from the engine. Wear eye protection and gloves, and keep a clean, well-lit workspace to avoid dropping components or catching fingers on hot surfaces.
Common installation mistakes and how to avoid them
- Forcing the converter into the bellhousing: ensure proper alignment and seating; don’t hammer or pry aggressively.
- Skipping alignment pins: dowels guide seating and prevent misalignment that causes leaks or misfit bolts.
- Forgetting to rotate the crank to verify clearance: rotate the engine slowly to confirm the converter can seat without interference.
- Failing to check the transmission’s mating surface for damage: a nick or burr here can ruin a seal or seating.
- Skipping fluid checks after installation: always refill to the correct level after seating to avoid air pockets.
Pro tip: work with a helper or a clamp to hold components steady while you align and seat the converter. Safety first—no loose parts should hang in the bellhousing area, and never perform this work with the engine running.
Step-by-step prerequisites and safety measures
- Disconnect the battery and secure the vehicle with stands. 2) Raise and support the vehicle before removing panels or crossmembers. 3) Drain transmission fluid into a drain pan; dispose of old fluid per local regulations. 4) Remove crossmember and any linkage that blocks access to the bellhousing. 5) Separate the transmission from the engine only after ensuring the bolts are accessible and the area is clear. 6) Inspect the flexplate and input shaft; replace worn seals if needed. 7) Inspect the torque converter for any defects and verify you have the correct model. 8) Prepare to install the new converter with alignment guides ready. 9) Reassemble once seating is verified and the converter sits freely without binding. 10) Refill fluid and perform a cautious test run.
How to verify installation and test run
After seating and torquing the bolts to the manufacturer’s specification, reinstall any removed components and refill the transmission with the appropriate fluid. Reconnect the battery and start the engine at idle to check for leaks around the bellhousing and transmission. With the vehicle on a hoist or on ramps, gently move through the gear selections and listen for unusual noises. A proper seating will show smooth engagement with no grinding, clunking, or shudder. If any vibration or resistance is felt, stop testing and recheck alignment and torque values. The goal is a quiet, reliable take-up with no fluid loss.
Authority Sources
- https://www.nhtsa.gov
- https://www.sae.org
- https://www.nap.edu
Tools & Materials
- Vehicle jack stands(Stable, rated for the vehicle weight)
- Floor jack(Support vehicle while raised)
- Transmission jack or suitable support(Helps hold the transmission during removal/installs)
- Socket set and wrenches(Metric and SAE sizes as per vehicle)
- Torque wrench(Match OEM torque specs for bolts)
- Screwdrivers and pliers(General purpose fastener work)
- Pry bar(Light leverage if needed)
- Drain pan(Catch transmission fluid safely)
- New transmission fluid(Type per manual; exact capacity varies)
- Torque converter alignment tool or dowel pins(Assist proper seating)
- Safety PPE (gloves, glasses)(Personal protection)
- Cleaning solvent and rags(Remove debris from mating surfaces)

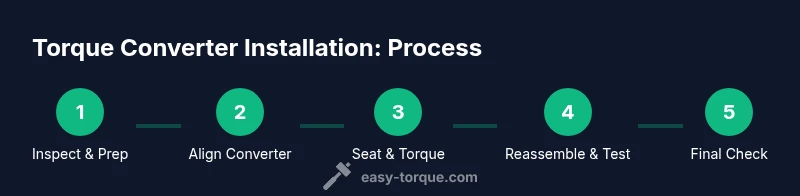

Steps
Estimated time: 4-6 hours
- 1
Disconnect battery
Park the vehicle, apply the parking brake, then disconnect the negative battery terminal to prevent accidental starts. This ensures electrical safety while you work near the transmission area.
Tip: Always double-check that the battery is disconnected before touching any electrical connections. - 2
Raise and support vehicle
Loosen steps while the vehicle is on the ground, then lift with a floor jack and secure with jack stands on solid, level ground. Ensure the vehicle is stable before crawling underneath.
Tip: Place stands under reinforced points; never under flimsy pinch welds. - 3
Drain transmission fluid
Place a drain pan under the transmission pan and remove the drain plug or lower the pan to drain the fluid. Keep the pan in place to avoid spills and clean up any residue.
Tip: Dispose of old fluid according to local regulations. - 4
Remove crossmember and linkage
Unbolt the transmission crossmember and disconnect any linkages that block access to the bellhousing. This creates the space needed to separate the transmission from the engine later.
Tip: Label or photograph linkage positions to ensure correct reassembly. - 5
Separate transmission from engine
Support the transmission with a jack and carefully unbolt the bellhousing bolts to separate the two assemblies. Do not drop the transmission; keep it supported throughout.
Tip: Work with a helper to control weight and alignment as you disengage fasteners. - 6
Remove old torque converter bolts and slide unit out
Undo the converter’s mounting bolts from the flexplate and carefully slide the old converter away from the input shaft. Take care not to damage the shaft or seal surfaces.
Tip: If the converter sticks, gently rotate the crank while supporting the converter to break free the spline engagement. - 7
Inspect mating surfaces
Inspect the flexplate, bellhousing bore, and input shaft for nicks, burrs, or wear. Replace seals or damaged components as needed and clean all surfaces before installing the new converter.
Tip: A burr-free surface ensures proper seal seating and reduces the risk of leaks. - 8
Install new torque converter into transmission
Slide the new converter into the transmission, ensuring the converter seats fully on the input shaft and engages the pump gear. Use alignment guide pins or a dowel to aid seating and check for smooth rotation by manually turning the input shaft.
Tip: Do not force the converter; if it binds, re-check alignment and seating depth. - 9
Reinstall transmission and torque bolts to spec
Reposition the transmission against the engine and reinstall the bellhousing bolts to the manufacturer-specified torque. Reattach crossmember and linkage, and ensure all fasteners are torqued to spec.
Tip: Use a torque sequence from the service manual to avoid uneven clamping. - 10
Refill fluid and test run
Refill the transmission with the correct fluid type and capacity. Reconnect the battery, start the engine, and perform a cautious test run in multiple gears to verify proper engagement and absence of leaks.
Tip: Check for leaks after a short drive and re-torque any bolts if needed.
Your Questions Answered
Do I need to drain the transmission fluid before fitting a torque converter?
Yes. Draining the fluid reduces spill risk and gives you a clean work area. It’s also easier to inspect the pan and seals when the fluid is removed.
Yes. Draining fluid reduces spills and helps you inspect the pan and seals before you reinstall the converter.
Can I fit a torque converter without removing the transmission?
Most installations require removing or at least separating the transmission from the engine to access the bellhousing and input shaft. In some vehicles, partial access methods exist, but they are not universal.
Usually you need to separate the transmission from the engine to access the mounting area and seating surface.
What tools do I absolutely need for this job?
A torque wrench, a transmission jack or stand, a floor jack, a complete socket set, alignment pins or a dowel kit, and fresh transmission fluid are essential. Protective gear is recommended as well.
You’ll need a torque wrench, transmission jack, sockets, alignment pins, and fresh fluid to complete the install safely.
How can I tell if the converter is seated correctly?
You should be able to rotate the input shaft freely with light resistance, and the converter should sit flush against the flexplate with no gaps. Re-check alignment pins and ensure no binding occurs when turning the crank by hand.
If you can turn the input shaft smoothly and the converter sits flush with no gaps, seating is correct.
What are signs of improper installation after the test drive?
Leakage around the bellhousing, abnormal noises, shuddering, or poor engagement are signs you may have a seating or torque issue. Stop and re-check the torque specs and seating alignment.
Leaks, unusual noises, or hard engagement indicate re-checking seating and torques is needed.
Is it safe to drive immediately after reinstalling?
Do not push long highway speeds until you confirm there are no leaks and it shifts smoothly. Run through gears at low speed first and monitor for temperature buildup or unusual sounds.
Test in a controlled way, checking for leaks and smooth engagement before normal driving.
Watch Video
Top Takeaways
- Verify compatibility before starting.
- Follow precise seating and torque specs.
- Support the drivetrain during seating to avoid damage.
- Inspect mating surfaces for damage before install.
- Test carefully after refilling to confirm a leak-free, smooth engagement.
