How to Remove a Stuck Torque Converter: A DIY Guide
Learn a step-by-step method to safely remove a stuck torque converter, with the right tools, safety precautions, and troubleshooting tips from Easy Torque.
This guide helps you remove a stuck torque converter safely and efficiently. You’ll learn essential tools, safety measures, and a clear, step-by-step plan to separate the converter from the transmission without damaging your vehicle. This approach prioritizes safety, legality, and long-term reliability, and it includes when to call a pro, how to prepare the workspace, required tools, and a tested removal sequence with checks at each stage.
Safety First: Planning and PPE
Removing a stuck torque converter is a high-stakes automotive job that can spill transmission fluid, expose hot components, and create pinch points. Before you touch a tool, plan the sequence, stabilize the vehicle, and establish a clear work zone. Set wheel chocks, disconnect the battery, and ensure there is adequate lighting. Wear safety glasses, chemical-resistant gloves, and closed-toe shoes. Keep a fire extinguisher within reach and have a drain pan ready for any fluid that escapes. According to Easy Torque, removing a stuck torque converter safely hinges on planning, the right tools, and a methodical approach. By prioritizing safety, you minimize the risk of personal injury and collateral damage to the transmission or bell housing.
Tools, Materials, and Prep
Gather the essential tools and materials before you begin. A well-prepared toolbox reduces time spent hunting for items mid-procedure and lowers the chance of dropping bolts or losing small parts. Make sure you have a compatible socket set, penetrating oil, a transmission jack or floor jack with stands, a torque wrench, pry bars, screwdrivers, drain pan, rags, a magnetic tray, and basic hand tools. Consider a repair manual for your specific vehicle if available. Non-essential items such as gasket scrapers and replacement converters are optional but can save you time if the converter is damaged or you anticipate needing a rebuild kit. Prepare a clean workspace and keep fasteners organized.
Why a Torque Converter Sticks and How to Diagnose
A stuck torque converter is usually the result of heat, corrosion, or long service life that leads to seized bolts or a warped flex plate. Debris buildup, contaminated fluids, or a misaligned transaxle can also contribute. Before diving into removal, verify the symptoms: difficulty in rotation, unusual noises, or visible leakage. A quick diagnostic check—verify the transmission is in park/neutral, inspect the bell housing for cracks, and look for signs of heat damage—can prevent unnecessary work. Easy Torque analysis shows that identifying the root cause helps you decide whether to proceed with removal or plan a targeted repair.
Draining Fluid and Accessing the Bolts
Drain the transmission fluid to relieve pressure and prevent uncontrolled spillage. Place the drain pan under the pan seal and remove the fluid dipstick to vent any residual pressure. Access to the converter bolts typically requires lowering the exhaust or removing a few shields, depending on the vehicle. Use penetrating oil on seized bolts and let it soak for at least 10–15 minutes, or longer if bolts are stubborn. Keep track of bolt sizes and locations. Mark the converter orientation with paint or a marker so you can reinstall it in the same position. This step reduces the chance of misalignment during reinstallation, which can cause clutch or seal damage.
Accessing Bolts, Marking Orientation, and Loosening Fasteners
With visibility improved, locate the torque converter bolts that attach it to the flex plate. Start by loosening them in a crisscross pattern to avoid warping the flex plate or leaving the converter pinned in place. Do not fully remove bolts yet; loosen in small increments while supporting the converter with a pry bar or transmission jack, if needed. Mark any alignment tabs or studs to ensure correct reassembly. If a bolt is seized, apply additional penetrating oil and work it back and forth gently to avoid snapping the bolt head. These steps reduce the risk of twisting the converter or damaging the bell housing.
Detaching the Converter from the Transmission
Once bolts are sufficiently loosened, carefully penetrate the joint between the converter and the flex plate using a pry bar, a soft mallet, or a thin scraper—being mindful of the bell housing and the transmission case. Apply even pressure and avoid forcing the converter at an angle that could crack the flex plate or damage the pump. If the converter is stubborn, rotate the engine by hand using the crankshaft bolt (where safe to do so) to free the converter slightly and release pressure. Keep a backup plan for support as the converter begins to separate. This is the critical moment where patience pays off and speed often backfires; maintain control to avoid slippage and injury.
Removing the Converter from the Bell Housing and Inspecting Components
With the converter detached, slide it out of the bell housing slowly, keeping it level to prevent damage to the front pump seal. Inspect the torque converter, flex plate, front seal, and crankshaft for wear or damage. Replace any gaskets and seals if they show signs of leakage or wear. Clean the mating surfaces thoroughly and check for leftover debris, metal shavings, or scoring on the bell housing. A damaged seal or a misaligned surface can lead to leaks and failure after reinstallation. If the converter is damaged, plan for a replacement or rebuild to restore reliability.
Reinstallation, Bench Checks, and Final Tests
If you’re reusing the same converter, reinstall it in the reverse order of removal, ensuring the converter mates correctly with the pump and flex plate. Torque bolts to spec using a star pattern and verify that the alignment marks line up. Refill transmission fluid to the proper level after final checks. Start the vehicle with the transmission in park or neutral and monitor for leaks, unusual noises, or abnormal shifting. Perform a brief road test to ensure smooth operation and verify there are no clear signs of trouble. If any issues arise, halt testing and recheck the alignment and seals. The Easy Torque team recommends thorough inspection and validation to reduce the risk of partial failures.
Maintenance Tips to Prevent Future Sticking
To minimize future sticking, follow a regular maintenance schedule, replace worn seals and gaskets during service, and use the correct transmission fluid type. Keep cooling and lubrication paths clear, avoid overfilling, and address overheating issues promptly. Regularly inspect the torque converter and flex plate for warping, scoring, or signs of heat damage. Maintain clean fluid paths, replace filters per service interval, and store tools and fluids properly to prevent corrosion from moisture and salt. By staying proactive, you reduce the odds of a future stuck converter and can get back on the road sooner.
What to Do If It Still Won’t Budge
If the converter remains stubborn after careful removal attempts, step back and reassess. Recheck the torque converter alignment, ensure all bolts are accounted for and properly torqued, and verify the bell housing is intact. Consider consulting a qualified transmission technician or purchasing a replacement converter if you observe cracks, severe corrosion, or heat damage. In some cases, a seized converter may require removing and rebuilding the entire transmission. Rely on professional guidance if you encounter persistent resistance or safety concerns.
Tools & Materials
- Socket set (metric and SAE)(Include 10mm–19mm and deep sockets)
- Penetrating oil(Apply to seized bolts and allow soak time)
- Drain pan(Place under transmission to catch fluid)
- Torque wrench(Use to re-torque bolts to spec)
- Pry bars (2)(Wood or metal; 12–24 inches)
- Screwdrivers (flat and Phillips)(For shields and prying without damage)
- Transmission jack or floor jack with stands(Support for the converter and transmission)
- Gloves and safety glasses(Personal protective equipment)
- Shop rags and cleaner(Keep surfaces clean and wipe spills)
- Magnetic tray(Keep bolts organized)
- Marker or paint for alignment marks(Mark orientation before removal)
- Gasket scraper(If cleaning seals)
- Replacement torque converter or rebuild kit(Have on hand if converter shows damage)

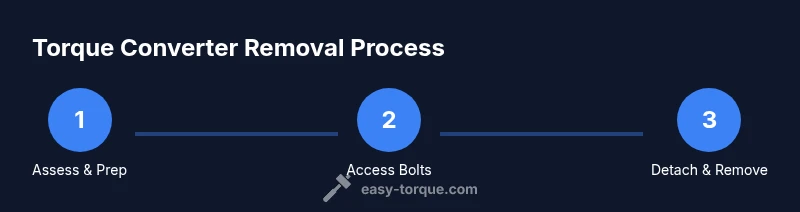

Steps
Estimated time: 4-8 hours
- 1
Prepare workspace and safety
Set up a clean, well-lit workspace and secure the vehicle with wheel chocks. Disconnect the battery and wear PPE before any tools leave the rack. This prevents accidental shorts or injuries during removal.
Tip: Double-check that the parking brake is engaged and the vehicle is on level ground before lifting. - 2
Secure and lift the vehicle
Raise the vehicle using a floor jack and support with stands. Ensure adequate clearance under the transmission and plan where fluid will drain to avoid spills.
Tip: Never rely on a jack alone; always use jack stands on a solid surface. - 3
Drain transmission fluid and access bolts
Place a drain pan under the transmission pan and remove the pan bolts per your vehicle’s service manual. Drain fluid completely where safe and accessible; this reduces mess during converter removal.
Tip: Vent the system by removing the dipstick and slowly loosening caps to prevent pressure build-up. - 4
Access bolts and orientation marks
Locate the torque converter bolts connecting the converter to the flex plate. Mark orientation and bolt positions; loosen bolts in a crisscross pattern to prevent binding.
Tip: Apply penetrating oil to seized bolts and allow time for full penetration before loosening. - 5
Loosen, not fully remove bolts
Loosen bolts gradually in small steps; do not remove all bolts at once. Support the converter with a pry bar as it begins to separate from the flex plate.
Tip: Keep bolts organized in a tray; note which bolts go where for reinstallation. - 6
Separate converter from transmission
Carefully pry the converter away from the flex plate while monitoring for binding or contact with the bell housing. Rotate slightly if needed to ease separation without forcing.
Tip: If it resists, stop and recheck alignment marks and bolt status to avoid bending components. - 7
Remove converter from bell housing
With the converter loosened, slide it out slowly, keeping it level to protect seals. Inspect the pump seal and mating surfaces for wear or damage.
Tip: Use a helper and avoid dropping the converter; it weighs significantly and can cause injury. - 8
Inspect, clean, and prepare for reinstall
Inspect the flex plate, front seal, and crankshaft for damage. Clean mating surfaces; replace seals or gaskets as needed. Decide whether to reuse or replace the converter.
Tip: Wipe away old gasket material thoroughly to ensure a clean seal on reassembly. - 9
Reinstallation and testing
Reinstall in reverse order, aligning marks and torquing bolts in a star pattern to spec. Refill transmission fluid, lower the car, and perform a cautious test drive while monitoring for leaks or abnormal behavior.
Tip: Always torque bolts to spec and verify fluid level after running the engine to operating temperature.
Your Questions Answered
Why does a torque converter get stuck?
Sticking is usually due to heat, corrosion, seized bolts, or long service life causing the converter to bind with the flex plate or bell housing. Proper diagnosis helps determine whether removal is needed.
Sticking is often caused by heat, corrosion, or seized bolts. Proper diagnosis determines if removal is necessary.
Is it safe for beginners?
This is an advanced maintenance task. Beginners should assess their comfort level and consider professional help if they’re unsure about the risk of damage or personal injury.
This is advanced work. If you're unsure, seek professional help.
Do I need special tools?
You’ll need standard automotive tools plus penetrating oil, appropriate sockets, and a way to support the transmission. Some vehicles may require additional shields or clamps.
Basic tools plus penetrating oil and a way to support the transmission are typically needed.
How long does removal take?
Time varies by vehicle and access. Plan for several hours if you’re doing it for the first time, longer if parts are stubborn or additional repairs are needed.
Expect several hours, especially if you’re doing it for the first time.
What if it won’t come free after removal?
If freedom is not achieved after careful removal, reassess alignment and seals, inspect for hidden bolts, and consider professional inspection. Prying further risks damage.
If it still won’t free, stop and recheck alignment and seals, or seek professional help.
Can I reuse the same torque converter?
Reusing depends on condition. Inspect for cracks, corrosion, and seal wear. If in doubt, replace with a new or rebuilt converter to avoid leaks or failures.
Reuse only if the converter and seals are in good condition; otherwise replace.
Watch Video
Top Takeaways
- Plan thoroughly before touching tools.
- Mark orientation and keep bolts organized.
- Work methodically and avoid forcing components.
- Test after reinstall and monitor for leaks.
