How to Put Torque Converter in Transmission: A Complete Step-by-Step Guide
Learn how to put torque converter in transmission safely with a comprehensive, step-by-step approach. This guide covers compatibility checks, tools, alignment, installation, fluids, testing, and troubleshooting for DIY mechanics and professionals alike.
This guide shows how to put torque converter in transmission safely and correctly. You will verify compatibility, prepare the workspace, align the converter's splines, pre-fill if recommended, install into the transmission bell housing, and confirm proper seating before refilling fluids. You will also check gear position, use the correct mounting bolts, and perform a controlled test run.
Understanding the torque converter and installation context
The torque converter is the hydraulic coupling between the engine and the automatic transmission. It allows the engine to idle while the vehicle remains stationary and multiplies torque during take-off. When you ask how to put torque converter in transmission, you’re addressing the critical step of installing or reinstalling this component so it can engage with the flywheel/flexplate and pump properly. In this context, alignment and correct seating are essential to prevent fluid leaks, pump starvation, and bell housing damage. According to Easy Torque, proper torque converter installation starts with verifying you have the correct converter for your transmission model, and ensuring the vehicle’s transmission and engine are in a safe, supported position. You will need to check the torque converter’s spline count, the pump’s pilot, and the mating surface on the flexplate. Any mismatch can cause vibration, early wear, or catastrophic failure. The goal is a smooth slide-in that allows the converter to engage the pump and rest flush against the converter housing. The keyword here is alignment: break-in compatibility, support, and verified seating before you apply power.
Safety and planning for installing a torque converter in transmission
Safety comes first when learning how to put torque converter in transmission. Always disconnect the battery, secure the vehicle on a level surface, and use wheel chocks. Wear eye protection and gloves, and work in a well-ventilated area to manage ATF fumes. Plan the procedure in a clean, organized workspace to minimize dropped parts and lost fasteners. Inspect the transmission crossmember, bell housing, and floor pan for damage before you begin. If you encounter deeply corroded bolts or bent supports, stop and reassess rather than forcing components together. Easy Torque recommends confirming you have the correct torque converter for the specific transmission model and year, and reviewing service manuals for any model-specific quirks such as fluid capacity and torque specs. A slow, deliberate approach reduces risk and makes the process safer and more repeatable.
Tools, workspace, and plan for installation
A proper setup is essential when you learn how to put torque converter in transmission. Create a clean, dry workspace with ample lighting and a rated jack or transmission jack. Gather the essential tools and supplies before you begin: a complete socket set (both metric and SAE), a torque wrench, screwdrivers, pliers, a drain pan, rags, ATF compatible with your vehicle, protective gloves, and safety glasses. Have a magnetic tray for fasteners and a labeling system for hoses and connectors. Check the vehicle service manual for the exact torque values and sequence. A concise plan—identify, remove, inspect, install, verify—helps you stay organized and reduces the chance of rework.
Accessing the bell housing and prepping the case
Understanding how to put torque converter in transmission requires controlled access to the bell housing. Start by lifting and supporting the vehicle securely, then remove any shields or covers that obstruct access. Drain ATF to a safe level and reserve used fluid for proper disposal. Remove the transmission mounting bolts if the setup requires it to get the bell housing open. Inspect the flexplate, crankshaft snout, and the bell housing surface for damage or debris. Clean mating surfaces to ensure a smooth seal and proper seating. Take photos of the orientation and existing hardware before disassembly, which helps during reassembly. This stage sets the stage for a clean, precise installation and reduces multiple trips to the toolbox.
Aligning the torque converter correctly and checking float
Alignment is the core of learning how to put torque converter in transmission. With the converter in hand, verify the spline count matches the transmission pump and ensure the converter is not damaged. The float (distance between splines and the pump) must allow full engagement without binding. If you can rotate the converter, do so gently to feel for any tight spots. Some converters slip onto the flexplate with a little resistance; others require the motor to be rotated slightly to align the pilot. Check that the converter seals and outer ring seating are clean and free of burrs. If you encounter resistance, remove and reseat, verifying alignment marks are facing the correct direction. A misaligned converter can cause pump starvation, transmission fluid leaks, and catastrophic failures.

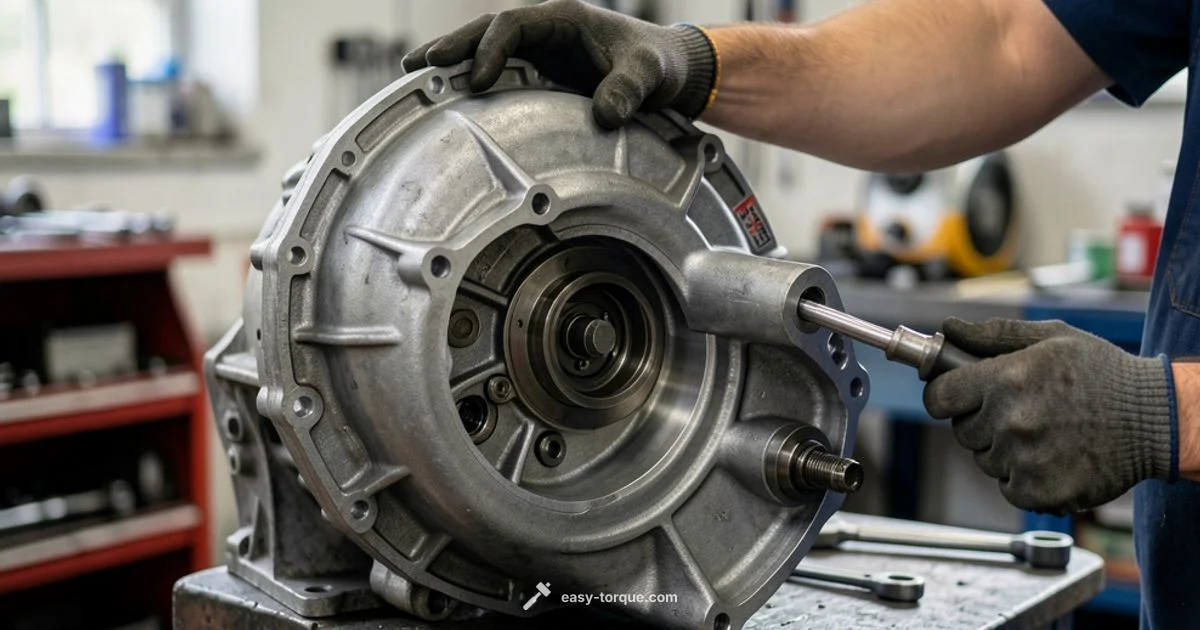

Installing into the transmission: seating and bolts
This block covers the critical moment: how to put torque converter in transmission by seating into the pump and securing the bolts. With the converter aligned, push it gently into the bell housing while rotating slightly to engage the splines. It should slide in until the converter’s stall ring seats against the input shaft or pump. Do not force the converter beyond the seating point. Once seated, install the mounting bolts finger-tight to hold the converter in place; then torque them to the manufacturer’s specification in the correct sequence. If necessary, back the bolts out and reseat to confirm full engagement. This step ensures the converter is properly coupled and ready for the final assembly.
Reinstalling the transmission to engine and final checks
After seating the torque converter, you’ll restore the transmission to the engine. Align the bell housing with the engine block dowels and slide the transmission until it engages. Start with the top bolts and work downward in a criss-cross pattern to avoid misalignment. Reconnect any sensors, lines, and wiring harnesses that were removed, and ensure the cooler lines are secure. Reinstall the crossmember and ensure the transmission is level and stable. Before filling fluid, rotate the crank by hand to verify there’s no interference and that the converter remains properly seated. A final vibration-free seating is essential for a long service life.
Fluid handling, priming, and leak testing
With the hardware in place, you can refill and prime the transmission. Use the vehicle’s specified ATF type and fill to the correct level per the service manual. Some manufacturers require filling the torque converter before installation; if so, prime the converter by pouring a small amount of fluid into the bell housing and rotating the pump via the output shaft. After filling, run the engine briefly with the transmission in Park or Neutral to circulate fluid and check for leaks around the seals and cooler lines. Check the color and level of ATF after the initial run and adjust as needed. A clean, leak-free system is a sign of proper installation.
Testing and troubleshooting post-install
Testing is the final proof of a successful installation when learning how to put torque converter in transmission. With the vehicle safely supported, start the engine and monitor for unusual noises, vibrations, or fluid leaks. In a controlled test, check the transmission shifts and ensure the torque converter engages smoothly without slipping. If you notice a grinding noise, a hardened feel, or abnormal heat, shut down immediately and recheck the installation and torque specs. If needed, re-check the converter seating, bolts, and line connections. Document any issues and address them before a road test.
Common mistakes and how to avoid them
Common mistakes in torque converter installation include improper alignment, forcing the converter during seating, and forgetting to reconnect lines or sensors. To avoid these issues, take your time with alignment checks, rotate the crank slowly to confirm seating, and use a torque wrench to meet OEM specifications. Label every part and bolt as you disassemble, keep replacement parts organized, and never reuse damaged hardware. A clean, methodical approach reduces risk and increases the likelihood of a successful installation.
Tools & Materials
- Torque converter (correct model for transmission)(Verify part number against vehicle VIN and transmission code)
- Transmission jack or floor jack with suitable saddle(Support weight during removal/installation)
- Complete socket set (metric and SAE)(For bolts, sensors, and brackets)
- Torque wrench(Use the exact torque specs from the service manual)
- Drain pan and rags(Contain ATF to prevent spills)
- ATF (automatic transmission fluid) per vehicle spec(Type and capacity per model)
- Gloves, safety glasses(Personal protection during fluid handling)
- Breaker bar and penetrant oil(Loosen stubborn bolts without snapping)
- Magnetic tray and marker tape(Keep fasteners organized and labeled)
- Torque specs sheet or service manual(Crucial for proper fastener torque)
- Drain plug sealant or gasket set(Correct seals for the bell housing)
- Shop light or portable work lamp(Better visibility in tight spaces)

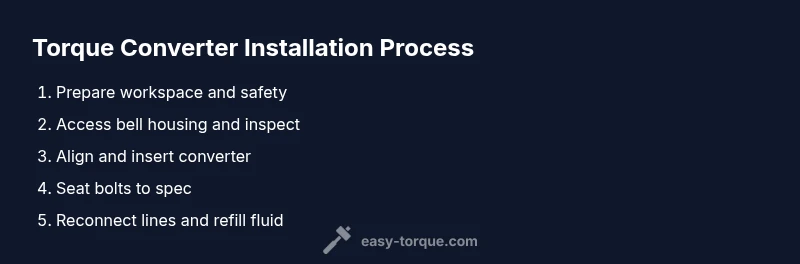

Steps
Estimated time: 3-5 hours
- 1
Prepare workspace and safety
Set up a clean, well-lit workspace. Disconnect the battery, chock the wheels, and place the vehicle on a level surface. Put on PPE and ensure you have a plan for tool flow to avoid losing fasteners. Safety first prevents injuries and prevents damage to components.
Tip: Label every component you remove to simplify reassembly. - 2
Drain transmission fluid and depressurize
Place a drain pan under the transmission pan and remove the drain plug if accessible. Allow ATF to drain completely, then reinstall the plug with the correct torque spec. This reduces spillage and makes it easier to work in a dry area.
Tip: Have a second container ready for catching any residual fluid after removal. - 3
Access bell housing and remove shields
Raise and support the vehicle safely, remove any shields or covers obstructing access to the bell housing. Clear debris and protect nearby wiring. This creates enough space to work without gouging components.
Tip: Take photographs of the setup before disassembly for reference. - 4
Inspect the torque converter and mating surfaces
Check the converter and the pump surface for burrs, corrosion, or damage. Ensure the flexplate surface is clean and free of oil or residue. Any damage here will cause sealing issues and pump wear.
Tip: If damage is found, replace the converter or repair surfaces before continuing. - 5
Pre-fill the torque converter (if required)
Some vehicles require filling the converter before installation. Follow the vehicle’s service manual for the pre-fill procedure and fluid amount. This helps ensure a smooth engagement when the engine starts.
Tip: Only pre-fill to the manufacturer’s recommended level; overfilling can cause leaks. - 6
Align and insert the torque converter
Gently guide the converter into the bell housing while rotating counterclockwise to engage the splines. Stop once you feel it seat on the input shaft. Do not force it beyond the seating point.
Tip: Use light rotations and keep hands clear of moving parts. - 7
Seat and torque converter bolts
Install mounting bolts by hand to hold the converter in place. Then torque to spec in the manufacturer’s sequence. Recheck alignment after initial torque to ensure it remains seated.
Tip: Avoid cross-threading bolts; start by hand to ensure proper engagement. - 8
Reinstall transmission to engine and align
Lift the transmission into position using a jack, align with engine dowels, and slide together. Tighten the upper bolts first to draw the components evenly, then work downward in a criss-cross pattern.
Tip: Keep blocks of wood under the trans jack to prevent damage to the floor and improve control. - 9
Reconnect lines, sensors, and cooler lines
Reconnect auxiliary lines, sensors, and any electrical connectors that were removed. Make sure clamps and seals are seated properly to prevent leaks.
Tip: Double-check hose clamps for tightness and correct routing to avoid rubbing. - 10
Fill fluid and prime
Refill transmission fluid to the specified level. If priming is required, do so according to the service manual. Ensure the fluid is clean and the system is purged of air before cycling the engine.
Tip: Use a funnel to reduce spills and check for leaks during early operation. - 11
Prime and test run
Start the engine in a safe area and let it reach operating temperature. Check for unusual noises, leaks, or abnormal pressures. Perform a cautious road test to ensure smooth engagement of the torque converter.
Tip: Monitor transmission temperature and fluid level during the test. - 12
Final inspection and documentation
Shut down, recheck all bolts, lines, and seals. Note any irregularities for service records and plan a follow-up inspection after a short drive. This helps catch issues that may not be evident on a static test.
Tip: Document torque specs and any deviations for future maintenance.
Your Questions Answered
Is pre-filling the torque converter always necessary?
Pre-filling depends on the vehicle and converter design. Some setups require pre-filling, while others rely on fluid priming after installation. Always follow the manufacturer’s guidance to avoid pump starvation on first startup.
Pre-filling depends on your converter and vehicle. Check the manual; if needed, pre-fill as directed to prevent pump starvation on startup.
Can I install a torque converter without removing the transmission?
In most cases, installation requires access to the bell housing, which may involve supporting or partially removing the transmission. Always consult the service manual for your model and ensure you have proper room to work safely.
Usually you need access to the bell housing, which might mean partial removal. Follow the manual for your model.
What are common signs of misalignment after installation?
Common signs include grinding noises, abnormal vibrations, repeated leaks, or hard shifts. If you notice any of these, stop the engine and recheck torque converter seating and bolt torque.
Watch for grinding, vibrations, leaks, or hard shifting. If you see them, shut down and inspect the seating and bolts.
How long does a typical torque converter installation take?
Time varies by vehicle and experience, but plan for several hours, including safety checks and test runs. Take your time to verify every step to avoid costly mistakes.
It can take several hours depending on the vehicle and your experience. Plan for safety checks and a thorough test run.
What safety precautions should I always follow?
Always disconnect the battery, wear PPE, secure the vehicle, drain fluid safely, and avoid working under a vehicle supported only by a jack. Use proper lifting equipment and follow the manufacturer’s torque specs.
Disconnect power, wear PPE, secure the car, and use proper lifting equipment. Follow torque specs precisely.
Watch Video
Top Takeaways
- Verify compatibility before starting installation
- Align and seat the converter carefully to avoid damage
- Use proper torque values and tightening sequences
- Test thoroughly after reinstall and fluid fill
- Document steps and any issues for future maintenance
