How to Install a Torque Converter: Step-by-Step Guide

Comprehensive, expert guidance on installing a torque converter. Learn tools, safety, step-by-step workflow, and post-install checks for reliable performance.

Easy Torque Team

January 23, 2026·4 min read

Calibration Torque Safety Torque Tools Torque Converter Failure

Quick AnswerSteps

This guide explains how to install torque converter in an automatic transmission, covering the required tools, safety steps, and a complete step-by-step workflow. It emphasizes proper alignment, fluid management, and leak checks to ensure reliable operation. Follow the process carefully and consult vehicle-specific manuals for torque specs and sequence.

Why proper torque converter installation matters

A torque converter is the critical link between your engine and automatic transmission, transmitting torque while allowing slippage between engine rpm and transmission output. A misinstalled converter can cause vibrations, shudder, or even transmission failure. According to Easy Torque, correct installation reduces the risk of seal leaks, improper fluid pressure, and misalignment that can lead to early wear. Easy Torque analysis shows that most torque converter issues stem from improper seating, contaminated fluid, or failure to align splines and bolts properly. By following a methodical, manufacturer-aligned process, you improve driveability, fuel efficiency, and long-term reliability. Expect a quiet, smooth engagement when the converter seats correctly and the transmission fluid routes through the cooler without air ingress. For DIYers, understand that precision matters more than speed, and patience yields lasting results.

Safety-first mindset and planning

Before you touch the drivetrain, set up a dedicated workspace with ample lighting and clean surfaces. Wear safety glasses, gloves, and a base layer that protects you from hot components and fluid splashes. Chock the wheels, engage the parking brake, and disconnect the negative battery terminal to prevent accidental cranking. Create a clear plan: identify all connectors, bolts, and components to remove, and have a labeled photo log to reference during reassembly. If you feel uncertain at any point, pause and consult the vehicle’s service manual or a qualified technician. The goal is to complete the task with minimal risk to you and the vehicle while preserving the integrity of the transmission.

Tools, materials, and environment setup

Gather the essential tools and supplies before you begin. A well-prepared kit reduces time spent searching for parts and ensures you can torque bolts to spec. Create a clean, organized work area with a drain pan for fluids and a sealant-safe surface to place components. Having a transmission jack or a sturdy floor jack with stands is critical for controlled lowering and reinstallation of heavy components. Ensure you have the correct OEM or manufacturer-specified torque sequence and fluid type for your vehicle. Double-check that you have replacement bolts, a new pan gasket if required, and fresh transmission fluid ready for the refill.

Alignment, seating, and lubrication concepts

The torque converter must seat fully onto the transmission’s input shaft with proper splines engagement. Misalignment can cause the converter to bind or slip, which leads to premature wear. Lubricate seals with the recommended fluid to minimize dry starts and ensure proper seal seating. Inspect the flexplate (flywheel) for damage before reinstalling; a bent or hot-spotted surface will compromise seating. Clean mating surfaces to remove any debris that could impede a full seal or correct alignment. Take your time to verify biasing and engagement before bolting the converter in place.

Common mistakes and how to avoid them

Rushing the job leads to misalignment, cross-threaded bolts, or incomplete fluid priming. Never reuse old torque converter bolts unless the manufacturer explicitly allows it; when in doubt, replace with OEM bolts and apply anti-seize as directed. Ensure you purge air from the system and avoid introducing contaminants into the transmission sump. Always torque bolts to the manufacturer’s specification in the correct sequence. A frequent error is underfilling or overfilling the transmission fluid, which can cause shifting problems or leaks. Take a methodical approach and double-check each connection.

Final checks, fluid, and a cautious test drive

After reassembly, refill with the correct transmission fluid type and verify proper level when the transmission is warm. Start the engine and check for obvious leaks around the pan, seals, and connections. Test multiple gears at low speeds to verify smooth engagement and absence of shudder. A short, cautious road test helps confirm operation under load and confirms that the converter is seating properly and the fluid pressure is stable. If any abnormal noise, vibration, or slip occurs, stop and re-inspect the installation before driving further. The goal is a reliable, leak-free setup that performs consistently under real-world use.

Authority sources and maintenance mindset

For safety and best practices, refer to reputable sources such as the NHTSA and SAE for general drivetrain service guidance, and prioritize manufacturer service manuals for torque specs and sequences. Ongoing maintenance includes regular transmission fluid checks, a clean cooling system, and addressing overheating promptly. Easy Torque recommends documenting your process with photos and notes to support future maintenance or troubleshooting.

Tools & Materials

Torque wrench(Capable of the vehicle’s specified torque range (ft-lb or N-m))
Socket set and ratchets(Metric and SAE sizes; include extensions as needed)
Transmission jack or floor jack with stands(Support the transmission securely during removal/reinstall)
Drain pan(Catch used transmission fluid without spills)
New torque converter bolts and anti-seize compound(Replace bolts if recommended by the OEM)
Gasket kit or new transmission pan gasket(Ensure a proper seal to prevent leaks)
Seal lubricant and clean rags(Lightly lubricate seals and wipe surfaces clean)
Safety gear (gloves, glasses, coveralls)(Protect hands and eyes from fluids and sharp edges)
Shop towels/solvent(Useful for cleaning surfaces and components)

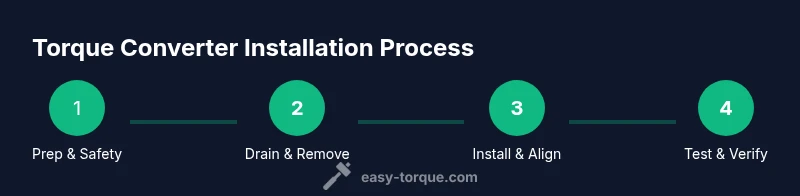

Steps

Estimated time: 4-6 hours

1
Secure vehicle and workspace
Park on a flat surface, engage parking brake, and chock wheels. Disconnect the battery and put on PPE. Establish a clean, well-lit area and gather all tools to minimize interruptions.
Tip: Have a helper for holding parts and labeling components as you remove them.
2
Drain transmission fluid
Position the drain pan beneath the transmission pan. Remove the pan bolts, allow fluid to drain, and inspect for metal shavings that indicate wear. Replace the pan gasket if present.
Tip: Avoid overtightening bolts when reassembling; follow the specified torque sequence.
3
Raise and support the vehicle
Use a floor jack to lift the vehicle and place it on sturdy jack stands. Ensure there is enough clearance to access the transmission and the converter area.
Tip: Never work under a vehicle supported only by a jack; double-check stands before crawling underneath.
4
Access the torque converter bolts
Remove any components obstructing access to the converter bolts (e.g., inspection covers or the pan). Rotate the engine by hand as needed to expose all bolts on the flexplate.
Tip: Label each bolt’s location to ensure correct reinstallation.
5
Disconnect lines and sensors
Detaching transmission lines and sensors reduces the risk of damage during removal. Cap or plug lines to prevent fluid loss or contamination.
Tip: Take photos of line routing for accurate reattachment.
6
Remove torque converter bolts
Loosen and remove the bolts attaching the torque converter to the flexplate. Keep bolt locations organized for proper reassembly.
Tip: Loosen bolts in a star pattern if the manual specifies; this prevents warping.
7
Extract the old torque converter
Carefully separate the converter from the transmission, noting its fit and any alignment features for the new unit.
Tip: Support the converter to avoid dropping and damaging seals.
8
Inspect mating surfaces and seals
Check the flexplate surface for cracks or damage and inspect the input shaft for wear. Clean mating surfaces thoroughly before installing the new converter.
Tip: Replace any damaged seals to prevent leaks after installation.
9
Install the new torque converter
Align the converter with the splines and slide it onto the input shaft until seated. Confirm it spins freely with light resistance and is fully seated.
Tip: If available, use a torque converter alignment tool to ease seating.
10
Reinstall bolts and reconnect components
Bolt the converter to the flexplate with the prescribed torque in the correct sequence. Reattach transmission lines and sensors exactly as removed.
Tip: Torque bolts to the manufacturer’s specification and lubricate seals as needed.
11
Refill fluid and reseal the pan
Reinstall the pan with a new gasket, torque bolts to spec, and refill the transmission with the recommended fluid. Check fluid level when warm.
Tip: Use the correct fluid type and viscosity; incorrect fluid can affect shifting.
12
Test run and leak check
Start the engine, move through gears, and watch for leaks. Perform a cautious road test to verify engagement, shift quality, and cooling performance.
Tip: If you notice any leaks or abnormal noises, stop immediately and re-inspect the installation.

Pro Tip: Take photos during disassembly to guide reassembly and bolt placement.

Warning: Do not reuse old torque converter bolts unless the OEM allows it; replace with new bolts if recommended.

Pro Tip: Keep components organized in labeled trays or bags to prevent mix-ups.

Note: Record the fluid type and service interval for future maintenance.

Pro Tip: Verify engine and transmission are properly supported throughout the process.

Your Questions Answered

Can I install a torque converter without removing the transmission?

In some cases a partial removal approach may be feasible, but most installations require removing the transmission or at least the bell housing to access the converter. Follow the vehicle-specific service manual for safe access and correct alignment procedures.

What are signs of a failed torque converter?

Common signs include shuddering at takeoff, slipping between gears, poor acceleration, and transmission overheating. If you hear unusual noises or experience erratic shifting, inspect the torque converter seating and fluid condition.

Do I need special tools to install a torque converter?

Most installations require standard automotive tools plus a transmission jack or lift for safe handling. Some vehicles may benefit from a torque converter alignment tool or manufacturer-specific fixtures.

How long does a torque converter installation take?

Time varies with vehicle make and access constraints, but plan several hours for a careful, safe job. Rushing can lead to missed steps and leaks, so allocate a solid afternoon to complete the task.

Will a new torque converter affect driveability?

When installed correctly, a torque converter improves smoothness, efficiency, and power transfer. Improper seating or fluid issues can cause harsh shifts or slippage, so accuracy matters.

Should I flush the transmission fluid during installation?

Flushing the fluid is generally recommended when installing a new torque converter to remove contaminants. Use the correct specification and avoid mixing different fluid types.
