Flywheel to Torque Converter Bolts: Step-by-Step Guide
Comprehensive, step-by-step instructions for inspecting, removing, and reinstalling flywheel to torque converter bolts with emphasis on OEM specs, safe torque application, and best practices for DIY mechanics.
By the end, you'll be able to inspect, remove, and reinstall flywheel to torque converter bolts with proper alignment and safe torque application. This guide emphasizes OEM specs, the right tools, and steps to prevent damage to the transmission. Use caution, follow service manual recommendations, and recheck torque after initial start.
Understanding the connection between the flexplate and the torque converter
In most automatic transmissions, the torque converter bolts thread into the flexplate—often referred to as the flywheel in manual-transmission applications—and transmit engine torque into the transmission. The bolts, their pattern, and the seating surface must stay concentric; a small misalignment can cause vibration, driveline chatter, or transmission damage. According to Easy Torque, these fasteners are critical to safe operation and should be inspected with the same care you give other high-load fasteners. Always consult the vehicle-specific service manual for the exact bolt count, pattern, thread size, and torque specification. If a bolt shows stretch, heat discoloration, corrosion, or damaged threads, replace it rather than reuse it. The standard installation pattern is designed to distribute loads evenly, so maintaining the intended sequence during tightening helps prevent binding when the converter seats to the flexplate.
Signs of wear and failure modes to watch for
Bolts that connect the flexplate to the torque converter can wear from repeated engagement and vibration. Common signs include rounded bolt heads, scraped threads, hesitation when starting, or a noticeable wobble when the engine is revved in neutral. If the bolts appear discolored from heat or the bolt holes show guide wear, treat them as compromised and replace them with OEM parts. Easy Torque notes that prevention is cheaper than repair, so inspecting the bolt pattern and seating surface during routine maintenance helps avoid late-night breakdowns. Keep an eye on any signs of oil or transmission fluid seepage around the flexplate openings, which can indicate a loose connection or gasket wear that compounds bolt stress.
Preparation and safety steps before you begin
Safety comes first when you work near the engine and transmission. Park on a flat surface, engage the parking brake, and chock the wheels. Disconnect the negative battery cable to prevent accidental cranking. Gather the required tools and new bolts ahead of time, and review the vehicle’s service manual for the exact torque specification and sequence. Label any removed components to ease reassembly, and take photos or notes of bolt positions before you touch anything. If the vehicle uses a transmission fluid cooler or cooler lines in the area, plan your access route to minimize spills and avoid damage to hoses. A clean workspace reduces the risk of dropped bolts falling into the bell housing.
Best practices for bolts inspection and bolt replacement decisions
Before touching the bolts, inspect the flexplate holes for enragement and threads for cross-threading. If any bolt shows elongation, thread stripping, or signs of fatigue, replace it with OEM hardware rather than trying to reuse it. Clean the bolt holes, apply anti-seize or thread locker only if specified by the OEM, and ensure the bolt length matches the pattern. Always verify that you are using the correct bolt pattern; incorrect bolts can lead to improper seating and eventual failure under load. Use a torque wrench to confirm each bolt reaches the manufacturer’s recommended torque in the correct cross-pattern, and avoid repeating torque steps if you encounter resistance. If bolts come with a protective coating, do not remove it unless directed by service data, as coatings can affect torque values.
Reassembly and testing after the bolts are installed
Insert bolts by hand to avoid cross-threading, then snug them in a star pattern. Apply torque in small increments following the OEM sequence, pausing to recheck alignment after the final torque is applied. After installation, manually rotate the engine by hand to feel for binding and verify the torque converter seats fully against the flexplate. Reconnect any components you removed, reconnect the battery, and start the engine at idle to listen for unusual noises indicating misalignment. If you notice vibration, heat, or abnormal sounds, stop and consult a service manual or professional technician.
Maintenance notes and keeping records
Record bolt part numbers, torque specs, and replacement dates in the vehicle’s service log. This history helps future technicians verify the health of the drive train. For frequent drivers, inspect the bolts during regular maintenance intervals and re-torque if required. If you're ever uncertain about bolt integrity, err on the side of replacement and seek professional assistance. Keeping a simple checklist for your vehicle's torque converter bolts helps you stay proactive and reduces the chance of a roadside failure.
Tools & Materials
- Torque wrench (digital or click-type)(Dual-range preferred; ensure it can read in the expected torque range)
- Socket set compatible with flexplate/torque converter bolts(Check service manual for exact bolt size and pattern)
- Breaker bar or impact driver (for initial loosening)(Use cautiously to avoid bolt head rounding)
- New OEM bolts for torque converter to flexplate(Replace any worn or stretched fasteners)
- Thread cleaner/brush and lint-free rags(Clean threads and mating surfaces before reassembly)
- Anti-seize or thread locker (as specified by OEM)(Only apply if the service data calls for it)
- Marker or scriber for bolt-pattern marking(Important for correct reassembly)
- Safety PPE (gloves and eye protection)(Always wear protective gear)
- Drain pan and shop towels(Capture and clean up any fluids)
- Camera or notebook for mapping components(Helps with reassembly if you remove multiple parts)
Steps
Estimated time: 60-90 minutes

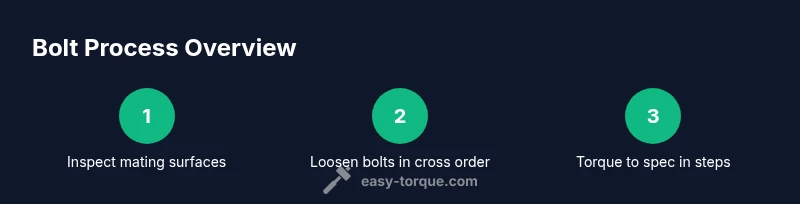

- 1
Prepare the workspace and safety measures
Park on a level surface, engage the parking brake, and chock the wheels. Disconnect the negative battery cable to prevent accidental cranking. Gather tools and new bolts, and review the OEM torque spec and sequence before touching anything.
Tip: Ensure the engine is cool; heat can expand parts and affect clearances. - 2
Gain access to bolts and inspect components
Remove any covers that hide the flexplate and torque converter bolts. Clean dirt from bolt heads and threads so you can see wear clearly. Check for corrosion and damaged threads in the bolt holes and on the mating surfaces.
Tip: Take photos of orientation to simplify reassembly. - 3
Mark bolt pattern and align converter
Before loosening, mark the bolt pattern on the flexplate and converter to preserve alignment when reinstalling. This ensures even seating and reduces the risk of binding as the converter seats to the flexplate.
Tip: Use a non-permanent marker and a straightedge for consistent spacing. - 4
Loosen and remove bolts in cross pattern
Loosen bolts gradually in a star or criss-cross sequence to relieve load evenly. Remove bolts one by one and place them in a labeled tray to avoid mix-ups. Keep bolts organized to prevent loss into the bell housing.
Tip: Do not fully remove the last bolt until the converter is supported to prevent it from dropping. - 5
Inspect bolts and mating surfaces
Examine each bolt for elongation or thread damage and replace any suspect piece. Inspect the flexplate holes and converter mating surface for wear or debris. Clean threads thoroughly and ensure both surfaces are clean and dry.
Tip: Fatigue or corrosion found on any bolt means replacement is the safer choice. - 6
Reinstall bolts and torque to spec
Hand-thread bolts to avoid cross-threading, then snug in a star pattern. Torque in small increments following the OEM sequence, rechecking alignment after the final torque. Reassemble any shields or lines and test the system at idle.
Tip: Torque in small increments and recheck after a cooldown to prevent under- or over-torquing.
Your Questions Answered
Why is the bolt pattern important when connecting the torque converter to the flexplate?
The bolt pattern ensures even load distribution and correct converter seating. An improper pattern can cause imbalance, vibration, and transmission stress. Always verify pattern alignment with the service manual.
The bolt pattern distributes load evenly and ensures proper seating. If it’s wrong, you can get vibration and transmission stress. Verify with the manual.
Can I reuse bolts after removal?
Only if the bolts show no wear, the threads are intact, and the OEM manual permits reuse. In most cases, replacing with new OEM bolts is recommended to ensure reliability.
Reuse is only okay if there’s no wear and the manual allows it. Replacing with new OEM bolts is usually safer.
What tools are essential for this job?
A torque wrench, the correct socket set for the bolt size, a breaker bar, thread cleaner, and replacement bolts are essential. Safety PPE should always be worn.
You’ll need a torque wrench, the right sockets, a breaker bar, thread cleaner, new bolts, and gloves for safety.
What happens if I over-torque the bolts?
Over-torquing can strip threads, warp the flexplate, or damage the torque converter. Always follow OEM torque values in a stepped sequence and recheck after cooldown.
Over-torque can ruin threads and damage components. Use the manufacturer’s torque values and tighten in steps.
Is this job safe to perform on a driveway?
Yes, with proper safety measures: level ground, wheel chocks, and a secure jack or stands. If you’re unsure, seek a professional service.
You can do it at home, but make sure the car is secure and level. If in doubt, get a pro to help.
What should I do if bolts show heat discoloration?
Heat discoloration indicates possible damage; replace with OEM bolts and inspect the mating surfaces for heat-related wear. Do not reuse damaged fasteners.
Heat discoloration means the bolts may be compromised. Replace them and inspect for heat wear.
Watch Video
Top Takeaways
- Verify bolt condition before installation.
- Always follow OEM torque specs and cross-pattern sequence.
- Replace damaged bolts and clean mating surfaces.
- Document maintenance in the vehicle log for future service.
