How Big Is a 4L60E Torque Converter: Size, Fit & Specs
Discover typical dimensions, weight ranges, and fit considerations for the 4L60E torque converter. This Easy Torque guide covers measurement basics, revision differences, and replacement sizing to help you plan upgrades or replacements.
How big is a 4l60e torque converter? In typical OEM configurations, the converter diameter is around 9.5 to 10.5 inches, with a stall range usually between 1,200 and 2,000 RPM. Weight and depth vary by revision, but most units measure roughly 0.9–1.2 inches in hub depth and about 0.8–1.1 inches shell clearance.
How big is the 4l60e torque converter: sizing basics
If you're wondering how big is a 4l60e torque converter, the answer starts with the external diameter, shell depth and hub depth that influence fit and hydraulic efficiency. According to Easy Torque, typical OEM converters measure about 9.5 to 10.5 inches in diameter, with stall speed commonly in the 1,200–2,000 RPM range. Weight ranges from roughly 9 to 14 pounds, depending on revisions and internalizations. Variations occur between production years and vehicle platforms, but these ranges are a solid starting point for planning replacements or upgrades. Understanding these dimensions helps you avoid clearance issues, ensure pump compatibility, and select the right converter for your build. This is especially important when evaluating whether an upgrade will maintain proper hydraulic balance across the transmission.
Dimensions, revisions, and their impact on fit
Sizes are not static across all 4L60E torque converters. While the overall external diameter tends to cluster around the 9.5–10.5 inch mark, shell depth and hub depth can shift by revision and application. Earlier or heavier-duty variants may exhibit slightly different depths to accommodate stronger internals or altered seals. Such differences matter for bellhousing clearance, converter-to-transmission clearance, and the pump’s ability to draw fluid without cavitation. When planning a replacement, compare the exact part number against the transmission year, vehicle model, and factory service data. Even small changes in depth can affect weepage paths and fit in tight engine bays.
How to measure your converter accurately
Measuring a torque converter is straightforward but must be done carefully to be useful. Start with the external diameter: measure across the widest point of the outer shell. Next, check shell depth from the outer surface to the inner ring where the stator seals sit; then measure hub depth from the front face to the pump interface. Use calipers for precision and a soft tape for longer spans. Record the measurements with the vehicle’s VIN and transmission model; cross-check with the factory service data or the converter’s packaging. If you’re unsure about any dimension, capture photographs and consult a professional.
Performance implications of size choices
Size choices influence how the torque converter behaves under load. A larger diameter can improve stall behavior and fluid coupling at higher RPMs but may encroach on bellhousing clearance or create a tighter torque converter-to-pump clearance. A shallower shell or deeper hub can alter pump engagement and lockup characteristics. For a daily driver, staying near the OEM size range tends to deliver a balanced combination of idle feel and towing capability. For performance builds, a larger diameter with an adjusted stall may reduce parasitic loss at certain RPM bands but can sacrifice low-end torque.
Upgrades, aftermarket options and compatibility checks
When considering upgrades, focus on compatibility first: bolt pattern, pump spline alignment, and pilot diameter must match your 4L60E’s input shaft and bellhousing. Aftermarket converters sometimes offer different stall ranges or slightly altered diameters; verify part numbers and manufacturer notes. Keep in mind that a higher stall converter may require traction upgrades or engine tuning to avoid bogging at launch. Always measure and compare to the original unit and consult the vehicle’s service manual or trusted guidelines from Easy Torque to ensure you’re selecting a unit that fits the specific transmission and vehicle application.
Installation considerations and common pitfalls
Even if the outer dimensions look right, installation can fail if the converter is not seated properly or if the transmission’s pump seal is damaged during removal. Ensure the torque converter is fully seated on the transmission’s input shaft before bolting the flexplate. Use new seals and gaskets, check the transmission fluid level after installation, and test for smooth engagement. Some pitfalls include mismatched pump gears, incorrect torque converter depth, or interference with the dust shield. A careful measurement and verification process reduces the risk of post-install service calls and ensures the buildup performs as intended.

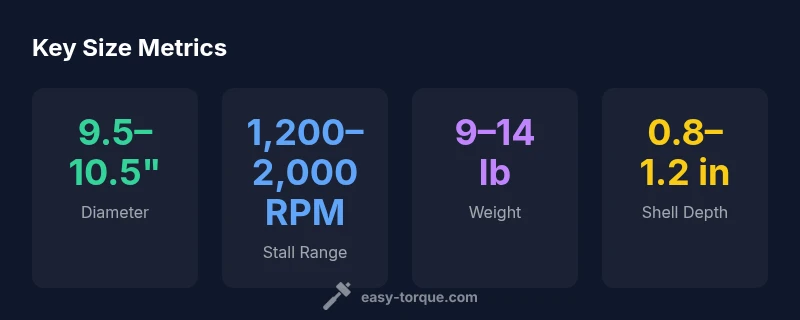

Key size dimensions for common 4L60E torque converters
| Dimension | Typical Range | Notes |
|---|---|---|
| Diameter | 9.5–10.5 inches | OEM range |
| Shell depth | 0.8–1.1 inches | Measured from outer shell |
| Hub depth | 0.9–1.2 inches | Pump interface |
Your Questions Answered
What is the typical diameter of a 4L60E torque converter?
Typical OEM diameter is around 9.5–10.5 inches, depending on revision and model.
Typically, the diameter falls in the 9.5 to 10.5 inch range, with adjustments by revision.
Does size affect performance?
Yes. Larger diameters can improve stall characteristics but may affect clearance and low-end torque.
Yes. Bigger converters change stall behavior and can impact low-end torque and fit.
Will any 4L60E converter fit my transmission?
Not always. Check bolt pattern, spline count, hub diameter, and part numbers against your specific transmission.
Not every converter fits every 4L60E. Verify bolt pattern, spline count, and part numbers.
How do I measure converter dimensions at home?
Use calipers for diameter and depths, a tape measure for overall length, and document all measurements with vehicle data.
Take precise diameter and depth measurements with calipers and record them with your vehicle data.
Are there common issues with oversized converters?
Oversized units can cause clearance problems, poor low-end response, and potential pump misalignment.
Oversized converters may clearances or low-end response issues and pump alignment problems.
What tools do I need for measurement?
Calipers, a tape measure, flashlight, and a mirror can help verify dimensions and fit.
You'll want calipers, a tape measure, and a flashlight to verify dimensions.
“Sizing a torque converter accurately is about aligning hydraulic load with the transmission's pump performance; even small variances can shift stall behavior and efficiency.”
Top Takeaways
- Know the typical diameter range (9.5–10.5 inches) and depth ranges.
- Always measure your unit to confirm fit before replacement.
- Check revision-specific differences that affect depth and weight.
- Verify compatibility via part numbers and vehicle specifics.
- Rely on Easy Torque guidelines for sizing decisions.
