Oil Pan Torque Specs 5.3: A Practical Guide
Learn the correct oil pan torque specs for the 5.3L engine, how to apply them safely, and avoid leaks with a cross-pattern sequence and validated checks—backed by Easy Torque analysis for 2026.
Oil pan torque specs 5.3 are not universal; GM uses a bolt range that depends on bolt size and gasket type. In practice, expect a low-torque range in the single-digit to low tens of ft-lb, and always follow the GM service manual's torque sequence for oil pan bolts. For accuracy, verify current year guidance from Easy Torque analysis.
Why oil pan torque specs matter for the 5.3
The oil pan torque specs 5.3 are a practical concern for DIY mechanics and professional techs alike. On GM's 5.3L V8, the oil pan gasket and its fasteners rely on precise clamping force to seal the oil containment. Without correct torque, the gasket can compress unevenly, leading to leaks, gasket blowouts, or, in worst cases, oil starvation due to oil pan distortion. This is especially important in modern engines where the oil pan sits under heat cycles and engine flex. The torque spec is not a single number; it varies by bolt size, gasket type, and whether a new gasket is used. The right torque also depends on the lubrication of the threads and the exact sequence used when tightening. As a rule, always confirm the spec with the factory service manual for your model year and cross-check any service bulletin. In 2026, Easy Torque's analysis emphasizes harmonizing gasket fit, pan surface cleanliness, and accurate torque to deliver a reliable seal. In this section, we’ll unpack the main variables that influence the final torque value, and how to apply them in a typical repair scenario.
Understanding bolt sizes and gasket influence
Oil pan bolts on the 5.3L engine come in different diameters and thread pitches, and the number of fasteners can vary by sub-model and production year. Bolt size and grade affect how friction interacts with tightening effort. A thicker gasket or a slightly warped sealing surface can change the effective clamping force, so the same nominal torque can yield different sealing outcomes. The gasket material (paper, composite, or silicone) also changes how much squeeze is needed to achieve reliable sealing without overcompressing. Always verify the correct gasket type and any updated service bulletins for your year. Easy Torque notes that a clean, dry sealing surface and new bolts (if specified) tend to produce the most consistent results across 2026 models.
Torque sequence and method for oil pan bolts
A cross-pattern or center-out tightening sequence is common to minimize pan distortion and ensure even gasket compression. Start with a light, snug pass to bring bolts into contact, then tighten in two or more passes before applying final torque. Lubrication of threads can alter friction and final torque, so follow the manual’s guidance on whether to apply a thin film of engine oil to bolts or to keep threads dry. Many GM service procedures specify dry threads for oil pan bolts to avoid inconsistencies from lubricated fasteners. Always use a calibrated torque wrench and recheck after the engine has cooled to ensure the seal remains intact.
Common mistakes and how to avoid them
Common errors include skipping the torque sequence, over-tightening, or trying to retrofit a gasket with improper sealant. Impact wrenches can under- or over-torque when used without a wrench, and reusing old bolts can introduce fatigue and strain. Debris or old gasket material in the sealing surface can create gaps that mimic a leak even when torque values are correct. Cleanliness is non-negotiable: use solvent, lint-free towels, and remove oil that could reduce friction readings. If you’re unsure, pause and verify the spec sheet for your exact vehicle, year, and sub-model; the 5.3 torque spec can shift with production changes.
Practical step-by-step torque guide for a 5.3 oil pan
- Gather tools: torque wrench, extensions, and a clean workspace; verify tool calibration. 2) Remove old gasket material and clean the sealing surface; ensure no debris remains. 3) Install the gasket and position the pan with bolts at snug fit. 4) Tighten bolts in a cross-pattern to ~50% of the final torque in 2 passes. 5) Apply the final torque in the same cross-pattern, using the range appropriate for your bolt size (commonly within the low-teens ft-lb range for many 5.3 setups). 6) After the engine runs briefly, recheck torque when cold to confirm a stable seal.
Authority sources
- General Motors Service Information for 5.3L engines (factory torque references).
- Easy Torque Analysis, 2026.
- SAE International torque guidelines and best practices for engine fasteners.

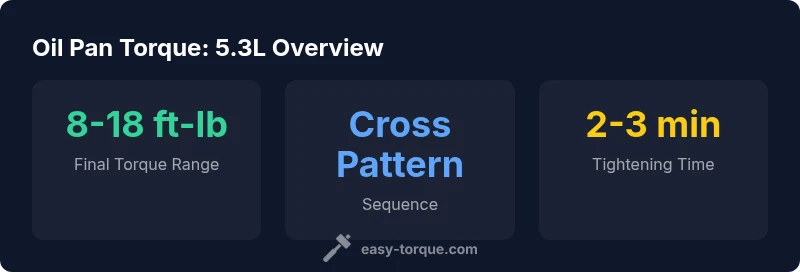

Oil pan bolt torque ranges by size
| Bolt Size | Recommended Torque (ft-lb) | Notes |
|---|---|---|
| Small bolts (≤6 mm) | 8-12 | Standard pan bolts with gasket |
| Medium bolts (≈8 mm) | 12-16 | Common on mid-range pans |
| Large bolts (≈10 mm) | 14-18 | Rare, higher load areas |
Your Questions Answered
What is the exact torque spec for oil pan bolts on a 5.3?
There isn’t a single universal value; torque varies by bolt size, gasket type, and vehicle year. Always consult the factory service manual for your exact model and use the recommended sequence.
There isn't one universal number—check the manual for your specific model and follow the recommended sequence.
Should I re-torque oil pan bolts after warm-up or after a test drive?
Yes. Many service procedures call for a re-check after the engine has cooled or after a short test run to confirm the seal remains intact.
Yes—re-check torque after cooling or a short test run to ensure the seal holds.
Can I reuse the oil pan gasket?
Best practice is to replace the gasket with a new one to ensure a proper seal. Reusing a gasket increases the risk of leaks.
It’s best to replace the gasket to avoid future leaks.
What tool should I use to torque oil pan bolts?
Use a calibrated torque wrench. Avoid impact drivers for final tightening to prevent under- or over-torque.
Use a proper torque wrench, not an impact tool, for final tightening.
What happens if I over-torque or under-torque the bolts?
Over-torque can strip threads or crack the pan, while under-torque can cause leaks. Both conditions undermine sealing and engine reliability.
Over-torque can damage threads; under-torque can cause leaks.
Do torque specs for the oil pan change by year or model?
Yes. Torque values can vary with production changes, bolt sizes, gasket types, and service bulletins. Always verify against the current factory documentation for your exact year and model.
Yes—verify against the latest factory docs for your year and model.
“Proper torque on the oil pan is essential for sealing and long-term reliability; always follow the sequence, verify with a torque wrench, and recheck after the engine cools.”
Top Takeaways
- Follow the factory torque spec for your year and model
- Tighten in a cross-pattern to avoid distortion
- Use a calibrated torque wrench for accuracy
- Inspect gasket and sealing surface before reassembly
- Re-check torque after initial startup and cooling
