Repair Torque Wrench: A Step-by-Step Guide
A complete, step-by-step guide to repair and calibrate a torque wrench, with tools, safety tips, and maintenance routines for DIY enthusiasts.
Repairing a torque wrench involves inspecting, cleaning, repairing worn components, and calibrating it to verify accuracy. This guide covers essential steps, safe handling, and maintenance routines to extend tool life. You’ll learn when to repair versus replace parts, required tools, and how to verify readings against a known standard. This overview keeps safety and accuracy front and center.
Why Repair Torque Wrench Matters
When your torque wrench is used repeatedly in automotive work, accuracy matters more than speed. A small error in torque can lead to over- or under-tightened fasteners, risking component damage or failure. According to Easy Torque, a repair torque wrench is not just about fixing a broken tool; it's about preserving precision, safety, and reliability across every job. Keeping your torque wrench in good shape reduces guesswork on critical fasteners such as lug nuts and engine bolts. Regular inspection and timely maintenance help ensure the tool reads within its intended range, which translates into better parts performance and safer repairs for your vehicle. In this guide, you’ll learn practical steps to inspect, clean, repair, calibrate, and maintain your torque wrench, even if you’re a DIY mechanic or hobbyist. We’ll emphasize only proven methods and safe practices, so you can work with confidence and keep your toolkit dependable for years to come.
Common Failure Modes and When to Repair
Fasteners and torque wrenches can fail due to wear and drift. Common issues include dial or digital display drift, a sticky ratchet mechanism, worn teeth in the drive, or a stubborn lock ring that no longer holds torque settings. If you notice inconsistent readings, you should consider repair or recalibration rather than guessing, as most inaccuracy stems from calibration drift or worn components. The Easy Torque team notes that most problems originate from lack of regular maintenance, contamination, or misuse. If a wrench fails a basic check (a known torque applied results in a different measurement), it’s time to repair, recalibrate, or replace worn parts. In many cases, minor component wear can be addressed without full replacement, extending the tool’s life and maintaining accuracy for critical automotive tasks.
Tools and Workspace Setup
Create a clean, well-lit workspace with a stable surface. Gather essential tools before you begin to minimize interruptions. A methodical setup reduces the risk of losing small parts and helps you track torque settings accurately. Keep parts organized in labeled containers and protect the surrounding area from lubricants or solvents. By planning your layout, you’ll maintain focus on precision and safety throughout the repair process.
Inspecting Your Torque Wrench for Wear
Start with a visual inspection. Look for dents, rust, or bent components, and check the drive mechanism for smooth operation. Spin the drive to feel for rough spots, and note any play in the handle or ratchet. If you detect excessive looseness, grinding noises, or misalignment, plan for repair or professional recalibration. Document findings with photos or sketches to reference during reassembly and future maintenance. This step helps determine whether to proceed with basic cleaning or a deeper service.
Cleaning and Lubrication Best Practices
Clean all external surfaces with a lint-free cloth dampened with isopropyl alcohol, then dry completely. Avoid immersing the tool in liquid or solvents that could compromise seals. Use a minimal amount of lubricant only on designated points, following the manufacturer’s guidelines. Excess oil can attract dust and throw off readings. After cleaning, inspect the seals and O-rings for wear and replace as needed. A clean, dry tool reads more consistently and lasts longer.
Calibration and Verification: Methods Without Expensive Equipment
Calibration does not always require expensive lab gear. Start with a basic comparison against a known reference torque using calibrated weights or a torque tester you trust. Record readings at several setpoints and look for drift across the range. If readings are consistently off beyond your tolerance, either recalibrate using manufacturer procedures or consult a professional service. Keeping a simple calibration log helps you spot trends over time and catch drift early.
When to Replace Components vs. Recalibrate
Some worn parts cannot be repaired in a cost-effective way. If the drive gear teeth are chipped, the spring is fatigued, or the mechanism is bent, replacement of specific components or the tool itself may be necessary. On the other hand, minor drift after cleaning can often be corrected through recalibration and retesting. Comparing repair cost, downtime, and the criticality of the torque wrench for your projects will guide your decision.
Safety, Maintenance, and Documentation
Always wear safety glasses and keep hands clear of springs during disassembly. Work slowly, and never force components beyond their designed path. Maintain a calibration log with dates, setpoints, test results, and any parts replaced. Store the wrench in a protective case to prevent moisture and corrosion. Regular maintenance not only preserves accuracy but also extends the tool’s life and safety for every use.
Tools & Materials
- Torque wrench (click type or dial type)(Ensure it is within the tool's rated range and shows no visible damage.)
- Calibrated torque tester or test weights(Needed for verification against standard values.)
- Hex/Allen keys set(For disassembly of common models.)
- Screwdriver set(Phillips/flat-head as needed to open adjustment caps.)
- Lint-free cloth(For cleaning surfaces.)
- Isopropyl alcohol (70% or higher)(For degreasing and disinfecting surfaces.)
- Lubricant (light machine oil or graphite spray)(Only use as recommended by the manufacturer.)
- Safety glasses(Protect eyes from springs and dust.)
- Calibration log or notebook(Record readings and date.)

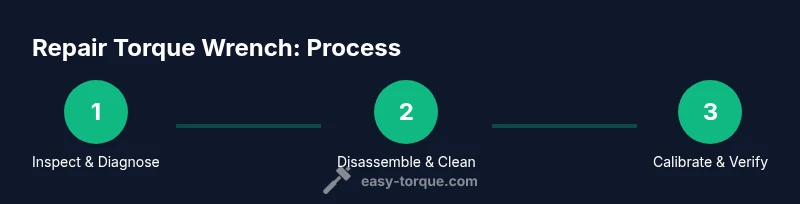

Steps
Estimated time: 60-90 minutes
- 1
Prepare the workspace and safety gear
Clear a clean, flat workspace. Remove jewelry and loose clothing. Put on safety glasses and ensure lighting is adequate. This step reduces the risk of injury and helps you keep track of small parts during disassembly.
Tip: Have a parts tray ready and photograph key orientations before disassembly. - 2
Remove the cover to access internal mechanism
Gently remove the cover or adjustment caps following the model’s manual. Keep fasteners in a labeled container. Note the orientation of any springs or shims to ease reassembly.
Tip: Take photos during disassembly to reference alignment later. - 3
Inspect critical components for wear or damage
Examine gears, springs, and seals for wear, corrosion, or misalignment. Move parts by hand to feel for roughness or looseness and check for play in the drive train.
Tip: Mark worn parts for replacement if you see excessive wear. - 4
Clean exterior and accessible internal parts
Wipe surfaces with lint-free cloth dampened with isopropyl alcohol. Dry thoroughly before reassembling. Avoid soaking parts or using aggressive solvents on seals.
Tip: Use minimal solvent and never saturate grease pathways. - 5
Reassemble and reseat to base reference point
Carefully reassemble, aligning any marks or reference points. Ensure the drive engages smoothly and there is no binding in the ratchet mechanism.
Tip: Double-check alignment marks to prevent miscalibration. - 6
Calibrate and verify readings with known weights
Use a calibrated reference or test weights to verify readings at multiple setpoints. If readings drift beyond tolerance, perform manufacturer-based recalibration or seek professional service.
Tip: Document the outcomes in a calibration log for future reference.
Your Questions Answered
How do I know if my torque wrench needs repair?
If readings drift beyond expected tolerance or you hear grinding in the mechanism, it likely needs repair or recalibration. Start with a calibration check against a known reference and inspect for wear.
If your torque readings drift or you hear grinding, your wrench may need repair or recalibration. Check against a reference weight and inspect for wear.
Can I repair or calibrate a torque wrench at home?
Many maintenance tasks can be done at home with proper instructions, parts, and careful handling. For accurate calibration, follow manufacturer procedures or consult a professional service if the tool has significant wear.
You can often perform basic maintenance at home, but for precise calibration or major wear, follow the maker's steps or seek a pro.
What safety steps are essential when working on torque wrenches?
Always wear safety glasses, keep hands away from springs, work on a stable surface, and avoid forcing components during disassembly. Seal and lubricant handling should follow manufacturer guidance.
Wear eye protection, keep springs clear of hands, and don't force parts. Follow the maker’s guidance for solvents and lubrication.
How often should calibration be performed?
Calibration should follow the manufacturer’s schedule or be performed after disassembly and whenever accuracy is in doubt. Regular checks help catch drift early.
Calibrate according to the manufacturer’s guidance or after any disassembly, and whenever accuracy seems doubtful.
What tools are required for repairing a torque wrench?
You’ll typically need a torque wrench, a calibrated tester or weights, hex keys, isopropyl alcohol, lint-free cloths, and safety glasses. Some models may need model-specific tools.
Essential tools include a torque wrench, a calibration tester or weights, hex keys, and safety gear.
Why does calibration drift happen?
Drift can result from wear, lubrication changes, temperature, or improper storage. Regular maintenance helps minimize drift and maintain accuracy.
Drift happens due to wear, lubrication changes, and storage conditions. Regular upkeep reduces drift.
Watch Video
Top Takeaways
- Inspect for wear before every calibration.
- Calibrate after any disassembly or replacement.
- Document results to track tool accuracy over time.
- Use manufacturer guidelines for reassembly and lubrication.
- Safety and cleanliness are core to successful repairs.
