Torque Test Channel Spreadsheet: A Practical How-To
Learn to build a torque test channel spreadsheet with validated templates, data logging, and calibration tracking. This Easy Torque guide provides practical steps, templates, and QA tips for DIY mechanics and pros.
By the end of this guide, you will design a torque test channel spreadsheet that records test date, target torque, actual torque, wrench calibration status, and pass/fail notes. The template supports data validation, clear legends, and consistent units to improve reliability for DIYers and professional technicians. It also guides you through naming conventions, version control, and basic troubleshooting.
What is a torque test channel spreadsheet?
A torque test channel spreadsheet is a structured data instrument designed to log every torque application test in a single, auditable file. For DIY mechanics and professional technicians, it creates a traceable record that connects target torque values, actual results, tools used, and calibration status. According to Easy Torque, standardizing this data helps teams compare results over time, detect drift in torque values, and ensure maintenance work meets manufacturer specs. By organizing tests into channels—distinct worksheets or tabs for different fasteners or projects—you gain focused visibility without mixing unrelated tests. This organization also enables quick audits during inspections and when verifying service history. A well-designed sheet supports efficient reviews, easier handoffs between technicians, and clearer communication with shop management or customers.
Why you need one
In any torque-intensive maintenance job, small measurement differences can cascade into safety issues or improper load distribution. A torque test channel spreadsheet gives you a single source of truth for all test data, making it easier to track calibration cycles, identify outliers, and demonstrate compliance during audits. For hobbyists, it removes guesswork and helps build confidence that your tools and methods are consistent from project to project. For technicians, it streamlines reporting, speeds troubleshooting, and supports warranty or liability documentation. When you adopt a channel-based approach, you can isolate test families—such as lug-nut torques, bolt preloads, or adapter torque checks—clarifying responsibilities and reducing the chance of cross-pollinating data between unrelated tasks. In short, it’s a practical backbone for repeatable torque work.
Core fields and data types
A practical spreadsheet includes a core set of fields with specific data types to ensure reliable analysis. Suggested fields include: Test ID (string), Date (date), Fastener/Component (string), Target Torque (number), Measured Torque (number), Torque Unit (string, with a controlled list), Calibration Status (string from a dropdown: unsure, calibrated, out of calibration), Pass/Fail (boolean or dropdown), Notes (string). Consistent units (e.g., N*m or ft-lb) are critical, so use a single unit per channel and provide a simple conversion guide in a legend. Consider adding a reference to the service sheet or spec sheet in the template in a single place. This structure enables basic analytics, such as average accuracy by fastener type or by technician.
Designing templates for unit consistency
To avoid confusion, decide how you will express torque values before you start. Choose either metric (N*m) or imperial (ft-lb) and stay consistent across all tests in a channel. Provide a dedicated Unit column with a constrained list, and set a data validation rule to prevent free-text entries. Include a template row that shows example values and a legend explaining the units and tolerances. If you anticipate multiple units, create separate sheets or a named range with a clear conversion map, then document the conversion method. Easy Torque emphasizes documenting the chosen unit system in the header of the workbook so every user knows what to measure, record, and compare.
Data validation and dropdowns
Built-in data validation reduces human error. Implement drop-downs for fields such as Torque Unit (N*m, ft-lb), Calibration Status (calibrated, not calibrated, out of tolerance), and Pass/Fail (pass, fail). Use conditional formatting to highlight failed tests or out-of-tolerance values. Add a simple rule that flags any test where Measured Torque is outside Target Torque by more than a predefined percentage. For historical data, provide a one-time migration plan so older entries can be mapped to the new validation scheme. This approach keeps your dataset clean, makes automated checks reliable, and supports fast filtering during reviews.
Formulas for accuracy and tolerances
Core calculations help you decide if a test passes. A common formula is Tolerance = Target Torque × Tolerance Percentage. If you have a tolerance of 5%, a test where Measured Torque is within Target ± 5% passes. Implement a Pass/Fail field driven by a logical test: if Abs(Measured Torque − Target Torque) ≤ Tolerance then 'pass' else 'fail'. Additional helpful fields include Delta = Measured − Target, and PercentError = (Delta / Target) × 100. If you need varying tolerances by component, store the tolerance in a separate Mapping table and use a VLOOKUP-like function to fetch the correct value. Document these formulas in a help row.
Step-by-step setup example
To illustrate, assume you’re building a torque test channel for lug-nut assemblies on a vehicle. Start by creating the workbook and a dedicated sheet called Lug Nut Tests. Populate headers as described in the core fields. Enter a sample test: Test ID TEST-001, Date 2026-03-11, Component Lug Nut, Target Torque 120 ft-lb, Measured Torque 118 ft-lb, Unit ft-lb, CalStatus calibrated, Pass/Fail pass, Delta -2, PercentError -1.7, Notes minor calibration offset. Validate formulas by checking that Delta equals Measured minus Target. Save as a template, and lock the header row to protect formulas. Finally, share the workbook with the team and set review reminders. This concrete example demonstrates how the sheet will function in real workflow.
Validation and QA workflow
Establish a simple QA cadence: a weekly review of all entries, spot checks on two random tests, and a monthly calibration reconciliation. Use filters to identify outliers by Component or by Technician, then trace back through the chain of custody (tool, calibration certificate, operator). Document any corrective actions taken and timestamp revisions. Maintain an audit trail by preserving historical versions with date-stamped filenames. When you handle multiple vehicles or test families, maintain separate sheets but use a common data dictionary to ensure consistent terminology and units across the workbook. Easy Torque recommends formalizing these steps in a short standard operating procedure (SOP).
Automation options and future-proofing
As your spreadsheet matures, small automations can save time and reduce errors. Consider simple data validation-driven alerts that notify you when a test falls outside tolerance or when a calibration becomes overdue. Use named ranges for frequently referenced cells and create a small macro or script to import test data from a CSV export of your torque log. If you expect many test entries, explore cloud-based templates that automatically sync across devices and preserve a revision history. Document every automation in the template so new users understand the logic and can adjust thresholds if needed.
Real-world use cases
In a DIY brake job, a torque sheet ensures you hit the exact torque for caliper bolts, preventing uneven pad wear. In a professional shop, a calibrated channel supports warranty claims and helps technicians demonstrate compliance during audits. Field technicians using torque adapters can compare nominal values to measured values recorded on-site, then follow up with calibration certificates stored in the same workbook. Across industries, the channel structure helps teams standardize torque practices, reduce miscommunication, and improve traceability. The template is flexible enough to apply to lug nuts, flange bolts, or critical fasteners in engine assemblies.
Maintenance, governance, and archiving
Plan for periodic maintenance: review field definitions, prune redundant rows, and archive older tests in a separate workbook. Establish governance rules: who can edit the template, where to store backups, and how to version-control updates. Create a simple archival policy that moves completed tests to an immutable archive, with metadata like project name and date. Ensure new team members are trained on the convention and that the spellings, units, and tolerances stay consistent. Keep a changelog so stakeholders understand what changed in each version and when.
Common mistakes and how to avoid them
Avoid free-text data fields for critical values; always force units and standardized terminology. Don’t mix test families in the same channel without a clear header or mapping table. Resist the urge to retroactively force older data into new validation rules without mapping fields. Finally, don’t skip documenting tolerance definitions or pass/fail criteria—without this, audits become confusing and unreliable.
Tools & Materials
- Spreadsheet software (Excel or Google Sheets)(Ensure access to at least basic formulas, data validation, and conditional formatting)
- Predefined template for torque tests(Include headers, example rows, and a legend)
- Torque wrench with known calibration(Verify calibration before recording measurements)
- Reference torque specs or spec sheet(Used to determine tolerance and testing criteria)
- Notebook or digital notes(For quick observations and field notes)
- Backup plan (cloud storage or external drive)(Keep archived versions and backups)

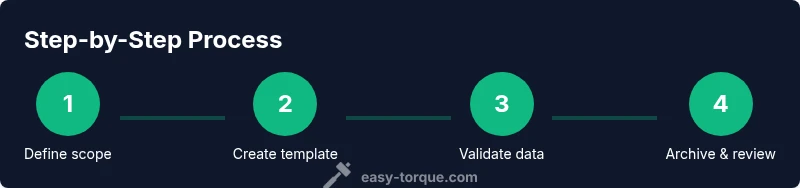

Steps
Estimated time: 60-90 minutes
- 1
Create workbook and sheets
Open your spreadsheet app and create a new workbook. Add a dedicated sheet per test family (e.g., Lug Nut Tests, Bolt Preloads). Establish a header row with the core fields and a sample row to verify layout.
Tip: Use a template row to validate formulas before data entry. - 2
Define core fields
Set up fields for Test ID, Date, Component, Target Torque, Measured Torque, Unit, CalStatus, Pass/Fail, Delta, PercentError, and Notes. Use consistent data types and a visible header.
Tip: Document field definitions at the top of the sheet. - 3
Configure data validation
Add dropdowns for Unit, CalStatus, and Pass/Fail. Include a numeric rule to prevent negative torque values and set range limits for plausible measurements.
Tip: Avoid typing errors by constraining inputs. - 4
Enter test data and formulas
Input a sample test to check that Delta and PercentError calculate correctly. Implement a Pass/Fail rule based on a defined tolerance.
Tip: Test formulas with a known pass/fail case. - 5
Implement pass/fail automation
Create a logical test that marks a test as pass when Abs(Measured − Target) ≤ Tolerance. Add a Delta and PercentError column with clear formatting.
Tip: Use absolute value to avoid sign issues. - 6
Lock and protect critical cells
Lock headers and formulas to prevent accidental edits. Leave data-entry cells editable for users.
Tip: Protect the sheet but allow data entry in designated columns. - 7
Document unit conventions
Add a legend and a header note that specifies the chosen torque unit system. Include a quick reference for conversions if needed.
Tip: Keep units consistent per channel. - 8
Create templates for reuse
Save the sheet as a template to accelerate future setups. Include instructions for cloning and distributing the template to a team.
Tip: Version-control templates with clear naming. - 9
Validate with a real test
Run a live test on a known torque value to confirm that the template captures all fields and calculations correctly.
Tip: Keep a note of any discrepancies and adjust values. - 10
Share and review
Distribute the template to teammates and assign a reviewer for new entries. Establish a regular review cadence.
Tip: Set a recurring reminder for reviews.
Your Questions Answered
What is a torque test channel spreadsheet?
A torque test channel spreadsheet is a structured log for recording torque tests. It centralizes data like dates, target torque, actual torque, unit, and calibration status. It supports traceability, audits, and consistent practices.
A torque test channel spreadsheet is a structured log you can use to track torque tests, including dates, target and actual torque, unit, and calibration status.
What fields are essential?
Essential fields include Date, Target Torque, Measured Torque, Unit, Calibration Status, Pass/Fail, Delta, and PercentError. Keeping these standardized ensures reliable comparisons across tests.
Key fields are date, target and measured torque, unit, calibration status, and pass/fail.
How do I validate data?
Use data validation with dropdowns for units and status, plus formulas to enforce tolerance. Regular audits validate that inputs remain consistent.
Use dropdowns and tolerance formulas to keep data accurate.
Can I automate imports?
Yes. You can automate data import from CSV logs or torque reports, with mappings to the same column structure and validation checks.
You can automate data import with careful mappings and validation.
How should I maintain and archive?
Maintain a versioned SOP, back up regularly, and archive completed tests to a separate file with metadata. This preserves history and supports audits.
Keep a versioned SOP, back up data, and archive completed tests.
Watch Video
Top Takeaways
- Define a clear data structure with core fields for torque tests
- Maintain consistent torque units across all entries
- Use data validation to minimize entry errors
- Implement a pass/fail formula to automate QA
- Archive completed tests to preserve history and compliance
