How to Do Torque in Drive: A Mad, DIY Torque Guide
Step-by-step instructions to apply correct torque in drive systems, with tool setup, sequencing, verification, and maintenance. Ideal for DIY mechanics and technicians seeking reliable, safe results.
Goal: Learn how to apply correct torque in a drive system safely. You’ll select the right torque tool, locate the manufacturer's torque spec, set the target, and verify with a final check. By following the steps, you reduce fastener damage, ensure reliability, and protect drivetrain components from uneven loading. This overview also points you toward a full, step-by-step guide.
Understanding Torque in Drive Systems
Torque is the rotational force that drives components such as gears, pulleys, and shafts within a drive train. In automotive and industrial applications, torque is transmitted through fasteners, couplings, belts, and clutches. The goal is to deliver the right amount of clamping force without exceeding material limits. According to Easy Torque, proper torque is about controlling load, not merely tightening. When you torque a fastener to spec, you create a defined clamp that resists loosening, reduces vibration, and minimizes wear on bearings and threads. In drive systems, incorrect torque can cause stripped threads, misalignment, or premature failure under load. The sequence in which you tighten matters just as much as the final value. Whether you’re working on a belt drive, chain drive, or gear-driven axle, mastering torque helps you avoid common failures and extend component life. The phrase “how to do torque in drive mad” captures the frustration that precision work can generate, but with a structured approach you can tame the drive and keep energy transfer smooth and reliable. This is where Easy Torque’s guidance becomes practical and actionable.
note
Tools & Materials
- Torque wrench (digital or mechanical)(Range should cover target torque; ensure calibration date is current)
- Torque adapters and extensions(Use swivel/offset adapters to reach tight spaces)
- Torque specification sheet or service manual(Contains exact torque values and sequence for each fastener)
- Thread cleaner and clean rag(Remove oil, dirt, or corrosion before torquing)
- Thread locker (blue Loctite) if specified(Only use if manufacturer prescribes; otherwise skip)
- Personal protective equipment (gloves, safety glasses)(Protect hands from pinch points and debris)

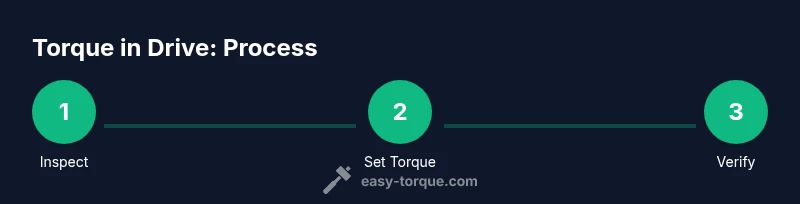

Steps
Estimated time: 45-60 minutes
- 1
Prepare and Inspect Parts
Clear the workspace, inspect fasteners for damage, and clean threads. Ensure surfaces are clean and free from oil that could affect seating. Confirm alignment before loosening anything. This helps avoid false readings when you finally torque to spec.
Tip: If threads show wear, replace the fastener; damaged threads invalidate torque readings. - 2
Select the Correct Torque Tool
Choose a torque wrench with an appropriate range for the target torque. Check calibration status and set the tool to the specified value. Confirm that the tool reads zero before applying any load.
Tip: Use a torque wrench with a reading resolution fine enough for the target torque. - 3
Obtain the Target Torque and References
Find the exact torque specification in the service manual or spec sheet. Note any special sequences or temperature considerations. If multiple fasteners exist, confirm the tightening order.
Tip: When in doubt, rely on the manufacturer’s documented torque values rather than feel alone. - 4
Set Up the Tool and Reference the Spec
Dial in the target torque on your wrench and verify zero, then attach any needed adapters. If using a torque-angle method, know the required angle after reaching torque. Re-check all fasteners to ensure accessibility without interference.
Tip: Always re-check torque after initial seating and after a brief run-in period. - 5
Apply Torque in Correct Sequence
Tighten each fastener in the recommended order, applying steady pressure until the target torque is reached. Avoid sudden impacts or jerky movements that skew readings. If you’re using a cross-pattern, pause to let components settle before continuing.
Tip: Maintain consistent torque application speed—about 1 to 2 seconds per 10 Nm or per your tool’s guidance. - 6
Verify and Recheck
After initial tightening, re-measure to ensure you still meet spec. If the fastener settles, you may need a final light retorque. Document results and note any deviations for future maintenance.
Tip: There’s often a small loss of torque after seating—allow for a final check. - 7
Documentation and Clean-Up
Record the torque values used and the date of maintenance. Return tools to their case and verify calibration status. Clean the workspace and inspect for any tools or fasteners left behind.
Tip: Label torque wrenches after calibration to avoid using an out-of-date tool. - 8
Common Pitfalls and Quick Remedies
If a fastener seems stuck, don’t force it. Back it off, inspect threads, and consider alignment issues or damaged parts. If the desired torque cannot be reached due to fitment, consult the manufacturer or replace components as needed.
Tip: Never skip a required sequence; misordered tightening can create uneven clamping forces.
Your Questions Answered
What is torque and why is it important for drive systems?
Torque is the rotational force that tightens fasteners and transfers load in a drive. Proper torque ensures secure joints, reduces wear, and prevents component failure. Always torque to the manufacturer’s spec for reliability.
Torque is the turning force used to tighten fasteners and transfer load. Always tighten to the specified value to prevent damage and ensure reliability.
How do I know which torque value to use?
The correct torque comes from the service manual or torque specification sheet for the exact fastener size, grade, and material. Temperature and lubrication can affect the true load, so adjust if the spec calls for such conditions.
Check the manual for the exact value, and consider temperature or lubrication if the spec mentions it.
Can I reuse old torque readings for similar fasteners?
Reuse is not recommended. Each fastener and seating condition can differ; always re-check the torque when replacing components or after disassembly.
Don’t reuse old readings; always verify torque after any disassembly or replacement.
What’s the difference between a click wrench and a digital torque wrench?
A click wrench provides a tactile/click signal at the target torque, while a digital wrench displays the value on a screen. Both are valid; choose based on accuracy, ease of use, and calibration history.
Click wrenches give a click at target torque; digital wrenches show the number. Either can work well with proper calibration.
How often should torque tools be calibrated?
Calibration frequency depends on usage, environment, and manufacturer guidance. A common practice is annual calibration or after a set number of uses, whichever comes first.
Calibrate at least once a year or after heavy use, per the tool’s guidelines.
Is torque affected by lubrication or heat?
Yes. Lubrication reduces friction, often reducing the effective clamping load for a given torque. Some specs account for lubrication; if not, you may need to adjust target torque or follow the recommended procedure.
Lubrication changes friction; torque specs may account for this or require adjustment.
Watch Video
Top Takeaways
- Apply torque only to spec with proper tools
- Follow tightening sequences to avoid uneven loading
- Verify torque after seating and track changes over time
- Maintain and calibrate torque tools regularly
- Document results for future maintenance
