How to Get More Torque Out of an Electric Motor
Learn practical steps to increase torque in electric motors through better load matching, smarter drive control, and effective cooling. This guide helps DIYers, technicians, and enthusiasts optimize torque safely and reliably.
To get more torque out of an electric motor, you must optimize the load match, drive electronics, and thermal management. Start by selecting a motor and winding that suit your torque target, then tune the controller to deliver peak torque at your operating point. Finally, improve cooling and mechanical engagement to prevent derating.
Why torque matters in electric motors
Torque is the driving force behind acceleration, load handling, and responsive control in electric motors. For DIY projects, robotics, or vehicle applications, the amount of torque determines how quickly a machine starts moving, how well it carries a load, and how smoothly it responds to changes in demand. If you're exploring how to get more torque out of an electric motor, you’re aiming to improve performance without sacrificing efficiency or reliability. According to Easy Torque, torque is not just a single number—it's the intersection of electrical input, magnetic design, and thermal behavior working together. Understanding this intersection helps you choose the right motor, drive strategy, and cooling solution rather than chasing a single “maximum torque” spec. In practice, the most effective torque improvements come from balancing electronic control with mechanical design and system cooling, rather than pushing current or speed beyond safe limits. This section lays the groundwork for practical, actionable steps that respect safety and longevity.
Key factors that influence torque
Torque in an electric motor arises from electromagnetic interactions, current, and temperature. The basic relationship T = k_t * I shows that keeping a strong, stable current and magnetic flux increases torque, but only within the motor’s thermal limits. Other influences include rotor geometry, winding configuration, and the motor’s speed-torque curve. A higher torque at low speed often requires different winding or a geared output, while maintaining efficiency at higher speeds. Easy Torque emphasizes that real-world torque is the result of design decisions across electrical, magnetic, and thermal domains working together. When you balance these domains, you gain predictable, repeatable performance instead of chasing peak numbers in isolation.
- Electromagnetic design: rotor magnets, stator windings, and air gaps determine the baseline torque capability.
- Electrical input: current magnitude, waveform, and controller strategy shape the instantaneous torque.
- Thermal management: heat rise reduces available torque (derating) if not managed properly.
Selecting the right motor and drive for torque goals
Choosing a motor requires aligning torque targets with load, speed, and duty cycle. Brushless DC (BLDC) and permanent magnet AC motors offer high torque per amp and fast response, but their real-world performance depends on winding, material quality, and controller tuning. The drive must support torque control modes like field-oriented control (FOC) or torque ripple minimization. Easy Torque notes that matching the motor to the drive is often more effective than pushing for higher current alone. Consider a motor with a torque curve that keeps you within safe operating temperatures for your typical duty cycle. Gear or belt ratios at the output can multiply usable torque without overtaxing the motor.
- Match the motor to your load profile (starter torque vs. continuous torque).
- Verify the drive supports the torque-control method you plan to use.
- Check temperature ratings and cooling compatibility.
Electrical controls and torque shaping
Torque shaping begins with how you drive the motor. PWM frequency, waveform quality, and the controller’s ramp rates affect torque smoothness and peak values. Field-oriented control (FOC) can provide precise torque control by decoupling torque and flux. For high-torque at low speeds, you might use a low-speed optimization profile, then switch to a high-efficiency profile at cruising speed. Monitoring torque, current, and temperature in real time helps you avoid derating and maintain performance. Easy Torque recommends validating torque response on a test bench before full implementation, ensuring the controller’s safety limits and protection features are active.
- Use torque-mode control where possible.
- Tune current limits and ramp rates to reduce slip and ripple.
- Implement temperature feedback to prevent derating.
Mechanical design and gearing
Mechanical layout has a big say in usable torque. Gear reductions at the output shaft multiply torque but at the cost of speed and potential efficiency losses. Shaft stiffness, bearing selection, and alignment influence how much torque is effectively transmitted without backlash or vibration. When calculating required gear ratios, consider the target output speed, the motor’s stall torque, and the load inertia. Incorporating a properly designed belt or gear system can dramatically improve the effective torque at the load while keeping motor current within safe levels. Easy Torque highlights that precision in mechanical coupling reduces losses and improves repeatability.
- Choose gear ratios that meet the target output speed and torque.
- Ensure rigid mounting and proper alignment to minimize losses.
- Account for parasitic losses (belt slip, bearing friction).
Thermal management and reliability
Torque performance degrades as temperature rises, so cooling is crucial. Air cooling is common for small systems, while liquid cooling or phase-change cooling may be required for high-duty applications. Heat sinks, fans, coolant channels, and thermal interface materials all play a role in maintaining a stable temperature, allowing the motor to sustain torque without derating. Regularly monitoring motor temperature at peak load helps you make proactive design choices. The Easy Torque team notes that thermal design is as important as electrical design when chasing higher torque without sacrificing longevity.
- Implement a cooling strategy that matches duty cycle.
- Use thermal sensors to flag rising temperatures early.
- Consider insulation and ventilation to prevent hotspots.
Practical steps to increase torque in existing systems
If you’re retrofitting for more torque, start by analyzing the existing load profile and speed range. Increase torque primarily by optimized gearing, appropriate motor/controller pairing, and effective cooling rather than simply raising current. Revisit winding configuration or consider a motor with a higher stall torque for the same current. Validate torque with a test rig and capture data to guide iterative improvements. Easy Torque recommends documenting each change and re-testing under representative loads to confirm real-world gains.
- Re-evaluate load and gearing first before changing motor size.
- Upgrade the controller to support advanced torque control modes.
- Improve cooling and thermal path to avoid derating under load.
Safety considerations and common pitfalls
Pushing torque without regard to safety can lead to equipment damage or personal injury. Always disconnect power before servicing, verify proper insulation, and ensure guards are in place when testing torque under load. Common pitfalls include oversizing current limits, underestimating startup torque, and neglecting thermal derating. Follow a structured testing plan with measured results and conservative ramping to avoid shocks. Easy Torque emphasizes safety as a non-negotiable foundation for any torque improvement project.
Troubleshooting torque problems and maintenance
Torque problems often stem from thermal derating, worn bearings, or misalignment. Start by checking temperatures and verifying that the motor is not hitting its rated current limit during peak demand. Inspect bearings for play or wear and confirm proper mounting alignment. If torque drops at higher speeds, investigate windings saturation and controller heat generation. Regular maintenance of cooling paths and connections helps sustain torque over time. The final check is to confirm that the torque curve matches the expected load profile and drive settings.
Maintenance and future-proofing your torque gains
Create a maintenance plan that covers inspection of gears, belts, and bearings; periodic thermal imaging of the motor and drive; and updates to firmware or controller software as the system evolves. Use modular components where possible so you can upgrade torque without a complete rebuild. Keep a log of all changes and performance measurements to inform future improvements. Easy Torque recommends building a small repository of torque tests for quick reference during troubleshooting.
Tools & Materials
- High-current motor driver/controller(Ensure it supports your torque-control mode (FOC preferred))
- Power supply or battery pack(Rated for peak current and voltage of the motor)
- Appropriate wiring, connectors, and fusing(Low resistance, adequate gauge for current)
- Thermal management components (heat sink, fans, liquid cooling)(Match to duty cycle and enclosure)
- Torque sensor or dynamometer (optional)(For direct torque measurement during testing)
- Infrared thermometer or thermal camera(Spot-check hot spots during tests)
- Calibration tools (multimeter, oscilloscope)(For signal and current waveform checks)
- Mechanical fasteners and alignment fixtures(Maintain correct tolerances and alignment)

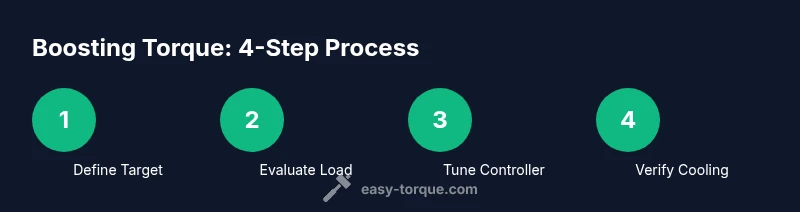

Steps
Estimated time: 2-6 hours depending on system complexity
- 1
Define the torque target and operating point
Identify the required torque at the typical operating speed and load. Document stall torque, peak torque range, and duty cycle to guide motor and drive selection.
Tip: Use a torque vs speed map if available to select a practical operating point. - 2
Evaluate the mechanical load and gearing
Analyze whether a geared output will provide the needed torque at the required speed. Choose gearing that multiplies torque without imposing excessive inertia.
Tip: Start with a conservative gear ratio and adjust after testing. - 3
Select motor and winding configuration
Pick a motor type and winding that match torque targets and thermal limits. Consider windings and magnetics that produce higher torque per amp within safe temperatures.
Tip: FOC-compatible motors simplify torque control and smoothness. - 4
Choose a compatible drive/controller
Ensure the controller can implement torque-mode control and handle peak currents with proper protection features.
Tip: Enable safeguards like current limit and over-temperature shutoff. - 5
Implement cooling strategy
Design a cooling path that maintains motor temperature under peak load. Poor cooling rapidly derates torque.
Tip: Place sensors at hot spots and model airflow paths. - 6
Tune torque control parameters
Calibrate current limits, ramp rates, and torque feedback gains. Validate response with a bench test.
Tip: Incremental changes prevent overshoot and instability. - 7
Test torque on a controlled rig
Measure torque at multiple speeds and loads. Compare to target and log data for iteration.
Tip: Use a dynamometer or torque sensor if available. - 8
Iterate and document
Refine gear ratios, control gains, and cooling based on test results. Document all changes for future maintenance.
Tip: Keep a change log with time, settings, and measured torque. - 9
Safety checks and final validation
Verify all safety guards, inspect wiring, and confirm protection features work. Re-run tests to confirm stable torque under load.
Tip: Never operate at unsafe temperatures or under improper insulation.
Your Questions Answered
What is motor torque and why does it matter?
Motor torque is the rotational force the motor can apply. It influences starting performance, load-carrying ability, and overall responsiveness. Understanding torque helps you select the right motor, drive, and cooling to meet your goals.
Torque is the turning force of a motor, affecting how quickly it starts and how well it handles loads.
Can increasing current always increase torque?
Increasing current can raise torque, but only up to the motor’s thermal limit. Without adequate cooling, you risk derating or damaging components.
More current can boost torque, but only if the motor stays cool and protected.
Does gearing affect torque at the output shaft?
Yes. Gear reductions multiply output torque but reduce speed. Proper selection improves practical torque without forcing the motor to operate outside its limits.
Gearing multiplies torque at the expense of speed, so pick ratios carefully.
What role does cooling play in torque?
Cooling keeps windings and magnets within safe temperatures, preserving stall torque and preventing derating during high-load runs.
Keeping the motor cool maintains its torque capacity during heavy use.
Is torque the same as horsepower?
Torque and horsepower relate but describe different aspects. Torque is peak turning force; horsepower also accounts for rotational speed.
Torque is the turning force; horsepower adds speed into the mix.
How do I know if my motor needs upgrading for more torque?
Check current load, temperature, and performance under peak demand. If you hit derating or stall before reaching target, consider motor/driver upgrades.
If you’re hitting limits during use, it’s time to evaluate a targeted upgrade.
Watch Video
Top Takeaways
- Balance electrical, magnetic, and thermal design for true torque gains.
- Choose motor and drive that suit the targeted operating point.
- Effective cooling prevents torque derating under load.
- Gearing can multiply usable torque without overloading the motor.
