How to Increase Torque with Gears
Learn practical methods to increase torque with gears: choose ratios, design gear trains, reduce losses, and safely test torque in DIY and automotive projects.
You will learn how to increase torque with gears by selecting appropriate gear ratios, assembling simple and compound gear trains, and accounting for efficiency losses. The key is to maximize mechanical advantage while managing speed, alignment, and lubrication. This quick guide points you to practical steps and safety considerations to begin implementing gear-based torque amplification in your projects.
Understanding torque and gear interaction
Torque is the rotational force that turns a shaft. In a gear system, torque at the output side increases when the gear train provides mechanical advantage, defined by the gear ratio. The phrase how to increase torque with gears refers to designing or selecting gear pairs that multiply input torque while acknowledging that speed decreases correspondingly. Every gear pair experiences losses from friction, bearing resistance, and misalignment, so real-world gains are reduced by efficiency η. The Easy Torque approach emphasizes modeling the system with simple equations and then validating with safe bench testing. When you’re planning to boost torque in a mechanical assembly, start by identifying the required torque increase and the acceptable speed reduction. Then choose gear sizes that achieve the target ratio without excessive center distance or mechanical interference. This foundational understanding helps you pick the best geometry for your application.
Gear ratios explained
Gear ratio is the relationship between the number of teeth on the driven gear and the driving gear, often written r = N_out / N_in. In a simple two-gear pair, a higher ratio yields more output torque at the expense of angular speed. Output torque T_out relates to the input torque T_in by T_out = T_in × r × η, where η represents system efficiency. Efficiency captures losses from friction, lubrication, and manufacturing tolerances. In practice, a higher gear ratio can dramatically boost torque, but you must balance the resulting speed reduction and potential heat generation. Understanding this balance is essential when you plan to increase torque with gears in a handheld tool, automotive subsystem, or workshop rig.
Simple gear pair and torque gain
A single gear pair provides a straightforward path to torque amplification. You select a driving gear with N_in teeth and a driven gear with N_out teeth, achieving ratio r = N_out / N_in. The resulting output torque is T_out = T_in × r × η. Keep η below 1 due to inevitable losses. In many DIY situations, a modest ratio with good lubrication yields meaningful torque gains without overwhelming speed loss. Use precise measurements to confirm gear tooth contact and ensure the gears are properly supported to prevent backlash from eroding the torque advantage.
Compound gear trains for higher torque
For larger torque gains, engineers often use compound gear trains, stacking more stages so that the total ratio is r_total = r1 × r2 × ... × rn. The overall torque gain becomes T_out = T_in × r_total × η_total. Each additional stage multiplies both torque and potential losses, so η_total decreases with more stages. Careful alignment, consistent lubrication, and tight tolerances are required to prevent excessive backlash and noisy operation. Compound gearing is a powerful tool, but it must be designed with attention to shaft rigidity and bearing load capacity.
Efficiency and losses you must manage
Efficiency losses arise from friction between gear teeth, bearing resistance, lubrication, and misalignment. Heat buildup increases with higher torque and slower speeds, so temperature monitoring is prudent in longer runs. To minimize losses, maintain clean gear teeth, apply appropriate lubrication, verify belt or chain drives aren’t slipping, and ensure shafts run true and parallel. Small misalignments can dramatically reduce η, eroding the theoretical torque gain. Easy Torque recommends modeling losses first, then validating with bench tests to quantify real-world gains before applying gear systems in critical tasks.
Practical design tips and pitfalls
- Start with the simplest plan: a well-mutted gear pair or a modest two-stage train.
- Check center distance and shaft alignment to minimize backlash and wear.
- Use gears with generous contact ratios and proper lubrication for smooth engagement.
- Avoid excessive gearing beyond the mechanical limits of the input source and bearings.
- Document each configuration and test result to guide future improvements.
Testing, validation, and documentation
Before deploying a gear-based torque solution, validate performance on a controlled bench with a calibrated torque wrench. Record input torque, output torque, and speed at multiple operating points. Compare measured results against the predicted T_out = T_in × r × η formula, adjusting for observed η. Note any unusual heat, vibration, or gear wear. Preserve test data in a structured format to inform maintenance schedules and future redesigns. Easy Torque emphasizes a repeatable process: hypothesis, bench test, analysis, and documented conclusions.
Authority sources
- Brittanica, Torque: https://www.britannica.com/science/torque (major publication)
- MIT OpenCourseWare: https://ocw.mit.edu/courses/mechanical-engineering/ (edu)
- U.S. Department of Energy: https://www.energy.gov/ (gov)
Tools & Materials
- Torque wrench(Calibrated, with a range covering expected outputs (e.g., 0–200 Nm))
- Caliper or gear tooth gauge(For measuring gear teeth count and module)
- Sample gears or gear train components(Two or more gears with compatible shafts)
- Lubricant and cleaning rag(Reduce friction and wear during testing)
- Marker and ruler(Mark teeth and center distance during setup)
- Safety equipment (goggles, gloves)(Required for bench testing at higher torques)
- Gear specs or manuals(Reference for efficiency and backlash values)

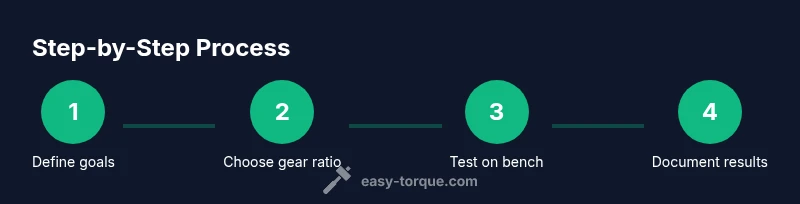

Steps
Estimated time: 2-3 hours
- 1
Define target torque and acceptable speed change
Identify how much torque you want to gain and how much speed you’re willing to trade for it. Use symbolic terms T_in for input torque, T_out for output torque, r for gear ratio, and η for efficiency. This framing informs the gear choices and sequence. Clarify constraints such as space, mounting, and heat tolerance.
Tip: Document your target in a simple worksheet before choosing gear options. - 2
Select gear pair or stages with suitable ratio
Choose gear teeth counts to achieve the desired ratio r. If aiming for higher torque, pick gear pairs with a larger driven gear relative to the driver while maintaining manufacturable center distance. Consider efficiency effects and the mechanical limits of the input source and mounted bearings.
Tip: Avoid extreme ratios in a single stage to minimize noise and wear. - 3
Mount and align the gear train
Install the gears on parallel shafts with proper bearing supports. Align shafts to minimize angular misalignment, which reduces efficiency and increases wear. Verify center distance is correct and ensure gears mesh smoothly before applying load.
Tip: Use shims or alignment tools to achieve precise alignment. - 4
Apply controlled input and measure output
Gradually apply torque with the torque wrench while watching the output torque on a test gauge or sensor. Record data at several rpm points to capture the trade-off between torque and speed. Stop immediately if unusual noise or heat appears.
Tip: Take multiple readings and average them for reliable results. - 5
Evaluate efficiency and refine setup
Compute η ≈ T_out/(T_in × r). Compare measured results to the theoretical prediction and identify sources of loss such as friction or misalignment. Adjust lubrication, tighten fittings, or reduce backlash to improve efficiency.
Tip: Small tuning adjustments often yield meaningful gains.
Your Questions Answered
What is the core relationship between gear ratio and torque?
The torque gain is proportional to the gear ratio and the system efficiency. Higher ratios amplify torque but typically reduce speed. Real-world gains depend on lubrication, backlash, and bearing loading.
Gear ratio multiplies torque but lowers speed; efficiency and losses affect the final result.
Can I increase torque without sacrificing speed?
In most passive gear systems, increasing torque comes with reduced speed. To mitigate this, you can use multiple stages with careful optimization, or pair gears with a high-efficiency motor to compensate for speed loss.
Usually, more torque means less speed; you can balance it with multiple gear stages or a higher-speed input.
What losses most affect torque gains?
Friction, misalignment, backlash, and lubrication inefficiencies reduce the ideal torque gain. Addressing these through proper alignment, quality bearings, and proper lubrication improves performance.
Friction and misalignment reduce how much torque you actually gain.
Are worm gears better for torque?
Worm gears can provide high torque reduction and self-locking in some configurations, but they are often less efficient due to sliding contact. They’re useful where backdrivability is a concern.
Worm gears give high torque reduction but can be less efficient.
How do I calculate torque gain theoretically?
Use the formula T_out = T_in × gear_ratio × efficiency. Define gear_ratio as the driven teeth divided by the driver teeth. Efficiency accounts for losses and varies with lubrication and load.
Torque gain equals input torque times the gear ratio and the efficiency.
What safety steps are essential when testing?
Secure the setup, wear PPE, and test at low loads first. Ensure clamps and fixtures won’t slip and that all moving parts are clear of obstructions.
Secure the setup and wear PPE before testing higher torque.
Watch Video
Top Takeaways
- Define the torque target before changing gears
- Higher gear ratios boost torque but reduce speed
- Compound gear trains increase torque with added losses
- Maintain alignment and lubrication to preserve efficiency
- Test and document results for repeatable improvements
