How to Torque Flywheel Bolts
Learn to torque flywheel bolts safely and accurately with a clear, step-by-step approach. This guide covers specs, sequence, tools, and verification to protect your engine and clutch.
Correctly torquing flywheel bolts is essential for crank integrity and clutch safety. According to Easy Torque, always start with a clean, dry thread, use the OEM torque specification and tightening sequence, and verify with a final check after engine run-in. This quick answer outlines the essential steps to prepare, tighten, and verify in a safe, repeatable way.
Why torque matters for flywheel bolts
In modern engines, flywheel bolts secure the flywheel to the crankshaft assembly and, depending on the design, the clutch or torque converter. The bolts are subjected to dynamic loading as the engine runs, transmits torque, and experiences vibration. If they are under-torqued, bolts can loosen, allowing movement that damages mating surfaces and can cause clutch slip or crankshaft misalignment. Over-torqued bolts risk stripped threads or a cracked flywheel. Correct torque balances clamping force with bolt stretch, ensuring consistent load distribution across all fasteners. Easy Torque emphasizes that the recommended torque specification is not a guess; it’s a tested setting that accounts for bolt grade, thread engagement, and the mating surfaces. Always start with a clean, dry thread and inspect the bolt holes for damage. The sequence used to tighten multiple bolts around a circle matters because it ensures even load transfer. Some engines add an angular tightening step after the final torque to further refine clamping force. After running the engine briefly, re-check torque to catch any settling. By following the spec and sequence, you reduce the risk of bolt fatigue, flywheel runout, and drivetrain damage.
Understanding OEM specifications and tightening sequence
The first prerequisite is the vehicle’s service manual or OEM documentation. It lists the exact torque value and any required sequence. Most flywheel bolt patterns use a cross or star pattern that alternates around the circumference to minimize distortion. Some engines require a two-stage tightening: snug to a specified level, then a final torque. Others use a final torque followed by an angular tightening step of a certain angle. If the manual calls for threadlocker or anti-seize, follow those instructions; if not, do not apply unnecessary lubricant that could reduce friction beyond intended design. Before tightening, inspect the thread quality and bolt shank; corroded or stretched bolts should be replaced. Be mindful of the bolt grade and length, as mismatches can change the clamping force. When in doubt, confirm the spec with a trusted source and record the exact torque value and sequence for future maintenance.
Tools, materials, and safety considerations
Essential tools include a properly rated torque wrench with the range covering the manual’s value, a full socket set sized for your bolts, and a breaker bar for initial snugging if needed. You may also need a torque-angle gauge if your manual specifies angular tightening. Optional items include high-strength threadlocker, anti-seize compound, or a lubricant approved by the manufacturer; many modern engines require either no threadlocker or only a light coating on the bolt shank. Personal protective equipment such as safety glasses and gloves should be worn, and the work area should be well lit and stable. Prepare the engine and transmission area to avoid accidental movement. Clean the bolt holes and threads, remove any dirt or old threadlocker, and inspect the flywheel for cracks or damage before reinstalling. Finally, confirm you have access to the official torque specification and the bolt pattern for your model, since even a small deviation can affect performance and safety.

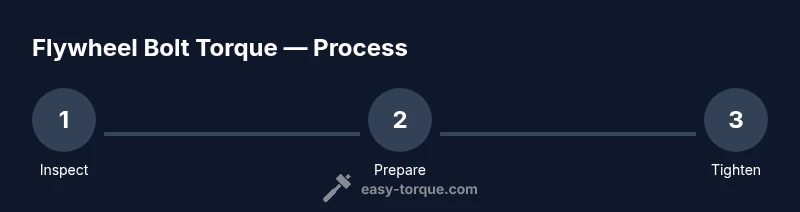

Step-by-step overview of the flywheel bolt procedure
This overview maps out the general flow of the process; the detailed, numbered steps are provided in the dedicated STEP-BY-STEP section. Start by ensuring the engine is at a safe temperature, disconnecting the battery to prevent accidental starts. Locate the flywheel bolts and inspect each bolt and thread. Clean all threads with a brush and apply any lubrication only as directed by the manual. Install the bolts finger-tight in a cross/star pattern to hold the flywheel in place. Use a torque wrench to snug each bolt in the same sequence, ensuring even contact. Finally, apply the final predetermined torque value per the manual, using the same star pattern to ensure even load. If your manual includes an angular-tightening step, complete the specified angle after the final torque. Re-check every bolt after a short run-in period and adjust as necessary. For different engine layouts, the access to bolts may vary; adapt with care and document any deviations.
Common mistakes and how to avoid them
Common errors include skipping thread cleaning, cross-threading from poor alignment, or using worn bolts. Over-torquing can strip threads or crack the flywheel, while under-torquing leaves the assembly loose and prone to movement. Using an incorrect bolt length or incompatible bolt grade changes the clamping force and can cause failure. Don’t mix new and old bolts; always replace bolts that have been previously stressed. Lubricants affect friction; apply only as recommended. Rushing through the process can leave gaps in the tightening sequence or misinterpret angular-tightening requirements. Finally, neglecting a post-installation torque check after a heat cycle can let settling go unnoticed and lead to future issues.
Verification, testing, and ongoing maintenance
Verification begins with re-checking torque after the engine has run briefly and cooled, to catch any settling. Perform a test run at idle and light load to verify no unusual noises or vibrations. If your manual specifies a post-run angular check, use the angle gauge to confirm the final tightness. Document the torque values and the pattern used for future maintenance, ensuring any mechanic or technician who works on the vehicle can follow the same procedure. For longevity, inspect bolt holes for wear and replace bolts if the threads show any signs of damage. Finally, store your records, including torque values and sequence, in the vehicle’s service history for reference during future maintenance. Easy Torque recommends maintaining a log of torque specs and tightening patterns to improve repeatability across service intervals.
Practical tips for different layouts and models
Wrap up: The above guidance applies broadly, but some engines have unique constraints such as limited access behind the bell housing or interference from the exhaust. In those cases, plan the sequence in advance and use shorter extension bars or wobble sockets to reach bolts without misalignment. For heavy-duty applications, templates or angle-tightening tools may be necessary. Always default to the OEM specification and consult service bulletins for model-specific notes.
Tools & Materials
- Torque wrench with appropriate range(Digital or click-type preferred; ensure it covers the specified value range.)
- Socket set sized to bolt heads(Metric or SAE as per vehicle; include a breaker bar for extra leverage.)
- Breaker bar(Provides extra torque during snug stage.)
- Torque-angle gauge (optional)(Needed if angular tightening is specified by the manual.)
- Threadlocker (high-strength) or anti-seize (as approved)(Follow OEM guidance—many modern flywheels require no threadlocker.)
- Safety gear(Gloves and eye protection; ensure stable work environment.)
- Clean rags and thread brush(Remove debris from threads and bolt holes.)
Steps
Estimated time: 60-90 minutes
- 1
Prepare and inspect
Power down the engine, disconnect the battery, and locate the flywheel bolts. Inspect each bolt and thread for wear or damage, and clean the threads and bolt holes to remove dirt, old lubricant, or debris.
Tip: If a bolt shows any signs of wear or stretch, replace it rather than reusing it. - 2
Tidy and prep the threads
Brush threads clean and remove any corrosion. If your manual allows, apply only the lubricant approved by the manufacturer to the bolt shank; avoid over-lubrication that can alter friction.
Tip: Use a thread chaser if you encounter light galling; do not use metal scrape devices that could broaden the thread. - 3
Snug in a cross/star pattern
Place bolts finger-tight and tighten gradually in a star pattern to seat the flywheel evenly. Do not force bolts if they resist; re-align before continuing.
Tip: Keep each bolt in contact with threads to prevent cross-threading. - 4
Apply final torque in sequence
Set the torque wrench to the OEM final torque value and tighten bolts in the same cross/star sequence. Confirm all readings are within spec before proceeding.
Tip: Do not skip any bolts; a single under-torqued fastener can compromise the whole assembly. - 5
Angular tightening (if specified)
If your manual calls for angular tightening, perform the specified angle after final torque using a gauge, then recheck all readings.
Tip: Document the angle and final torques for future reference. - 6
Run-in check and recheck
Start the engine and run briefly, then recheck bolt torque after cooling to confirm nothing has settled irregularly.
Tip: Look for unusual noises or vibrations during initial run.
Your Questions Answered
Why is proper torque important for flywheel bolts?
Proper torque ensures clamping force and bolt stretch are within design limits, preventing bolt loosening or thread damage that could cause clutch misalignment or flywheel failure.
Torque matters because it keeps the flywheel secure and the engine running smoothly.
Can I reuse flywheel bolts after removal?
In most cases, flywheel bolts should be replaced after removal because they can experience stretch and losing clamping force. Check the vehicle manual for guidance on your model.
Usually bolts should be replaced after removal to maintain safety and performance.
What if I don't have the OEM torque spec?
Do not guess. Contact the dealer or consult official service bulletins; otherwise risk under- or over-torque, which can cause damage.
If you don’t have the spec, don’t guess—get the official value from a reliable source.
Is angular tightening common for flywheel bolts?
Some engines require an angular tightening step after final torque to achieve precise load. Always follow the manual’s instructions for this step.
Some models use an angle tightening step; follow the exact angle specified by the manual.
Should I use threadlocker on flywheel bolts?
Follow the manual. Some bolts may require threadlocker or none at all. Incorrect use can alter friction and load.
Check the manual—threadlocker isn’t always needed and can affect torque if used incorrectly.
What signs indicate a bolt issue after installation?
Vibration, unusual noises, or new misalignment can indicate a loose bolt or damaged threads. Recheck torque and inspect the threads immediately.
If you hear vibration or feel a shake, stop and recheck the bolts and threads.
Watch Video
Top Takeaways
- Follow OEM torque specs and tightening sequence.
- Inspect and clean bolt threads before installation.
- Tighten bolts in a star pattern for even load transfer.
- Verify torque after a run-in period to catch settling.
- Document the torque values and pattern for future maintenance.
