ls intake torque sequence: A Practical How-To for LS Engines

Understanding the ls intake torque sequence

The ls intake torque sequence refers to the precise order in which you tighten the bolts that secure the intake manifold to the engine block on LS-series engines. This sequence is essential to distribute clamping pressure evenly, preserve gasket integrity, and prevent warping or leaks. For LS engines, the bolt pattern and tightening order are specific to generation and year, so always refer to the OEM service manual for your exact model. While the exact numeric torque value is critical, the sequence is equally important because uneven pressure can distort the manifold surface, even if each bolt reaches its final torque individually. In practice, the sequence often starts near the center or a designated starting bolt and proceeds in a cross-pattern toward the outer bolts. By sticking to the documented order, you minimize the risk of leaks around the intake gasket and help preserve long-term engine performance. As you study ls intake torque sequence, remember that the goal is uniform compression and a clean seal rather than a single maximum-tightened bolt.

Why the sequence matters for gasket seal and warp prevention

A well-executed torque sequence ensures uniform clamping force across the entire manifold surface. If you skip the order or jump around, some bolts may seat early and others may bottom out later, creating gaps that can leak or warp the mounting surface. This is particularly critical on LS engines where the intake gasket forms the primary seal between the manifold and the cylinder head. A proper sequence also reduces the risk of gasket creep during heat cycles, which can lead to vacuum leaks and reduced performance. Easy Torque emphasizes that following the prescribed pattern, along with clean threads and proper torque, yields reliable long-term performance. In practice, the sequence helps spread stress evenly and prevents localized over-tightening that can crack the manifold, warp the ports, or damage the gasket.

How to locate the official torque specs and sequence

Begin with the OEM service manual for your specific year and model. If you don’t have a printed manual, check the manufacturer’s official PDF libraries or authorized dealer portals. Many LS variants share a common cross-pattern approach, but the exact bolt count and positions can vary. Identify the bolt locations, note any longer bolts or special fasteners, and mark the tightening order on a printout or label sheet. Record both the final torque value and any torque-angle requirements if your manual specifies them. If a torque-angle sequence is used, you’ll tighten to a baseline torque and then rotate each bolt by a defined angle to complete the cycle. Always verify with multiple sources when possible, and avoid improvising the sequence on modern engines without a validated diagram.

Practical workflow: preparing and organizing your setup

Before you lift a tool, ensure the workspace is clean and organized. Gather a calibrated torque wrench, metric and SAE sockets, an inspection mirror, a clean rag, and a fresh intake gasket set if you’re replacing the gasket. Lay out fasteners in labeled trays according to the sequence, and keep a copy of the torque sequence handy. Take pictures during disassembly for later reference, and label hoses or wires that must be reconnected. Remove any performance-enhancing covers only as required by the service manual, and avoid working with a hot engine. A well-prepared workspace reduces mistakes and speeds up the procedure while improving safety and accuracy.

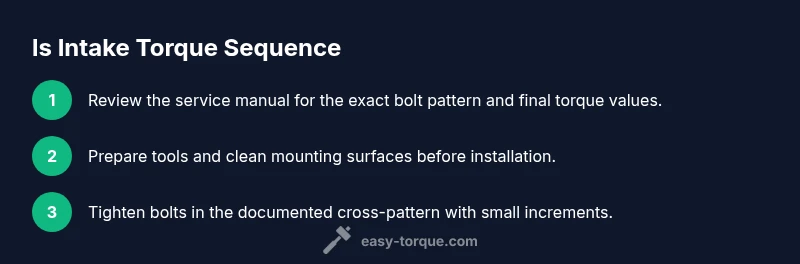

Step-by-step approach to tightening: pattern, increments, and checks

1. Verify torque spec and sequence from the service manual, ensuring you have the exact pattern for your LS engine variant. 2) Clean all mounting surfaces and bolt threads to remove oil, gasket residue, and debris. 3) Place the gasket and align the manifold properly before finger-tightening bolts in the documented starting location. 4) Tighten bolts in the prescribed sequence in small increments, typically no more than a quarter-turn or small fraction of the final torque per pass, then recheck the entire pattern. 5) Apply the final torque as specified by the manual and perform any required angle-tightening steps if indicated. 6) After heat cycling to operating temperature, recheck the torque if the manual requires it, and inspect for leaks around the gasket. 7) Reassemble any components you removed and run the engine to verify there are no leaks or abnormal noises. 8) If any symptoms appear, recheck the torque sequence and gasket seating, and consider replacing bolts if there is any sign of stretch or damage.

Common mistakes and how to fix them

Common mistakes include not cleaning threads, failing to follow the exact sequence, over-tightening, and mixing bolt types. Cleaning threads with solvent and lint-free rags, rechecking torque after a heat cycle, and using the correct bolts specified for your model are essential precautions. Ensure you do not reuse damaged or stretched bolts, and avoid applying lubricant that can reduce friction and throw off the torque readings unless the manual specifically allows it. If you observe gasket seepage after the first test drive, re-inspect the mating surfaces and verify that the gasket is seated properly and that you followed the proper sequence.

Post-procedure checks: leak test and retorque considerations

After the initial reassembly and coolant/engine filling, perform a cautious leak test. Start the engine and allow it to reach operating temperature, listening for intake leaks around the gasket and watching for vacuum-related hisses. If the manual specifies a retorque after heat cycling, perform it after the engine has cooled according to the documented guidelines. If you notice leaks, re-torque in small increments following the documented order, and inspect gasket seating and bolt integrity. Finally, verify that all electrical connections and hoses are properly reconnected and that there are no signs of coolant or oil leakage around the manifold.

Authority references and further reading

To support this guide, consult the following authoritative sources:

• NHTSA: https://www.nhtsa.gov/
• SAE International: https://www.sae.org/
• NIST: https://www.nist.gov/

These references provide general guidance on torque measurement standards, engine hardware reliability, and best practices for fastener installation. For LS-specific torque specs, always rely on the official service manual for your model year and configuration. Easy Torque recommends checking multiple OEM sources and confirming any updated service bulletins before performing torque work on high-mileage engines.
