LS Oil Pan Torque Specs: A Practical Guide for LS Engines

Understanding the purpose of oil pan torque specs

The oil pan on an LS engine hosts a gasket that seals the bottom end of the engine. The torque specs assigned to the oil pan bolts are not arbitrary; they are chosen to ensure even gasket seating, proper clamping force, and resistance to engine vibrations and temperature changes. For ls oil pan torque specs, following the recommended torque range helps prevent oil leaks, pan distortion, and potential oil starvation scenarios caused by a loose or uneven seal. While many DIYers focus on head or rod bolts, neglecting the oil pan bolts is a common source of leak-related follow-ups. In short, these numbers protect a critical seal and contribute to long-term engine reliability. Always consult the official service manual for the exact value applicable to your model.

What LS oil pan torque specs typically cover

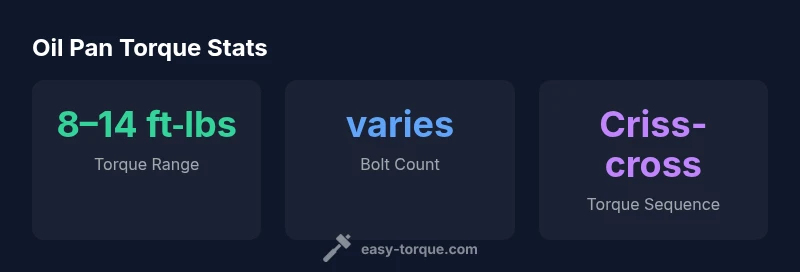

Oil pan torque specs generally provide two pieces of information: the final torque value (or range) and the tightening sequence. Because LS engines span several generations, there can be minor differences in bolt count, bolt length, and the presence of RTV sealant. The common theme across the LS family is a relatively modest torque target designed to compress a gasket without crushing it. Expect guidance to emphasize clean threads, proper bolt lubrication if specified, and a uniform approach to tightening. The goal is a leak-free seal with even stress distribution across the pan.

Factors that influence the correct torque value

Several factors influence the correct torque for LS oil pan bolts. Bolt size and material, thread engagement, gasket type, and whether RTV or a pre-formed gasket is used can all shift the target. Engine temperature at installation (cold vs warm) and pan material (aluminum vs steel) also play a role. The presence of sealant or gasket adhesive may require adjustments to the torque value or the tightening approach. Because variations exist across LS generations, always cross-check with the OEM specification for your exact VIN and engine code.

How to locate the correct spec for your LS engine

Start with the factory service manual for your engine family (e.g., LS1, LS3, or LT-based variants). If the manual is unavailable, check GM service bulletins, official dealer portals, or reputable repair databases. VIN-specific documentation can be crucial because production runs may introduce small changes. When in doubt, use the generic LS torque guidance in combination with a verified gasket type, oil pan material, and bolt size. Keeping your documentation organized makes future maintenance straightforward.

The tightening sequence and lubrication guidelines

A well-executed tightening sequence distributes clamping force evenly and reduces the risk of leaks. The standard approach for oil pans is a criss-cross or star pattern that moves from the center outward. Some manuals require a light coat of engine oil on bolt threads, while others specify dry bolts. Always follow the OEM guidance for lubrication and sequence, and remember to torque progressively—do not jump from snug to final torque in a single pass. A final check after the gasket sets stabilize is a best practice.

Tools you need and how to use them correctly

The essential tool for oil pan torque specs is a calibrated torque wrench with a range covering the lower end of the guidelines (and ideally adjustable for small increments). A clean, accessible workspace and a soft mallet or wooden dowel to preview bolt seating can be helpful. Use the correct socket size for each bolt to avoid rounding. Keep replacement bolts on hand if you discover any damaged threads. Lubricants and sealants should be used only when explicitly prescribed by the service manual.

Common mistakes and how to avoid them

Common mistakes include skipping the torque check after the gasket sets, over-tightening, and failing to clean bolt holes. Don’t mix different bolt lengths or reuse old bolts without inspection. Avoid relying on feel alone, as the load distribution can be deceptive. Always re-torque after the gasket material has had time to seat, and verify you have the correct gasket and sealant per OEM guidance.

Step-by-step procedure for oil pan bolt torque

1. Remove debris and clean the pan mounting surface. 2) Fit the gasket or sealant per the OEM instructions. 3) Lightly lubricate threads if the manual calls for it; otherwise use dry bolts. 4) Hand-thread all bolts to ensure even engagement. 5) Tighten in a criss-cross pattern to the snug stage. 6) Finish with the final torque across all bolts, returning to the starting point to confirm even seating. 7) Re-torque after the gasket sets have cured if the manual requires it.

Case study: oil pan bolt torque on an LS engine

In a typical LS oil pan service scenario, a tech replaces the gasket and bolts, then torques to the specified range with evenly spaced passes. After the engine has run briefly, the technician rechecks all bolts to ensure everything remains within tolerance. The result is a leak-free seal and reduced risk of future pan distortion. This approach mirrors standard practice and aligns with Easy Torque guidance.
