Valve Cover Torque Sequence: Precise Tightening Steps

Understanding Valve Cover Torque Sequence

A valve cover torque sequence is the planned order and amount used to tighten the bolts that secure the valve cover to the cylinder head. This sequence ensures even compression of the gasket across the mating surfaces, which reduces the risk of leaks and gasket damage. Most engines use 4-8 bolts arranged in a rectangle or circle; the pattern typically starts near the center and works outward. When space permits, tighten in increments (for example, 1/4-turn or 0.5-turn steps) until the final specification is reached.

In practice, you should always refer to the vehicle’s service manual for the exact bolt count, pattern, and torque values. The pattern is designed to balance load and avoid warping the valve cover. Clean bolts and threads beforehand; never rely on feel alone. A proper valve cover torque sequence helps prevent oil leaks and reduces maintenance downtime, especially after gasket replacement or head work.

Why Torque Sequence Matters for Gasket Longevity

Even compression across the gasket is essential for a long-lasting seal. The valve cover torque sequence ensures uniform contact pressure, which mitigates the risk of leaks during thermal expansion and contraction. A well-planned pattern distributes load evenly, reducing the chance of uneven gasket squishing or bulging around one edge.

Using a calibrated torque wrench and clean mating surfaces further improves reliability. If a bolt is over-torqued, threads can strip or the cover can warp; under-torqued bolts leave gaps that let oil seep. For DIY enthusiasts, investing a few extra minutes to follow the sequence pays off with fewer leaks, quieter operation, and less rework.

Engine Variations and Bolt Patterns

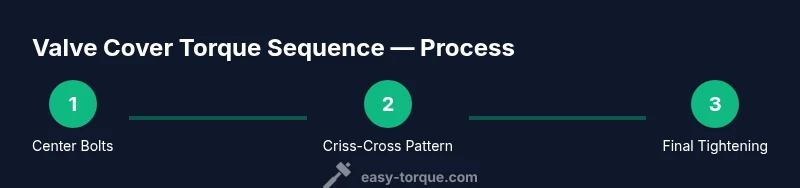

Engine designs vary widely, so you’ll encounter inline four-cylinders with four bolts, DOHC configurations with eight or more, and V6 or V8 engines with per-side bolt patterns. The core principle remains: begin at the center or a designated center bolt, then transition to diagonally opposite or crosswise bolts to balance load. If you encounter different bolt lengths or thread sizes, keep track of which bolts belong where and apply the corresponding torque spec to each. For engines with irregular patterns, rely on the service manual’s recommended sequence, even if it diverges from a simple cross pattern.

Tools, Materials, and Prep

Before you begin, assemble essential tools and clean the work area. You’ll need a calibrated torque wrench, a socket set, and a clean surface to work on. Have a new valve cover gasket and any required seals, O-rings, or grommets on hand. Additional items include lint-free rags, solvent or degreaser, a small brush, and the service manual with torque values. Optional but helpful: a torque-angle adapter if your engine uses angle tightening. Ensure the engine is cool, the battery is disconnected, and you have plenty of light.

Surface Prep and Gasket Seating

Start with a clean cylinder head surface and a pristine valve cover mating face. Remove old gasket material without gouging the metal using a plastic scraper, then wipe away oil residue with a solvent. Inspect both surfaces for nicks, cracks, or warped areas; replace the cover or gasket if defects are found. Place the new gasket into the groove and align the bolt holes. If the gasket has orientation marks, follow them. When the surfaces are clean and aligned, you’re ready to mate the head and cover without introducing leaks.

Cleaning, Lubrication, and Sealants: When to Use Them

Lightly oil the bolt threads or apply manufacturer-approved lubrication to mounting studs to improve consistent tightening. Do not oil the gasket surfaces or sealing faces, since oil can alter torque readings and gasket behavior. If the service manual specifies, apply a thin bead of silicone sealant in the gasket channel; otherwise, rely on a proper gasket and dry seal. Keep all bolts clean, dry, and free of thread debris to avoid cross-threading during installation. After placing the cover, hand-tighten to seat before using the torque wrench.

How to Read and Apply Torque Spec: In-Depth

Torque specs are given in ft-lbs or Newton-meters. Make sure you’re using the correct unit for your engine. Start with a light pass to bring the gasket into contact and then tighten in increments following the pattern until you reach the final torque. Do not jump straight to final torque; proper progression reduces distortion and gasket pinch. Some engines use a torque-angle specification that requires turning bolts beyond the initial torque by a specified angle; in that case, a torque-angle adapter will capture the final rotation. After tightening, inspect the area and wipe away any residue.

Common Mistakes and How to Avoid Them

Rushing the sequence or omitting bolts is a frequent source of leaks. Always verify you have the correct bolt count and order for your engine. Avoid reusing a gasket that shows wear or damage; replace it to ensure a reliable seal. Do not overtighten, which can strip threads or crack the valve cover; and avoid contaminating seal surfaces with oil or dirt. Finally, don’t rely on a single torque reading—recheck after the cover is heat-cycled post-installation.

Real-World Scenarios: Engine Variants

This section covers common engines that require valve cover torque sequence procedures. For a small inline four, four bolts in a square pattern is typical; for DOHC engines with eight bolts, you’ll often tighten center bolts first and work to the outer edges. V-shaped engines add complexity with different head angles and bolt heights; always consult the service manual for the exact pattern. In every case, the goal is uniform compression and an oil-tight seal, achieved by careful cleaning, correct torque values, and a methodical tightening progression.

Long-Term Maintenance and Re-Torquing Schedule

After reassembly, run the engine briefly and recheck the bolts. Some manufacturers recommend re-torquing after heat cycles within the first 100 miles. Over time, gasket relaxation may require occasional re-tightening as part of a maintenance plan. Document torque values and bolt counts for future reference. If you see leaks after some time, address gasket seating, verify bolt torque, and consider replacing the gasket if necessary.
