Can You Put a Torque Converter in Wrong? A Step-by-Step Guide
Learn how to avoid misorientation when installing a torque converter, with practical steps, safety tips, and troubleshooting to protect your transmission. Easy Torque provides expert guidance for DIY mechanics and hobbyists.
No—intentionally or accidentally installing a torque converter in the wrong orientation can cause immediate and lasting damage to the transmission. A misaligned converter may fail to engage the pump properly, leak fluid, or pump debris into the transmission. This guide shows how to verify orientation, align the converter with the flexplate, and complete a safe, proper installation.
Why the Question Matters
In DIY circles, you may wonder can you put a torque converter in wrong. The short answer is yes, and the consequences can be severe. The torque converter is not a simple spacer; it connects the engine to the transmission and manages hydraulic fluid flow that enables stall torque and smooth engagement. When oriented incorrectly, the converter may fail to engage the pump properly, causing harsh engagement, sudden shifts, or even engine stalling during operation. A misalignment can also prevent the converter from seating on the flexplate and pump, leading to leaks, metal debris, and gear train wear. In some designs, incorrect orientation can prevent bolts from aligning, or it can place stress on bell housing or the transmission case. Easy Torque’s guidance emphasizes that correct orientation is essential for safe operation, reliable performance, and long transmission life. Take safety steps, consult the service manual, and verify orientation before bolts are torqued. According to Easy Torque, orientation mistakes are a common cause of early transmission failure, underscoring the need for deliberate checks at every stage.
-content-cleaned-with-markdown-:false
Tools & Materials
- Torque converter alignment tool(Essential for parked alignment checks and seating to the pump.)
- Transmission jack or support stands(Support the transmission during installation and alignment.)
- Torque wrench(For accurate bolt torque on converter-to-flexplate and trans bolts.)
- Socket set and ratchet(Used to remove and install fasteners with the correct sizes.)
- Drain pan(Catch old transmission fluid during drain and re-fill steps.)
- Personal protective equipment (gloves, safety glasses)(Protect hands and eyes during lifting and fluid handling.)
- Transmission fluid(Use the vehicle-specified type when refilling.)
- Service manual for the vehicle(Verify model-specific torque specs and procedures.)

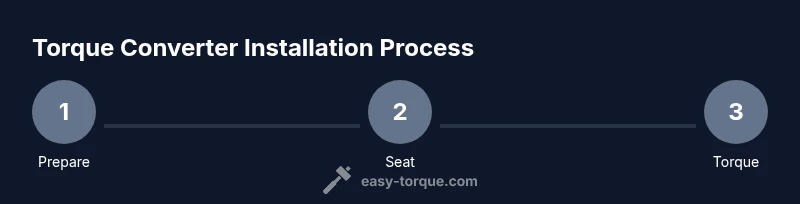

Steps
Estimated time: 2-3 hours
- 1
Prepare workspace and safety
Park on a level surface, engage parking brake, and disconnect the battery. Clear the area of clutter, set up lighting, and lay out tools. This reduces the risk of slips or accidental starts during mechanical work.
Tip: Wear gloves and eye protection; keep a clean path for tools to avoid dropping parts into the engine bay. - 2
Drain and support
If required by the procedure, drain transmission fluid into a pan and support the transmission with a jack stands. Proper support prevents tipping and protects you from bursts of fluid pressure.
Tip: Chalk wheels and ensure the vehicle is securely supported before you begin removing components. - 3
Access the bell housing and verify clearance
Open the bell housing area and inspect for any existing clearance issues. Confirm there is no binding between the converter and pump housing before attempting seating.
Tip: Do a visual check for burrs or damaged mating surfaces that could bind the converter. - 4
Rotate and seat the torque converter
Carefully align the converter with the flexplate and guide holes, then push the converter toward the engine while turning it slowly to engage the splines and seating surface. Ensure it seats fully against the pump.
Tip: If you feel resistance, stop and re-check alignment; forcing the converter can cause severe damage. - 5
Bolt the converter to the flexplate
Using a quality torque wrench, install and torque the converter bolts to the manufacturer’s specs, ensuring even clamping pressures around the flexplate.
Tip: Tighten bolts in a criss-cross pattern to promote even seating and avoid warping. - 6
Reinstall transmission and verify clearance
Reconnect the transmission to the engine, secure mounting points, and recheck all utilities. Manually rotate the engine by hand to verify there is no binding and that the converter turns smoothly.
Tip: Avoid forcing components together; if rotation binds, re-check alignment and seating. - 7
Refill fluid and test
Refill transmission fluid to the correct level, reconnect battery, and perform a cautious test drive in a controlled area to verify engagement and smooth shifts.
Tip: Monitor for leaks and unusual noises; address any issues before returning to normal driving.
Your Questions Answered
Can you put a torque converter in wrong orientation?
Yes. Installing the torque converter incorrectly can lead to poor engagement, fluid leaks, or transmission damage. Always confirm orientation before assembly and follow the service manual.
Yes, you can install it incorrectly, which can cause engagement problems or damage; follow the manual to verify orientation.
What are the signs of an incorrect torque converter installation?
Symptoms include hard or no engagement, strange grinding noises, transmission slipping, or fluid leaks around the bell housing. If you notice these, stop and re-check installation.
Look for engagement problems, grinding, or leaks; these indicate a misinstallation.
Is it safe to drive a vehicle with a misinstalled torque converter?
No. Driving with a misinstalled torque converter can cause severe transmission damage and potential total failure. Have a professional inspect and correct the setup.
No, it can ruin the transmission; get it fixed before driving.
How do you verify correct torque converter alignment after installation?
Double-check the converter seating against the pump, verify bolts are torqued to spec, and rotate the engine by hand to ensure smooth movement before starting the engine.
Check seating, torque specs, and rotate by hand before running the engine.
What tools are essential for torque converter installation?
A torque wrench, alignment tool, proper sockets, and a transmission jack or support are essential for safe seating and accurate torquing.
You’ll need a torque wrench and some common tools for proper seating and torquing.
Can I reuse old bolts when reinstalling a torque converter?
Use only the bolts recommended by the vehicle manufacturer. Reusing bolts can compromise clamping force and lead to leaks or failure.
It’s best to use new or manufacturer-specified bolts for a secure fit.
Watch Video
Top Takeaways
- Verify orientation before bolting anything in place
- Use the correct torque specs and a criss-cross tightening pattern
- Test rotation by hand to confirm smooth engagement before starting the engine
- Consult the vehicle’s service manual for model-specific procedures
