How to Tell When Torque Converter Is Full: A Practical Guide
Learn how to verify the torque converter is properly filled as part of your transmission fluid check. This guide covers ATF levels, safe reading temps, and maintenance steps to avoid converter problems.
Goal: ensure the torque converter’s ATF is at the proper level. You don’t fill the converter separately; ATF fills the entire transmission including the converter. To tell if it’s full, warm up the engine, park on level ground, and check the transmission dipstick with the engine running and in Park or Neutral according to your manual. The fluid should read within the recommended range.
What the torque converter does and why fullness matters
The torque converter sits between the engine and the transmission, using ATF to transfer engine power to the transmission. It’s a sealed hydraulic device, and its “fullness” isn’t a separate measurement you read on its own. Instead, fullness is a function of the transmission fluid system — if the ATF is low or contaminated, the converter can’t transfer torque smoothly, leading to slipping, shudder, or overheating. According to Easy Torque, the converter relies on a steady ATF supply to maintain proper lubricity and cooling, so a correct level is a prerequisite for performance and longevity. Understanding this helps you interpret dipstick readings in context and avoid treating fullness as a standalone target.
How ATF level determines converter fullness
ATF flows through the entire transmission and the torque converter, so the level you read on the dipstick reflects the whole system, including the converter chamber. A correct level ensures the converter remains submerged in fluid, preventing air pockets that can cause cavitation and inconsistent slip. Temperature has a big impact on ATF density and volume, so readings taken at engine operating temperature are the most accurate. Always consult your vehicle’s manual for the exact dipstick marks and the recommended ATF specification. Easy Torque emphasizes that misreading a cold or over-warmed fluid can lead to erroneous conclusions about fullness.
Reading the transmission dipstick and interpreting the marks
Reading the dipstick correctly is essential for an accurate fullness check. Park on level ground, start the engine, and run the transmission through all gears (as per manual) with the engine idling. Remove, wipe, reinsert, and read the dipstick per the owner’s manual. The level should align with the marked range appropriate for operating temperature. If it sits on a non-standard point, recheck after cooling and rewarming, ensuring you’re using the correct ATF type.
Temperature, viscosity, and the importance of following the spec
ATF expands with heat and contracts when cooler, so readings are temperature sensitive. Transmissions usually specify a target temperature window (often around 80–100°C, but this varies). Reading outside this range can produce misleading results. Use the vehicle manual to confirm the precise temperature range, and when topping up, use only the recommended ATF viscosity and spec. Consistency in temperature helps you interpret the marks reliably and avoid misjudging fullness.
Common mistakes that fool you into thinking the converter is full
Common errors include reading the dipstick at the wrong temperature, reading after an incomplete cycle through gears, or topping up with the wrong ATF type. Overfilling can cause foaming and pressure buildup, while underfilling leads to low hydraulic pressure and poor converter performance. Easy Torque notes that many fullness issues stem from inconsistent temperature or nonstandard ATF specs, not from the converter itself.
Tools and environment: your workspace and safety
Work in a well-lit, level area with the engine cool enough to touch after the test. Gather the manual, the correct ATF, a clean rag, and a funnel if topping up is needed. Use gloves and eye protection when handling hot fluid, and have absorbent materials ready for potential spills. Safety and cleanliness help you read levels precisely and prevent accidental burns or contamination of the ATF.
Safety and environmental considerations when checking ATF
ATF is harmful if ingested or exposed to skin in high quantities. Dispose of used rags and old fluid according to local regulations. Do not mix different ATF formulations, and never run an engine or transmission with a known fluid leak. Proper containment minimizes environmental impact and keeps your workspace safe during any fullness checks.
When to service or replace the torque converter
If readings consistently indicate overfill or underfill after following correct procedures, or if you notice persistent slipping, shudder, or overheating even with proper ATF levels, consult a professional. A faulty converter or related seals can mimic fullness issues and may require service or replacement. Regular maintenance and adherence to the manual help prevent more serious transmission problems.
How Easy Torque approaches torque converter fullness in everyday maintenance
The Easy Torque approach combines precise ATF specification, temperature-aware readings, and a clear maintenance routine to minimize confusion around fullness. Our guidance emphasizes using the correct ATF type, warming the transmission, and verifying levels with the engine running as recommended by the manufacturer. This method gives DIY enthusiasts a reliable framework to assess fullness without guesswork.
Tools & Materials
- Vehicle owner's manual(Specifies ATF type and service interval)
- Automatic Transmission Fluid (ATF) of the correct spec(Use the specified viscosity and spec (e.g., Dexron VI))
- Transmission dipstick or level check port(For reading ATF level when engine is running)
- Funnel(Optional for clean topping up)
- Clean rag/paper towels(For cleaning dipstick and spills)
- Infrared thermometer or temp gun(Optional to verify ATF temp is within spec)
- Safety gear (gloves, eye protection)(Protection when handling hot fluid)

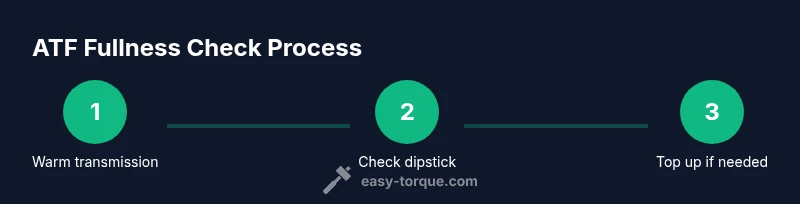

Steps
Estimated time: 30-60 minutes
- 1
Warm the transmission
Start the engine and let the vehicle reach normal operating temperature. This ensures ATF behaves as it would under typical driving conditions, which provides a reliable reading. Do not rush this step; a cold reading can misrepresent fullness.
Tip: If the engine is hot, wait a few minutes for the ATF to stabilize before reading. - 2
Park on level ground and engage parking brake
Stabilize the vehicle to prevent movement during the check. Level ground is essential because a tilt changes the perceived fluid level on the dipstick. Follow your manual for the correct stance and gear position.
Tip: Use a level to verify ground flatness if you’re unsure. - 3
Locate and prepare the dipstick
Remove the dipstick, wipe it clean with a rag, and reinsert fully. This resets the reading so you can see the actual level after the fluid settles. Remove again and check the level marks promptly.
Tip: Keep the dipstick clean to avoid misreads from residue. - 4
Read with engine running (or per manual)
Read the dipstick with the engine running and in Park or Neutral, as specified by your manual. A correct reading should sit within the marked range for operating temperature. If it’s at the edge, recheck after a few minutes of idle and re-evaluate.
Tip: If you’re between marks, allow a short circulation period and re-check. - 5
Top up if low and safe to do so
If the level is below the recommended range, add ATF slowly through the dipstick tube using a funnel. Stop periodically to re-check, and avoid overfilling. Use the exact ATF spec called for by the manual.
Tip: Add in small increments to prevent overfill and splashing. - 6
Re-check temperature and level
After topping up, recheck the level with the engine running and the transmission in the required gear. Ensure the temperature matches the manual’s recommended window. Confirm the level sits within the proper range once more before concluding.
Tip: Take a final reading after a short drive to ensure stability.
Your Questions Answered
Can you fill a torque converter directly?
No. The torque converter is filled through the transmission fluid system; you top up ATF as part of the overall transmission service. Directly filling the converter is not how the system is designed to operate.
No, you don’t fill the torque converter by itself; ATF is added through the transmission as part of the service.
What if the dipstick reads high after reading the manual?
A high reading typically indicates overfill, which can cause foaming and pressure issues. If this occurs, drain the excess ATF per the manual and recheck after allowing fluid to settle.
If the dipstick shows high, it may be overfilled; drain the excess following the manual and recheck.
Why would the level be low even without a leak?
Low ATF can result from seepage, worn seals, or an advancing service interval. Check for slow leaks under the vehicle and consider a complete transmission service if the level drops repeatedly.
If the level is low without a clear leak, it could be a worn seal or a service interval issue; inspect seals and schedule service.
Is temperature important when checking fullness?
Yes. ATF expands with heat, so readings must be taken at the correct operating temperature as specified by the manual. Readings taken at incorrect temperatures can misrepresent fullness.
Temperature matters; read the level when the transmission is within its recommended operating temperature.
How often should I check ATF level?
Follow your vehicle’s manual, but check if you notice slipping, overheating, or unusual noises. Regular checks during maintenance help catch issues early.
Check per the manual, especially if you notice symptoms like slipping or overheating.
What should I do if I suspect converter failure?
Converter failure often requires professional diagnosis and could involve torque converter replacement or related transmission repairs. Start with verifying ATF level and condition before consulting a technician.
If you suspect converter failure, seek a professional diagnosis after verifying ATF level and condition.
Watch Video
Top Takeaways
- Check ATF level at operating temperature.
- Follow the manual for dipstick marks and gear positions.
- Use the correct ATF type to avoid misreadings.
- Read after a full cycle through gears for accuracy.
- Address any persistent fullness issues with a professional.
