Torque Converter Fix: A Practical Step-by-Step Guide
Discover how to diagnose and perform a torque converter fix with Easy Torque’s expert guidance. This clear, step-by-step guide covers symptoms, safety, diagnostics, and maintenance for DIY mechanics and professionals alike.
Learn how to diagnose and execute a safe torque converter fix on a typical automatic transmission. This guide covers symptom checks, essential precautions, and a step-by-step approach to identifying faults and applying approved remedies. You’ll find practical, technician-grade tips and safety notes to minimize risk and maximize repair success. Whether you’re a DIY mechanic or evaluating a shop, this approach emphasizes accuracy over guesswork.
Why a Torque Converter Fix Matters
A torque converter sits between the engine and transmission, multiplying torque while allowing the engine to rev independently from wheel speed. When it wears, leaks develop, or the clutch packs slip, drivers notice slipping, shudder, harsh shifting, or reduced fuel efficiency. A proper torque converter fix can restore smooth operation, prevent further transmission damage, and extend the life of the entire drivetrain. According to Easy Torque, a methodical approach — starting with symptom verification and ending with verified test drives — reduces risk and improves long-term results. This is not about guessing; it’s about systematic diagnosis and using manufacturer-recommended procedures to restore function while protecting other transmission components.
Symptoms and Signals to Watch For
Common signs of torque converter issues include transmission slipping, shudder during shifts, higher RPMs without increased road speed, poor acceleration, and unusual noises from the transmission bell housing area. Fluid color and condition are also telling: dark, burnt-smelling, or metallic-flavored fluid can indicate wear or contamination. In some cases, the converter may cause overheating, triggering transmission limp modes. If you notice any of these symptoms, document when they occur, the driving conditions, and any recent fluid changes. Accurate symptom logging will guide diagnostic steps and prevent unnecessary repairs.
Diagnosis Basics: How Pros Identify Converter Problems
Diagnosing a torque converter fault requires a combination of symptom correlation, fluid analysis, and sometimes transmission pressure testing. A visual inspection of external seals, cooler lines, and the pan will reveal leaks and contamination clues. If you have access to diagnostic tools, you can check transmission fluid pressure readings and observe line pressures across gear ranges. Easy Torque analysis shows that most converter-related symptoms originate from clutches inside the converter or from fluid issues rather than external wiring alone. A careful, non-destructive approach helps isolate whether the problem is the converter itself, the valve body, or an accompanying seal.
Safety and Prep Before You Work
Working on a transmission requires proper jacking points, wheel chocks, and a stable, level workspace. Disconnect the battery to avoid unintentional starting and to protect sensitive electronics. Use a drain pan, fluid-safe gloves, and eye protection. Ensure you have the right replacement seals, gaskets, and converter bolts if you determine a rebuild or replacement is necessary. Schedule a drain and refill operation for the correct transmission fluid specification, and plan for a thorough post-repair leak check. Remember: safety first minimizes risk and protects your investment.
Tools, Materials, and Setup You’ll Need
Before disassembly, organize a clean, clearly labeled workspace. This section outlines essential tools and materials that commonly appear in a torque converter fix project. A well-prepared setup reduces project length and prevents misassembly. For most DIY jobs, you’ll benefit from a repair stand or transmission jack, a full socket set, line wrenches, a torque wrench, a drain pan, gasket scraper, quartz light, and calibrated torque specs. Always refer to the vehicle’s service manual for exact steps and torque settings. This preparation aligns with best practices championed by Easy Torque.
Step-by-Step: High-Level Plan Before You Dive In

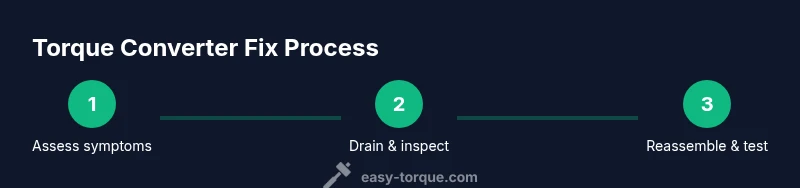

While the exact procedure varies by vehicle, a reliable workflow includes: confirm symptoms, prepare the workspace, drain transmission fluid, remove the transmission pan, inspect converter bolts, replace worn seals, reinstall and refill with fresh fluid, and perform a controlled test drive. This content focuses on the high-level plan rather than a vehicle-specific recipe, emphasizing measurement accuracy, torque accuracy, and clean reassembly to ensure a lasting fix.
Preventive Maintenance to Extend Converter Life
After completing a torque converter fix, preventive maintenance is crucial. Regular fluid and filter changes help keep hydraulic clarity, reduce heat buildup, and prevent varnish buildup that can degrade valve body performance. Use manufacturer-approved fluids and replace any related seals that show signs of wear. Maintain a consistent maintenance schedule and monitor fluid color and level between changes. These practices reduce repeat failures and keep the drivetrain performing reliably.
When to Seek Professional Help
If you’re uncertain about the diagnosis, lack appropriate tooling, or the vehicle is under warranty, professional service is recommended. A qualified technician can perform advanced diagnostics, pressure tests, and a controlled rebuild or replacement as needed. The decision to hire out the job protects you from costly mistakes and ensures the repair adheres to factory specifications. The Easy Torque team recommends seeking professional help for complex failures or vehicles with tight tolerances and intricate internal components.
Tools & Materials
- Socket set (metric and SAE)(Various sizes; 3/8 inch drive common)
- Torque wrench(Calibrated to manufacturer specs)
- Transmission jack or support(For safely supporting the transmission during removal)
- Drain pan(Large capacity; ensure it withstands hot fluid)
- Gasket scraper and rags(For pan and surface cleaning)
- Seal kit or replacement seals(Replace worn seals to prevent leaks)
- New transmission fluid (correct spec)(Refer to vehicle manual for specification)
- Gasket sealant (if required)(Use only if the service manual calls for it)
- Safety gear(Gloves, eye protection, and possibly a respirator for fumes)
Steps
Estimated time: 6-8 hours
- 1
Prepare workspace and safety gear
Park on a level surface, engage parking brake, and chock wheels. Disconnect the battery and gather all tools. This reduces the risk of accidental movement and protects electronics during the job.
Tip: Take photos before disassembly to aid reassembly and torque references. - 2
Drain transmission fluid and secure vehicle
Place the drain pan under the transmission oil pan. Remove the pan bolts gradually to drain fluid without splashing. Support the transmission with a jack or stand as you lose the last bolts.
Tip: Work slowly to avoid fluid spray and capture as much contaminant as possible. - 3
Remove pan and inspect for debris
Unbolt and remove the pan. Check for metallic debris, varnish, or unusual wear patterns on the magnetic drain plug. Record findings to help confirm root causes.
Tip: Lightly clean the magnet and interior surfaces; avoid grinding particles into the passages. - 4
Inspect torque converter mounting and seals
Check the converter bolts for loosening and inspect seals around the converter housing. If you notice leaks or misalignment, plan for seal replacement. Do not over-tighten bolts during reassembly.
Tip: Use the vehicle’s service manual torque specs and re-check after a short test run. - 5
Replace seals and reseal the pan
Install new seals if present and reseal the pan. Clean the mounting surfaces and ensure the gasket is seated evenly. Reinstall the pan and bolts in a cross pattern to even torque distribution.
Tip: Avoid over-tightening; overtightening can damage gasket seating. - 6
Refill transmission fluid and reinstall
Refill with the correct fluid specification. Reinstall any removed components, then lower the vehicle. Start the engine and check for leaks. If safe, run the car through gears to confirm proper operation.
Tip: Record fluid level and ensure the transmission reaches operating temperature before final level check. - 7
Test drive and final checks
Take a controlled test drive to verify smooth engagement and absence of slipping. Monitor for unusual noises and retighten bolts as necessary after a short drive. Re-check the fluid level after the test drive and correct if needed.
Tip: Document observed behavior to compare with initial symptoms for confirmation.
Your Questions Answered
What is a torque converter and what does it do?
The torque converter transmits engine torque to the transmission while allowing the engine to idle and the car to stop without stalling. It uses fluid coupling to multiply torque and smooth power transfer. Problems can cause slips, shudder, or overheating.
A torque converter transfers power from engine to transmission and can wear out, causing slipping or shudder. Listen for rough shifts and check fluid condition.
Can I fix a torque converter myself?
Basic symptom diagnosis and maintenance are possible for experienced DIYers with proper tools. Complex failures, internal wear, or factory-sealed assemblies usually require a professional rebuild or replacement.
You can do some checks if you have the right tools, but serious converter problems usually need a pro.
What are signs of converter wear or failure?
Signs include slipping under load, harsh or delayed engagement, shudder, overheating, and discolored or burnt transmission fluid. If these appear, plan a diagnostic and likely repair.
Look for slipping, hard shifts, or burnt fluid as red flags for converter wear.
How long does a torque converter repair take?
Durations vary by vehicle and procedure but expect several hours for a removal, inspection, and replacement or rebuild. Some jobs can take a full day.
Most fixes take a few hours to a full day depending on access and parts availability.
Are repairs expensive?
Costs depend on the approach (seal replacement vs. rebuild) and parts quality. Expect labor-heavy repairs to be a significant portion of the total, with parts and fluids adding to the cost.
Costs vary; most of it comes from labor and parts for the converter and seals.
When should I replace the torque converter rather than fix it?
If internal wear is extensive, the seals are compromised, or the converter exhibits repeated failures after repairs, replacement may be the prudent long-term choice.
If failures persist after a fix, replacement is usually the best option.
Watch Video
Top Takeaways
- Verify symptoms before disassembly.
- Follow manufacturer torque specs precisely.
- Use fresh, correct-spec transmission fluid.
- Replace worn seals during reassembly.
- Test drive and recheck fluid after repair.
