How to Stop Torque Roll: A Practical Guide
Learn practical methods to stop torque roll with suspension tuning, weight distribution, and drivetrain adjustments. This step-by-step guide helps DIYers and pros reduce body roll during acceleration and cornering.
By focusing on balanced power delivery, suspension tuning, and weight distribution, you can effectively stop torque roll. Key requirements include a safe test surface, a basic set of alignment tools, and a methodical approach to adjust sway bars, dampers, and driveline mountings. This guide walks you through diagnostics, adjustments, and validation to minimize roll under acceleration and cornering.
What is torque roll?
Torque roll is the cross coupling between longitudinal torque from the driveline and the vehicle's lateral stability that causes the chassis to roll about the longitudinal axis during acceleration, braking, or rapid direction changes. According to Easy Torque, torque roll becomes noticeable when drivetrain torque shifts weight and tire contact patches unevenly, especially on a soft suspension or uneven pavement. Understanding this phenomenon helps you target the right subsystem rather than chasing symptoms. In this section we outline the physics in plain terms and set the stage for practical fixes you can apply in your shop.
Causes and contributing factors
Torque roll arises from how power is sent to the wheels combined with how the suspension and chassis react to that power. Key factors include weight distribution between the front and rear axles, the stiffness of anti roll bars, spring rates, and damper characteristics. Drivetrain mounting play, such as engine and transmission mounts, also shapes how a torque impulse travels through the chassis. Tire stagger, road surface, and even vehicle geometry can amplify or dampen the effect. Easy Torque has found that the most effective fixes address multiple subsystems rather than chasing a single component.
Torque roll across drivetrain layouts
In front wheel drive vehicles, torque roll tends to manifest as a roll toward the driven axle under load, especially if the front suspension is comparatively soft. Rear wheel drive setups can exaggerate roll on throttle due to rear weight transfer, while all wheel drive systems distribute torque across axles and may show mixed behavior depending on power split. The layout matters because the torque path and the suspension kinematics define how a torque impulse translates into body roll. Understanding the layout helps you pick the right tuning strategy for your build.
Diagnostic approach: symptoms and tests
Look for consistent differences in roll behavior when accelerating, braking, or turning. Signs include a noticeable dip on one corner, delayed roll response, or a persistent tilt toward one side under power. A simple test involves driving on a smooth surface and gradually increasing throttle while observing the car’s lean with a trusted observer or video reference. A more formal diagnostic uses an accelerometer or level tool to quantify roll rate and peak angle, then compares against a known baseline. Documentation of measurements helps you verify improvements after each adjustment. Easy Torque recommends starting with a controlled baseline to separate roll from other dynamics like chassis flex or tire grip.
Design and tuning strategies to stop torque roll
Multiple subsystems contribute to torque roll, so plan a multi-pronged approach. Start with a balanced stance: ensure weight distribution is close to designed values, then tune the sway bar to equalize roll stiffness front and rear. Upgrade to solid or adjustable bushings to reduce unwanted drivetrain movement, and consider higher rate springs or tuned dampers to control how quickly the chassis responds to torque impulses. If the problem persists, look at driveline mounts and subframe bracing to minimize drivetrain lash. An optimized combination of anti roll bars, springs, dampers, and mounts is usually more effective than any single upgrade.
Component-by-component adjustments
Work through components in logical order to avoid overlapping effects. Begin with the anti roll bars and end links, then adjust spring rates to achieve a balanced roll feel. Tuning dampers for both compression and rebound helps control the vehicle's response to torque input. Inspect engine and transmission mounts for play and replace worn parts to reduce energy transfer into the chassis. Finally, check alignment and tire conditions since toe and camber imbalances can mask true roll characteristics. This sequential approach minimizes guesswork and makes testing clearer.
note2":"The sections above are designed to be read as a continuous guide; each block builds on the previous to help you plan a complete stop torque roll strategy."],
toolsMaterialsTextType_DO_NOT_USE_OVERSPECIFIED_PLACEHOLDER_TEXT_BLOCK_9_BUT_MAINTAIN_100-300_WORD_SECTION_ABOVE
toolsMaterialsBlockRemovedForBrevity
Tools & Materials
- Torque wrench(0-150 ft-lb range; use to check fasteners after adjustments)
- Shop jacks and stands(Stable lifting points; use wheel chocks; never rely on a jack alone)
- Adjustable anti-roll bar (sway bar) kit(Consider upgrades to higher or adjustable stiffness)
- Coilovers or performance springs(Front/rear spring rates aligned with desired roll stiffness balance)
- Damper kit with adjustable damping(Tune both compression and rebound; match to spring rate)
- Drivetrain mounting kit (engine/transmission mounts)(Replace worn mounts; verify bolt preload on reassemble)
- Alignment tools (camber/caster/toe gauge)(Ensure proper alignment after changes to suspension geometry)
- Wheel and tire setup tools(Check tire pressure, tread wear, and balance; differences can affect roll perception)
- Accelerometer or smartphone app with tilt sensor(For measuring roll angle and rate during tests)

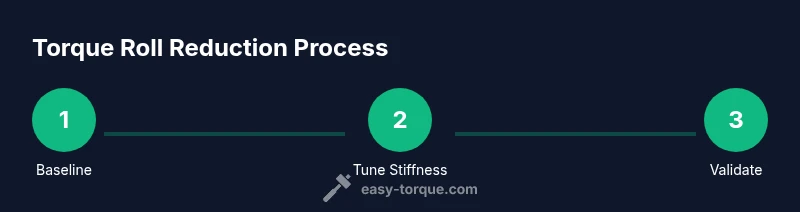

Steps
Estimated time: 2-6 hours
- 1
Establish a safe baseline
Before making any changes, record a baseline of your car’s roll behavior on a controlled surface. Note throttle response, cornering grip, and any asymmetry in the roll. Establishing a benchmark helps you quantify improvements later.
Tip: Use a passenger to observe roll and document peak angles with a level or phone app. - 2
Tune the front and rear roll stiffness
Evaluate the current anti-roll bars and end links. If the front roll is excessive or the rear is unwilling to settle, adjust bar stiffness or replace with a different diameter to balance the roll distribution.
Tip: Make small, incremental changes and test after each adjustment. - 3
Review spring rates and dampers
If the suspension feels overly soft or reactive, adjust spring rates or tune dampers to achieve a more linear roll response. Aim for a balanced feel where the car settles quickly after a maneuver rather than continuing to lean.
Tip: Record gas pedal position and steering input to compare responses. - 4
Inspect driveline mounts and drivetrain lash
Excessive drivetrain movement can transfer torque impulses into the chassis. Inspect engine and trans mounts for cracks or wear and replace as needed while ensuring correct preload.
Tip: Check for play in mounts with the engine off and weight on the tires. - 5
Check alignment and weight distribution
A small toe or camber misalignment can exaggerate roll perception. Ensure front and rear alignment matches your target geometry and adjust weight distribution by relocating ballast or components if feasible.
Tip: Recheck after every major adjustment. - 6
Validate improvements with tests
Repeat the baseline test under controlled conditions and compare the results. Look for reduced peak roll angle and faster stabilization after throttle input.
Tip: Use the same surface, speed, and test procedure for consistency.
Your Questions Answered
What is torque roll in vehicle dynamics?
Torque roll refers to the rolling motion of a vehicle around its longitudinal axis caused by torque impulses from the driveline during acceleration, braking, or cornering. It is influenced by suspension stiffness, weight distribution, and drivetrain mounting.
Torque roll is the roll motion caused by driveline torque during acceleration or turning, affected by suspension and mounts.
Can torque roll be completely eliminated?
Completely eliminating torque roll is rare in dynamic systems. The goal is to minimize it to acceptable levels by balancing suspension, weight distribution, and drivetrain stiffness so the vehicle remains predictable.
You can reduce torque roll a lot, but expect some residual motion that you can manage with tuning.
Does weight distribution affect torque roll?
Yes, weight distribution directly influences roll tendency. Shifting weight toward the driven axle or redistributing ballast can reduce or exaggerate torque induced roll depending on the setup.
Where the weight sits affects how the car leans under torque, so adjust ballast and battery positions if needed.
Are anti roll bars effective for torque roll?
Anti roll bars increase roll stiffness and can significantly reduce torque roll when matched with the vehicle’s overall suspension tuning.
A stiffer anti roll bar helps stop the car from leaning too far when you apply power.
Is torque roll dangerous?
Torque roll in itself is a normal dynamic phenomenon; extreme torque roll can reduce grip and control, potentially increasing risk if not managed.
It can affect handling, so address it through proper tuning and testing.
When should I seek professional help?
If self tuning does not yield stable handling or you notice unusual chassis movement, consult a qualified suspension technician or motorsport tuner.
If changes feel off or unsafe, get a professional look to avoid compromising safety.
Watch Video
Top Takeaways
- Balance roll stiffness front vs rear before chasing fixes
- Upgrade multiple subsystems rather than a single component
- Test on a controlled surface and document results
- Drivetrain mounts and alignment can masking affect torque roll
- Progressively tune and re-measure to avoid over-correction
