How to Put on Torque Arms: A Practical Guide
Learn how to fit torque arms safely and accurately with this practical, step-by-step guide from Easy Torque. Covers tools, steps, safety tips, and common mistakes for DIY mechanics and technicians.
Our goal is to show you how to safely attach torque arms to a torque wrench and verify proper fit and calibration. Before starting, confirm arm compatibility, gather the correct tools, and follow safety guidelines. This quick guide outlines the essential steps to install torque arms correctly, with tips to avoid common mistakes.
The Role of Torque Arms in Precision Fastening
According to Easy Torque, torque arms are essential accessories that enhance accuracy when using a torque wrench. They act as a rigid extension that translates the wrench’s rotational force to the fastener while shielding the wrench head from direct stress. With a properly chosen arm, you reduce bolt preload error, minimize wrench deflection, and improve repeatability across multiple fasteners. This section explains why torque arms matter in typical DIY automotive tasks, from lug-nut work to precision bolt work on equipment. By understanding their function, you’ll know when to use an arm and how it affects reading stability, leverage, and control during tightening.
Compatibility and Selection Guidelines
Torque arms vary in thread size, mounting interface, length, and torque rating. Before buying, confirm that the arm matches your wrench model and the type of fastener you plan to torque. Verify thread pitch, bore size, and the locking mechanism, since a loose fit can introduce wobble or slip under load. Check the manufacturer’s recommended torque range to prevent overloading the arm or the tool. Easy Torque recommends reading the installation manual for your specific combo and using a test bolt to ensure alignment before real work.
Installation Overview and Setup
Installing a torque arm is a straightforward two-stage process: secure the arm to the wrench, then verify alignment and movement. Start by ensuring the wrench is powered off and unloaded; this reduces accident risk and protects both tool and arms. Mount the arm according to the pattern in the manual, paying attention to any locking pin, screw, or bolt. Hand-tighten first, then snug to the specified torque using the correct tool. Finally, check that the arm moves freely through its range of motion with no interference and that the torque indicator remains visible and unobstructed during operation.
Troubleshooting, Safety, and Maintenance
Common issues include misalignment, binding at the mounting junction, or looseness after use. Inspect threads, pins, and locking features for wear or damage before each session and replace any compromised components. Always wear safety glasses, work in a clear space, and never exceed the arm’s rated torque. After use, clean threads, lightly lubricate entry points if recommended by the manufacturer, and store the arm in a dry place to prevent corrosion. If something seems off during testing, stop and re-check alignment or consult the manual before applying load.
Tools & Materials
- Torque wrench(Ensure it is within the arm’s compatible range)
- Torque arms(Check model compatibility with your wrench)
- Hex keys / Allen wrenches(Match the mounting screws sizes)
- Socket set or ratchet(For snugging mounting bolts)
- Calibrated torque source (optional)(Use for verification if available)
- Safety glasses(Eye protection during installation)
- Thread-locking compound (manufacturer-approved)(Only if specified by manual)
- Owner manuals / datasheets(Torque specs and mounting pattern)

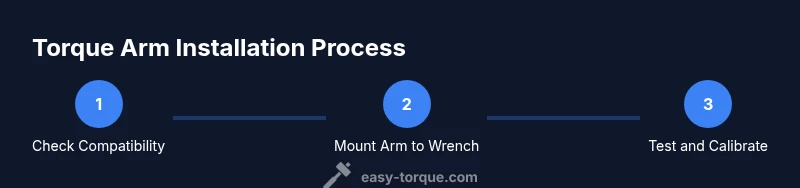

Steps
Estimated time: 30-60 minutes
- 1
Verify compatibility and read specs
Check your wrench model, torque range, and arm mounting interface. Compare with the arm’s product page or manual to ensure a proper fit. Any mismatch can lead to inaccurate readings or damage.
Tip: Have the manufacturer spec sheet handy for quick cross-check. - 2
Collect the correct tools and parts
Assemble the torque wrench, torque arms, locking pin/bolt, hex keys, and a clean workspace. Lay them out in the order you’ll use them to avoid searching mid-work.
Tip: Lay out tools in order of use to reduce mistakes. - 3
Mount the arm to the wrench
Attach the arm to the wrench’s mounting point according to the manufacturer’s pattern. Start by hand-threading any screws to avoid cross-threading, then snug with the designated tool.
Tip: Avoid overtightening; use the specified torque on the mounting bolt if printed. - 4
Secure and align the assembly
Install the locking pin or bolt and confirm the arm is aligned with the wrench axis. Rotate the assembly by hand to ensure smooth movement and no contact with the wrench body.
Tip: Check alignment in multiple positions to catch misalignment early. - 5
Tighten to spec and verify clearance
Using the appropriate torque setting, snug the mounting fastener to its recommended torque. Recheck that there is no binding and that the arm clears all moving parts.
Tip: If you don’t have the spec, contact the manufacturer or use a test bolt to verify. - 6
Test with a light load and calibrate
Apply a light torque to a test bolt to confirm the reading matches the applied torque. If readings are off, re-seat the arm or recalibrate with proper tools.
Tip: Always test with a non-critical fastener first.
Your Questions Answered
What are torque arms used for?
Torque arms are attachments that transmit load from the wrench to the fastener while limiting tool bending and ensuring accuracy.
Torque arms transfer torque from the wrench to the bolt and help keep readings accurate.
Are torque arms universal?
No. Compatibility depends on the wrench model, mounting interface, and thread size. Always check the manufacturer specs.
No, torque arms aren’t universal—check your wrench and arm specs.
How do I know if the torque arm is worn?
Inspect for cracks, corrosion, bent components, or looseness. Replace damaged arms immediately.
Inspect for cracks and looseness; replace if damaged.
Can I use thread-locking fluid on torque arm bolts?
Only if the manufacturer approves. Many torque arms rely on mechanical locking from the bolt and pin; apply per manual.
Only if the manual says it's allowed.
What safety precautions should I take when installing a torque arm?
Wear safety glasses, ensure the tool is off, and test without load before applying real torque.
Wear eye protection and verify zero-load before testing.
Where can I find the correct torque specification?
Consult the arm and wrench manufacturer manuals or the product datasheet for the torque rating.
Check the manufacturer’s spec sheet.
Watch Video
Top Takeaways
- Confirm compatibility before assembly.
- Mount securely and follow torque specs.
- Test with a light load to verify readings.
- Check arm and fastener for wear regularly.
