Torque Wrench Set Up: Step-by-Step for Accurate Fastening
Learn how to correctly set up a torque wrench for accurate fastening. This comprehensive how-to guides you through calibration, tool selection, step-by-step setup, safety, and maintenance for DIY mechanics and professionals.
Mastering torque wrench set up ensures every fastener is tightened to spec, every time. In this guide you will learn the exact setup steps, required tools, and best practices for accuracy and safety. According to Easy Torque, a correct setup reduces variability in applied torque and extends tool life, making automotive maintenance more predictable and repeatable.
Why torque wrench set up matters
The way you set up a torque wrench directly influences accuracy, safety, and repeatability. The Easy Torque team found that a consistent setup minimizes human error and extends the wrench's service life by reducing unnecessary wear on the mechanism. In automotive work, even small torque deviations can lead to over-stressed fasteners or under-torqued joints, which compromise reliability. A proper setup also helps you document torque values for future maintenance and OEM compliance. In this section you'll learn why setup matters, what can go wrong when you skip it, and how a deliberate process keeps projects on track.
Key features to consider when setting up
When selecting and configuring your torque wrench, several features influence reliability:
- Calibration status and date
- Torque range that covers your typical fasteners
- Units (ft-lbs and N-m) and scale visibility
- Drive size and head compatibility
- Click, beam, or digital readouts for feedback
- Grip comfort and torque-angle compatibility
- Maintenance requirements and lubrication guidance
Understanding these features helps you choose the right tool for the job and set it up for repeatable results.
Tools, environment, and safety prerequisites
Before you begin, prepare a clean, stable work area with adequate lighting. A flat surface and a securely mounted fastener test plate reduce movement during setup. Gather a calibrated torque wrench, the correct drive attachments, a calibration certificate or log, a reference fastener for testing, and a torque chart showing your target values. Keep a notebook or digital log to record calibration dates and test results. A disciplined setup routine improves safety by ensuring fasteners are neither over-tightened nor loose in service.
Setup workflow overview (high-level)

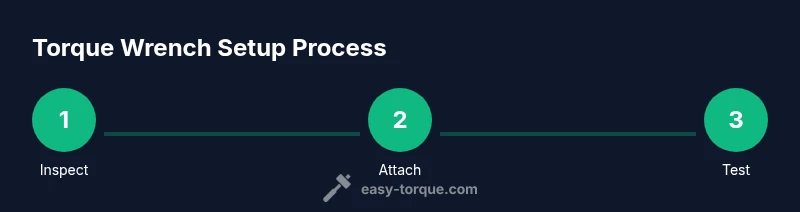

A practical setup workflow follows these stages: verify tool condition; select attachments; set the target torque; perform a verify test; document the setting and test results; and finally store the tool correctly. Each stage has checks to catch common errors, such as using an incompatible head or failing to re-check the setting after changing units. This overview prepares you for the detailed steps in the dedicated step-by-step section.
Verifying and testing the setup
Verification is critical. After setting the target torque, perform a test on a calibrated test bolt or a certified torque tester. Listen for a clean click (for click-type wrenches) or observe the scale reaching the target value (for beam/digital wrenches). If the reading lands outside tolerance, repeat the setup with careful attention to the scale and direction. Keep a log of verification results to track your wrench's accuracy over time.
Common mistakes and how to avoid them
Common errors include using a wrench that's out of calibration, applying torque to a dirty or bent fastener, or failing to apply the same tightening sequence used in service manuals. Avoid over-tightening by cross-checking values in a small chart and using a guided torque chart for your fastener sizes. Always reset the wrench after use and avoid storing it with a set torque applied.
Maintenance, storage, and re-calibration
Regular maintenance prolongs wrench life. Clean the drive, protect the head from impacts, and store in a cool, dry place. Keep calibration records current and schedule re-calibration per the manufacturer’s recommendations or your shop’s policy. If the tool becomes hard to dial or shows inconsistent clicks, retire it for inspection. A well-maintained torque wrench delivers reliable results and reduces the risk of fastener failure.
Types of torque wrenches and when to use them
There are several common types: click-type, beam, and digital torque wrenches. Click-type wrenches provide a tactile 'click' when the target torque is reached and are popular for their reliability and simplicity. Beam wrenches are inexpensive but require visual accuracy. Digital wrenches offer programmable memory, live readouts, and data export. Choose based on your project needs, tolerance, and the level of feedback you require.
Quick-checklists for different projects
Use these quick checklists to apply the setup in real work:
- General maintenance: calibrate yearly, clean drive, store with no pre-set torque.
- Automotive repairs (bolts and lug nuts): verify spec values from OEM documentation, double-check in the service manual.
- Machinery assembly: set to the minimum tolerance with test verification and document results.
Tools & Materials
- Torque wrench(Calibrated within the last 12 months; ensure the drive size matches fasteners.)
- Drive attachments (bits, sockets, or adapters)(Use correct drive size; attach securely to avoid slippage.)
- Calibration certificate or log(Keep on-hand; log last calibration date.)
- Calibration reference fastener or torque tester(Used to verify the wrench reads correctly.)
- Torque chart or OEM spec sheet(Local copy for quick reference.)
- Clean workspace and lint-free cloth(To wipe residue and prevent contamination.)
Steps
Estimated time: 40-60 minutes
- 1
Inspect and verify tool condition
Check the wrench body for damage, inspect the scale for legibility, and confirm the calibration sticker is current. If any doubt exists, do not use the tool until it is recalibrated.
Tip: Record the calibration date in your log. - 2
Choose the correct drive and attachments
Select the correct drive size and attach the appropriate head or socket. Ensure the attachment is snug and aligned with the handle to avoid binding.
Tip: Test fit on a spare fastener to confirm no play. - 3
Set the target torque
Rotate the setting mechanism to align with your target torque value shown on the spec sheet. Use the calibration chart to confirm the unit (e.g., ft-lbs vs N-m).
Tip: Double-check units before tightening. - 4
Perform a verify test
Apply a light test load toward the target value and observe the wrench’s feedback. For click-type wrenches, listen for the precise audible cue. For digital beams, read the display.
Tip: Use a calibrated test bolt for accuracy. - 5
Record and re-check
Log the setting and verification outcome in your maintenance records. Re-check the torque after a few uses or after disassembly to ensure consistency.
Tip: Recalibrate periodically per policy. - 6
Store properly
Store the wrench set to a neutral, non-stressed position, in a dry cabinet away from extreme temperatures and magnetics.
Tip: Keep the case closed to avoid dirt ingress.
Your Questions Answered
What is the first step in torque wrench set up?
The first step is to inspect the wrench for damage and confirm calibration is current. This prevents using a tool that may read inaccurately.
First, inspect the wrench and verify its calibration is current to ensure accurate readings.
How often should a torque wrench be calibrated?
Calibration frequency depends on usage and manufacturer recommendations, but a common practice is at least annually or after heavy use and any drop. Maintain a calibration log.
Calibrate at least once a year or after heavy use, and keep a log.
Can I use any torque wrench for automotive lug nuts?
Lug nuts require a torque wrench with sufficient range and a secure head. Verify the spec from OEM documentation for each fastener.
Only use a wrench that covers the lug nut torque range specified by the manufacturer.
What is the difference between click-type and digital torque wrenches?
Click-type provides tactile feedback and is simple; digital offers programmable memory and live readouts. Choose based on required feedback and budget.
Click types give a click; digital gives a live readout and memory.
Is it safe to use a torque wrench in extreme temperatures?
Extreme temperatures can affect accuracy. Allow the tool to acclimate and avoid sudden temperature changes during setup.
Extreme temps can skew readings; let the tool acclimate.
Watch Video
Top Takeaways
- Always verify calibration before use.
- Match drive size and attachments to fasteners.
- Document torque values and calibration dates.
