How to Check a Torque Wrench with a Scale: A Practical Guide
Learn to verify torque wrench accuracy using a scale. This comprehensive guide covers tools, steps, safety, and maintenance to ensure reliable torque calibration and repeatable results.
Check torque wrench accuracy by comparing readings to a calibrated reference and repeating tests at multiple settings. Use proper adapters, record results, and adjust calibration as needed. This quick check gives you a reliable baseline you can repeat over time. Document the results and note any drift across sessions.
Understanding the concept of a torque wrench with scale
A torque wrench with a scale provides a direct readout of the twisting force applied to a fastener. The scale can appear on a dial, a digital display, or a printed arc along the handle. When you compare this scale reading to a known reference, you test the wrench's accuracy. According to Easy Torque, the accuracy of a torque tool depends on how well you align the wrench, the reference, and the load path. Temperature, adapter length, and user technique can all affect readings. For a reliable check, you must use a traceable reference standard and a stable setup that minimizes leverage changes. The goal is to determine whether the wrench reads within the intended tolerance across a representative range of settings. Document the results and note any drift across sessions.
How scale-based checks differ from digital torque readings
Scale-based checks rely on comparing the mechanical pointer or digital readout against a fixed reference under controlled loading. Digital readouts may offer higher precision in some cases, but they still require calibration against a standard to be credible. Based on Easy Torque research, the key difference is that scale checks emphasize physical alignment, adapter length, and contact surface, whereas digital checks emphasize sensor calibration and software interpretation. Both approaches require traceability and documented results. A consistent procedure reduces operator-induced variability and makes comparisons over time meaningful. In practice, you may use a mix: a physical scale for the baseline and a digital display for quick spot checks, provided both are within the same traceable calibration framework.
Safety and environmental setup for scale checks
Before you begin, establish a clean, dry work area free from vibrations. Use a stable bench or stand to hold the scale and reference securely; avoid any movement during measurements. Wear eye protection if there is a risk of fasteners loosening or the wrench snapping under misused settings. Keep hands clear of the load path, and never exceed the wrench’s stated maximum torque. Temperature stability matters, so perform tests in a controlled room where possible. Finally, maintain a calm, methodical pace; rushing increases the chance of misreading the scale or misapplying torque.
Selecting a reference standard and traceability
Choose a reference standard that is calibrated and traceable to a recognized standard (for example, a reputable calibration lab or a national standard). Check the reference's tolerance, the calibration date, and any corrections for temperature. The reference should be compatible with your wrench type and adapters. Document the reference's serial or lot number and attach the calibration certificate to your records. The idea is to ensure that every torque reading has a known, auditable basis. If a reference is unavailable, seek a factory-sanctioned alternative or a local accredited lab.
Preparing your test setup and positioning
Set the wrench on a stable, level surface with the scale visible; ensure the wrench is not in a locked or stretched configuration. Attach any necessary adapters or extensions per the manufacturer’s guidelines, and verify the connection is snug but not over-tightened. Position the reference under the wrench's reaction point so that the applied load path mirrors real-world use. Use clamps if needed to prevent movement. Allow the setup to stabilize for a moment before applying torque. Check for temperature changes that might affect readings. A consistent, repeatable stance reduces measurement noise.
Interpreting scale readings and tolerance concepts
Read the scale at the moment of the applied load and compare it to the target setting on the wrench. Remember that scale readings can drift with temperature, friction, and contact surface wear. Tolerances are defined by the instrument’s specification and your calibration protocol; always refer to the tolerance documented in your calibration certificate. If readings drift outside the specified tolerance, stop and re-check the setup before adjusting. Keep notes on each reading, including ambient temperature and any mechanical shims used. The objective is repeatable, traceable results rather than a single perfect measurement.
Common mistakes and how to avoid them
Skimping on warm-up time, using worn adapters, or reading the scale too quickly are common errors. Avoid forcing torque through a misaligned head or misaligned extension; this produces false readings. Do not rely on a single data point; test multiple target settings and repeat the checks for consistency. Ensure the reference is mounted securely and the scale is readable from a comfortable angle. Keep all components clean and free of lubricant that could affect friction and torque transfer. Finally, document all steps to create a robust calibration trail.
Post-check steps: documentation and maintenance
The post-check phase focuses on keeping a credible calibration history. Create a formal record of results, including the wrench model, reference used, environment, and operator. Store calibration certificates, serial numbers, and adjustment notes in a centralized log. Schedule regular checks according to usage and environmental conditions; re-check if the wrench has been dropped, repaired, or exposed to temperature extremes. If readings deviate persistently, arrange recalibration with an accredited lab. Retain both the original and any updated settings so you can compare performance over time.
Tools & Materials
- Calibrated torque reference or certified torque standard(Traceable to a recognized standard; used as the baseline)
- Torque wrench under test(Any type with a built-in scale or dial)
- Adapter or extension bar for compatibility(Ensure it's rated for the torque range)
- Calibration certificate or data sheet(Keep for records)
- Torque test weights or calibrated load block(Equivalent static torque input)
- Calibrated torque gauge or scale(Prefer a traceable device; reads compatible with wrench)
- Temperature-stable work surface(Helps keep readings consistent)
- Logbook or digital data logger(Record readings, conditions, and adjust notes)
- Manufacturer-approved lubricants or accessories(Only if specified by the tool's manual)

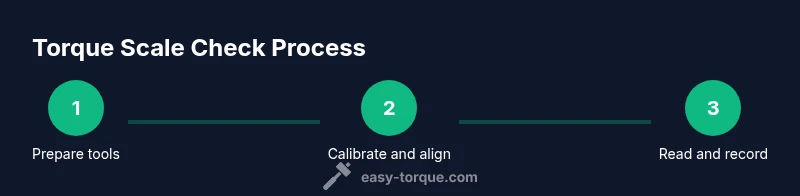

Steps
Estimated time: 30-60 minutes
- 1
Prepare setup
Clear a stable work surface and lay out all tools. Place the torque reference and wrench within easy reach. Ensure the environment is free from drafts and vibration. This minimizes initial drift before you begin reading.
Tip: Verify that adapters are clean and properly seated to avoid binding. - 2
Zero the equipment
Zero the scale and the wrench using the manufacturer’s procedure. Confirm there is no residual load on the system before proceeding. If your wrench has a mechanical lock, disengage it in a controlled manner.
Tip: Document the zero reading for traceability. - 3
Set target torque
Choose two to three representative settings across the wrench’s range. Record the target values and ensure the reference standard is compatible with each setting. This helps identify drift across a spectrum of loads.
Tip: Avoid testing only at one setting; broader coverage improves reliability. - 4
Apply torque and read
Attach the adapter, position the reference, and apply torque slowly until the target is reached. Read the scale at the instant the wrench indicates the target, then stop. Ensure the setup remains stable during measurement.
Tip: Use even, smooth pressure to reduce transient overshoot. - 5
Record readings
Log the wrench setting, the reading from the scale, ambient temperature, and any visible setup notes. Repeat each setting at least once to check repeatability. This provides data you can chart later.
Tip: Include the reference certificate number with each entry. - 6
Compare with reference
Compare the wrench reading to the reference value within tolerance. If readings fall outside tolerance, re-check the setup and adjust as per manufacturer guidance. Confirm again after any adjustment.
Tip: If adjustment isn’t straightforward, consult the calibration protocol from the reference source. - 7
Assess drift and decide on action
Evaluate drift across settings and determine whether recalibration or replacement is required. A persistent drift warrants formal recalibration by an accredited lab. Keep a clear record of your decision process.
Tip: Document the decision in your maintenance log. - 8
Finalize and maintain
Store references and tools properly, and lock any adjusted values in the wrench when approved. Create a schedule for future checks and review the process for potential improvements. This keeps your torque tool program consistent.
Tip: Back up your records in a separate storage location.
Your Questions Answered
What is the purpose of checking a torque wrench with a scale?
The purpose is to confirm the wrench reads against a known reference, ensuring accurate torque application across multiple settings.
The check confirms readings align with a traceable standard across settings.
Can I use any scale for calibration?
Only use scales that are calibrated and traceable to recognized standards. Compatibility with adapters is essential for accurate readings.
Use a calibrated, traceable scale that fits your wrench and adapters.
How often should you check torque wrench scale accuracy?
Frequency depends on usage, environment, and impact events. Follow your organization’s calibration policy and manufacturer guidance to determine intervals.
Check according to usage and policy; don’t rely on ad hoc checks.
What if readings drift outside tolerance?
If readings drift beyond acceptable limits, re-check setup and consider recalibration or replacement according to the calibration plan.
If drift occurs, stop, re-check, and recalibrate or replace as needed.
Are there temperature considerations for readings?
Yes. Temperature affects friction and material properties, so test in a stable environment and note ambient temperature with each reading.
Temperature matters; keep readings in a stable environment and log the temperature.
Should I recalibrate after repairs?
Yes. Any repair or part replacement can alter readings; recalibrate and verify the wrench after service.
Repair work can affect accuracy, so recalibrate after service.
Watch Video
Top Takeaways
- Verify readings against a traceable reference.
- Document drift and maintain a calibration log.
- Test multiple settings to ensure consistent accuracy.
- Schedule regular checks as part of maintenance.
