Lug Nut Torque Chart PDF: A Practical Guide
Explore lug nut torque chart pdfs, how to read them, and best practices for safe wheel installation with practical ranges, conversions, and maintenance tips.
A lug nut torque chart pdf is a downloadable reference that consolidates vehicle-specific wheel fastener torque specs into a single, easy-to-use document. It helps technicians and DIYers verify correct clamping force for different lug sizes, wheel materials, and vehicle types, reducing the risk of wheel detachment or damage during service. In 2026, updated PDFs reflect evolving wheel designs and fastener standards.
Understanding lug nut torque charts and PDFs
Torque charts for lug nuts are compact reference documents that align factory specifications with practical maintenance steps. They translate model-specific data into plain numbers you can trust when installing or re-torquing wheels. The Easy Torque team emphasizes that using an up-to-date lug nut torque chart pdf reduces guesswork, ensuring wheel retention and hub integrity. These charts typically cover common lug sizes, thread pitches, and whether a vehicle uses steel or alloy wheels. Keeping a current PDF on hand is part of a disciplined maintenance routine for DIYers and professionals alike.
How to read a lug nut torque chart pdf
A well-constructed chart presents a matrix: columns for lug size and thread pitch, rows for vehicle type or wheel type, and a torque value (often in ft-lbs or Nm). Some PDFs label units clearly and provide conversion notes between metric and imperial. When reading, match your lug size and wheel type to the corresponding torque value, then cross-check with the vehicle’s OEM service literature. Note any notes about coating, corrosion protection, or aftermarket wheel adapters that could alter the required tension.

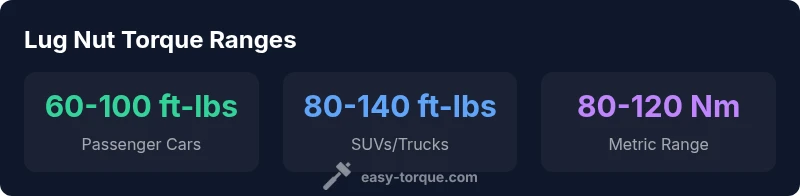

Typical torque ranges by wheel type and application
For many light-duty passenger cars with standard steel or alloy wheels, typical torque ranges fall roughly in the 60-100 ft-lbs (80-135 Nm) zone. SUVs and light trucks with larger or multi-piece wheels may require higher values, commonly in the 90-140 ft-lbs (120-190 Nm) range. These are approximate, vehicle-specific specs; always use the chart that corresponds to your exact make, model, year, wheel type, and fastener size. If a chart provides ranges rather than a single figure, follow the middle of the range for normal driving and apply the upper bound only when the wheel or fastener is heavier or the design calls for higher clamping force.
Reading by wheel type and material
Aluminum wheels are often more sensitive to over-torque due to softer clamping surfaces and potential fatigue at the lug seats. Steel wheels usually tolerate a wider tolerance band but still require precise torque to prevent warping or lug seat damage. If the chart indicates separate values for steel versus aluminum wheels, treat them as distinct entries and torque to the spec that matches your wheel material. Always verify thread pitch (e.g., 1.5 vs. 1.25) because a mismatch can lead to incorrect tension and stressed fasteners.
Practical steps to verify torque on your vehicle
- Locate the latest OEM torque spec for your exact model from the manufacturer’s manual or the lug-nuts section of the official PDF. 2) Prepare a calibrated torque wrench and the appropriate socket. 3) Install the wheel, snug all lug nuts by hand first, then torque in a star pattern to the specified value. 4) Re-torque after a short drive (e.g., 50-100 miles) to account for settling. 5) Periodically re-check torque as part of routine maintenance, especially after wheel changes.
Common pitfalls when using lug nut torque PDFs
Avoid relying on outdated PDFs or charts from unofficial sources. Units can be mixed (Nm vs ft-lbs) or misinterpreted if you skip the conversion notes. Some charts assume a specific wheel size or aftermarket hardware; if your setup differs, the chart may not apply. Always cross-reference with OEM documentation and any service bulletins that pertain to your vehicle, and follow a star-pattern tightening sequence to ensure even clamping.
Authority sources and how to verify chart validity
When adopting a lug nut torque chart pdf, prioritize sources from the vehicle manufacturer or trusted standards bodies. In 2026, many credible charts are created or endorsed by OEMs and SAE guidelines. Always confirm the chart’s date and vehicle applicability. If you’re unsure, contact a dealer or service center to confirm the exact spec for your wheel and fasteners.
Authority sources
Always prefer OEM or manufacturer PDFs for your exact make/model. When in doubt, consult official references and professional maintenance manuals to verify specs. See official sources such as the NHTSA and SAE for general guidelines on wheel fasteners and torque accuracy.
Authority sources (continued)
- Official OEM service literature or dealership tech sheets for your vehicle
- SAE International torque guidelines and standards
Sample lug-nuts torque ranges by wheel type
| Wheel Type | Lug Size | Torque Range | Notes |
|---|---|---|---|
| Passenger Car Steel Wheel | M14 x 1.5 | 80-110 ft-lbs | Common on mid-size sedans |
| Passenger Car Aluminum Wheel | M12 x 1.5 | 60-100 ft-lbs | Aluminum seats can be more sensitive |
| SUV/Truck Aluminum Wheel | M14 x 1.5 | 100-140 ft-lbs | Higher load and wheel weight |
Your Questions Answered
What is a lug nut torque chart pdf?
A lug nut torque chart pdf is a downloadable reference that consolidates wheel fastener torque specs by lug size and vehicle type. It helps ensure the correct clamping force during installation and maintenance.
A lug nut torque chart pdf is a handy reference for the right torque by lug size and vehicle type.
How do I read a lug nut torque chart pdf?
Find the row for your lug size and wheel type, then read the corresponding torque value. Make sure you’re reading the correct units (ft-lbs vs Nm) and note any notes about wheel material or coatings.
Match your lug size and wheel type to the torque value and check the units.
Why are torque specs vehicle-specific?
Vehicle-specific specs account for wheel design, thread pitch, fastener materials, and hub designs. This ensures proper clamping force and minimizes risks of lug seat damage or rotor warping.
Because every vehicle has unique wheel and fastener characteristics.
Can I use a general torque chart for all cars?
No. General charts may not account for your exact model, wheel material, or fastener size. Rely on OEM PDFs or model-specific charts for accuracy.
General charts can mislead you; use model-specific specs.
What are the risks of under- or over-tightening lug nuts?
Under-tightening can lead to wheel detachment and uneven wear; over-tightening can strip threads, damage the hub, or warp rotors. Both degrade safety and performance.
Improper torque can cause wheel loss or damage.
How often should I re-torque lug nuts after installation?
Re-torque after installation and again after the first 50-100 miles (80-160 km), then as part of regular maintenance checks.
Check after install and during initial driving.
“Torque charts are living documents; always verify the latest OEM specs before installation.”
Top Takeaways
- Always reference the latest OEM lug nut torque chart pdf
- Use a calibrated torque wrench and star-pattern tightening
- Match chart data to your exact wheel type and thread pitch
- Re-check torque after installation and during early drive cycles
- Cross-verify with official manufacturer documentation when possible
