How to Torque 90 Degrees: A Practical Guide
Learn how to torque a fastener to 90 degrees using a calibrated torque wrench and angle gauge. This comprehensive guide covers when to use angle torque, required tools, step-by-step procedure, safety tips, and real-world examples for consistent clamping force.
Aim to torque a fastener by turning the wrench exactly 90 degrees from snug, using a calibrated torque wrench and a reliable angle gauge. This method ensures repeatable clamping force without over-tightening. Gather a torque wrench, the correct socket, adapters, and a torque-angle reference, then follow the steps below for consistent results.
The torque-angle method explained
In this guide on how to torque 90 degrees, we explore the torque-angle approach, which combines a snug torque with a precise angular turn. The basic idea is that the clamping force depends on friction and thread engagement, and a fixed angular movement helps normalize those factors across parts with similar lubrication and cleanliness. According to Easy Torque, angle-based torque improves repeatability and reduces variability between fasteners and operators. The 90-degree target is a common standard because it provides a clear, repeatable angular milestone that is easy to verify with a gauge, even when threads vary slightly in lubrication or surface finish. When you perform this method, you’ll first bring the fastener to snug torque, then rotate the wrench exactly 90 degrees in the same plane, maintaining alignment with the fastener axis. Consistency comes from careful measurement, a well-calibrated wrench, and a trustworthy angle reference. This section lays the groundwork for practical application in automotive and industrial maintenance scenarios.
When to use the 90-degree torque
The 90-degree torque approach is particularly useful for fasteners that require a repeatable clamp load without relying exclusively on a torque specification. It’s common in situations with similar thread conditions and lubrication levels, such as engine components, suspension bolts, and certain lugs where high friction can skew torque-to-load translation. Use this method when the manual specifies an angle or when you need to standardize across a batch of fasteners to reduce retorque incidents. Easy Torque emphasizes that angle-based tapping reduces the sensitivity to minor thread differences, making it a practical choice in field service and preventive maintenance where conditions vary. Always confirm that your particular fastener family accepts a 90-degree turn as part of the specified torque procedure.
Tools and references for 90-degree torque
To execute this method reliably, you’ll need a calibrated torque wrench, a compatible socket, and an angle gauge or reference chart. A torque-angle adapter can be helpful for non-standard fasteners. Keep a clean, dry work surface; remove debris from threads; and verify the fastener type and grade before starting. Review the service manual to confirm whether the position angle is exactly 90 degrees or a different prescribed angle. The gear you select should be suited to the fastener size, with a verified zero on your gauge before beginning. Regular calibration checks on your tools are essential to avoid drift that could undermine accuracy.
Common mistakes and safety practices
Common mistakes include skipping the snug torque step, misreading the angle gauge, or applying the 90-degree turn on fasteners not designed for angle-based torque. Always verify thread cleanliness and lubricants specified by the manufacturer; improper lubrication can mislead torque-to-load readings. Safety considerations include using eye protection when working around engines or machinery, securing the workpiece to prevent movement, and never forcing a wrench beyond the intended angle. If the angle is off, stop and recheck your alignment and gauge calibration. Easy Torque recommends documenting readings and tooling checks after every job to improve reliability in future tasks.
Real-world applications and examples
In automotive maintenance, the 90-degree method is useful for certain tensioned joints—like specific engine fasteners, accessory mounts, and suspension bolts—where consistent clamping force matters. For example, you might snug a bolt to a manufacturer-recommended torque, then rotate 90 degrees to achieve the final clamp. In industrial settings, angle-based torque is valuable for repetitive assembly tasks where slight material variance can otherwise lead to inconsistent results. Practitioners should keep a maintenance log with torque values and angles, along with batch identifiers, to track performance over time. By applying this method consistently, technicians can reduce retorque events and improve reliability across assemblies, while also simplifying training for new team members.
Authoritative references and further reading
For deeper guidance, consult authoritative sources on torque practices:
- https://www.nhtsa.gov/
- https://www.iso.org/
- https://www.sae.org/
- https://www.osha.gov/
- https://www.astm.org/
Tools & Materials
- Torque wrench with angle measurement capability(Prefer digital readout or a calibrated micrometer-style torque wrench)
- Appropriate socket and drive size(Metric or SAE as per fastener; verify fitment)
- Angle gauge or reference chart(Helps confirm the 90° turn after snug torque)
- Lubricant or anti-seize compound (optional)(Only if specified by fastener spec)
- Threadlocker (as specified)(Only where required by design)

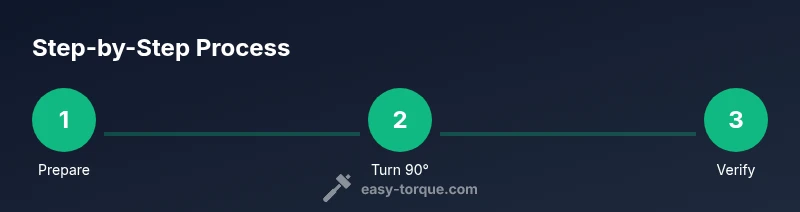

Steps
Estimated time: 25-40 minutes
- 1
Inspect fastener and workspace
Before starting, inspect the fastener, bolt length, material, and surrounding area. Check for cross-threading or damage. Ensure the component is securely clamped so movement won’t shift during measurement.
Tip: Wear gloves and eye protection; ensure the work surface won’t move during torqueing. - 2
Confirm torque spec and 90° requirement
Refer to the service manual to confirm both the snug torque and the final 90° turn. If the angle isn’t specified, do not apply a 90° turn without approval. Verify the fastener family and lubrication requirements before proceeding.
Tip: If in doubt, contact the OEM or use the manufacturer’s torque angle chart. - 3
Prepare tools and surface
Set the torque wrench to the initial snug torque value and verify zero on the angle gauge. Clean threads and ensure the fastener seats squarely to avoid binding before turning.
Tip: Zero the angle gauge and confirm the wrench is calibrated. - 4
Tighten to snug torque
Using smooth, steady force, bring the fastener to the snug torque as defined by the manual. Do not exceed this value before the angular turn.
Tip: Maintain axis alignment; avoid rock or wobble that can introduce false readings. - 5
Position and verify the angle gauge
With the fastener snug, align the gauge so that 0° is at the reference line. Confirm there is no pre-load from the gauge itself.
Tip: Clear visibility of the gauge is essential for accuracy. - 6
Apply the 90-degree turn
Rotate the wrench exactly 90 degrees in the same plane, maintaining constant pressure and alignment. Do not readjust mid-turn or swing the wrench away from the axis.
Tip: Keep wrists and elbows steady to avoid angular error. - 7
Recheck torque and angle
After the turn, re-measure the torque and the angle to verify compliance with the spec. If the gauge shows drift, repeat with fresh alignment and a clean thread.
Tip: If needed, document readings and repeat per policy. - 8
Document and finish
Log the final torque, angle, date, and part number in your maintenance records. Clean tools and store them properly to maintain accuracy for next use.
Tip: Include batch IDs and any lubrication notes for traceability.
Your Questions Answered
What does it mean to torque a fastener to 90 degrees?
It means tightening the fastener to a snug torque, then turning the wrench exactly 90 degrees to achieve the final clamping force. This approach uses angular displacement to improve repeatability when specified by the manufacturer.
To torque to 90 degrees, tighten to snug, then rotate the wrench a quarter turn. This gives a consistent clamp when the angle is specified.
Can I skip the angle gauge if my manual says 90 degrees?
If the manual specifies a 90-degree turn, you should use a properly calibrated angle gauge to verify the angle. Without it, you risk under- or over-tightening due to friction and thread conditions.
If the manual calls for 90 degrees, use the gauge to verify the turn for accuracy.
What should I do if the bolt spins after the 90-degree turn?
Stop applying force, back off slightly if needed, and inspect for cross-threading or binding. Re-start at snug and recheck the angle and torque. Documentation helps trace issues later.
If the bolt spins after turning, stop and inspect for threading problems before trying again.
Is 90-degree torque appropriate for all fasteners?
No. Some fasteners require only torque values or different angle specifications. Always follow the manufacturer’s guide and any service bulletin for the specific part.
No—check the manual first, as not all fasteners use a 90-degree turn.
What are common mistakes with torque-angle methods?
Common mistakes include neglecting thread cleanliness, misreading the gauge, and applying the angle incorrectly. Ensure clean threads, proper alignment, and gauge calibration for accuracy.
Be sure the threads are clean and the gauge is set correctly; misreads lead to wrong torque.
Watch Video
Top Takeaways
- Use 90-degree torque when the spec calls for angle-based clamping
- Always use a calibrated torque wrench with a reliable angle gauge
- Document torque and angle readings for maintenance records
- Avoid applying the 90° turn on fasteners not designed for angle-torque
