How to Torque Intake Manifold: A Complete Guide
Learn how to torque an intake manifold correctly with a precise sequence, proper surface prep, and a thorough post-install check to prevent leaks and ensure engine reliability.
How to torque intake manifold correctly: you’ll learn the proper torque sequence, when to apply initial and final torques, and how to inspect surfaces and gaskets for a leak-free seal. Gather a calibrated torque wrench, the vehicle’s factory specifications, and a clean work area. Follow a straight bolt pattern, use new gaskets, and torque in stages to avoid warping and leaks.
Why torqueing intake manifold matters
When you learn how to torque intake manifold bolts, you’re protecting engine integrity. Improper torque can cause gasket leaks, manifold warp, or bolt loosening, all of which threaten performance and reliability. According to Easy Torque Analysis, 2026, correct torque Sequencing and clean mating surfaces are essential to seal longevity. In practice, you want even clamping pressure across the gasket to prevent leaks and maintain proper runner alignment. A well-torqued manifold ensures consistent vacuum and fuel delivery, reduces the risk of bolt failure, and supports long-term engine health. Think of torque as the final adhesive between the manifold and the head: done right, it keeps hot gases where they belong and prevents creeping leaks over time.
Torque basics: bolts, threads, and patterns
Understanding the basics helps you perform the task with confidence. Intake manifold bolts are cylinder head fasteners that require careful thread engagement and proper lubrication if the service manual calls for it. The bolt pattern matters as much as the torque value; a criss-cross or star pattern is commonly used to distribute clamping force evenly. When you study how to torque intake manifold, you should also verify bolt length, thread pitch, and whether you’re dealing with aluminum or steel components. Even small deviations in torque steps can cause gasket misalignment or an uneven seal, so plan your approach before touching tools.
Planning the teardown and access
Before you apply a torque wrench, you need space and clean access to the bolts. Remove obstructions such as the intake tube, throttle body, or sensor assemblies if the service manual requires, and cover open ports to prevent debris ingress. Organize bolts by location so you don’t mix them up, and inspect bolt heads for wear. This planning phase reduces the risk of cross-threading and helps you maintain a steady workflow when executing the torque sequence. As you prep, keep the surface clean and dry; even a tiny amount of oil can affect bolt seating.
Surface prep and gasket considerations
Surface cleanliness is non-negotiable. Begin by removing the old gasket remnants and any gasket sealant from both the manifold and the head surface. Use a plastic scraper to avoid scratching the mating surfaces, then wipe with a lint-free solvent and allow to dry. A fresh gasket is essential for a proper seal, so replace it with the exact part specified for your engine. If your service manual calls for a sealant, apply a thin, even film only where recommended. The goal is a perfectly flat, debris-free interface that seats evenly under clamp pressure.
Bolt health, lubrication, and thread prep
Inspect all bolts for bending, corrosion, or thread damage. Replace compromised fasteners with ones of the same grade and length. If the manual permits lubrication, apply a light coat of engine oil to the threads and under the head to promote smooth seating and even load distribution. Be careful not to over-lubricate, which can cause the bolt to tighten beyond the intended torque. Cleaning metal shavings from threads after removal is crucial to avoid future binds or bolt loosening.
Gasket installation and manifold alignment
Place the new gasket carefully, ensuring it is centered and oriented correctly. Align the manifold with the gasket and head using the mounting studs or alignment dowels if present. Avoid shifting the gasket during placement, which can create gaps or leaks. If your engine has multiple seals or O-rings, install them in the correct positions before hand-tightening the bolts. A careful initial seating reduces the chance of displacement when you begin torque work.
Following the tightening sequence: seating, intermediate, and final passes
Begin with a light seating pass to snug the bolts and take up any gasket compression. Then tighten in a criss-cross or star pattern to distribute load evenly, advancing in small increments. If the manual specifies multiple passes, complete each until the bolts feel uniformly tight. Finally, perform a final check in the same sequence to confirm even seating and alignment. This staged approach minimizes distortion and helps achieve a uniform seal.
Final inspection, reassembly, and test run
With all bolts torqued, reassemble any removed components and reconnect electrical connections as needed. Start the engine and listen for unusual sounds or leaks around the manifold. A brief idle and a low-rpm test can reveal gasket leaks before a road test. If you observe any seepage, stop and re-torque as required by the service manual. Document any deviations for future reference and maintain a clean, dry work area for ongoing reliability.
Post-install checks and long-term maintenance
After the initial test, recheck torque after a short operation, especially on engines that heat-cycle the manifold assembly. Inspect mounting points, hoses, and sensors periodically for signs of loosening or gasket degradation. Keeping a log of torque-related service helps track wear and prevents surprises on future maintenance. This proactive approach reduces the risk of late-stage failures and extends the life of your engine components.
Tools & Materials
- Calibrated torque wrench(Spec according to vehicle manufacturer; pick a range that covers intake manifold bolts.)
- New intake manifold gasket(Replace with matched part; ensure compatibility with engine model.)
- Lint-free rags(For clean surfaces and quick wipe-downs.)
- Engine oil or lubricant (per manual)(Use only if specified by service manual for bolt threads.)
- Gasket sealant (if required by manual)(Apply only where the manual specifies.)
- Thread cleaner/brush(Remove old debris before reinstall.)
- Service manual or OEM torque specs(Primary reference for sequence and final torque values.)
- Safety gear (gloves, eye protection)(Protect hands and eyes during removal and installation.)
- Screwdriver/pliers (for accessories)(Used to remove/install ancillary parts as needed.)

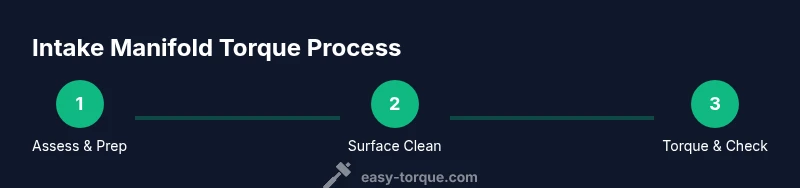

Steps
Estimated time: 45-60 minutes
- 1
Prepare workspace and safety checks
Set up a clean, well-lit workspace. Disconnect the battery negative terminal to prevent accidental starts. Verify the engine is cool before touching hot components. Gather all tools and bolts in labeled containers to avoid mixups.
Tip: Double-check that you’ve got the correct bolts for each location before starting. - 2
Access and disassemble as needed
Remove any components that block access to the manifold bolts, such as the intake ducting or throttle body. Keep track of every bolt’s location and length. Use a magnetic tray to prevent loss in the engine bay.
Tip: Label bolts by position to avoid cross-threading during reassembly. - 3
Clean mating surfaces and install gasket
Scrape off old gasket remnants with a plastic scraper, then wipe both surfaces with a lint-free cloth and solvent. Install the new gasket, ensuring proper orientation and alignment with dowels or studs if present.
Tip: Check for scratches or nicks that could compromise sealing surfaces. - 4
Prepare bolts and threads
Inspect bolts for wear; replace if damaged. Clean threads and apply a light coat of engine oil if the service manual allows, focusing on the first several threads to promote even seating.
Tip: Avoid over-oiling to prevent over-tightening. - 5
Position manifold and gasket alignment
Carefully place the manifold, aligning it with studs and dowels. Ensure gasket stays seated during placement to maintain a uniform seal across the entire surface.
Tip: Do not shift the gasket after seating handles to prevent leaks. - 6
Apply initial seating and pattern tightening
Hand-tighten bolts to seat the manifold gasket evenly. Move in a criss-cross or star pattern to begin even clamping pressure across the gasket.
Tip: Aim for uniform seating before applying final torque. - 7
Final torque checks in pattern
Follow the recommended sequence for final torque. Tighten in small increments until the bolts reach spec, then recheck in the same pattern to confirm consistency.
Tip: If a torque angle gauge is specified, use it to complete the final angles as directed. - 8
Reassemble and test
Reinstall any components removed for access. Reconnect the battery, start the engine, and check for leaks with a cold start followed by a brief idle run.
Tip: Listen for hissing or bubbling indicating gasket issues.
Your Questions Answered
What happens if intake manifold bolts are under-torqued or over-torqued?
Under-torquing can allow leaks and gasket movement, while over-torquing risks bolt stretch and warped surfaces. Both scenarios can cause vacuum leaks and engine performance issues. Always follow the manufacturer’s torque specs and pattern.
Under-torque can cause leaks, while over-torque can damage the manifold. Follow the exact pattern for a proper seal.
Should I replace bolts every time I remove the intake manifold?
Many manufacturers recommend replacing bolts when removing the manifold, especially if the bolts are stretch or one-time-use fasteners. Check the service manual for your engine and follow its guidance on bolt reuse.
In most cases, replace the bolts if the manual says so; reuse only if specified.
Can I use gasket sealant with a new gasket?
Use gasket sealant only if the service manual calls for it. Some gaskets are designed to seal without sealant, while others require a thin film in specific locations.
Only apply sealant where the manual instructs; otherwise, skip it.
Is it possible to torque the manifold without removing other components?
Some applications allow access from the engine bay, but many require partial removal of surrounding components. Consult the service manual for your exact setup.
Often you can access from the engine bay, but verify with the manual.
What torque sequence should I use for a square or irregular pattern?
Irregular patterns should still follow an even, cross-like pattern to distribute load evenly. Always start from the center or a logical anchor point and proceed in a balanced sequence.
Use a balanced pattern to spread load evenly; start from the center if possible.
Where can I find the correct torque specs for my engine?
Torque specs vary by engine. Refer to the vehicle’s service manual or OEM publication for the exact values and sequence.
Check the service manual for your engine’s exact torque specs.
Watch Video
Top Takeaways
- Follow the manufacturer’s torque sequence for even clamping
- Replace gasket and use new bolts when specified
- Clean mating surfaces and inspect threads before reassembly
- Verify final torque with the same pattern used for seating
