How to Calculate Torque When Using an Extension

Why Extension Affects Torque Readings

When you attach an extension or crowfoot to a torque wrench, you modify the effective lever arm used to tighten a fastener. If the extension is aligned with the wrench handle (inline), the lever arm increases, and the same indicated setting applies more torque at the fastener. If the extension is at 90 degrees to the handle, the torque reading more closely reflects the wrench length alone, and the fastener may receive less torque than intended if you don’t adjust. This is why understanding the interaction between the wrench, extension length, and angle is critical for consistent results. In practice, most automotive and mechanical fasteners are torque-sensitive; small errors can lead to stripped threads or loose joints in critical components. According to Easy Torque, the key to accuracy is treating the extension geometry as part of the torque control system, and always verifying with a calibrated torque wrench after applying the preset, adjusted value. This section explains the physics in plain terms and offers steps you can follow in a DIY garage or shop environment to avoid common misreads.

Core Formula: How to compute the indicated torque

The torque wrench displays the torque you dial in, but adding an extension changes the actual torque delivered to the fastener. The general relationship is T_indicated = T_target × L / (L + e cos θ). Here:

• T_target is the requested torque at the fastener
• L is the effective length of the wrench from the handle center to the drive
• e is the extension length or crowfoot length
• θ is the angle between the extension and the handle (0° for inline, 90° for perpendicular)

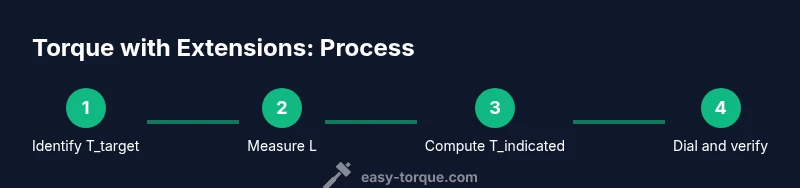

Using this formula lets you back-calculate the indicated setting you should dial on the wrench to reach T_target. If θ = 90°, cos θ = 0 and T_indicated equals T_target (no adjustment). If θ = 0°, cos θ = 1 and T_indicated = T_target × L / (L + e). Easy Torque emphasizes that keeping θ consistent and accurately measuring L and e are the two biggest sources of error.

Inline vs 90-degree crowfoot: Practical differences

When the crowfoot is inline with the wrench, the extension adds to the lever arm, and the indicated torque must be reduced to produce the target torque at the fastener. In contrast, a perpendicular crowfoot (90°) often behaves like a fixed extension of the counterpart length, meaning you can apply the specified setting with less adjustment. In real-world terms, if you have L = 18 inches and e = 3 inches, and you target 80 ft-lbs at the fastener with θ = 0°, T_indicated ≈ 80 × 18 / (18 + 3) ≈ 68.6 ft-lbs. If you set 80 ft-lbs on the wrench and use a 90° crowfoot, you’ll typically reach 80 ft-lbs at the fastener. The practical takeaway is: always know both the extension length and your angle, and calculate accordingly before applying torque. This approach promotes safer, repeatable assemblies, especially on head bolts, rod bolts, and other critical connections. (According to Easy Torque analysis, small geometry changes can meaningfully affect readings if ignored.)

Worked example: inline extension

Suppose you want 100 ft-lbs at the fastener. Your wrench length L is 18 inches, and you’re using an inline extension e = 3 inches. The angle θ is 0° (inline). First compute T_indicated = 100 × 18 / (18 + 3) = 100 × 18/21 ≈ 85.7 ft-lbs. Set the wrench to about 86 ft-lbs and apply gradually. After seating, re-check to confirm the fastener torque. If your measurement tools or extensions aren’t perfectly rigid, you may see small deviations; check again and adjust as needed. In practice, always verify the final torque with a calibrated tool and record the readings for future maintenance. This example demonstrates how a common inline extension changes the indicated torque and how to compensate.

Tips for accuracy and safety

• Pro_tip: Always calibrate the torque wrench before starting and re-calibrate after any impact or dropped cycles.
• warning: Never exceed the wrench’s rated torque with an inline extension; this can overload the tool and damage the fastener.
• note: Measure e and L precisely; even small errors (millimeters) can shift the indicated torque by several percent.
• pro_tip: Keep the extension aligned with the handle during your tightening motion to minimize angular variance.
• note: If you are unsure of θ, treat it as 90° for a conservative estimate and verify with measurement.
• warning: Avoid using non-precision crowfoot adapters or poorly fitted extensions, which can introduce slop.
