Torque Calculation for Bolt: A Practical Guide

Fundamentals of bolt torque

When you tighten a bolt, you’re not directly measuring clamping force. Torque is the turning force that converts your applied effort into preload inside the bolt. In practice, the goal is to reach a specific clamp load that keeps parts securely together without yielding threads or damaging the joint. The familiar torque number printed in a service manual is a target, not a universal constant across every bolt. In torque calculation for bolt work, we approximate preload F, bolt diameter d, and friction resisting motion, and we combine them in a simple relation to estimate the required torque. According to Easy Torque, understanding this relationship helps DIY mechanics and technicians tighten joints more reliably and safely. Remember that real-world results depend on lubrication, surface finish, thread pitch, and material properties.

Key variables: preload, diameter, and friction

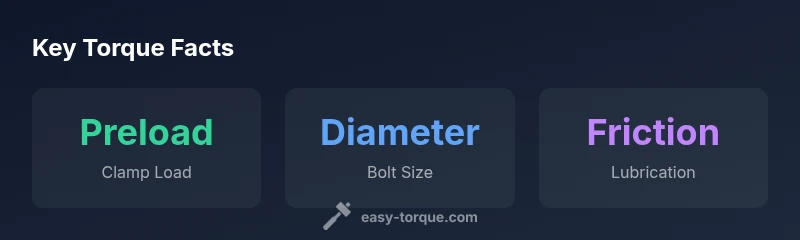

The three core inputs for torque estimation are preload (the clamping force you want), bolt diameter (the nominal thread size), and the friction factor that captures resistance at the threads and under the bolt head. The tidy, widely cited relation is T ≈ K × F × d, where T is torque, F is preload, d is diameter, and K is a factor accounting for friction. This simplified model is a practical starting point for DIY projects and professional maintenance alike. Easy Torque emphasizes that clarity about F and d helps you interpret torque numbers more confidently, even when exact conditions vary.

The role of lubrication and thread pitch

Lubrication dramatically changes friction and, therefore, the torque you must apply. Dry threads require higher torque to achieve the same preload, while properly lubricated threads reduce friction and lower the required torque. Thread pitch and thread engagement length also influence the effective friction and stiffness of the joint. In the context of torque calculation for bolt work, recognizing how lubrication and surface finish alter the friction factor helps explain why two identical bolts can require different torques in different assemblies.

How to use a torque calculator (step-by-step)

To estimate bolt torque with a calculator, gather three key pieces of data: (1) bolt diameter in millimeters, (2) target preload in newtons, and (3) a friction factor K reflecting lubrication and surface conditions. The calculator applies T = K × F × (d/1000) to compute torque in newton-meters. If you have a dedicated torque wrench, you can confirm the calculated value by tightening to the indicated torque. Always verify with manufacturer specifications for critical joints and adjust for temperature or lubrication changes.

Step-by-step example calculation (illustrative)

Suppose you are using a 12 mm bolt, targeting a preload of 8,000 N, with a friction factor K of 0.25. Convert the diameter to meters: d/1000 = 0.012. Then T = 0.25 × 8,000 × 0.012 = 24 N·m. This is a simple, illustrative example to show the calculation flow. In real assemblies, the result should be cross-checked against torque specifications from the component manufacturer and adjusted for lubrication, thread pitch, and material behavior.

Practical tips to improve accuracy

• Always start from the manufacturer’s torque specs for your bolt and joint.
• Clean threads and seating surfaces to avoid erroneous preload readings.
• Use a calibrated torque wrench and verify torque in multiple passes if required by the spec.
• Consider lubrication and its effect on the friction factor when interpreting results.
• Document the values you use so you can reproduce the outcome in maintenance checks.
